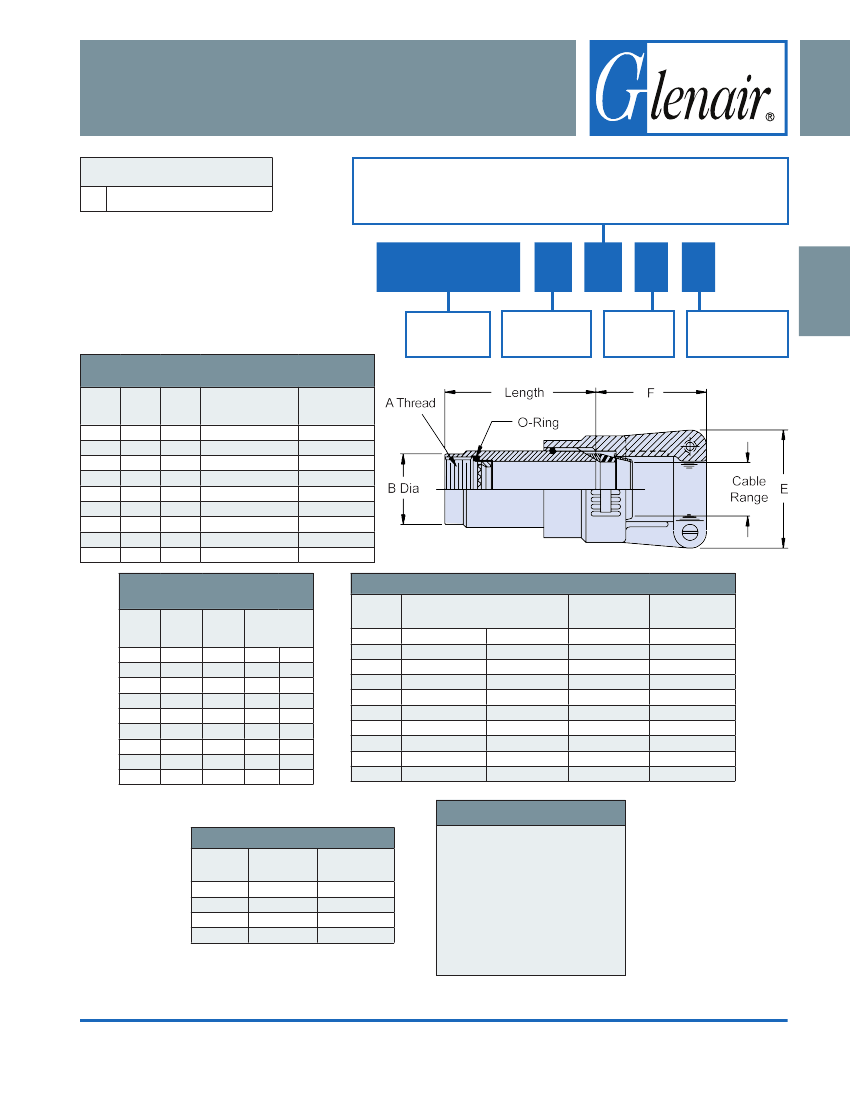

AS85049/17
Straight EMI/RFI Environmental Backshell
CONNECTOR DESIGNATOR:
F
MIL-DTL-38999 Series I and II
N
= Electroless Nickel
W
= 1,000 Hr. Cadmium Olive Drab
over Electroless Nickel
Finish
X
= Aluminum, Nickel Flurocarbon Polymer
Z
= Aluminum, Zinc-Nickel, Black
M85049/17
Basic
Part Number
10
Dash Number
(Table I)
N
03
A
Length Code
(Table IV)
Omit for Standard
B
Clamp Size
(Table III)
TABLE I: Shell Size,
Thread and Dimensions
Dash
No.
08
10
12
14
16
18
20
22
24
Series I
Shell
Size
09
11
13
15
17
19
21
23
25
Series II
Shell
Size
08
10
12
14
16
18
20
22
24
A Thread
Class 2B
.438 - 28 UNEF
.562 - 24 UNEF
.688 - 24 UNEF
.813 - 20 UNEF
.938 - 20 UNEF
1.063 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
B Dia
Max
.570
.700
.830
.950
1.080
1.200
1.330
1.450
1.580
(14.5)
(17.8)
(21.1)
(24.1)
(27.4)
(30.5)
(33.8)
(36.8)
(40.1)
TABLE II: Shell Size
and Clamp Size
Dash
No.
08
10
12
14
16
18
20
22
24
Series I
TABLE III: Clamp Size, Cable Range and Dimensions
Clamp
Size
01
02
03
04
05
06
07
08
09
10
Min
.062
.125
.250
.375
.500
.625
.750
.875
1.000
1.125
Cable Range
Max
.125
.250
.375
.500
.625
.750
.875
1.000
1.125
1.250
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
(31.8)
E
Max
.781
.969
1.062
1.156
1.250
1.375
1.500
1.625
1.750
1.875
(19.8)
(24.6)
(27.0)
(29.4)
(31.8)
(34.9)
(38.1)
(41.3)
(44.5)
(47.6)
F
Max
1.250
1.250
1.250
1.250
1.312
1.375
1.500
1.625
1.625
1.625
(31.8)
(31.8)
(31.8)
(31.8)
(33.3)
(34.9)
(38.1)
(41.3)
(41.3)
(41.3)
Shell
Size
09
11
13
15
17
19
21
23
25
Series II
Shell
Size
08
10
12
14
16
18
20
22
24
Clamp Size
Min Max
01
01
02
02
02
03
03
03
04
02
03
04
05
06
07
08
09
10
(1.6)
(3.2)
(6.4)
(9.5)
(12.7)
(15.9)
(19.1)
(22.2)
(25.4)
(28.6)
APPLICATION NOTES
TABLE IV: Length Code
Length
Code
Standard
A
B
C
Available
Shell Sizes
08 - 24
08 - 24
14 - 24
20 - 24
Length
1.500 (38.1)
2.500 (63.5)
3.500 (88.9)
4.500 (114.3)
1.
2.
3.
For complete dimensions
see the applicable Military
Specification.
Metric dimensions (mm) are in
parentheses.
Cable Range is defined as
the accommodation range
for the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-37
E-Mail: sales@glenair.com
AS85049
