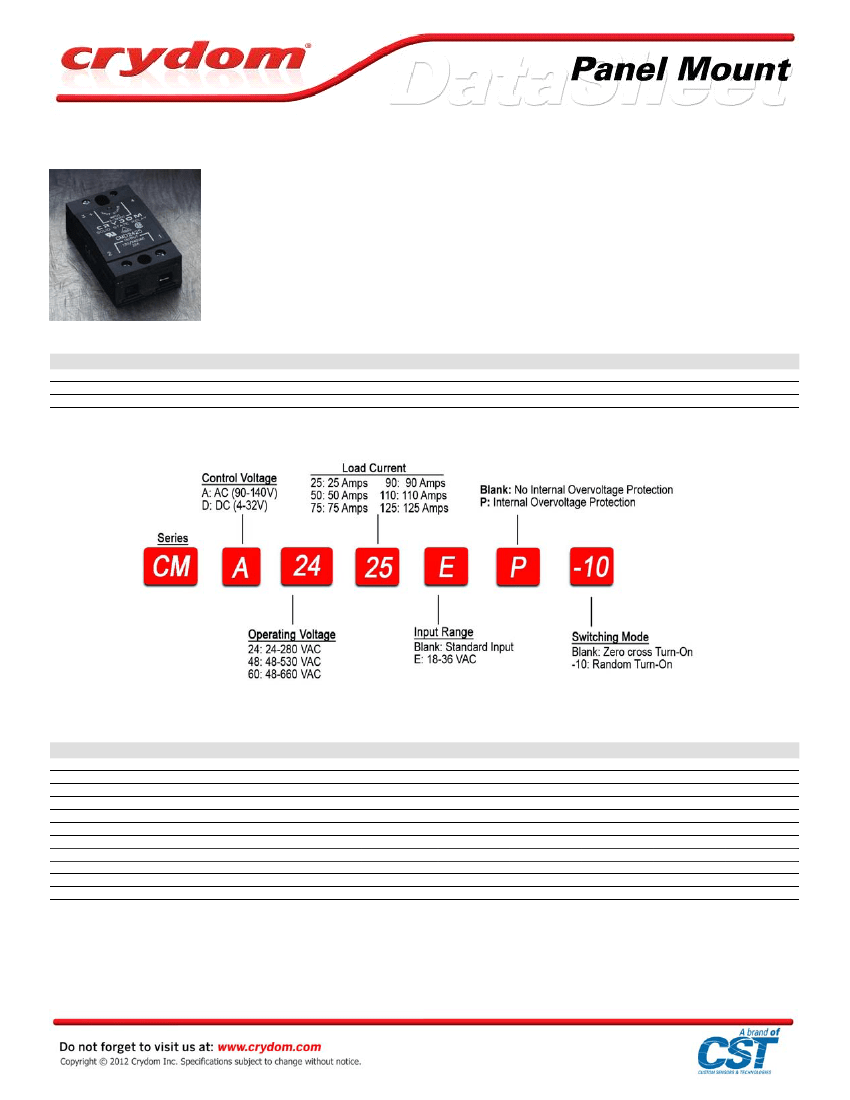

CMD/CMA24 Series

• Ratings from 25A to 125A @ 24-280 VAC

• SCR output for heavy industrial loads

• AC or DC control

• LED input status indicator

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

• IP20 touch-safe housing

• Standard box-clamp connections

PRODUCT SELECTION

Control Voltage

3-32 VDC

90-140 VAC

18-36 VAC

25A

CMD2425

CMA2425

CMA2425E

50A

CMD2450

CMA2450

CMA2450E

75A

CMD2475

CMA2475

CMA2475E

90A

CMD2490

CMA2490

CMA2490E

110A

CMD24110

CMA24110

CMA24110E

125A

CMD24125

CMA24125

CMA24125E

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current (3) [Arms]

Minimum Load Current [Arms]

Maximum 1 Cycle Surge Current (50/60) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum I² t for Fusing 50/60Hz (1/2 cycle) [A² sec]

Minimum Power Factor (with Maximum Load)

25A

24-280

600

500

0.15

239/250

1.6

1.02

285/259

0.5

50A

24-280

600

500

0.15

597/625

1.6

0.63

1779/1621

0.5

75A

24-280

600

500

0.25

954/1000

1.6

0.31

4555/4150

0.5

90A

24-280

600

500

0.25

1145/1200

1.6

0.28

6560/5976

0.5

110A

24-280

600

500

110

0.25

1432/1500

1.6

0.25

10249/9338

0.5

125A

24-280

600

500

125

0.025

1670/1750

1.6

0.22

13950/12709

0.5
