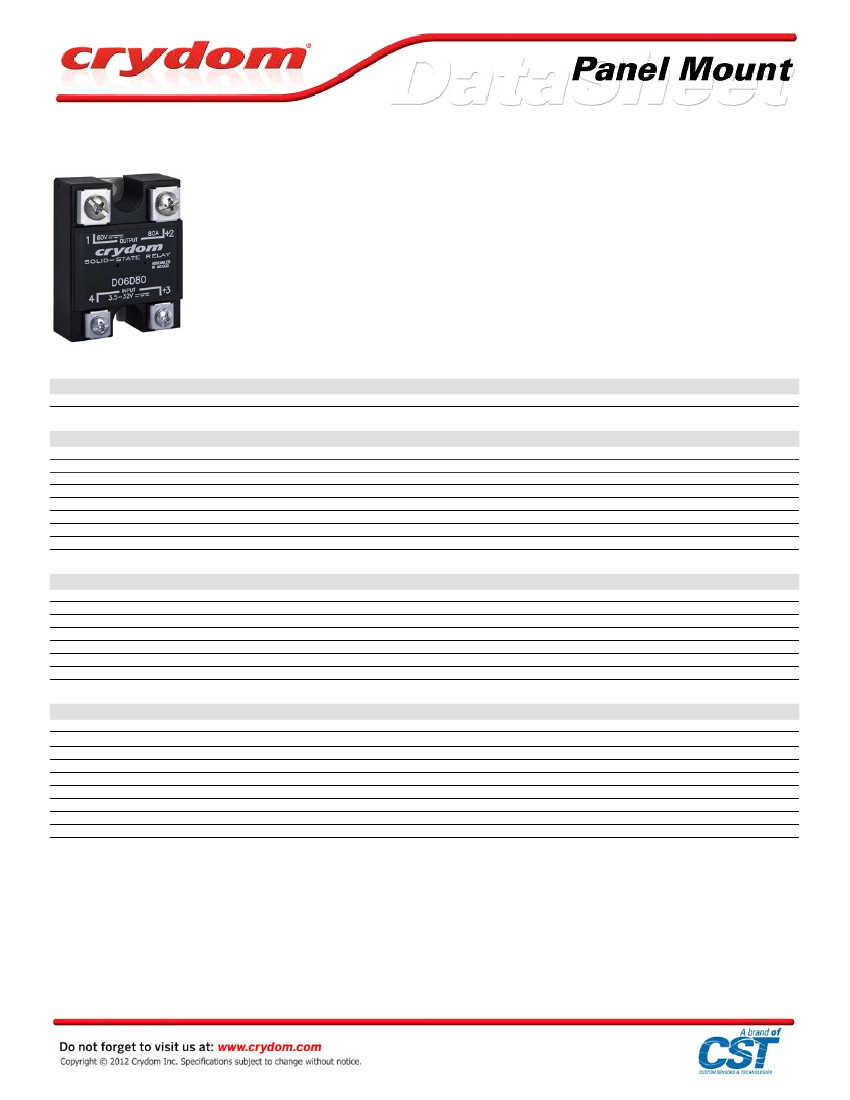

D06D Series
• MOSFET output
• Ratings from 60A to 100A @ 60 VDC
• DC control
• Relays are easily paralleled for higher-current applications
PRODUCT SELECTION
Control Voltage
3.5-32 VDC
60A
D06D60
80A
D06D80
100A
D06D100
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage Range
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum On-State Resistance @ Rated Current [RDS-ON][Ohms]
Maximum Load Current (3) [Adc]
Minimum Load Current [mA]
Maximum Surge Current [Adc] (10ms)
Maximum On-State Voltage Drop @ Rated Current [Vdc]
Thermal Resistance Junction to Case (Rjc) [°C/W]
0-60 VDC
0.1
0.010
60
5
180
0.6
0.6
0-60 VDC
0.2
0.008
80
5
220
0.7
0.47
0-60 VDC
0.3
0.005
100
5
270
0.5
0.32
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [μsec]
Maximum Turn-Off Time [msec]
DC Control
3.5-32 VDC
3.5 VDC
1.0 VDC
1.6 mA (5 VDC), 28 mA (32 VDC)
See Note 4
300
1.0
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Recommended Terminal Screw Torque Range:
Parameters
2500 Vrms
10
9
Ohm
50 pF
-30 to 80°C
-40 to 125 °C
3.0 oz (86.5g)
Thermally conductive Epoxy
Screws and Saddle Clamps Furnished, Unmounted
6-32 Screws - 10 in lbs. 8-32 and 10-32 Screws -20 in. lbs. (Screws dry without grase)
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.
2) Dielectric strength and insulation resistance are measured between input and output.

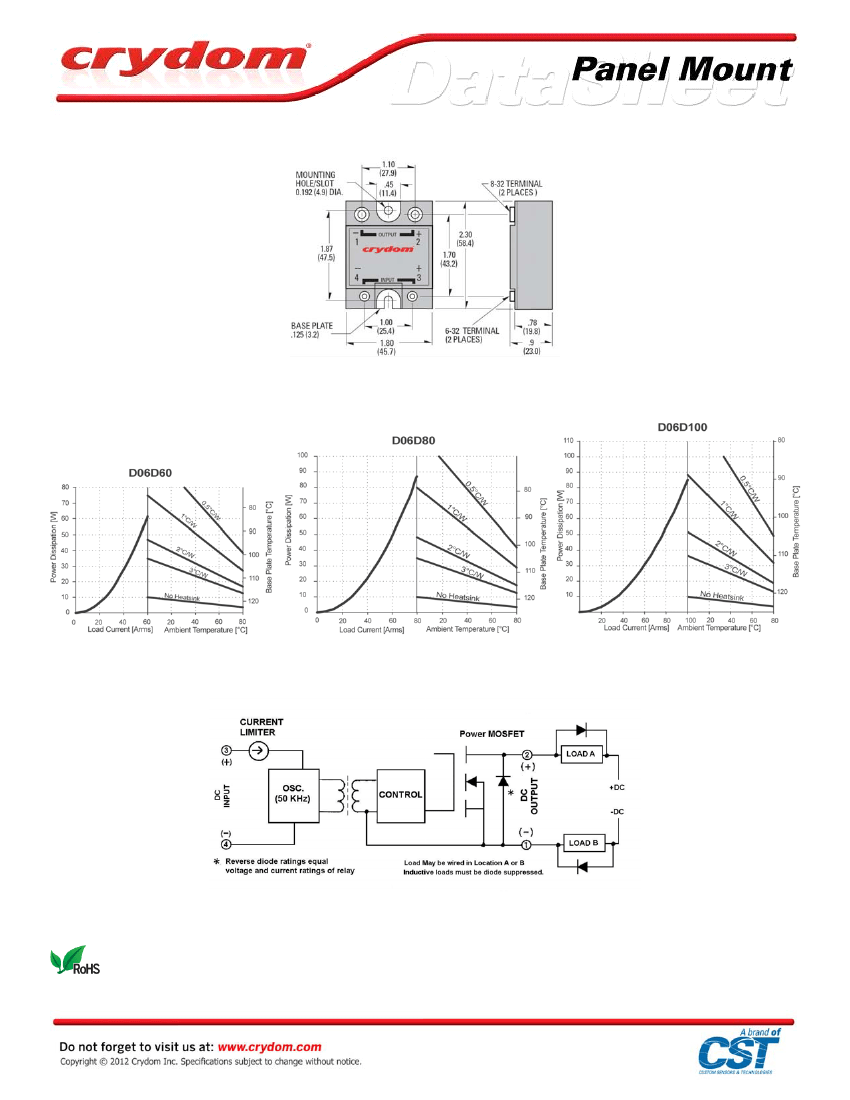

3) Heat sinking required, see derating curves.
4) Input circuitry incorporates active current limiter
