4749704524470 datasheet, PDF - EEWORLD Datasheet

4749704524470: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Right Angle Reverse, 0.05 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerStelvio Kontek SpA

Download Datasheet Parametric View All

4749704524470 Overview

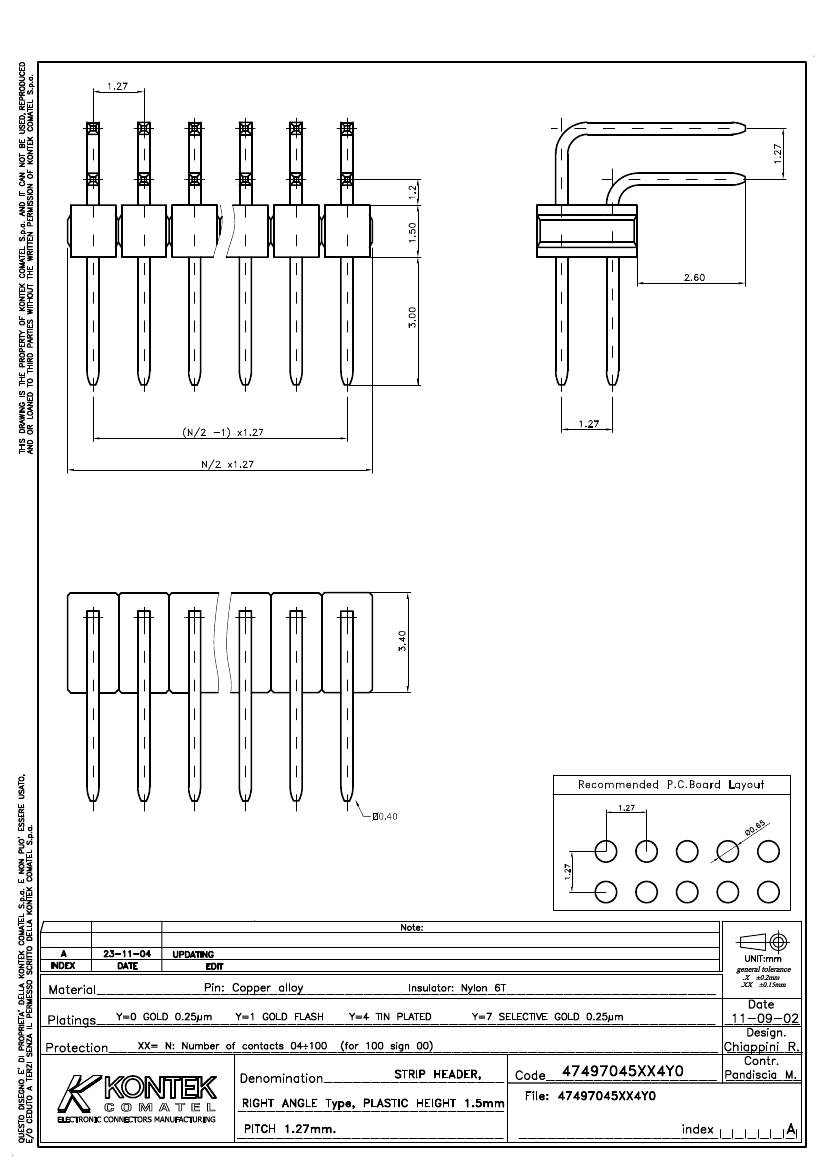

Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle Reverse, 0.05 inch Pitch, Solder Terminal, Receptacle,

Parameter Name	Attribute value
Objectid	1101523052
Reach Compliance Code	compliant
body width	0.059 inch
subject depth	0.134 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	GOLD (10)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24
