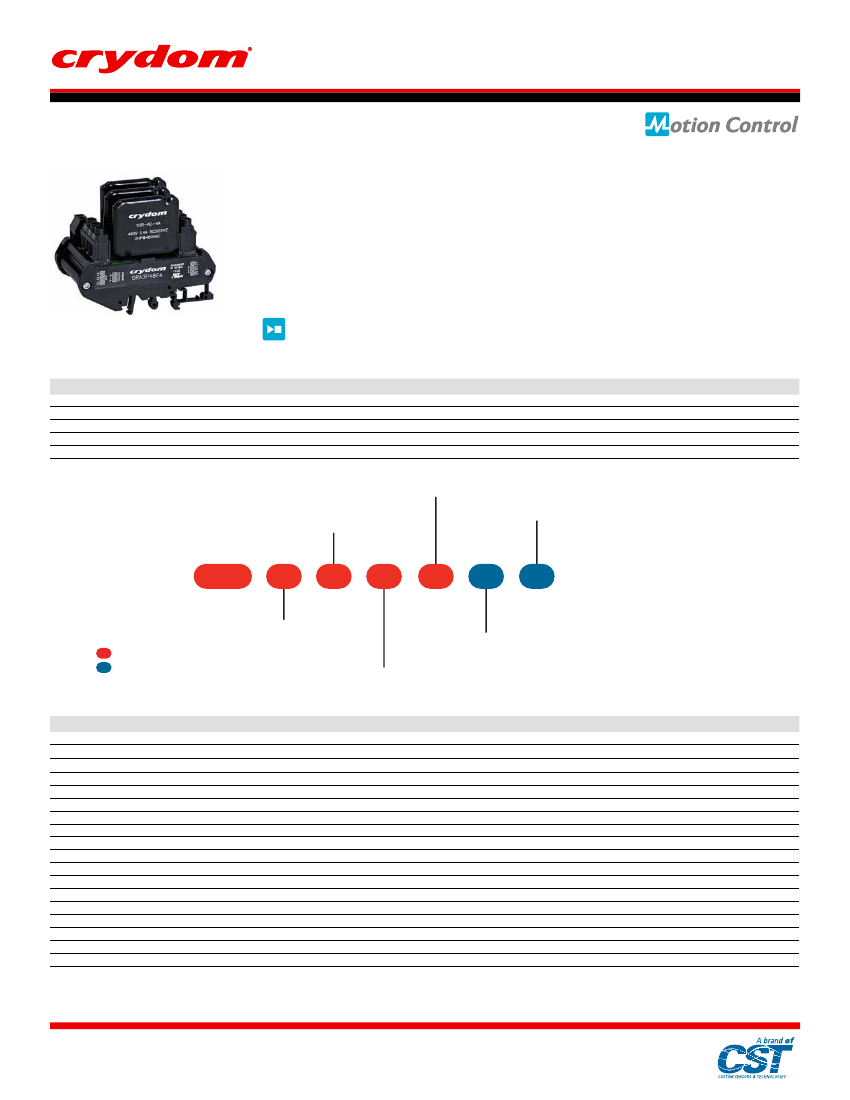

DRA3P Series
•
2.4 & 4.2 Amp rated Solid State Contactor
•
Load voltage range of 48-510VAC, 3-Phase
•
Fits standard 35mm DIN-RAIL
•
LED input status indicator
•
AC or DC control
•
Zero-crossing (resistive loads) or instantaneous turn-on (inductive loads) output
•
cUL Recognized, IEC Rated, CE, CCC & RoHS Compliant, Horsepower Rated
•
Built in Overvoltage Protection
Start / Stop
Din Rail Mount Contactor
PRODUCT SELECTION
Control Voltage
4-6 VDC Control
18-28 VDC Control
36-60 VAC Control
90-140 VAC Control
200-265 VAC Control
2.4A
DRA3P48D2
DRA3P48E2
DRA3P48C2
DRA3P48B2
DRA3P48A2
4.2A
DRA3P48D4
DRA3P48E4
DRA3P48C4
DRA3P48B4
DRA3P48A4
AVAILABLE OPTIONS
Rated Load Current
2:
2.4 Amp/
1HP @ 480 VAC
4:
4.2 Amp/
2HP @ 480 VAC
Controlled Legs
Blank:
3 Legs
2:
2 Legs
Series
Operating Voltage
48:
48-510 VAC
DRA
3P
48
D
4
R
2
Function
3P:
3 Phase
Required for valid part number
For options only and not required for valid part number
Control Voltage
D:
4-6 VDC
E:
18-28 VDC
A:
200-265 VAC
B:
90-140 VAC
C:
36-60 VAC
Switching Type
Blank:
Zero Voltage Turn-On
R:
Instantaneous Turn-On
OUTPUT SPECIFICATIONS AC Output
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Rated Operating Voltage (Vrms)
Transient Overvoltage [Vpk]
(2)
Maximum Resistive Load Current UL/AC51 [Arms]
(3, 8)
Maximum Motor Load Current UL/AC53 [Arms]
(3, 4)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
Maximum On-State Voltage Drop @ Rated Current [Vrms]
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]
Maximum I²t for Fusing (50/60
HZ, 1/2 cycle) [A² sec]
HP/IEC 60947 Rating @ 240V, 40°C [HP/KW]
(5)
HP/IEC 60947 Rating @ 380V, 40°C [HP/KW]
(6)
HP/IEC 60947 Rating @ 480V, 40°C [HP/KW]
(7)
Minimum Power Factor (with Maximum Load)
Min/Max stranded/solid wire [AWG]
Min/Max stranded/solid wire [IEC mm²]
Load Terminal Screw Torque Range:
2.4A
48-510
480
1200
2.4/2.4
2.1/2.1
0.15
1.0
500
1.15 per Channel
285/300
410/375
0.5/0.37
1.0/0.75
1.0/0.75
0.5
24/10
0.5-4.0
12.0 in lb (1.36 Nm)
4.2A
48-510
480
1200
4.2/2.4
3.4/2.1
0.15
1.0
500
1.15 per Channel
285/300
410/375
0.75/0.37
1.5/0.75
2.0/0.75
0.5
24/10
0.5-4.0
12.0 in lb (1.36 Nm)
Do not forget to visit us at:
www.crydom.com
Copyright © 2014 Crydom Inc. Specifications subject to change without notice.
DataSheet
INPUT SPECIFICATIONS
(1)
Control Voltage Range
Rated Input Control Voltage
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current [mA]
Maximum Input Current [mA]
Nominal Input Impedance [Ohms]
Maximum Turn-On Time
(9)
Maximum Turn-Off Time
Min/Max stranded/solid wire [AWG]
Min/Max stranded/solid wire [IEC mm²]
Control Terminal Screw Torque Range:
Din Rail Mount Contactor
DRA3P48Cx
36-60 VAC
48 VAC
36 VAC
10 VAC
7.5
13.5
4.2K
20 ms
30 ms
24/12
0.5-2.5
4.3 in lb (0.485 Nm)
Description
DRA3P48Dx
4-6 VDC
5 VDC
4 VDC
2 VDC
17
35
120
1/2 Cycle
1/2 Cycle
24/12
0.5-2.5
4.3 in lb (0.485 Nm)
DRA3P48Ex
18-28 VDC
24 VDC
18 VDC
4 VDC
15
25
1.2K
1/2 Cycle
1/2 Cycle
24/12
0.5-2.5
4.3 in lb (0.485 Nm)
DRA3P48Bx
90-140 VAC
120 VAC
90 VAC
20 VAC
5
8
16K
20 ms
30 ms
24/12
0.5-2.5
4.3 in lb (0.485 Nm)
DRA3P48Ax
200-265 VAC
230 VAC
200 VAC
60 VAC
4.5
5.7
46K
20 ms
30 ms
24/12
0.5-2.5
4.3 in lb (0.485 Nm)
GENERAL SPECIFICATIONS
(1)
Description
Parameters
3750Vrms
10 9 Ohms
20 pF
-20ºC to 60ºC
-40ºC to 85ºC
On: Green
4.75 oz. (135g)
PVC Class V0 (UL94)
Polyamide Class V0 (UL94)
Dielectric Strength, Input to Output (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
LED Status Indicator for Control Input
Weight (typical)
Housing Material (bottom cover)
Housing Material (end pieces)
(1)
All parameters at 25°C unless otherwise specified.
(2)
Relay will self trigger between 900-1200Vpk.
Not Suitable for capacitive loads.
(3)
For AC control AC53 maximum current is 1.6A
(4)
Mounted in the Vertical position (Din Rail in horizontal position).
(5)
For AC control, rating is ½HP/0.25KW
(6)
For AC control, rating is1HP/0.37KW
(7)
For AC control, rating is 1HP/0.55KW
(8)
Resistive Load Current rating for DRA3P48x4 (A,B & C suffix only) is 3.4 A
(9)
Turn-on time for DC control instantaneous turn-on versions is 0.1 msec.
(10)
Three Controlled legs versions only. Otherwise L2-T2 are connected internally.
GENERAL NOTES
MECHANICAL SPECIFICATIONS
Tolerances: ± 0.02 in / 0.5 mm - All dimensions are in: inches [millimeters]
(10)
SSR-AC-4A
480V 4.2A
2HP@480VAC
2.91
[73.9]
2.22
[56.3]
ASSEMBLED
IN MEXICO
Do not forget to visit us at:
www.crydom.com
Copyright © 2014 Crydom Inc. Specifications subject to change without notice.
T1 T2 T3
L1 L2 L3
-A1 +A2
CONTROL
AC LINE
230VAC
LOAD
DRA3P48E4
1102
R
1.48
[37.7]
3.53
[89.6]
1.37
[34.9]
1.77
[44.9]
DataSheet
WIRING DIAGRAM
T1
T2
T3
T1
T2
T3
T1
MOTOR
T2
T3
~/- A
~/+ A
(10)
T1
T2
T3
L1
L2
L3
Din Rail Mount Contactor

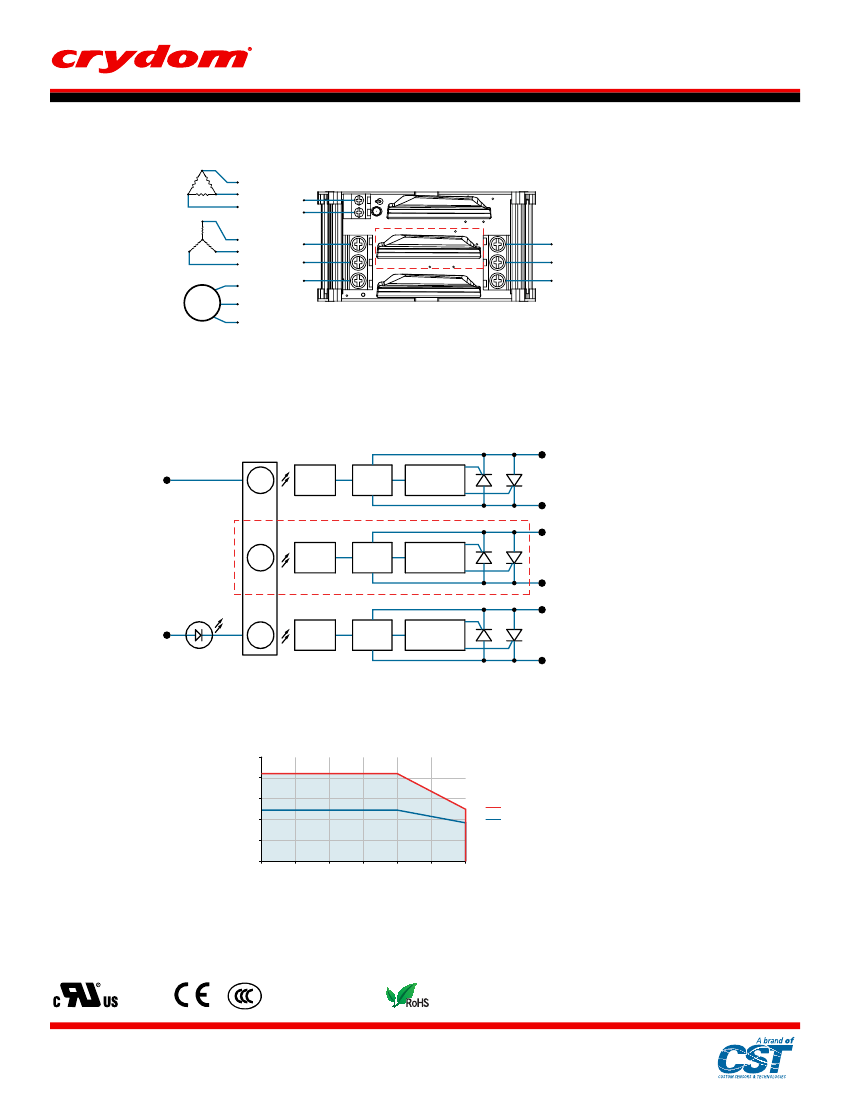

BLOCK DIAGRAM
INPUT
CONTROL
CIRCUIT
~/- A
LED
receiver
Trigger
Overvoltage
Protection
(10)
AC/DC
CONTROL
INPUT
STATUS
INDICATOR
~/+ A
LED
receiver
Trigger
Overvoltage
Protection
receiver
Overvoltage
Protection
L1
PHASE A
T1
L2
LED
Trigger
PHASE B
T2
L3
PHASE C
T3
THERMAL DERATE INFORMATION
5.0
Resistive Load Current (Amps)
4.0
3.0
2.0
1.0
0.0
0
10
20
30
40
50
60
Ratings based on single or multiple relays and no spacing between units except
AC control which is 3.4A rating 45mm spacing must be used.
Ambient Temperature (°C)
DRA3P48x4
DRA3P48x2
AGENCY APPROVALS
E116949
(Except DRA3P48xxx2)
Rev. 051314
Do not forget to visit us at:
www.crydom.com
Copyright © 2014 Crydom Inc. Specifications subject to change without notice.
