What is a Safety Relay?
A safety relay contains force guided contacts; they are also known as captive, locked or positive guided contacts. Force guidance in a relay means that the contacts in a contact set must be
mechanically linked together so that it is impossible for the NO (normally open) and NC (normally closed) contacts to be closed at the same time. The contacts are linked so that no one contact
in a relay can change state without changing all the contacts in that relay. There must be a 0.5 mm minimum air gap between the open contacts for the entire service life of the relay, even in
the case of a failure. The force guidance of the relay contacts must always be preserved even when a relay part fails to function correctly.
Our technical experts welcome the opportunity to answer your technical questions and provide solutions to your automation and control problems. Give us a call or visit www.altechcorp.com.
Quality
Commitment
Altech’s control components meet diverse national and
international standards such as UL, NEC, CSA, IEC,
VDE and more. Altech provides superior customer
service and delivery through Total Quality
Management and Continuous Process Improvement.
Altech is ISO 9001 approved. We perform these
services with honesty and integrity and are committed
to achieve these goals.
DOLD SAFETY RELAYS TABLE OF CONTENTS
OA 5642/43/44
1 NO/1 NC, 2NO/1NC,
2NO/2NC, 3NO/1NC
Page 4-5
OA 5611
2 NO/2 NC, 3 NO/1 NC
Page 16-17
OA/OW 5669
1 NO/1 NC, 2 CO, 2 NO, 2 NC
Page 6-7
OA 5612
2 NO/4 NC, 3 NO/3 NC, 4 NO/2 NC
Page 18-19
OA/OW 5670
2 NO/2 NC, 3 NO/1 NC
Page 8-9
OA 5601
2 NO/2 NC, 3 NO/1 NC
Page 20-21
OA 5621 / OA 5621S
3 NO/1 NC, 2 NO/2 NC
Page 10-11
OA 5602
2 NO/4 NC, 3 NO/3 NC, 4 NO/2 NC
Page 22-23
OA 5622 / OA 5622S
2 NO/4 NC, 3 NO/3 NC,
4 NO/2 NC, 5 NO/1 NC
Page 12-13
OA 5603
7 NO/1 NC, 6 NO/2 NC, 5 NO/3 NC,
4 NO/4 NC, 3 NO/5 NC, 2 NO/6 NC
Page 24-25
OA 5667 / OA 5667S
1 NO/1 NC, 2 CO
Page 14-15
Safety Relay Modules
Bussed Channel
Isolated Channel
Page 26-31
Accessories ........................................................................................................Page
32
Applications .......................................................................................................Page
33
Terminology .................................................................................................Page
34-36
Index...................................................................................................................Page
37
Terms & Conditions ..........................................................................................Page
38
Altech Corp.
®
• 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • FAX (908) 806-9490 • www.altechcorp.com
3

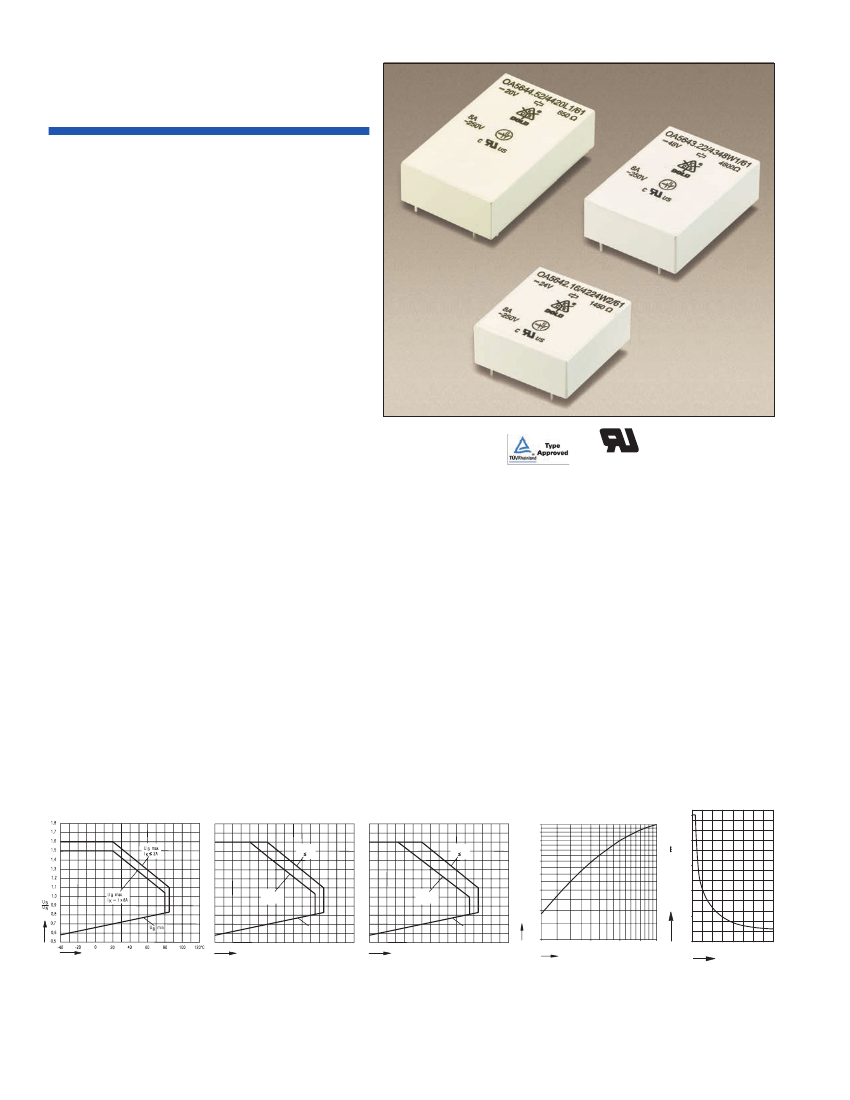

Safety Relay
OA 5642/43/44
Features
n
n
n
n
n
n
n
n
n
n
n
n
n
n
2-4 output contacts
International approvals: TÜV, UL, cUL
Quality control check for each safety relay
Forced-guided contacts, all gold flash plated
Contact Gap > 0.5 mm throughout life of relay
Various contact materials,
mixed contact material optional
High coil voltage range
High switching voltage
High breakdown voltage: contact/coil
≥
4 KV
contact/contact
≥
4KV
High creeping distance: contact/coil
≥
5.5 mm
contact/contact
≥
5.5 mm
Protection Rating IP67, washable
Compact size- ony 10.3 mm height
SMD component can be mounted under relay
Custom design available,
-coil voltage
-operate/release time
-contact pressure
-coil resistance
C
GERMANY
US
USA/CANADA
E146415
Technical Data
n
n
n
n
n
n
n
n
n
n
Nominal Coil Voltage
.......................................................
..........................................6, 12, 21, 24, 48, 60, 110, DC
Coil Power Dissipation
............................0.4/0.5/0.65 W
Max. Switching Voltage
...................250V DC, 400 V AC
Max. Switching Current
.............................................8 A
Max. Switching Power — DC.................................240W
Max. Switching Power — AC..............................2000VA
Contact Switching Rate
.........20 operations per second
Relay Operate Time
............................................≤ 15 ms
Relay Release Time
..............................................≤ 5 ms
Operation Vibration
...........................0.5 mm Ampl. max
......................................................@ 10...100Hz, 3g max
n
n
n
n
n
Protection Rating
....................................................IP 67
Contact Arrangements..................1NO/1NC,
2NO/1NC,
2NO/2NC, 3NO/1NC,
Contact Material...............................................................
...AgNi10+0.2µmAu, AgSnO
2
+0.2µmAu, AgNi10+5µmAu
Mechanical Life
.......................>40x10
6
operation cycles
Electrical Life
......................................................>50,000
......................operation cycles @ 230V AC, 8A, cos
ϕ=1
Ambient Temperature....................................-40...+85°C
Cover Material..............................................Thermoplast
Weight..............................................................14/15/16
g
More detailed data upon request
n
n
n
n
Diagrams
OA5642 1NO/1NC
OA5643 2NO/1NC; OA5644 2NO/2NC
OA5644 3NO/1NC
1,0
0,9
0,8
0,7
0,6
0,5
Limiting factor f
U B max.
IK= 2 x 8
A
U B max.
IK= 3 x 8
A
250
Switching voltage U [
U B max.
I K 2A
U B max.
I K 2A
V]
200
150
0,4
0,3
100
50
UB m
in.
UB m
in.
Ambient temperature
-40
-20
Ambient temperature
0
20
40
60
80
100
120°C
-40
-20
Ambient temperature
0
20
40
60
80
100
120°C
0,2
0,2
0
0,4
Power factor (cos
ϕ)
0,6
0,8
1
1
2
3
4
5
6
7
8
Switching current I [A]
Relay operation voltage vs. ambient
temperature
Operations =
Operations (ohmic) x
limitation factor F
Limitation factor for inductive loads
Maximum switching
power curve
4
Altech Corp.
®
• 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • FAX (908) 806-9490 • www.altechcorp.com
Safety Relay OA 5642/43/44 Data
Relay Data
Rated
Voltage
Voltage
Range
Coil
Resistance
(10%)
Ordering Information
1 NO/1 NC
Type
Coil
Resistance
(10%)
2NO/1NC
Type
Coil
Resistance
(10%)
3NO/1NC
Type
2NO/2NC
Type
12V
21V
24V
48V
60V
110V
6V
8.4
15.0
16.8
33.6
42.0
77.0
4.2 -
-
-
-
-
-
-
15.2V
370
27.3V
1050
31.2V
1450
62.4V
6000
78.0V
9250
143.0V 31000
7.8V
90 Ω
Ω
Ω
Ω
Ω
Ω
Ω
56.OA42.1211
56.OA42.2111
56.OA42.2411
56.OA42.4811
56.OA42.6011
56.OA42.1111
56.OA42.0611
290 Ω
840 Ω
1150 Ω
4600 Ω
7100 Ω
24000 Ω
70 Ω 56.OA43.0621
56.OA43.1221
56.OA43.2121
56.OA43.2421
56.OA43.4821
56.OA43.6021
56.OA43.1121
230
680
900
3600
5600
18500
55 Ω
Ω
Ω
Ω
Ω
Ω
Ω
56.OA44.0631
56.OA44.1231
56.OA44.2131
56.OA44.2431
56.OA44.4831
56.OA44.6031
56.OA44.1131
56.OA44.1222
56.OA44.2122
56.OA44.2422
56.OA44.4822
56.OA44.6022
56.OA44.1122
56.OA44.0622
Contact Material, Example: C AgSnO
2
+.2µmAu

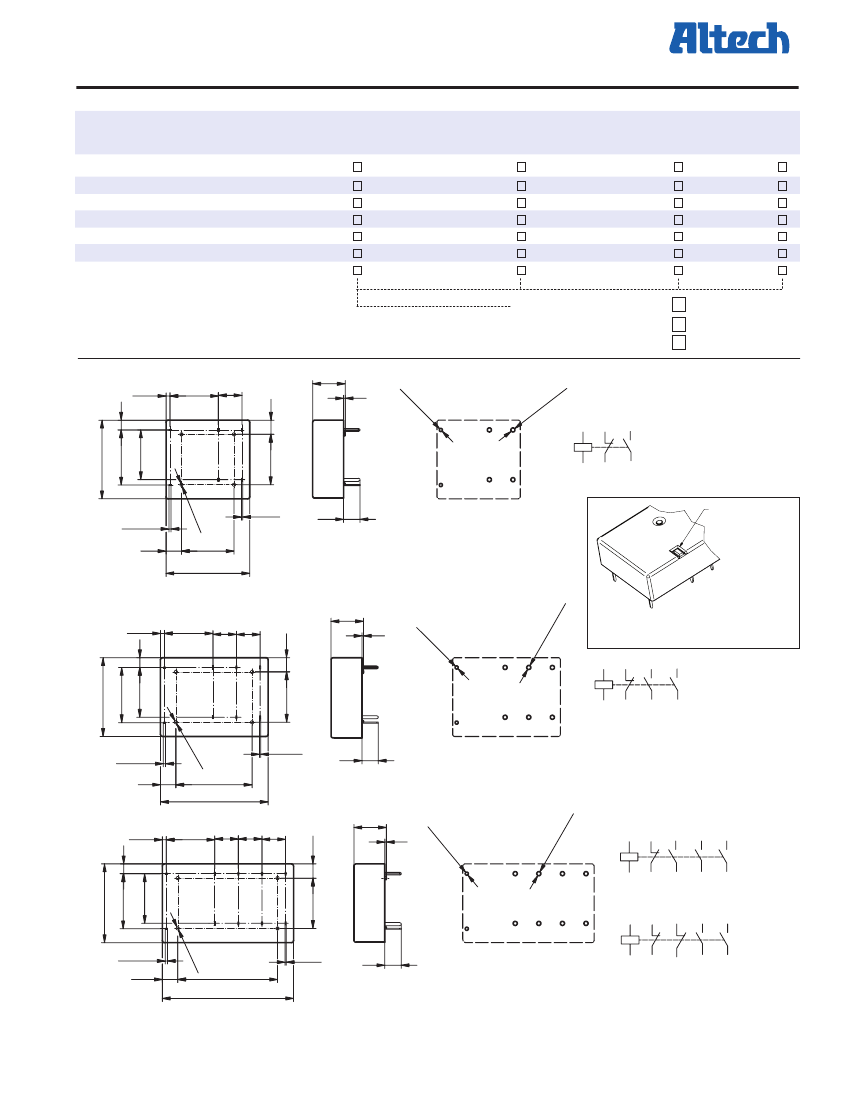

Dimensions & Pin Configurations
5642
3.1
10.3
1.25
15.4
7.5
0.5
N AgNi10+.2µmAu
S AgNi10+5µmAu
Ø1
+
- 0 0.1
1
3
5
4.5
.1
+0 0
3 -
Ø1
1
3
4
5
6
17.5
15.8
25
16
2
2
4
6
1NO/1NC
0.4x1
5.2
Ventilation point*
Ø0.
0.7x0.4
4.9
5643
10.3
1.25
15.4
7.5
7.5
0.5
.3 + 0
- 0 .1
3.1
4.5
Ø1
9
16.7
26.6
Ø1
+
- 0 0.1
1
3
5
*When using the maximum switching capacity
it is recommended to open the relay at the
indicated position.
7
1
3
4
5
6
7
8
17.5
15.8
25
16
2
2
4
6
8
2NO/1NC
0.7x0.
4
4.9
0.4x1
5.2
5644
3.1
10.3
.1
+0 0
-
Ø1
1.25
15.4
7.5
7.5
7.5
0.5
4.5
Ø1
.3 + 0
- 0 .1
.9
Ø0
24.2
34.2
1
9
3
4
5
6
7
8
9
10
1
3
5
7
2
17.5
15.8
3NO/1NC
25
16
2
4
6
8
10
1
2
3
4
5
6
7
8
9
10
0.7x0.4
4.9
0.4x1
31.7
41.7
5.2
Note: All dimensions are shown in millimeters. To convert to inches, divide by 25.4.
Altech Corp.
®
• 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • FAX (908) 806-9490 • www.altechcorp.com
Ø0.
9
2NO/2NC
5

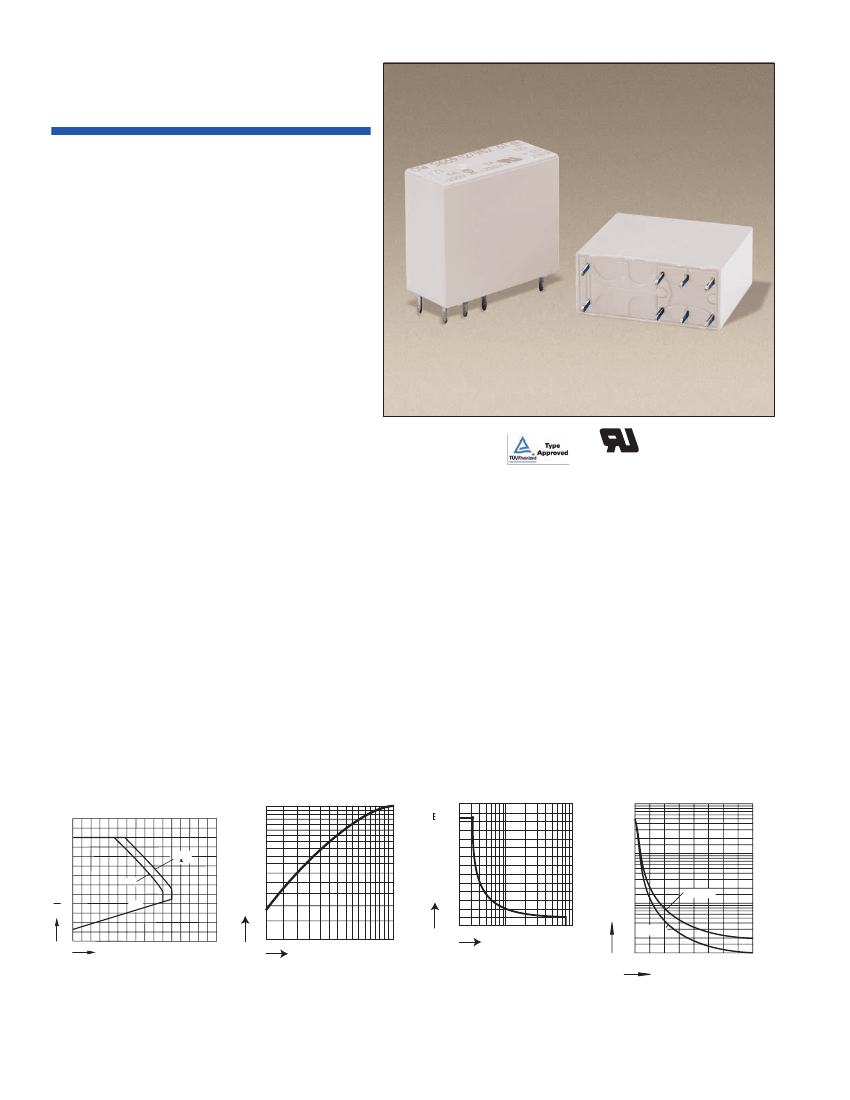

Safety Relay
OA/OW 5669
Features
n
n
n
n
n
n
n
n
n
n
2 output contacts
International approvals:
TÜV, UL, cUL
Quality control check for each safety relay
Forced-guided contacts, all gold flash plated
Contact Gap > 0.5 mm throughout life of relay
Various contact materials,
mixed contact material optional
High coil voltage range
High breakdown voltage: contact/coil
≥
4 KV
contact/contact
≥
4KV
High creeping distance: contact/coil
≥
8 mm
contact/contact
≥
5.5 mm
Protection Rating
OA Version: IP 40, flow solder proof
OW Version: IP 67, washable
Custom design available,
-coil voltage
-coil resistance,
-contact pressure
-operate/release time
C
GERMANY
n
US
USA/CANADA
E146415
Technical Data
n
n
n
n
n
n
n
n
n
Nominal Coil Voltage
.......................................................
........................................ 6, 12, 20, 24, 48, 60, 110, DC
Coil Power Dissipation
..........................................0.7 W
Max. Switching Voltage
....................250V DC, 400V AC
Max. Switching Current
.........8 A (2 x 5A simultaneous)
Max. Switching Power — DC
..........................................
........................................200W (2 x 160W simultaneous)
Max. Switching Power — AC
..........................................
...................................2000VA (2 x1250VA simultaneous)
Contact Switching Rate
.........10 operations per second
Relay Operate Time
...........................................
≤
15 ms
Relay Release Time
...........................................
≤
12 ms
n
n
n
n
n
Operation Vibration
.........................0.35 mm Ampl. max
........................................................@ 10...55Hz, 5g max
Contact Arrangements
.....1NO/1NC, 2CO, 2NO*, 2NC*
Contact Material...................AgNi10+0.2µmAu
Standard
...................AgSnO
2
+0.2µmAu, AgNi10+5µmAu Optional
Mechanical Life
......................≥ 50x10
6
operation cycles
Electrical Life
...................AgSnO
2
>2x10
5
, AgNi10 >10
5
......................operation cycles @ 230V AC, 6A, cos
ϕ=1
Ambient Temperature....................................-40...+70°C
Cover Material
..............................................Polyamide 6
Weight........................................................................15
g
More detailed data upon request
n
n
n
n
Diagrams
Switching voltage U [ V]
1,8
1,7
1,6
1,5
1,4
1,3
1,2
1,1
1,0
UB
0,9
UN
0,8
0,7
0,6
0,5
-40
-20
0
40
20
Ambient temperature
60
80
100
120°C
.
U
B
min
Limitation factor F
0.5
0.4
0.3
0.2
0.2
140
100
60
20
0
0.2
I
K
= 8A
Sw ichi cycl
t ng
es
U B max.
I K 2A
1
0.9
0.8
0.7
0.6
260
220
108
6
4
2
180
107
6
4
2
106
6
4
2
AgSnO
2
0.4 0.60.81
2
4 6 8 10
AgNi10
0.4
0.6 0.8 1
Power factor (cos
ϕ
)
Operations =
Operations (ohmic) x limitation factor F
Switching current l [A]
Safe disconnection, no remaining arc,
max. 1 operation/sec.
105
0 0.20.40.60.81.01.21.41.6
Switching capacity P [kVA]
Relay operation voltage vs. ambient
temperature
Limitation factor for inductive loads
Maximum switching power curve
Mechanical life
*Special order.
6
Altech Corp.® • 35 Royal Road • Flemington NJ 08822-6000 • Phone (908) 806-9400 • FAX (908) 806-9490 • www.altechcorp.com
京公网安备 11010802033920号
EEWORLD
