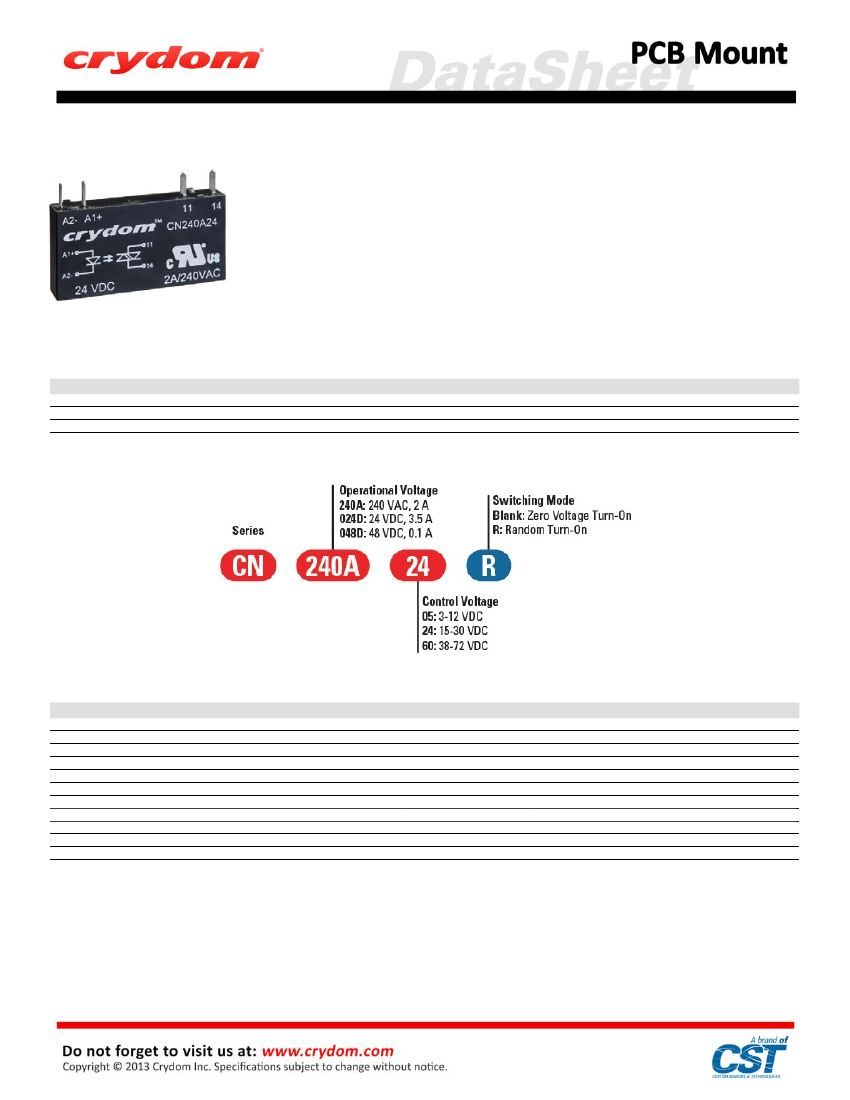

CN Series
• 5mm Mini SIP SSR
• Ratings 24VDC @ 3.5A, 48VDC @ 100mA and 240VAC @ 2A
• DC Control, 5, 24 and 60V
• UL & cUL recognized @ 40°C, 100K-Cycle Endurance Test
• CE & RoHS Compliant
PRODUCT SELECTION
Control Voltage
3-12 VDC
15-30 VDC
38-72 VDC
3.5A
CN024D05
CN024D24
CN024D60
100mA
CN048D05
CN048D24
CN048D60
2A
CN240A05
CN240A24
CN240A60
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage
Maximum Load Current @ 40°C (2)
Minimum Load Current [mA]
Maximum Blocking Voltage
Maximum Surge Current [Apk]
Maximum I²t for fusing 50/60Hz (1/2 cycle) [A² sec]
Typical On-State Voltage Drop @ Rated Current (V)
Maximum Off-State Leakage Current @ Rated Voltage [mA]
Maximum PWM (Hz) (4)
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (5)
Switch Configuration
CN024Dxx
0-24 VDC
3.5A
1
30 VDC
9 (10ms)
N.A.
0.4
0.001
500
N/A
N.O.
CN048Dxx
0-48 VDC
100mA (3)
1
60 VDC
0.3 mA (10ms)
N.A.
1.0
0.001
500
N/A
N.O.
CN240Axx
24-280 VAC (47-63Hz)
2A
70
600 VAC
115/120 (50/60 Hz, 1 cycle)
66/60
1.1 (peak)
4.0
N.A.
500
N.O.
INPUT SPECIFICATIONS for CN024 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time [µsec]
Typical Turn-Off Time [µsec]
CN024D05
3.0-12 VDC
3.0 VDC
1.0 VDC
500 Ohm
10mA @ 5VDC
120
100
CN024D24
15-30 VDC
15 VDC
5 VDC
3.5K Ohm
7mA @ 24VDC
350
80
CN024D60
38-72 VDC
38 VDC
5 VDC
20K Ohm
3mA @ 60VDC
400
70
INPUT SPECIFICATIONS for CN048 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time [µsec]
Typical Turn-Off Time [µsec]
CN048D05
3.0-12 VDC
3.0 VDC
1.0 VDC
1.25K Ohm
4mA @ 5VDC
20
130
CN048D24
16-30 VDC
16 VDC
5 VDC
3.5K Ohm
5mA @ 24VDC
20
130
CN048D60
38-72 VDC
38 VDC
5 VDC
20K Ohm
3mA @ 60VDC
20
130
INPUT SPECIFICATIONS for CN240 (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Nominal Input Impedance
Typical Input Current
Typical Turn-On Time [msec] (7)
Typical Turn-Off Time [msec]
CN240A05
3.0-12 VDC
3.0 VDC
1.0 VDC
240 Ohm
15mA @ 5VDC
1/2 Cycle
1/2 Cycle
CN240A24
15-30 VDC
15 VDC
5 VDC (6)
3.5K Ohm
6mA @ 24VDC
1/2 Cycle
1/2 Cycle
CN240A60
38-72 VDC
38 VDC
5 VDC
20K Ohm
4mA @ 60VDC
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output (8)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Housing Material
Overvoltage Category
Polution Degree
Degree of protection (Encapsulation)
Parameters
2.5KV
1.5 pF
-20 to 80°C
-20 to 100°C
0.14 oz. (4.05g)
UL 94 V0
lll
2
IP67
GENERAL NOTES
(1) All parameters at 25°C unless otherwise specified.

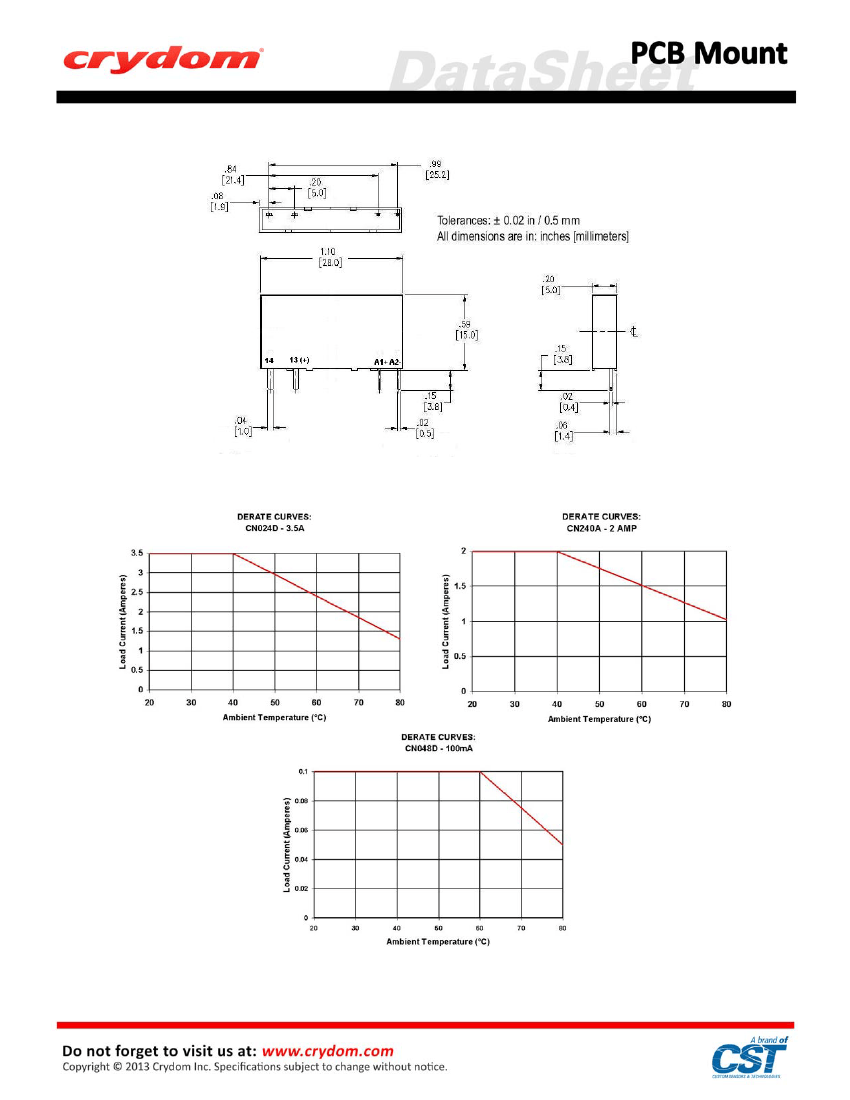

(2) See derate curves for more information
(3) At 60°C derate by .013mA/5°C to 80°C
(4) Operating frequency above 500Hz will damage the SSR (DC output only).
(5) Off-state dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(6) Turn-on time for random turn-on version is 0.1msec.
(7) 3.75KV for CN048Dxx
