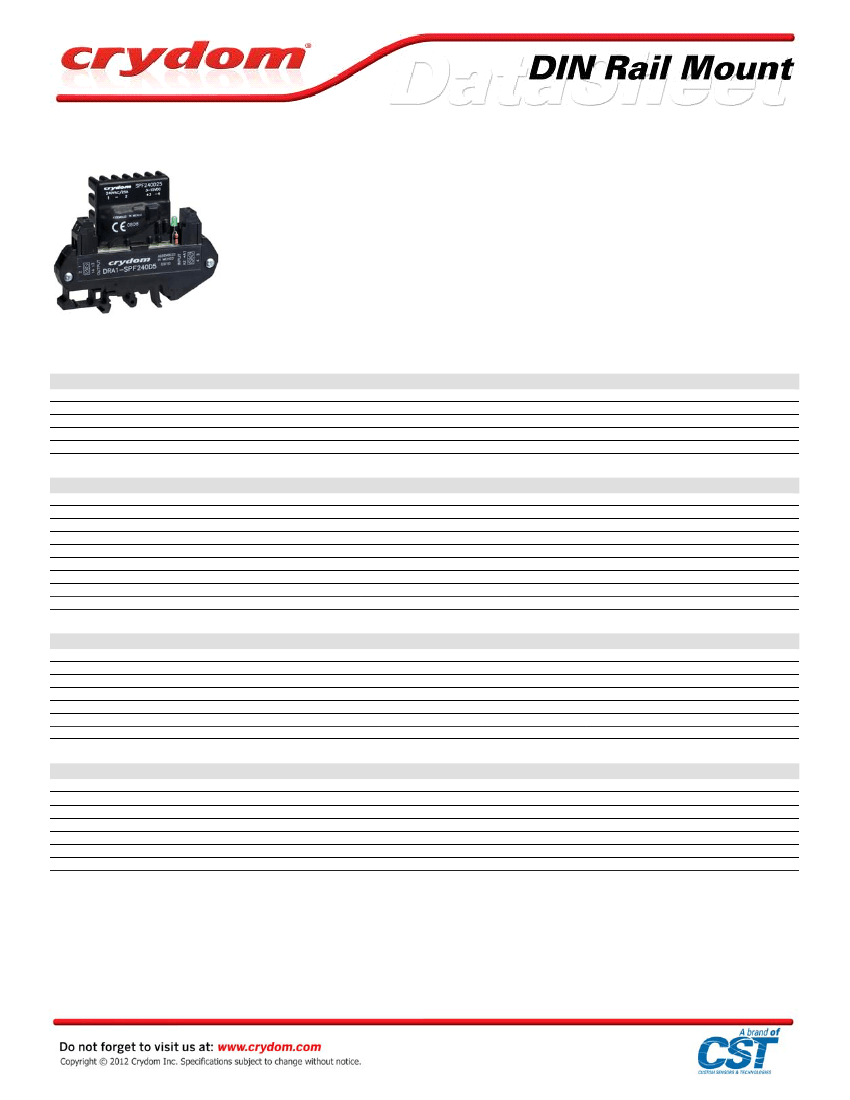

DRA1 SPF Series
• 10mm Single Channel DIN Rail Mount SSR Assembly
• AC Ratings up to 380 VAC and 10 Amps
• 3-15 VDC, 15-32VDC 18-36 VAC and 90-180 VAC control
• Cage style screw terminals for easy connection
• Fits standard 35mm DIN rail
• Includes LED Status indicator (DC control only)
PRODUCT SELECTION
Description
3-15 VDC Control
4-15 VDC Control
15-32 VDC Control
90-140 Vrms Control
18-36 Vrms Control
10 A
DRA1-SPF240D25
DRA1-SPFE240D25
10A
DRA1-SPF240D25R (5)
DRA1-SPFE240D25R (5)
10 A
10 A
DRA1-SPF380D25
DRA1-SPFE380D25
DRA1-SPF240A25
DRA1-SPFE240A25
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage [VAC]
Transient Overvoltage [Vpk]
Maximum Load Current [Arms] (2) (3)
Minimum Load Current [Arms]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum off-state dv/dt @ maximum rated voltage [V/µsec] (4)
Maximum 1 Cycle Surge Current (50/60 Hz) [Apk]
Maximum I²t for fusing (50/60 Hz, 1/2 cycle) [A² sec]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
SPF(E)240x25
12-280
600
10
0.06
0.1
500
239/250
285/260
1.6
SPF(E)380x25
48-380**
1200
10
0.06
0.1
500
239/250
285/260
1.6
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Must Turn On Voltage
Must Turn Off Voltage
Typycal Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec] (5)
Maximum Turn-Off Time [µsec]
SPF240D25
3-15 VDC
3.0 VDC
1 .0 VDC
15 mAdc
300 Ohm
1/2 Cycle
1/2 Cycle
SPF380D25
4-15 VDC
4.0 VDC
1 .0 VDC
15 mAdc
240 Ohm
1/2 Cycle
1/2 Cycle
SPFExxxD25
15-32 VDC
15.0 VDC
1 .0 VDC
15 mAdc
1500 Ohm
1/2 Cycle
1/2 Cycle
SPFxxxA25
90-140 Vrms
90.0 Vrms
10.0 Vrms
10 mArms
14.1K Ohm
10
40
SPFExxxA25
18-36 Vrms
18.0 Vrms
2.0 Vrms
10 mArms
2.1k Ohm
10
40
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Parameters
4000 VRMS
10
9
Ohms
8 pF
-30 to 80°C
-30 to 125 °C
0.32 lb (145.5g)
Themally Conductive Epoxy
GENERAL NOTES
1) All parameters at 25°C unless otherwise specified.

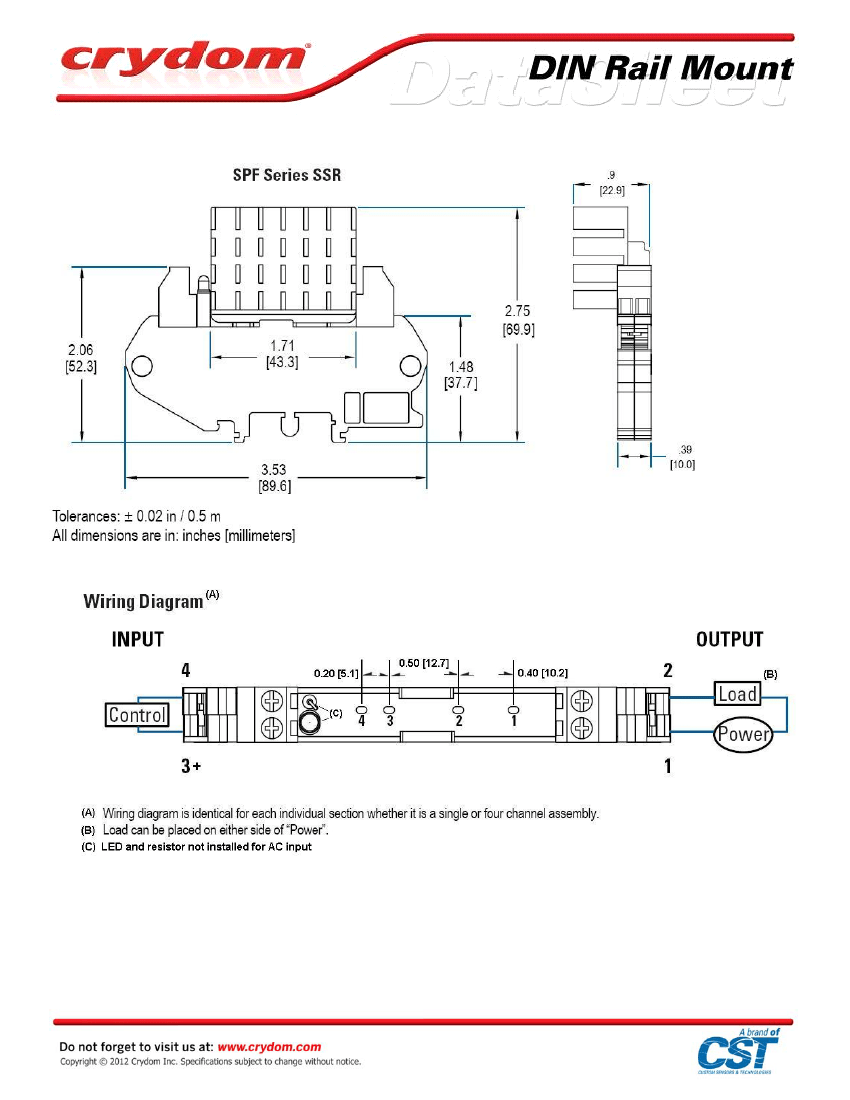

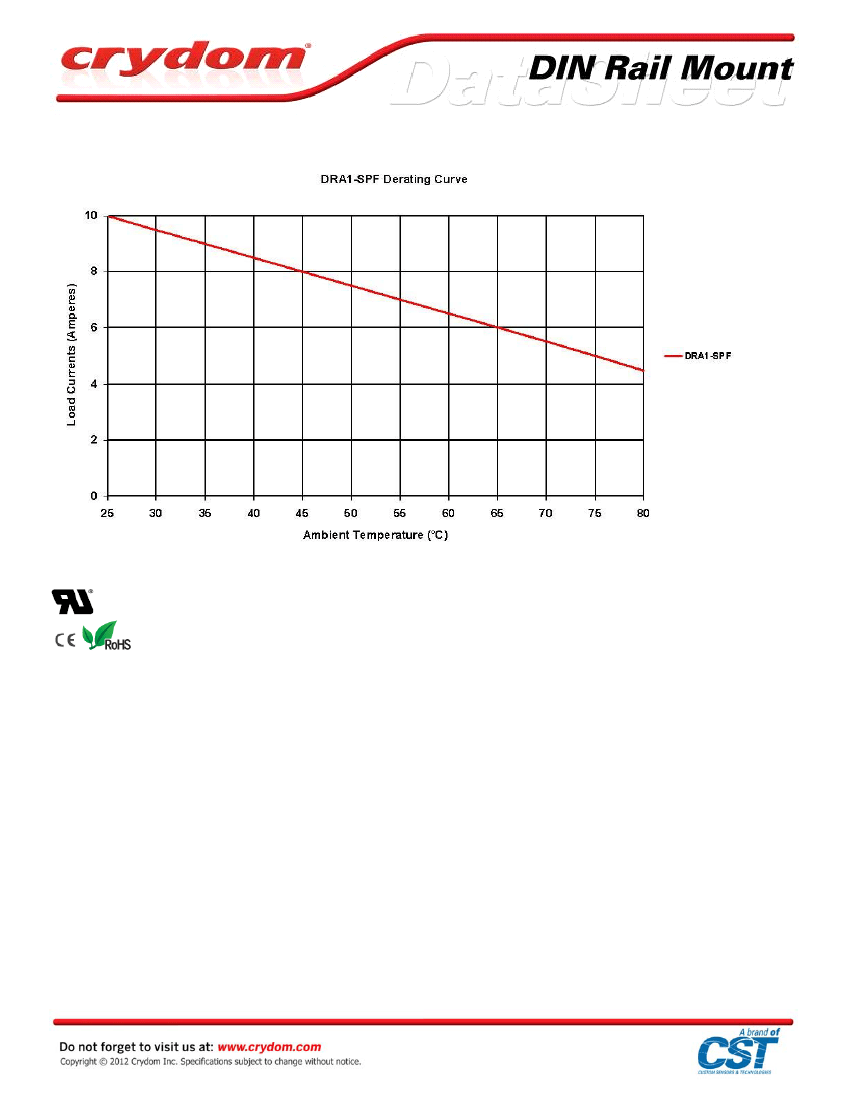

2) See derating chart on page 3.
3) Steady state load current exceeding 10 amps will damage socket.
4) Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
5) Turn-on time for DC control random turn-on versions is 0.1 msec
**
NOTE: Voltages in excess of 380V will damage output terminals.
