Z120-E: DescriptionZener Diode, 120V V(Z), 20%, Silicon, Unidirectional, DO-41, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size74KB，7 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

Z120-E Overview

Zener Diode, 120V V(Z), 20%, Silicon, Unidirectional, DO-41, DO-41, 2 PIN

Z120-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1453589697
Parts packaging code	DO-41
package instruction	DO-41, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Nominal reference voltage	120 V
surface mount	NO
technology	ZENER
Terminal surface	MATTE TIN
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	20%
Working test current	2.1 mA

Preview

Download Datasheet

View All

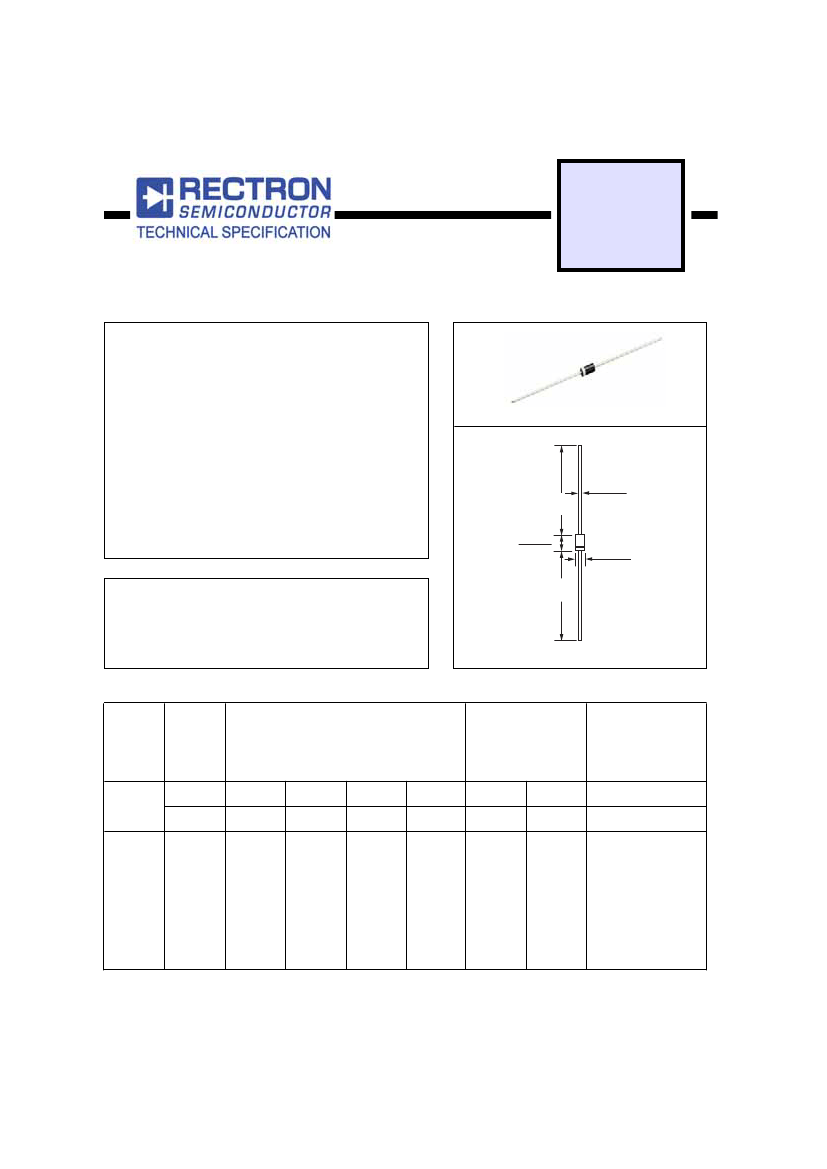

Z75

THRU

Z330

ZENER SILICON RECTIFIER

VOLTAGE RANGE 75 to 330 Volts CURRENT 1.0 Ampere

FEATURES

* High reliability

* Low leakage

* Low forward voltage drop

* Excellent clamping capability

* P/N suffix V means AEC-Q101 qualified, e.g:Z75V

* P/N suffix V means Halogen-free

DO-41

MECHANICAL DATA

Case: Molded plastic

Epoxy: Device has UL flammability classification 94V-O

Lead: MIL-STD-202E method 208C guaranteed

Mounting position: Any

Weight: 0.33 gram

.034 (0.9)

DIA.

.028 (0.7)

1.0 (25.4)

MIN.

.205 (5.2)

.166 (4.2)

.107 (2.7)

.080 (2.0)

DIA.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

1.0 (25.4)

MIN.

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(At T

= 25

C unless otherwise noted)

Maximum Reverse

Zener

TYPE

Breakdown

Voltage

Dynamic Impedances

C T

Current

@ Measurement

Voltage

and 25

C T

Z75

Z90

Z100

Z105

Z110

Z115

Z120

Z130

Z135

100

105

110

115

120

130

135

3.0

2.7

2.5

2.4

2.3

2.2

2.1

1.9

1.85

Ohms

200

250

350

400

450

500

550

700

750

.25

Ohms

1500

2000

3000

3500

4000

4250

4500

5000

5250

100

5.0

Maximum Forward

Voltage

@ 25

C T

@ I

= 1.0A

1.2

2018-01
