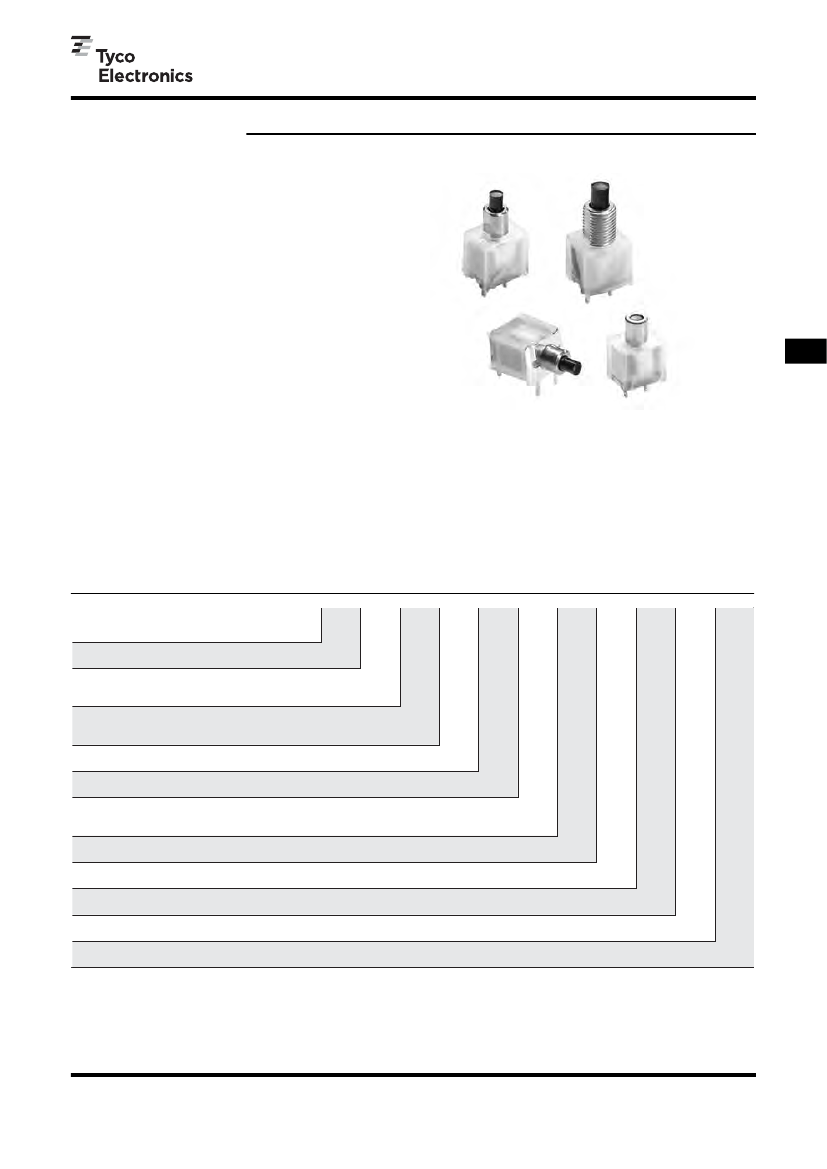

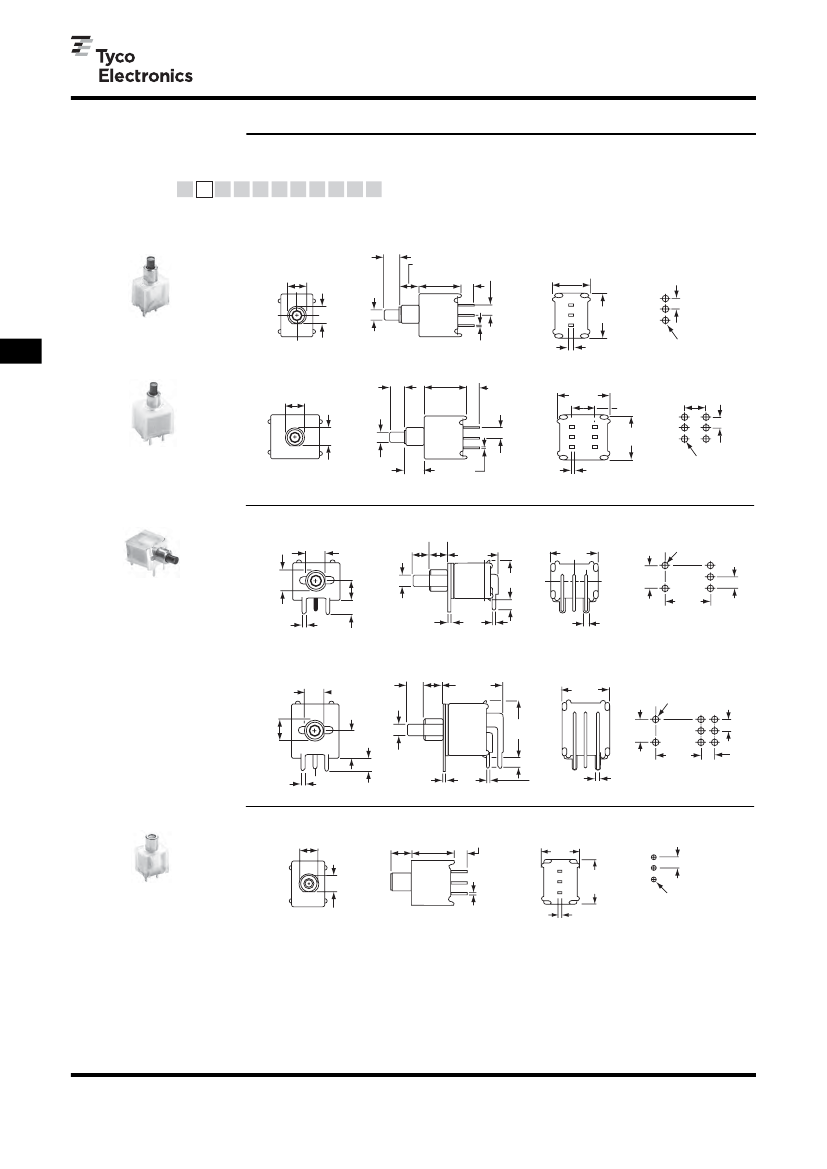

Pushbutton Switches
TP_ES Series, Tiny, Process Sealed
Features
I
I
I
Process and non-process sealed
Compact design
Vertical or right angle versions
Pushbutton Switches
Typical performance characteristics
Contact configuration . . . . . . . . . . . . . . . . . . . . . . . . SPST, SPDT, DPDT
Contact timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Break-Before-Make
Contact rating max. . . . . . . . . . . . . . . gold: 0.4VA @20VDC or peak AC
. . . . . . . . . . . . . . . . . . . . . . . . . silve: 1A @ 125VAC or 28 VDC resistive
Electrical life . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pole2 . .2 pole
. . . . . . . . . . . . . . . . . . . . . . . . . . .gold . . . . . 100,000 . .80,000 cycles
. . . . . . . . . . . . . . . . . . . . . . . . . . .silver . . . . 60,000 . . .50,000 cycles
Contact resistance, initial. . . . . . . . . . . . . . . . . . . . . . . . max.20 mOhms’
Insulation resistance . . . . . . . . . . . . . . . . . . . . 1,000 MOhms @ 500VDC
Dielectric strength . . . . . . . . . . . . . . . . . . . . 1,000 Volts rms @ sea level
Actuation force . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to 4N (50-400gf)
Actuator travel . . . . . . . . . . . . . . . . . . . . . . . . . . momentary .030” (.762)
Environmental specification
Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -30°C to +65°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -30°C to +65°C
Solder heat resistance . . . . . . . . . . . . . . wave solder capable to 265° C
Seal . . . . . . . . . . . . . . . versions with process seal, with disposable cap
Material specifications
Contacts . . . . . . . . . . . copper or brass, gold over nickel finish or silver
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . clad with silver over nickel finish
Actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . thermoplastic
Terminals . . . . . . . . . . . brass with gold over nickel or silver over nickel
Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . thermoplastic
Frame and support bracket. . . . . . . . . . steel with tin over copper finish
RoHS Directive 2002/95/EC . . . . . . . . . . . . . . . . . . . . . . . . . . . compliant
Product key
Typical product key
TP
B
1
1
C
G
RA
ES
0
04
Type
TP
Tiny pushbutton series
Bushing
B
round .188 (4.78) dia. bushing not threaded
F
round 1/4-40 UNS 2B thread
Actuator
blank
standard
F
flush (available with B bushings only)
Number of Poles
1
single pole
Contact rating
1
0.4VA Gold
Function
C
single throw, momentary
F
double throw, momentary
Plating
G
Gold
Terminals
PC
printed circuit board
RA
right angle (right angle, ES available with B and C bushing only)
Process Seal
ES
process sealed with disposable boot, epoxied double case
Button Color
0
black
2
red
6
blue
Material
04
RoHS compliant
D15
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Pushbutton Switches

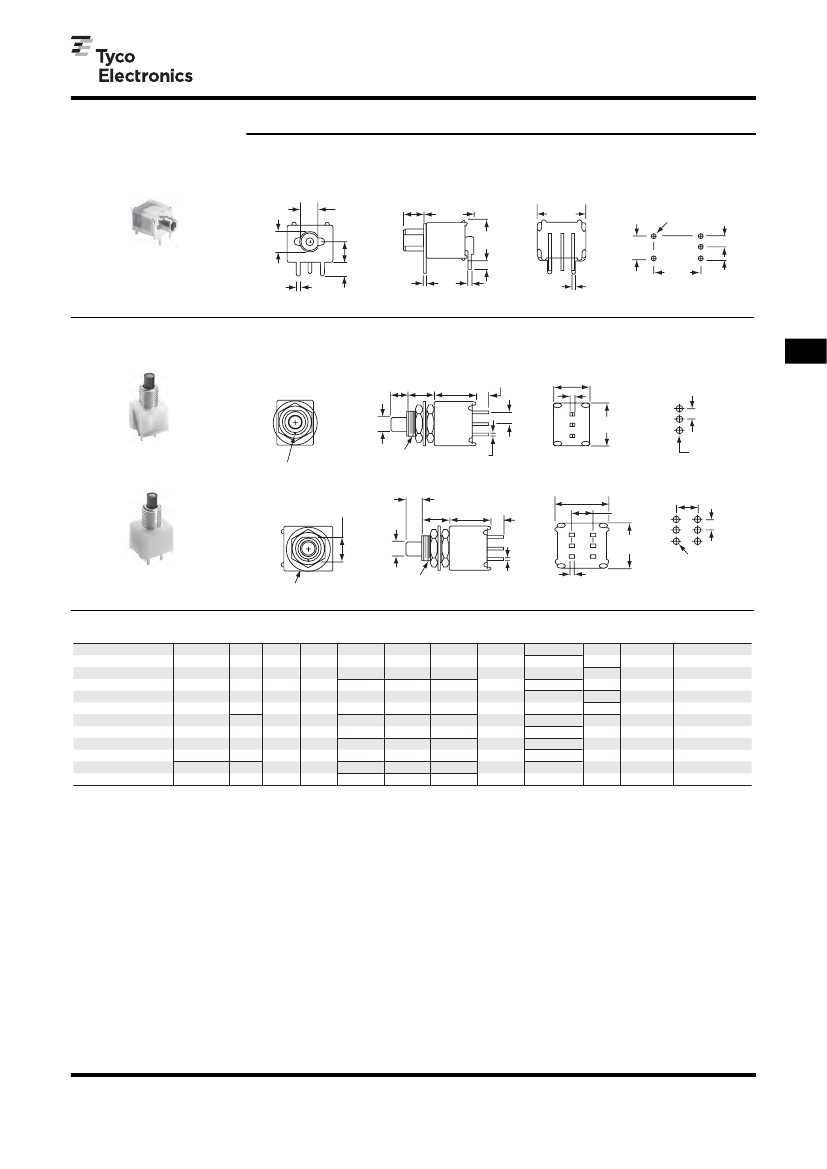

TP_ES Series, Tiny, Process Sealed
(Continued)
Bushing
B, Round .188 (4.78) dia. bushing not threaded
printed circuit board
.186
(4,72)
DIA.
.137
(3.48)
.100
(2.54)
DIA.
.190
.100
(4.83)
(2.54)
3.80 .120 DIA.
(9.65) (3.05)
3
2
1
.172
(4.37)
TO FLAT
.020
(0.51)
TYP.
.137
(3.48)
.100
(2.54)
DIA.
.120
(3.05)
.340
(8.64)
Note: no center terminal
on ‘C’ function switch
.100
(2.54)
TYP.
.043
(1.09)
DIA. TYP.
TPB11CGPCES
.390
(9.91)
.030
(0.76)
TYP.
.480
(12.2)
3
2
1
Pushbutton Switches
.186
(4.72)
DIA.
3.80
(9.65)
.200
(5.08)
6
.410
5 (10.41)
4
.100
.200 (2.54)
(5.08) TYP.
TPB21RGPCES
.172
(4.37)
TO FLAT
.186
(4.72)
.020
(0.51)
TYP.
.100
(2.54)
TYP.
.030
(0.76)
TYP.
.043
(1.09)
DIA.-TYP.
Note: no center terminals
on ‘M’ function switch
right angle
.172
(4.37)
TO FLAT
.186
(4.72)
DIA.
.140
.137 (3.56)
(3.48)
.443
(11.25)
.340
(8.64)
.100
(2.54)
DIA.
.015
(.38)
.030
(0.76)
.079
(2.01)
.020
(0.51)
TYP.
.400
(9.91)
.200
(5.08)
.400
(10.16)
.100
(2.54)
.043
(1.09)
DIA.-TYP.
TPB11CGRAES
.030
(7.67)
.170
(4.32)
.118
(2.98)
Note: no center terminal
on ‘C’ function switch
.172
(4.37)
TO FLAT
.140
(3.60)
.140
(3.60)
.520
(13.2)
.400
(10.0)
.043
(1.09)
DIA.-TYP.
.200
(5.08)
.400
(10.16)
.100
(2.54)
DIA.-TYP.
.186
(4.72)
DIA.
.260
(6.60)
.480
(12.2)
.100
(2.50)
DIA.
.015
(.383)
.080
(2.03)
.030
.020
(0.767) (0.51)
TYP.
.100
(2.54)
.030
(.767)
.120
(3.10)
Note: no center terminals
on ‘M’ function switch
printed circuit board, flush actuator
.186
(4.72)
DIA.
.190
(4.80)
.380
(9.70)
.120
(3.00)
3
2
1
.172
(4.37)
TO FLAT
.020
(0.51)
TYP.
.340
(8.60)
.100
(2.54)
.400
(10.0)
.030
(0.76)
TPBF11CGPCES
.043
TYP.
(1.09)
DIA.
Note: no center terminal
on ‘C’ function switch
D16
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
Pushbutton Switches
TP_ES Series, Tiny, Process Sealed
(Continued)
right angle, flush actuator
.172
(4.37)
TO FLAT
.186
(4.72)
DIA.
.180
(4.40)
.450
(11.4)
.340
(8.60)
.090
(2.30)
.030
(0.76)
.120
(3.10)
.015
(0.38)
.030
(0.76)
.020
(0.51)
TYP.
.400
(10.0)
.043
(1.09)
DIA. TYP.
.200
(5.08)
.400
(10.16)
.100
(2.54)
TPBF11CGRAES
.190
(4.80)
.100
(2.54)
Note: no center terminal on ‘C’ function switch
F, Round 1/4-40 UNS 2B thread
printed circuit board
.226
(5.74)
TO FLAT
.160 .281
.132 (4.06)(7.14)
(3.35)
DIA.
.380
(9.65)
.120
(3.05)
.340
(8.64)
Pushbutton Switches
.030
(0.76)
.410
(10.41)
Note: no center terminal
on ‘C’ function switch
.100
(2.54)
TPF11CGPCES
.020 Dp. X .040 W.
(0.51) Dp. X (1.02) W.)
KEYWAY
.226
(5.74)
TO FLAT
1/4-40
UNS-2A
.020
(0.51)
TYP.
.100
(2.54)
TYP.
3
2
1
.043
(1.09)
DIA. TYP.
.480
(12.2)
.200
(5.08)
.158
(4.01)
.132
(3.35)
.311
(7.90)
.340
(8.66)
.120
(3.05)
3
2
1
.200
(5.08)
6
.410
5 (10.4)
4
TPF21MGPCES
.022 Dp. X .040 W.
(.56) Dp. X (1.02) W.)
KEYWAY
1/4-40 UNS-2A
.020
(0.51)
TYP.
.030
(0.76)
TYP.
.100
(2.54)
.043 TYP.
(1.09)
DIA. TYP.
Note: no center terminals
on ‘M’ function switch
Product key
Bushing Act. Poles Rating Function
round
std
1
0.4VA Off-(On)
TPB11CGPCES004
TPB11CGRAES004 .188 (4.78)
dia
TPB11CGRAES204
bushing,
On-(On)
TPB11FGPCES204
not
TPB11FGRAES004
threaded
TPB11FGRAES604
flush
Off-(On)
TPBF11CGPCES004
TPBF11CGRAES004
On-(On)
TPBF11FGPCES004
TPBF11FGRAES004
1/4-40
std
Off-(On)
TPF11CGPCES004
UNS 2B
On-(On)
TPF11FGPCES004
(
Off
)
1-3
Plating
Gold
Terminals
pcb
right angle
pcb
right angle
pcb
right angle
pcb
right angle
pcb
Btn.
black
red
Material
RoHS
compliant
1-2
2-3
Off
1-2
Off
1-2
1-3
2-3
1-3
2-3
black
blue
black
Part Number
1825097-3
1825097-5
1825097-7
1-1825097-0
1-1825097-4
1-1825097-5
2-1825097-0
2-1825097-2
2-1825097-3
2-1825097-6
1825100-3
1-1825100-0
D17
Catalogue No. 8-1773450-9
Issued 09/2008
Dimensions are in mm and inches and
are shown for reference purposes only.
Specifications subject to change.
www.tycoelectronics.com
