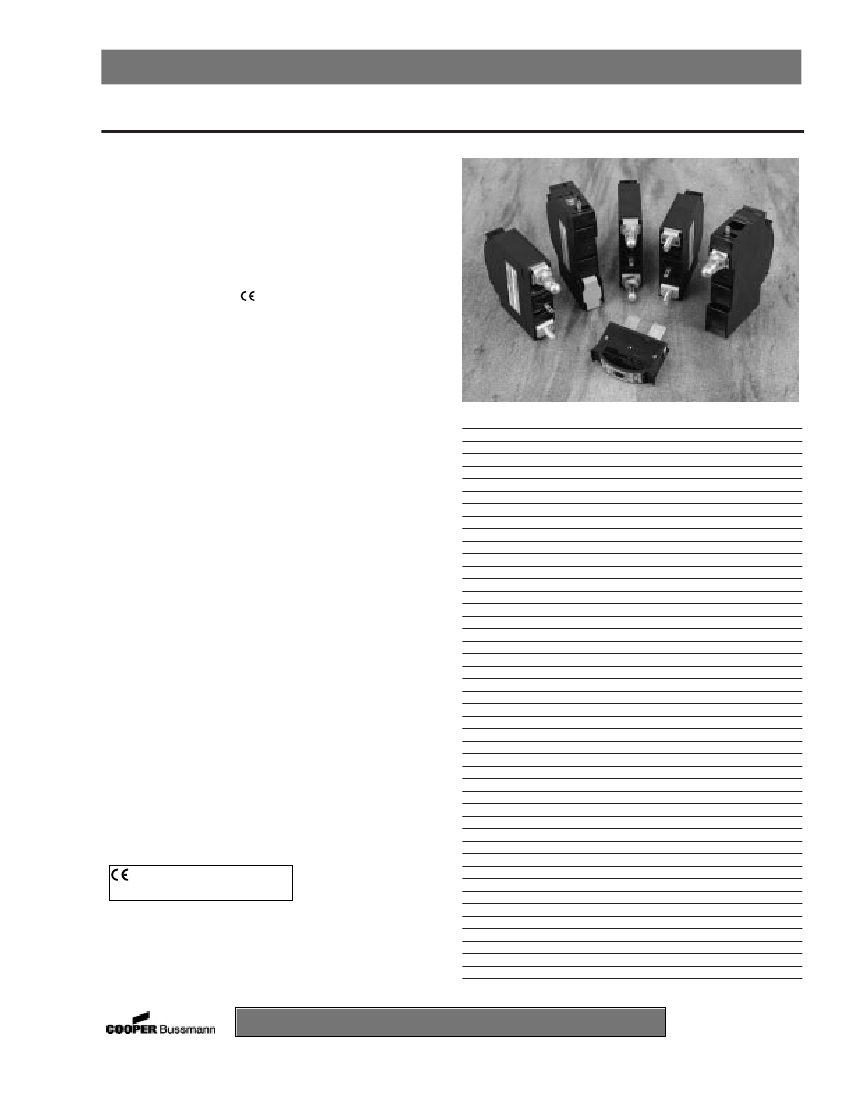

disconnect switch for the interruption of load current
by means of withdrawing the fuse pullout.
Recognized to U.S. and Canadian requirements under the
component recognition program of Underwriters
Laboratories Inc.
Files E219046 and E56412.
General Information:
• Fusible solution for replacement of existing dc Telecom
circuit breakers.
• Compact size fused disconnect switch.
• AmpColor ID™ System for easy fuse replacement.
• Available in two disconnect switch profiles in addition to a
variety of terminal styles.
• Local and remote open fuse indication.
Local alarm indication provided by LED on TPC fuse.
• Remote alarm terminal available in three positions
commonly found in dc circuit protection devices.
• Recommended .75 inch center-to-center product spacing.
• Current-limiting capability
• Complete system coordination capability.
• Highest interrupting rating (100,000A) available
for dc circuit protection of this footprint.
• No venting of arc or molten metals and gases during
fuse opening.
• Fuse material: Black thermoplastic, UL rated 94 V-O,
170° C RTI.
• Housing material: Black thermoplastic, UL rated 94 V-O,
120° C RTI.
TPC & TPCDS
CE logo denotes compliance with European Union Low
Voltage Directive (50-1000Vac, 75-1500Vdc). Refer
to Data Sheet: 8002 or contact Bussmann Application
Engineering for more information.
Catalog Number
TPC-3
TPC-4
TPC-5
TPC-6
TPC-7
TPC-8
TPC-10
TPC-12
TPC-15
TPC-20
TPC-25
TPC-30
TPC-40
TPC-50
TPC-60
TPC-75
TPC-90
TPC-100
TPC-125
TPCDS-BBE-1
TPCDS-BBE-2
TPCDS-BBE-3
TPCDS-BBM-1
TPCDS-BBM-2
TPCDS-BBM-3
TPCDS-BSE-1
TPCDS-BSE-2
TPCDS-BSE-3
TPCDS-BSM-1
TPCDS-BSM-2
TPCDS-BSM-3
TPCDS-SSE-1
TPCDS-SSE-2
TPCDS-SSE-3
TPCDS-SSM-1
TPCDS-SSM-2
TPCDS-SSM-3
TPCDS-D-BC1*
TPCDS-D-BC2*
TPCDS-D-CC1*
TPCDS-D-SEC1*
TPCDS-D-SEC2*
TPCDS-D-SMC1*
TPCDS-D-SMC2*
Description
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Fuse
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Compact Disconnect
Ampere Rating
3A
4A
5A
6A
7A
8A
10A
12A
15A
20A
25A
30A
40A
50A
60A
75A
90A
100A
125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
3-125A
*Not investigated to Canadian Requirements.
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
3-26-03
SB03069
Form No. TPC & TPCDS
Page 1 of 7
Data Sheet: 5023
Telpower
®
DC Power Protection Systems
Bussmann
®
Telpower
®
Compact Fused Disconnect Switch
Compact Fused Disconnect Switch
• Bullet and / or stud terminals for line and load connections
(1.940 inch / 49.3 mm spacing).
• Front access with bullet terminals.
Rear access with stud terminals.
• Three terminal style configurations available (see below).
• Remote alarm terminal available in three positions common
to dc circuit protection devices.
Part Number System --
Compact Fused Disconnect Switch
To identify part number, replace block with appropriate suffix to
identify line and load terminals, thread type, and alarm terminal
distance.
TPCDS
-
TELPOWER® Compact
Fused
Disconnect Switch
TPC & TPCDS
DIN Rail Fused Disconnect Switch
• 35mm DIN rail mountable
• Front access.
• Three terminal style configurations available (see below).
• Screw clamp accepts 10 to 1 AWG (6mm
2
- 50mm
2
) wire.
• Two remote alarm terminal positions available.
Part Number System --
DIN Rail Fused Disconnect Switch
To identify part number, replace block with appropriate suffix
to identify line and load terminals, thread type if applicable,
and alarm terminal option.
TPCDS
-
TELPOWER® Compact
Fused
Disconnect
Switch
D
-
DIN-Rail
style product
TPCDS -
Terminal Style (select one)
BB - Bullet
contact on the line
Bullet
contact on the load
BS - Bullet
contact on the line
Stud
terminal on the load
SS - Stud
terminal on the line
Stud
terminal on the load
Thread (select one)
M-
Metric
threads for panel mount
fasteners (M3) and stud (M5)
E-
English
threads for panel mount
fasteners (6-32) and stud (10-32)
Remote Alarm Terminal Distance
(select one)
1-
.645 inch from line terminal
2-
.970 inch from line terminal
3-
1.285 inch from line terminal
-
TPCDS - D -
Terminal Style (select one)
CC -
Screw
Clamp
terminal on the line
Screw
Clamp
terminal on the load
BC - Bullet
contact on the line
Screw
Clamp
terminal on the load
SEC - Stud
terminal on the line
English
threads for stud (10-32)
Screw
Clamp
terminal on the load
SMC -Stud
terminal on the line
Metric
threads for stud (M5)
Screw
Clamp
terminal on the load
Remote Alarm Terminal Location
(select one)
1-
Side ouput
(available on
CC
and
BC
terminal styles)
2-
Bottom output, .970 inch
from line terminal
(available on
BC
terminal style only)
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin
is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
3-26-03
SB03069
Form No. TPC & TPCDS
Page 2 of 7
Data Sheet: 5023
Telpower
®
DC Power Protection Systems
Bussmann
®
Telpower
®
Compact Fused Disconnect Switch

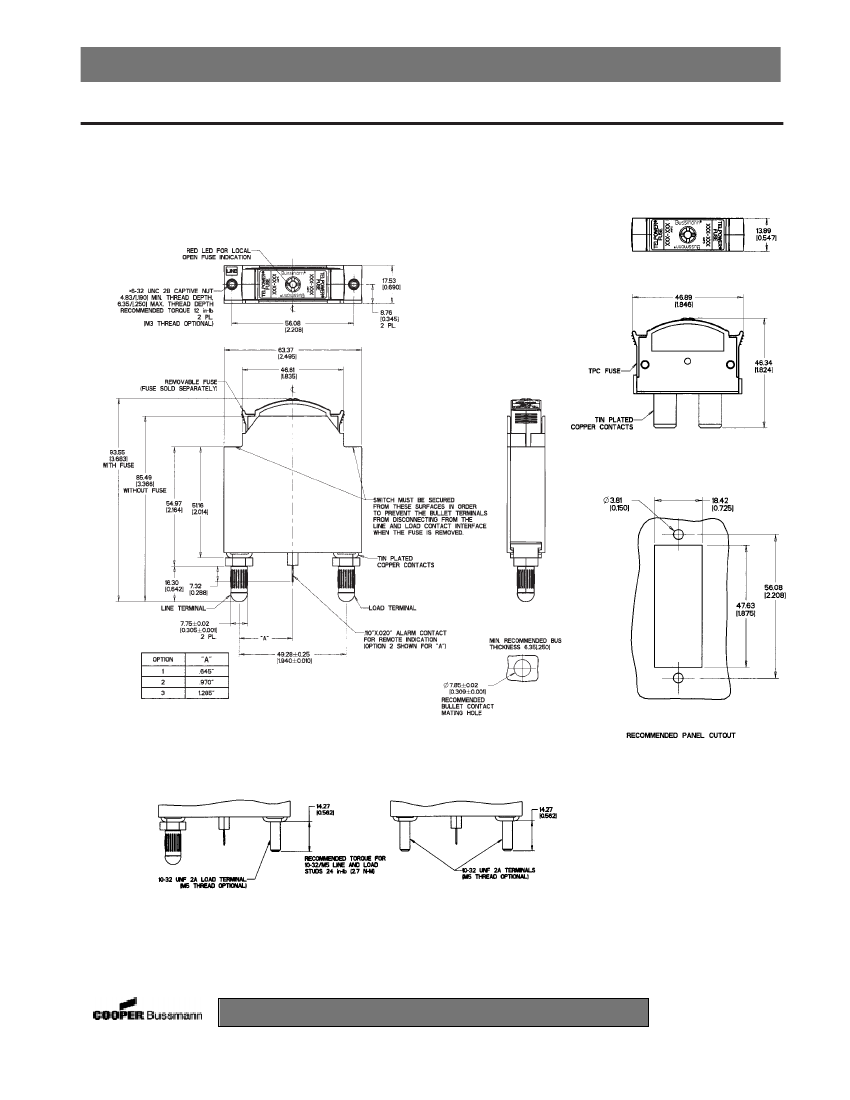

TPCDS Terminal Styles
Compact Fused Disconnect Switch
TPC & TPCDS
TPC Fuse
Line: Bullet
Load: Bullet
Line: Bullet
Load: Stud
Line: Stud
Load: Stud
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
3-26-03
SB03069
Form No. TPC & TPCDS
Page 3 of 7
Data Sheet: 5023
Telpower
®
DC Power Protection Systems
Bussmann
®
TPC & TPCDS
Telpower
®
Compact Fused Disconnect Switch
TPCDS-D Terminal Styles
DIN Rail Fused Disconnect Switch
Line: Screw Clamp
Load: Screw Clamp
Line: Bullet*
Load: Screw
Clamp
Line: Stud*
Load: Screw
Clamp
*Note: TPCDS-D Bullet / Screw Clamp and Stud / Screw Clamp terminal styles are not intended for 35 mm
DIN-RAIL mounting and will require auxiliary mechanical securement (not provided) for mounting.

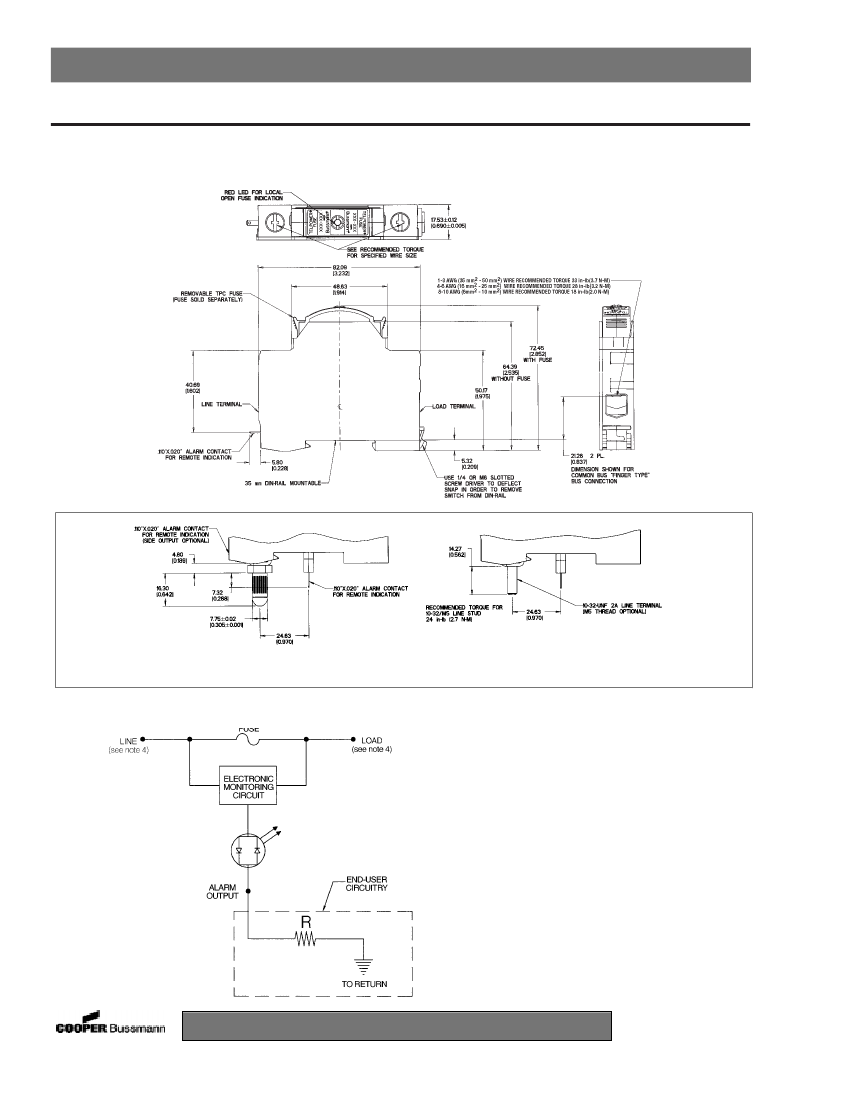

Alarm Schematic
NOTES:
1. The Electronic Monitoring Circuit (EMC) is a high input
impedance device that will provide alarming for an
open-fuse condition.
2. Typical leakage current through the load when the EMC
is operational
≤
2 mA.
3. The resistance, R, must be provided by the end-user to
limit the alarm output current to a maximum of 20 mA.
The value, R, should be calculated using the system
voltage value.
If remote alarm functionality is not required, the
END-USER CIRCUITRY
must still be supplied to
provide a resistive path to the return for the local
alarm to properly function.
4. The fuse is polarized to maintain proper orientation with
the switch housing. The line and load terminals are
identified on the switch housing.
5. Electrical integrity of the load must be maintained after
fuse has opened in order for the local and remote alarm
to properly function.
•
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
3-26-03
SB03069
Form No. TPC & TPCDS
Page 4 of 7
Data Sheet: 5023
Telpower
®
DC Power Protection Systems
Bussmann
®
Telpower
®
Compact Fused Disconnect Switch

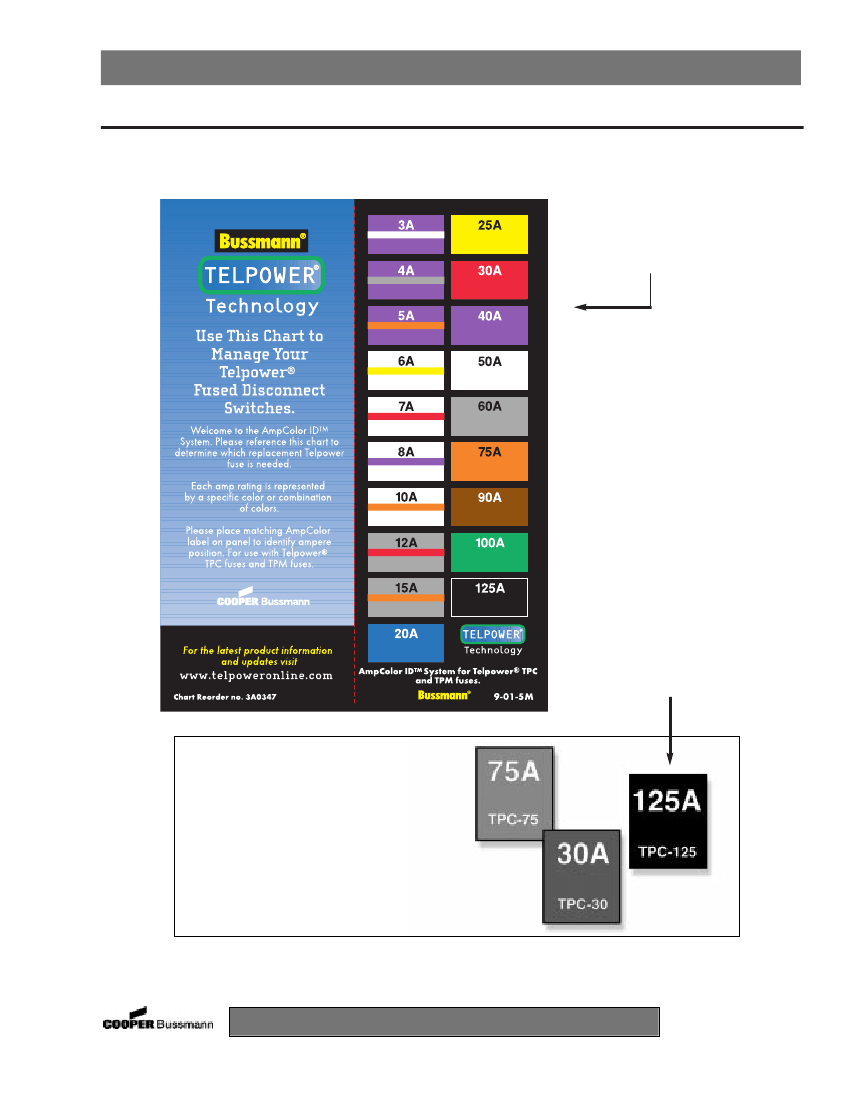

AmpColor ID™ System
TPC & TPCDS
AmpColor ID™ Chart
included with each
box of ten TPC
fuses.
TPC Fuses: 3-125A
TPM Fuses: 3-30A
Reference Data Sheet: 5022
for TPM fuse specifications.
Twelve AmpColor
ID™ tags included
with each box of
ten TPC fuses.
Telpower’s AmpColor ID
TM
System Is Easy to Use.
Each Amp rating is represented by a specific color.
Simply label new or existing panels with the appro-
priate AmpColor tags and post the AmpColor chart
nearby. Personnel can quickly and accurately refer-
ence the chart for the appropriate replacement fuse.
AmpColor ID
TM
tags
Look for Telpower® BLUE™ fuses exclusively from Cooper Bussmann.
