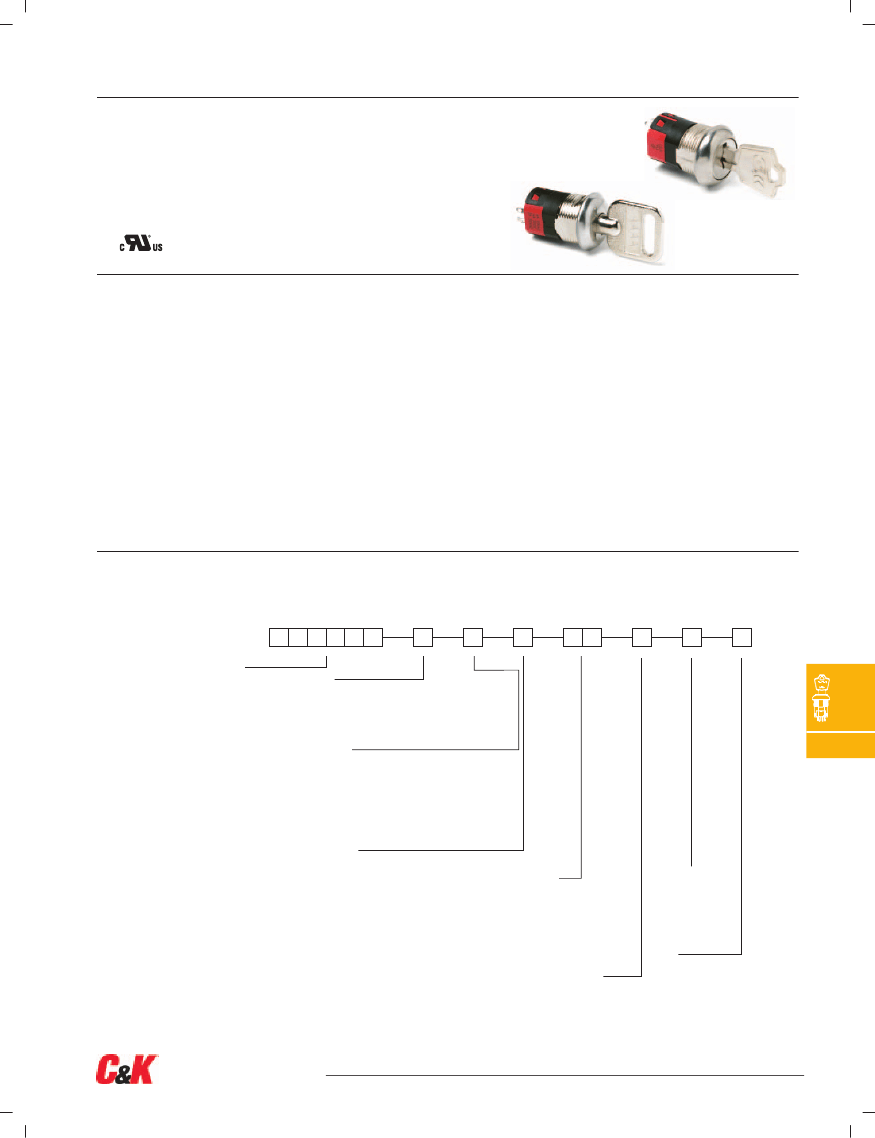

Y Series
4, 5 & 6 Tumbler Switchlocks
Features/Benefits
•
Anti-static switch—exceeds
20 KV DCstatic resistance
•
Momentary models available
•
Wire leads and harnesses available
Typical Applications
•
Point-of-sale terminals
•
Cash registers
•
Computers
Patent No. 4,639,562

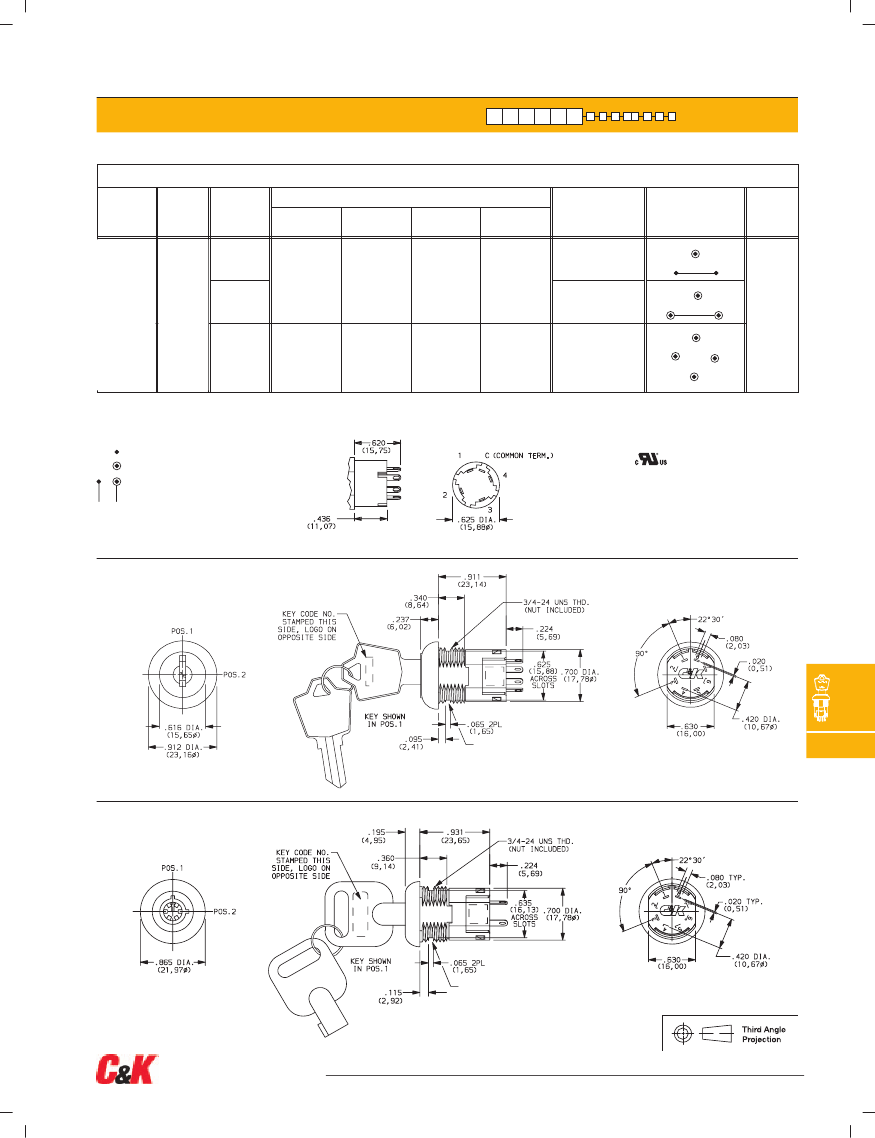

Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page M-9 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @ 2-4 V DC,
100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45º or 90º, 2-4 positions (4&5 tumbler switchlocks).
45º, 3 positions; or 90º, 2 positions (6 tumbler tubular
switchlocks).
Other functions available, consult Customer Service Center.
STATIC RESISTANCE: Anti-static models exceed 20 KV DC static
resistance @ sea level, lock body to terminals.
MOUNTING TORQUE: 10 in./lbs.; 14 in./lbs max.
Materials
LOCK: Zinc alloy with stainless steel facing, std. (4 & 5 tumbler lock
and 6 tumbler tubular lock).
KEYS: Two nickel plated brass keys, with code number, std.
(4 and 5 tumbler lock). Two die cast chrome plated zinc alloy
keys,std. (6 tumbler lock).
SWITCH HOUSING: Glass filled polyester (UL 94V-0).
CONTACTS AND TERMINALS: Q contact material: Copper, silver
plated. See page L-9 for additional contact materials.
MOUNTING NUT: Zinc alloy.
MOUNTING CLIP: Steel, zinc plated.
DRESS NUT: Brass, nickel plated.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages L–4 through L–10. For additional options not shown in catalog, consult Customer Service Center.
Switch and Lock Function
Y10013
SP, 45°, keypull pos. 1
Keying
2
Two nickel plated brass keys (4 &
Y1011U
SP, 90°, keypull pos. 1 & 2
5 tumbler) or two die cast zinc alloy keys with
Y1001U
SP, 45°, keypull pos. 1 & 3
chrome plating (6 tumbler)
Y2001U
DP, 45°, keypull pos. 1 & 3
Y10082
SP, 45°, keypull pos. 1
6
Two nickel plated brass keys with code on lock face
Y20082
DP, 45°, keypull pos. 1
Lock Type
Y100AA
SP, 45°, keypull pos. 1, 2 & 3
A
4 Tumbler lock (YXO8 models)
Y200AA
DP, 45°, keypull pos. 1, 2 & 3
C
4 Tumbler lock with detent
Y100AB
SP, 45°, keypull pos. 1, 2, 3 & 4
V
6 Tumbler tubular lock
Y200AB
DP, 45°, keypull pos. 1, 2, 3 & 4
B
5 Tumbler lock
Y10113
SP, 90°, keypull pos. 1
R
4 Tumbler lock with detent and anti-Static switch
Y20113
DP, 90°, keypull pos. 1
W
6 Tumbler tubular lock with anti-Static switch
Y1011C
SP, 90°, keypull pos.2
Y2011C
DP, 90°, keypull pos. 2
Lock Finish
Y2011U
DP, 90°, keypull pos. 1 & 2
2
Stainless steel facing
Y14173
SP, 90°, keypull pos. 1
8
Gloss black facing
Terminations
Y1417U
SP, 90°, keypull pos. 1,2 & 3
F
Polished nickel facing
03
Solder lug with hole
Y10812
SP, 45°, mom., keypull pos. 1
01
Solder lug with notch
Y20812
DP, 45°, mom., keypull pos. 1
02
PC Thru-hole
Y19073
SP w/common, 90°, keypull pos. 1
07
Solder lug with hole
Y1907U
SP w/common, 90°, keypull pos. 1, 2 & 3
(Y19OXX models only)
Y1900S
SP w/common, 90°, keypull pos. 1, 2, 3 & 4
WC
Wire lead
L
Switchlock
Contact Material
Q
Silver
B
Gold
G
Gold over silver
Seal
NONE
No seal
E
Epoxy seal
Mounting/Lock Style
N
With nut
D
With clip
L
With removable dress nut and latch pawl
R
With removable dress nut
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–3
www.ck-components.com
Y Series
4, 5 & 6 Tumbler Switchlocks

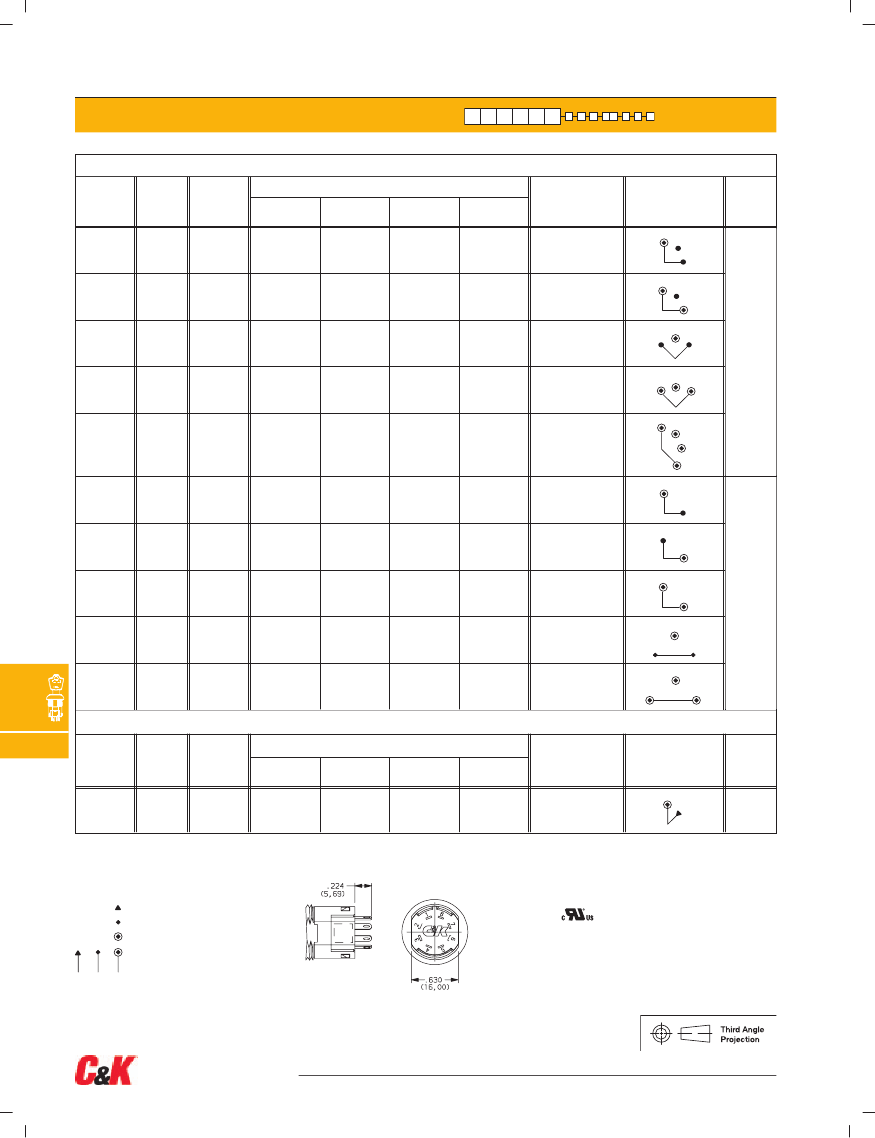

SWITCH AND LOCK FUNCTION
AVAILABLE OPTION COMBINATIONS
LOCK TYPES
MODELS
YX0013
YX001U
YX0082
YX00AX
YX0113
YX011C
YX01IU
Y141XX
YX0812
Y190XX
A
B
C
R
V
W
01
TERMINATIONS
02
03
07
WC
D
MOUNTING/LOCK
STYLES
L
N
R
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

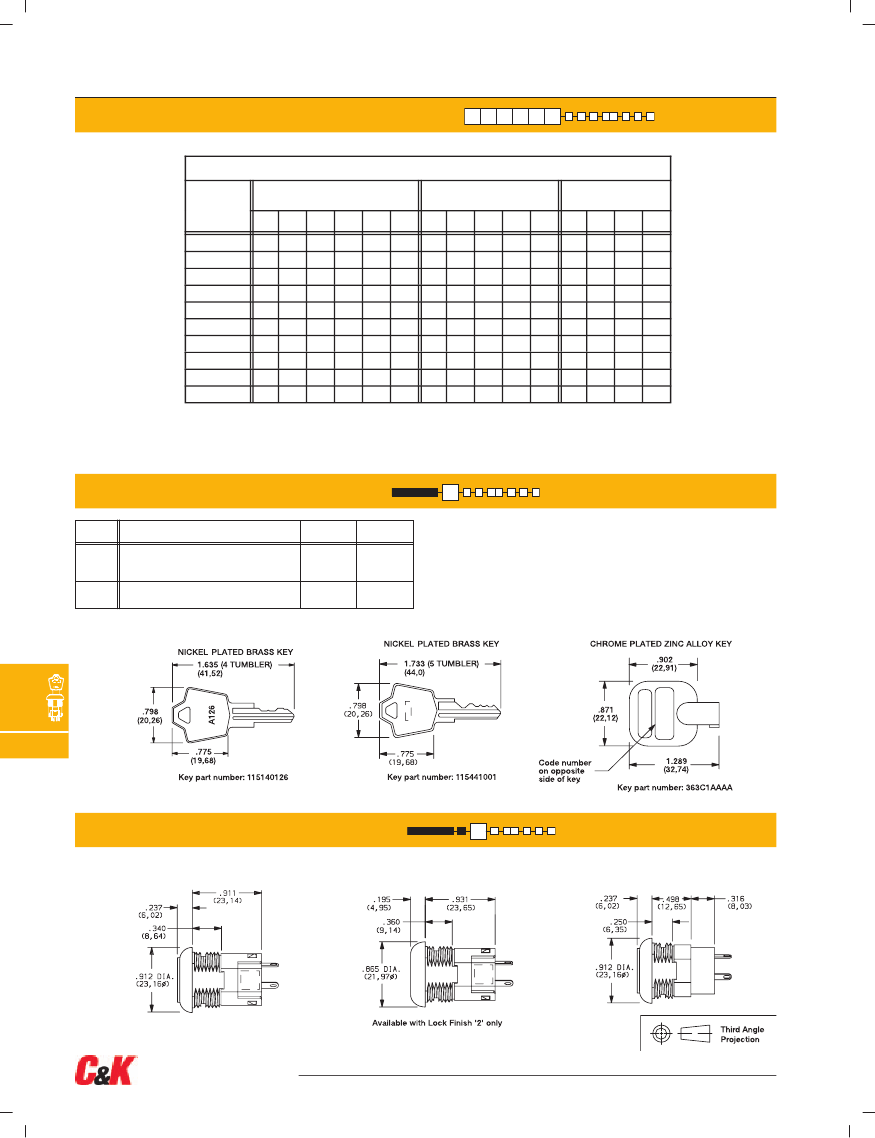

KEYING
KEYING
OPTION
CODE
KEYING OPTIONS
2 NICKEL PLATED BRASS KEYS
(4 & 5 TUMBLER) or 2 DIE CAST CHROME
PLATED ZINC ALLOY KEYS (6 TUMBLER)
2 NICKEL PLATED BRASS KEYS, 4 & 5
TUMBLER ONLY
CODE NO.
ON KEY
YES
CODE NO.
ON LOCK
NO
2
6
YES
YES
NOTE:
All orders keyed alike, standard. For more than one key code, master keying,
replacement keys, or other special features, consult Customer Service Center.
L
Switchlock
NOTE:
Keys are available separately, see page L-10. Key head shape subject to change without notice.
LOCK TYPE
C
B
4 TUMBLER LOCK WITH DETENT
5 TUMBLER LOCK
V
6 TUMBLER TUBULAR LOCK
A
4 TUMBLER LOCK (MOMENTARY MODELS ONLY)
.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–6
www.ck-components.com
Y Series
4, 5 & 6 Tumbler Switchlocks

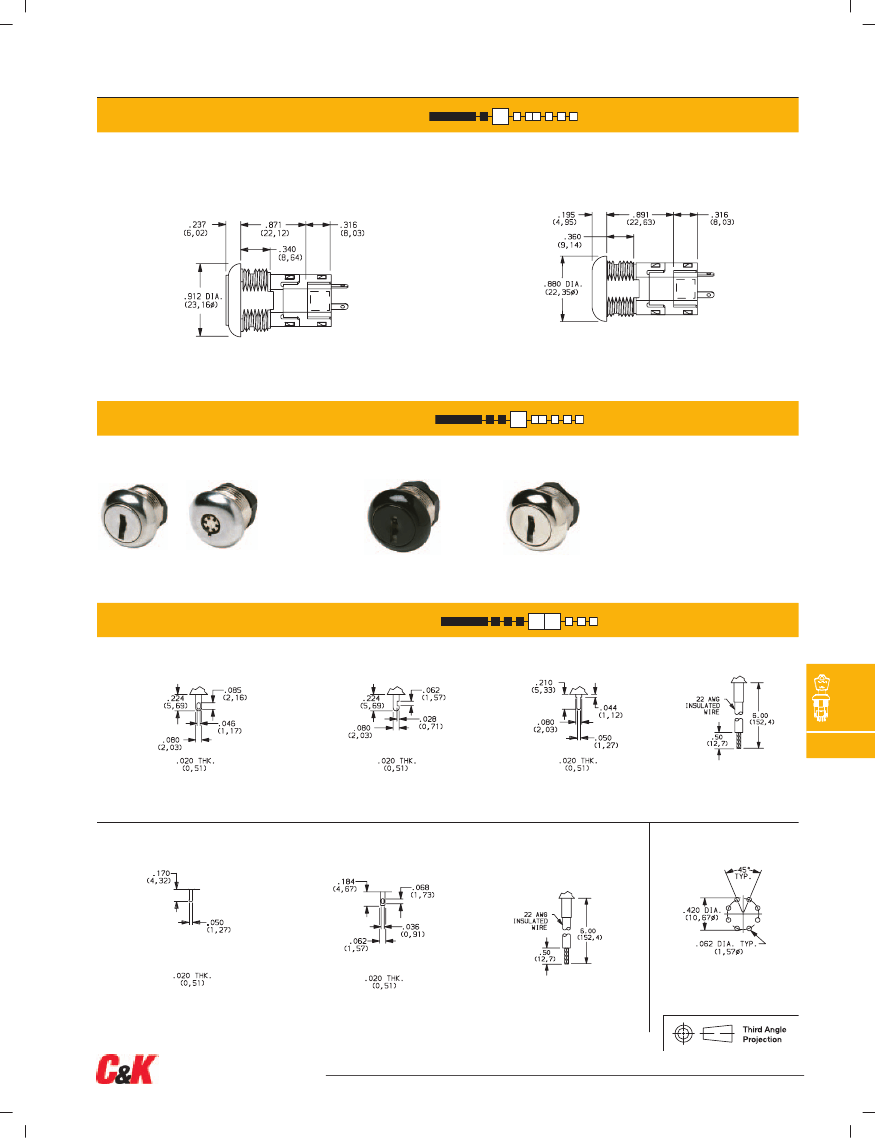

LOCK TYPE
SHORT ANTI-STATIC LOCK TYPES
R
4 TUMBLER LOCK WITH DETENT AND
SHORT ANTI-STATIC SWITCH.
W
6 TUMBLER TUBULAR LOCK WITH
ANTI-STATIC SWITCH
Available with Lock Finish '2' only.
NOTE:
For available option combinations, see page L-9.
U.S. Pat. No. 4,639,562 Exceeds 20 KV DC static resistance @ sea level, lock body to terminals.
LOCK FINISH
2
STAINLESS STEEL
8
GLOSS BLACK
F
POLISHED NICKEL
Available with
Lock Types ‘V’ & ‘W’ only.
NOTE:
For available option combinations, see page L-9.
TERMINATIONS
03
SOLDER LUG WITH HOLE
01
SOLDER LUG WITH NOTCH
02
PC THRU-HOLE
WC
WIRE LEAD
L
Switchlock
Black wire standard. other colors
and lengths available, consult
Customer Service Center.
UL style 1015.
All Models Except Y190
02
PC THRU-HOLE
07
SOLDER LUG WITH HOLE
WC
WIRE LEAD
PC MOUNTING
Y190 Model Only
Black wire standard. other colors
and lengths available, consult
Customer Service Center.
UL style 1015.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L–7
www.ck-components.com
