831700A2.0 Overview

basic / snap action switches snsw 8A sldr none

831700A2.0 Parametric

Parameter Name	Attribute value
Manufacture	Crouze
Product Category	Basic / Snap Action Switches

Preview

Download Datasheet

View All

28/07/2014

www.crouzet.com

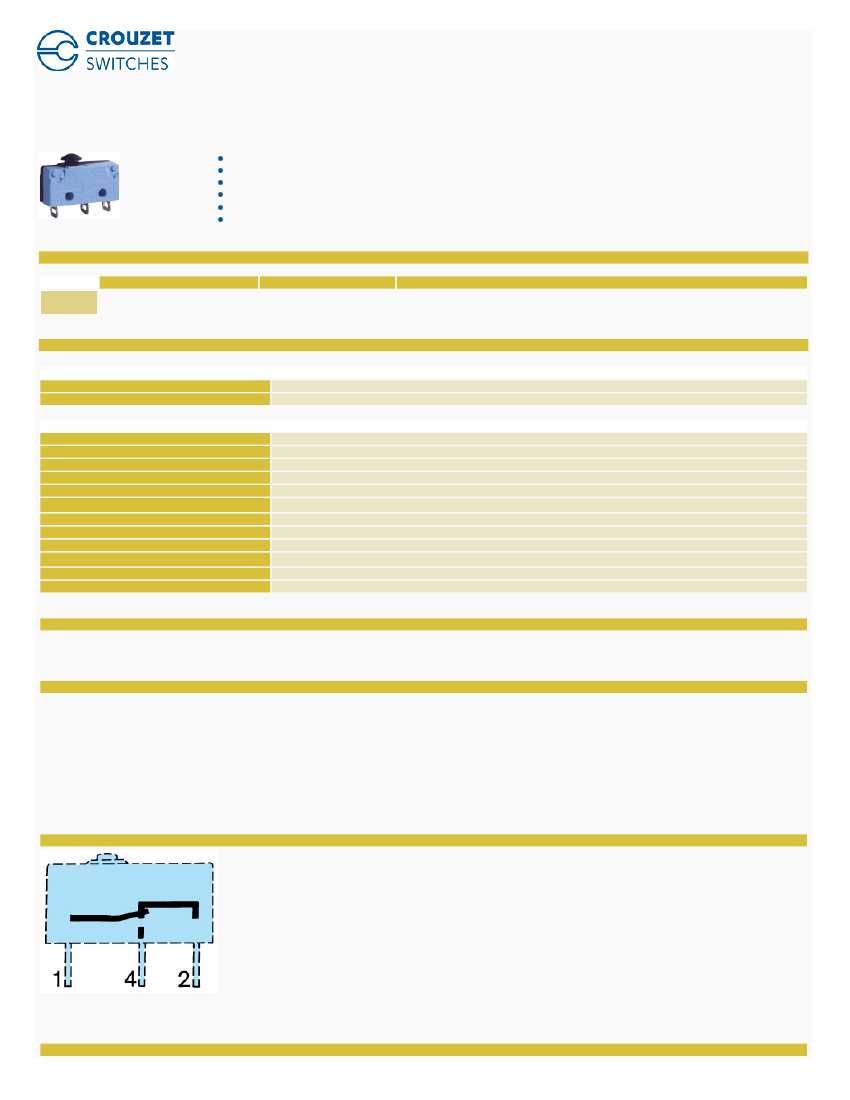

V4 83170 Mushroom-head button Standard 831700 Part number made to order

Nominal ratings 0.1 A to 10 A / 250 VAC

Minimum rating 1 mA / 4 VDC

Operating temperature up to +125 °C

Operated via multidirectional action

Conforming to standards EN 61058 and UL 1054

Choice of actuators with 2 possible fixing positions

Part numbers

Type

MADE TO

ORDER

Standard 831700

Function

I (changeover)

Connections

W2 - W7A5 - X1 - X1S - X2 - X2S - X3 - X3S

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

12,5

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Maximum total travel force (N)

Max. permitted overtravel force (N)

Maximum rest position (mm)

Operating position (mm)

Maximum differential travel (mm)

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

1,5

0,3

1,8

10,8

9,9

±0,3

0,15

0,5

-20 →+125

0,4

1,7

Comments

* see operating curves

** for 2/3 of the overtravel

Additional specifications

Components

Material

- Case : polyester UL 94 VO

- Button : glass-filled polyamide

- Contacts : nickel silver - gold alloy (dual-current)

- Terminals : cupro-nickel except W7A5 in brass

Levers

- Flat : stainless steel

- Roller : stainless steel, polyamide roller

Approvals :

NF - UL - cUL

Principles

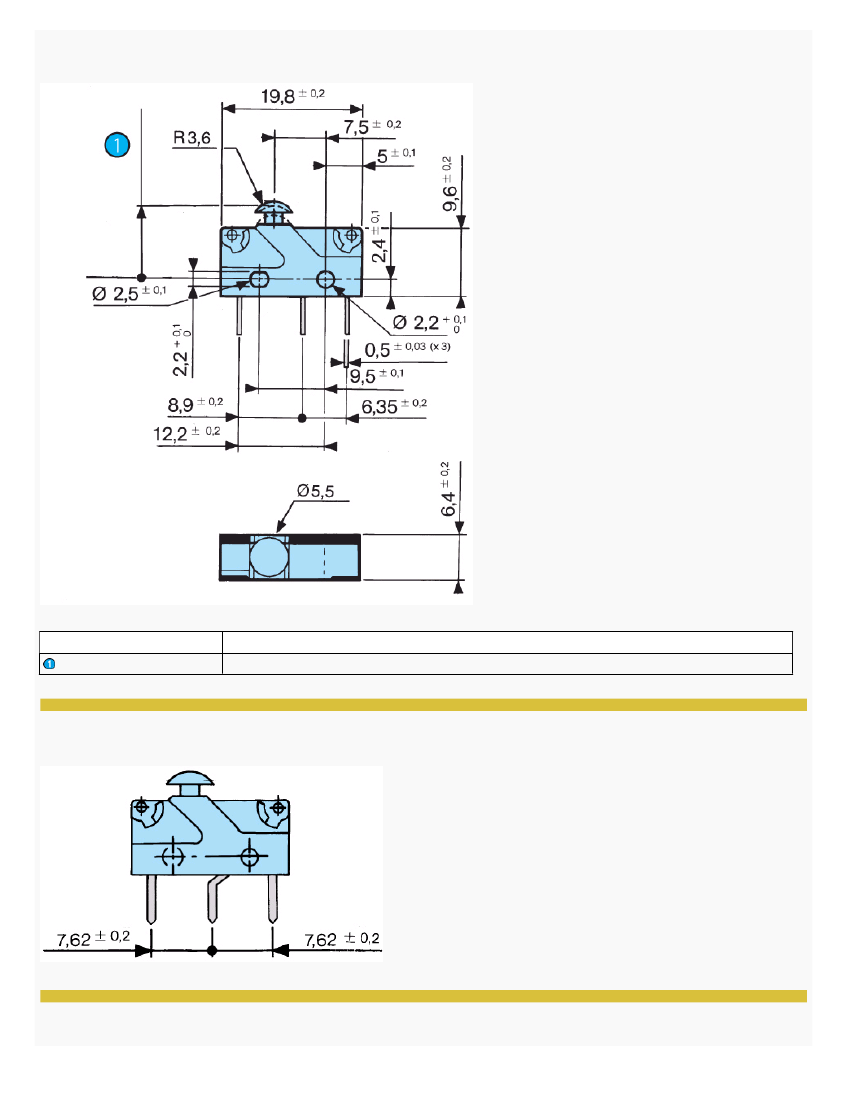

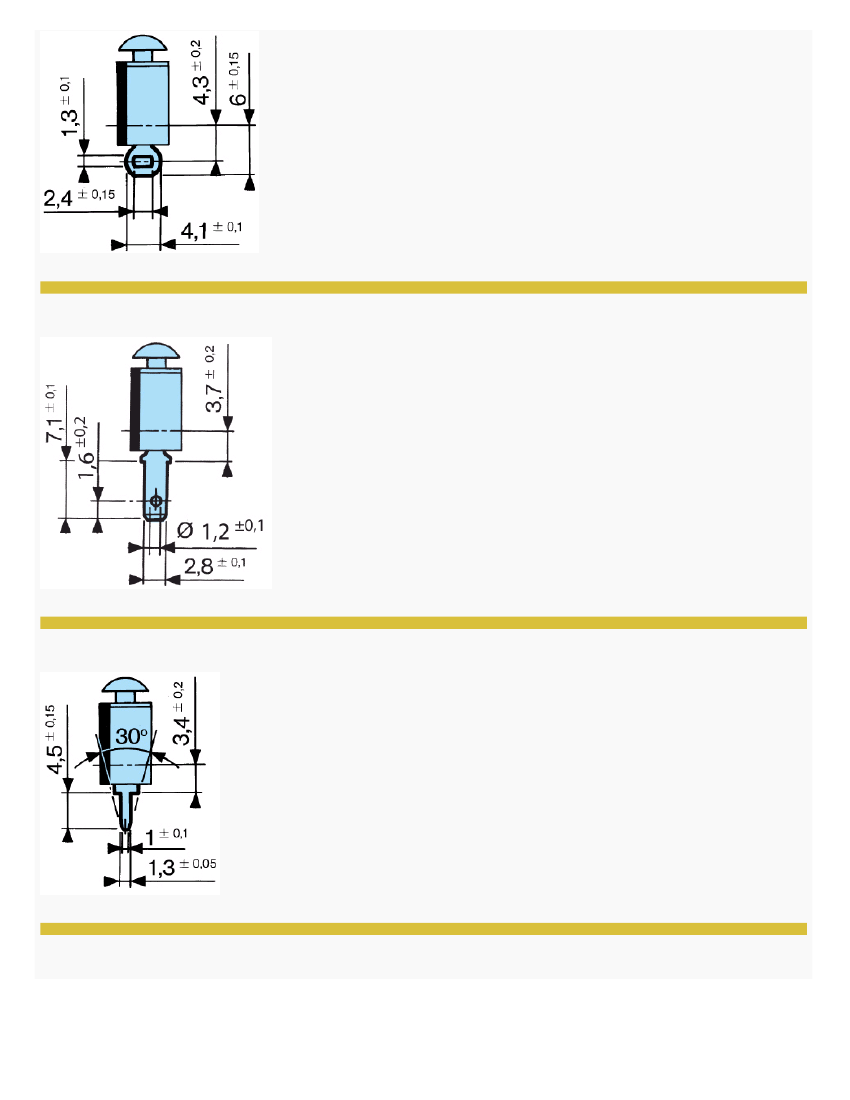

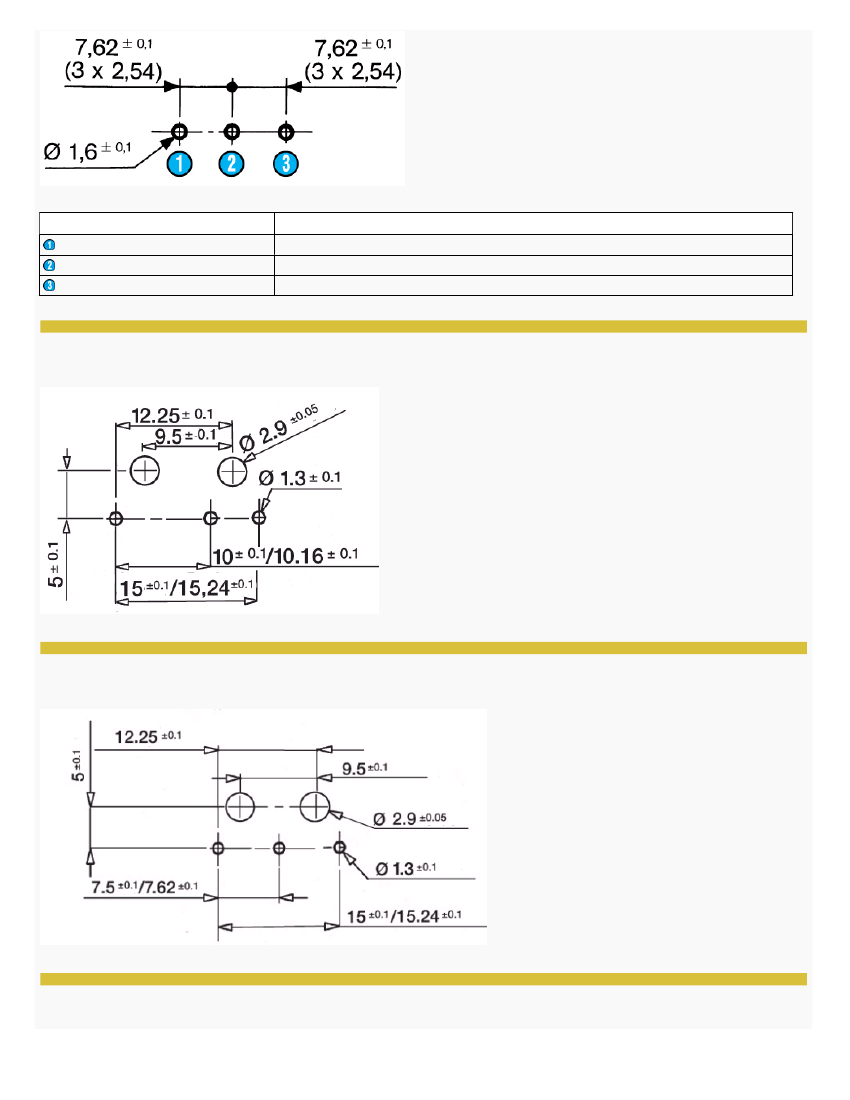

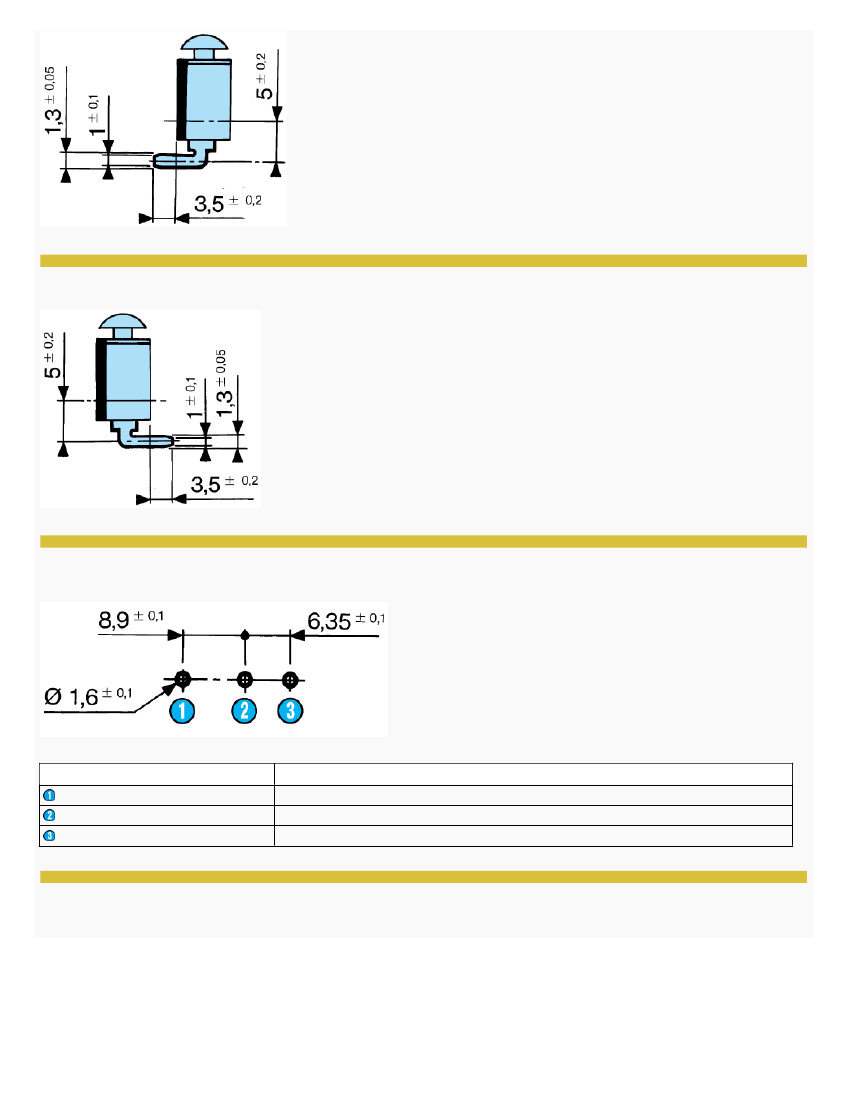

Dimensions (mm)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
