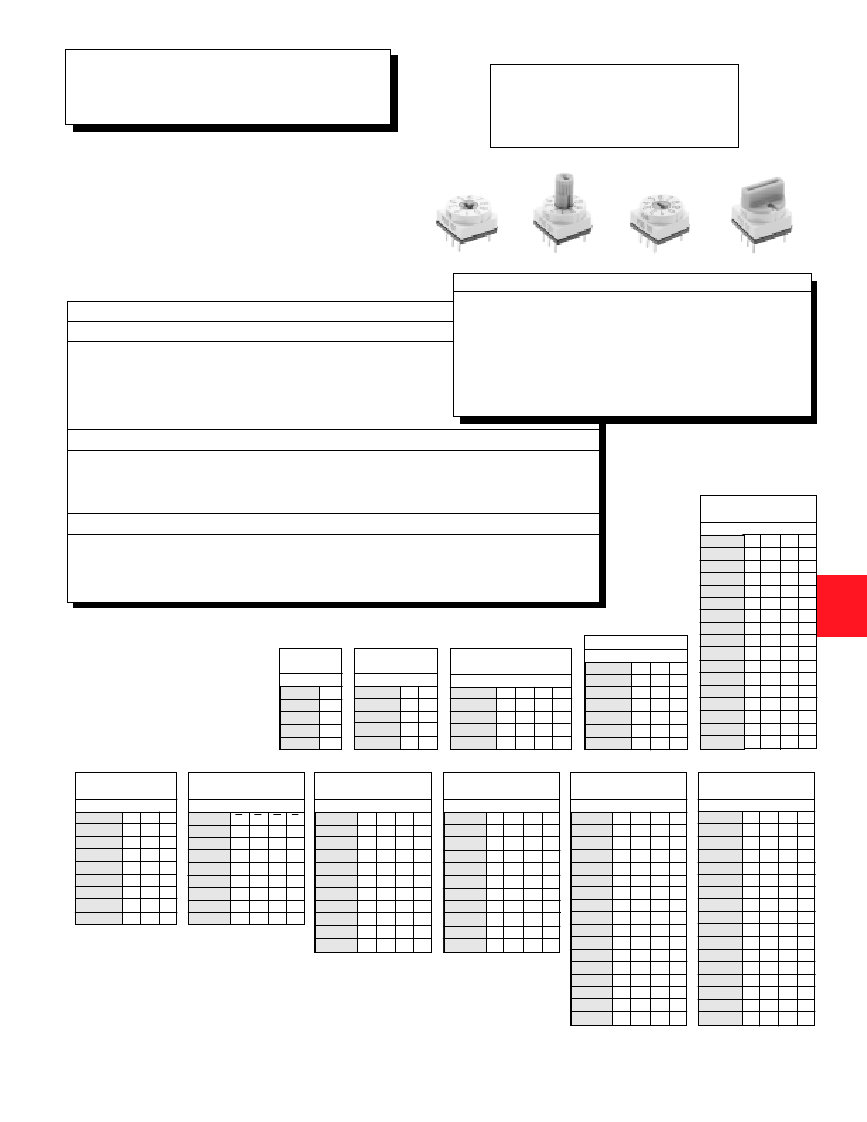

PT65 SERIES
ROTARY DIP SWITCHES
FEATURES
3 + 3 terminal layout.
Completely sealed for process compatibility.
4, 6, 8, 10 or 16 positions w/extensive codings.
Precision designed detent action.
Compact size.
High reliability & long life.
Clockwise or counterclockwise settable.
Solder coated terminals.
GENERAL SPECIFICATIONS
ELECTRICALS
Operating voltage
Contact rating, static
Contact rating, dynamic
Switching capacity
Initial contact resistance
Insulation resistance
MECHANICALS, THERMALS
Torque
Expected life
Contact force
Operating temperature range
Hand soldering
Wave soldering
Solvent washing
Aqueous cleaning
7.0 inch-oz. min. (0.7 Ncm min.)
10,000 switching operations
15 grams min.
-20°C to 70°C
24 VDC max.
400 mA max.
150 mA max.
1.5 VA max.
< 80 milliohms
> 100 megohms
Outside the U.S. and the UK,
this series is sold as the CR36
series, with a blue case.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
MATERIALS
Base
Cover
Actuator
Contacts
Terminals
Terminal sealing
Actuator seal
UL94V-O, high temperature thermoplastic
UL94V-O, high temperature thermoplastic
POM
Gold over nickel plated bronze
Gold over nickel plated bronze
Molded-in
'O'-ring
SOLDERING RECOMMENDATIONS
340°C max. for 2 seconds max. (40 watt iron max.)
260°C max. for 10 seconds max.
Freons or alcohol. (Do not use chlorinated solvents)
Deionized water preferred
CODES
NOTE: For each dial position in tables,
Common terminal(s) (C) are connected
to terminal number(s) indicated - i.e. -
none or combinations of 1, 2, 3, 4 or 8.
Each model in this series has 2 Com-
mon terminals except codes 11 and 24
which have one.
CODE 26
OCTAL
8 Positions
Dial No. 1
0
1
2
3
4
5
6
7
CODE 11
ON/0FF
4 Positions
Dial No. 1
0
1
0
1
CODE 12
BCD
4 Positions
Dial No. 1
0
1
2
3
2
CODE 21
DECIMAL
4 Positions
Dial No. 1
1
2
3
0
2
3
4
CODES 24 & 25 BCD
6 Positions
Dial No. 1 2 4
0
1
2
3
4
5
CODE 05
GRAY CODE
16 Positions
Dial No. 1 2
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4
8
P
2
4
CODE 27
OCTAL COMPLEMENT
8 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
BINARY CODED
DECIMAL (01)
10 Positions
Dial No. 1 2 4
0
1
2
3
4
5
6
7
8
9
8
COMP. OF BINARY
CODED DECIMAL (02)
10 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
BINARY CODED
HEXADECIMAL (03)
16 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
COMP. OF BINARY
CODED HEXADEC. (06)
16 Positions
Dial No. 1 2 4 8
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
P12
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com

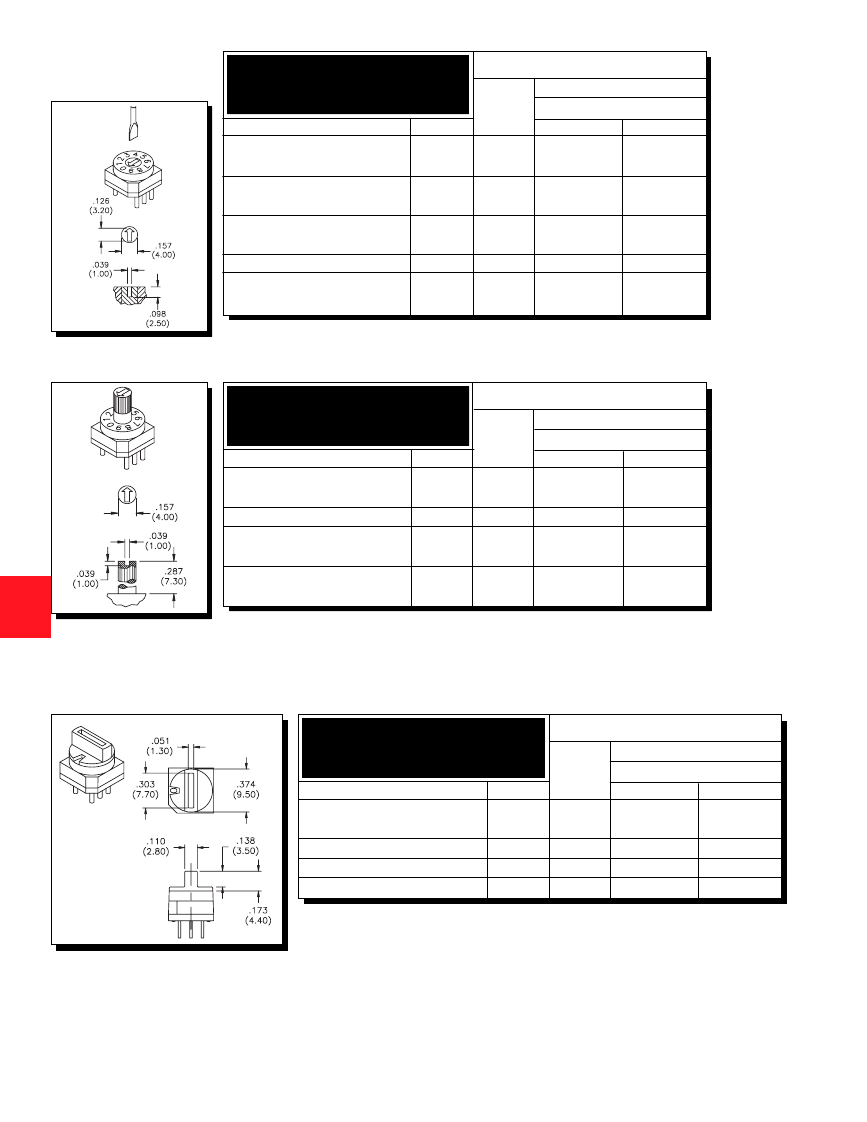

PT65 SERIES
Arrow shaped slot
Actuator Models
Code (see truth tables)
Binary Coded Decimal
Comp. of Binary Coded Dec.
Binary Coded Hexadecimal
Comp. of Binary Coded Hex.
Code 12, Binary Coded Dec.
Code 21, Decimal
Code 25, Binary Coded Dec.
Code 26, Octal
Code 27, Octal complement
Positions
10
10
16
16
4
4
6
8
8
Complete Model No. by Terminal Style
Right Angle
Straight
PT65101
PT65102
PT65103
PT65106
PT65112
PT65121
PT65125
PT65126
PT65127
Pitch
.100" (2,54)
PT65101L254
PT65102L254
PT65103L254
PT65106L254
PT65112L254
PT65121L254
PT65125L254
PT65126L254
PT65127L254
.200"(5,08)
PT65101L508
PT65102L508
PT65103L508
PT65106L508
PT65121L508
PT65125L508
PT65126L508
PT65127L508
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
PT65112L508
Spindle
Actuator Models
Code (see truth tables)
Binary Coded Decimal
Comp. of Binary Coded Dec.
Binary Coded Hexadecimal
Code 12, Binary Coded Dec.
Code 21, Decimal
Code 26, Octal
Code 27, Octal complement
Positions
10
10
16
4
4
8
8
Complete Model No. by Terminal Style
Right Angle
Straight
PT65301
PT65302
PT65303
PT65312
PT65321
PT65326
PT65327
Pitch
.100" (2,54)
.200"(5,08)
PT65301L254 PT65301L508
PT65302L254 PT65302L508
PT65303L254
PT65312L254
PT65321L254
PT65326L254
PT65327L254
PT65303L508
PT65312L508
PT65321L508
PT65326L508
PT65327L508
P
Segment Wheel
Actuator Models
Code (see truth tables)
Binary Coded Decimal
Comp. of Binary Coded Dec.
Binary Coded Hexadecimal
Code 21, Decimal
Code 26, Octal
Positions
10
10
16
4
8
Complete Model No. by Terminal Style
Right Angle
Straight
PT65501
PT65502
PT65503
PT65521
PT65526
Pitch
.100" (2,54)
PT65501L254
PT65502L254
PT65503L254
PT65521L254
PT65526L254
.200"(5,08)
PT65501L508
PT65502L508
PT65503L508
PT65521L508
PT65526L508
All models listed on this page have 2
Common terminals except Code 11 and
Code 24 which have one.
Other codes are available - consult
factory.
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
P13

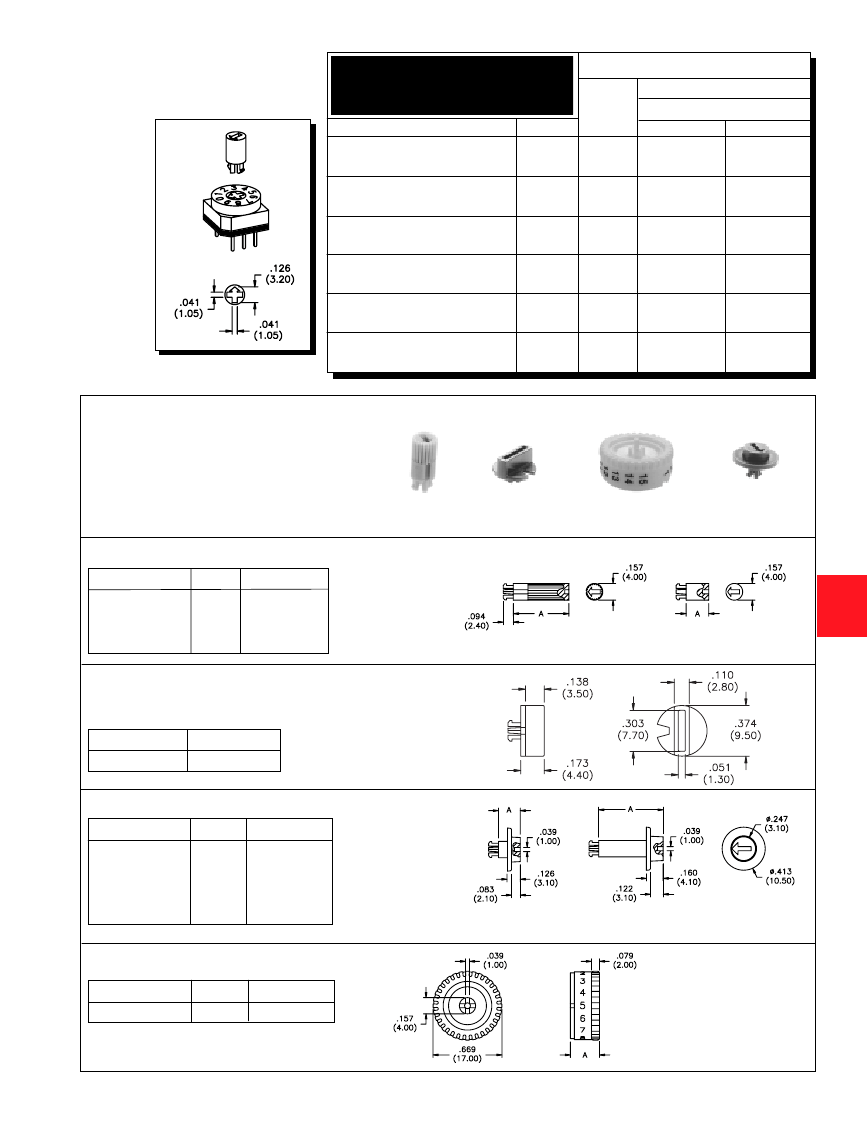

PT65 SERIES
Cross shaped slot
Actuator Models
Code (see truth tables)
Binary Coded Decimal
Comp. of Binary Coded Dec.
Binary Coded Hexadecimal
Code 05, Gray Code
Positions
10
10
16
16
16
4
4
4
6
6
8
8
Complete Model No. by Terminal Style
Right Angle
Straight
PT65701
PT65702
PT65703
PT65705
PT65706
PT65711
PT65712
PT65721
PT65724
PT65725
PT65726
PT65727
Pitch
.100" (2,54)
.200"(5,08)
PT65701L254 PT65701L508
PT65702L254 PT65702L508
PT65703L254 PT65703L508
PT65705L254 PT65705L508
PT65706L254 PT65706L508
PT65711L254 PT65711L508
PT65712L254 PT65712L508
PT65721L254 PT65721L508
PT65724L254 PT65724L508
PT65725L254 PT65725L508
PT65726L254 PT65726L508
PT65727L254 PT65727L508
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Comp. of Binary Coded Hex.
Code 11, ON/OFF
Code 12, Hexadecimal
Code 21, Decimal
Code 24, Binary Coded Dec.
Code 25, Binary Coded Dec.
Code 26, Octal
Code 27, Octal complement
Operating Elements
snap-fit securely
into PT65 (& P60A) Series switch mod-
els with cross shaped slot actuators.
Order separately by Model number shown
below and indicate color.
Spindle
SAPT65473
SAPT654116
SAPT654133
colors: red, gray or black (consult factory for color codes)
Dim. A
EU Model No.
.287
.457
.524
N/A
U4820
U4830
Short spindle above applies
to model SAPT65473 only
US Model No.
P
Segment wheel
colors: yellow, red, green,
blue, gray or black (consult factory for color codes)
US Model No.
SRPT659544
EU Model No.
U4940
Knob
color: red
US Model No.
DKPT6510553
Dim. A
.209
EU Model No.
U4906
U4916
N/A
N/A
Short knob above applies
to model DKPT6510553 only
DKPT65105157
.618
DKPT65105291
1.146
DKPT65105344
1.354
Wheel
color: white
US Model No.
DRPT651772
Dim. A
.283
EU Model No.
U4847/1
printing on request
(fits PT65 models only)
P14
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
PT65 SERIES

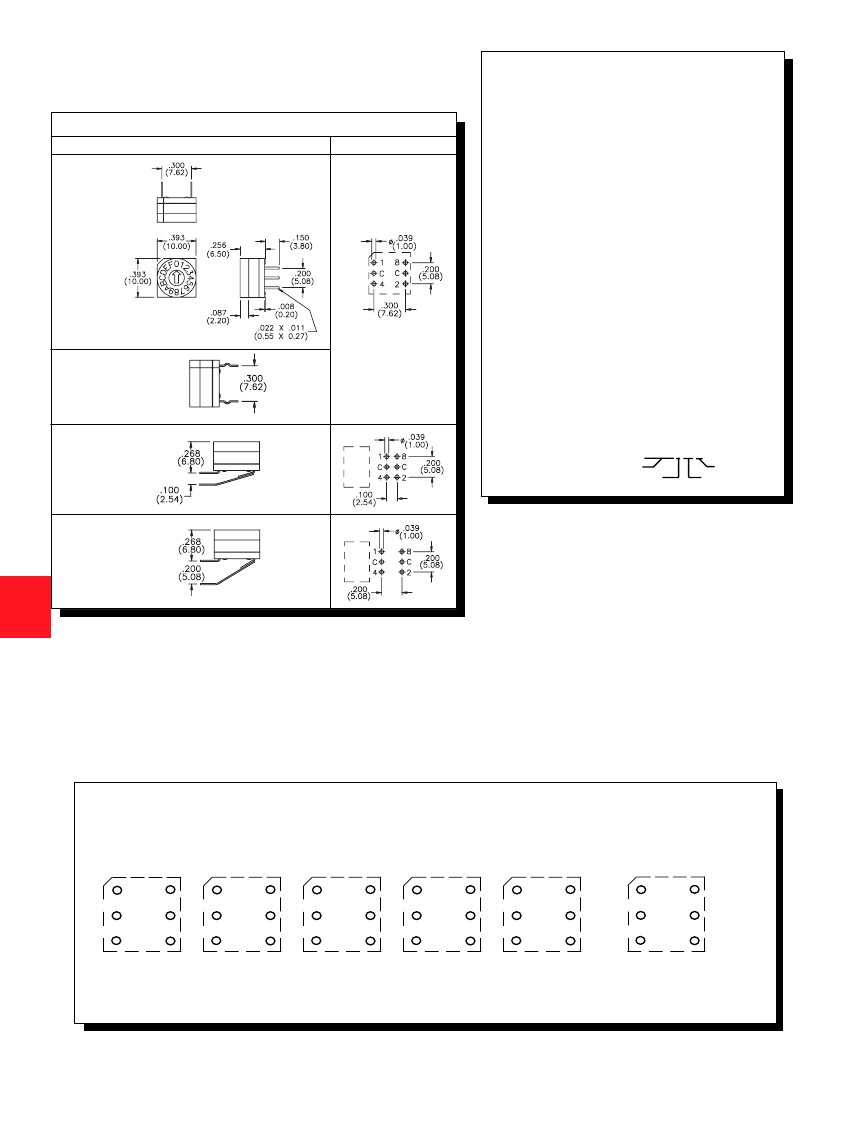

MECHANICAL OUTLINES
Terminal option suffix*:
NONE
Straight
terminals
Mtg. hole pattern:
PT65
SERIES STANDARD OPTIONS :
Actuators
1
Arrow shaped slot
3
Spindle
5
Segment wheel
7
Cross shaped slot
Codes
01
BCD
02
BCD complement
03
Hexadecimal
06
Hexadecimal Comp.
See other available codes on page G17
Terminals
None
Straight
V
Crimped
L254
Rt. angle 2.54 (.100")
L508
Rt. angle 5.08 (,200")
ORDER GUIDE:
V
Crimped
terminals
Make selections from the above table in sequence
to specify a complete model number.
Note that 'None' indicates that no option suffix is
required.
L254
Right angle
terminals
Example;
PT65101V
Series
Actuator
Terminals
Code
L508
Right angle
terminals
P
* 'None' indicates no option suffix is required.
TERMINAL IDENTIFICATION FOR ALL MODELS
(viewed from top of switch inserted into printed circuit board).
Refer to TRUTH TABLES on page G17.
1
C
C
Code 11
1
Code 12
2
C
1
C
4
2
C
3
C
4
1
2
1
C
4
C
2
1
C
4
8
C
2
Code 21
Code 24
Codes 25 & 26
Code 27 and
10& 16 pos. models
P15
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
