A126: Descriptionswitch hardware key; CategoryTopical application Mechanical and electrical/engineering/automation; File Size173KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

A126 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A126	-	-	View	Buy Now

A126 Overview

switch hardware key

A126 Parametric

Parameter Name	Attribute value
Manufacture	Apem
Product Category	Switch Hardware
RoHS	Yes
Produc	Hardware
Type	Key
For Use With	Keylock Switches
Designed f	JD Series
Illuminati	Non-Illuminated
Factory Pack Quantity	25

Preview

Download Datasheet

View All

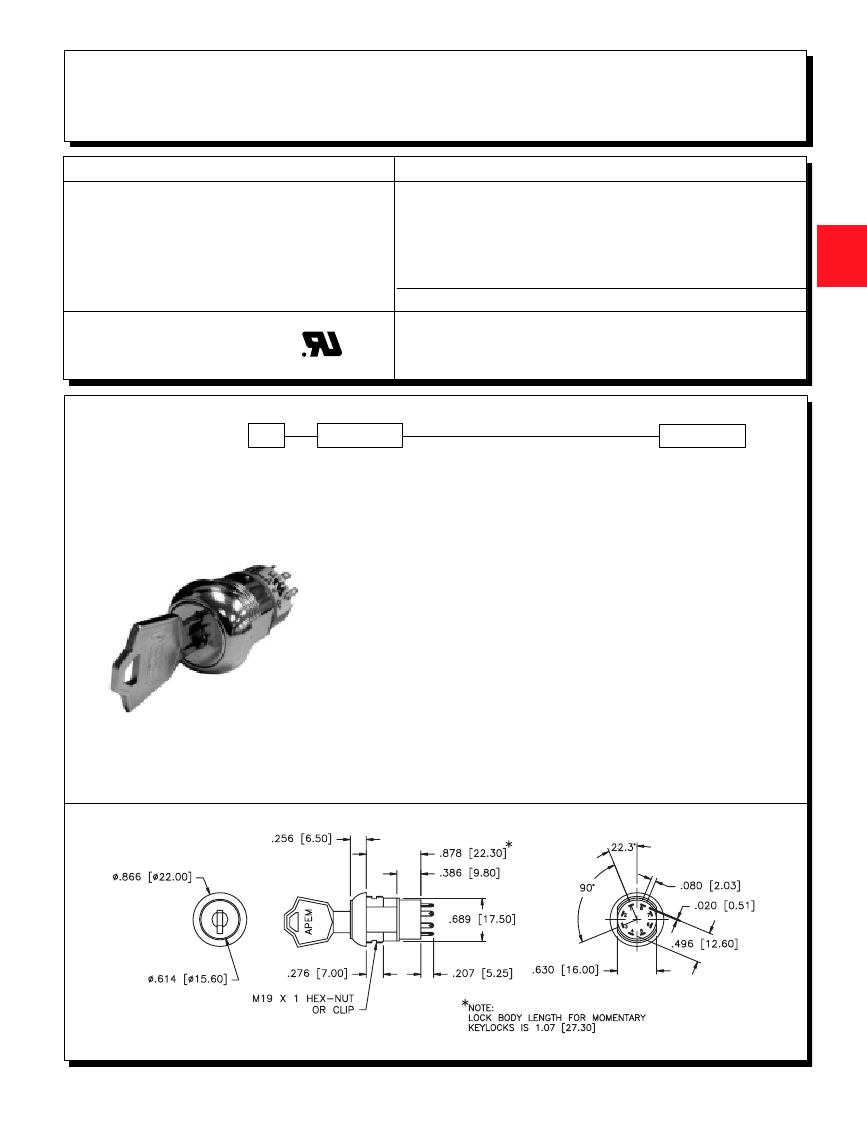

JD SERIES KEYLOCK SWITCHES

4 TUMBLER LOCK

SPECIFICATIONS

Contact ratings:

Max. resistive loads: 4A @125 VAC,

2A @ 250 VAC

Initial contact resistance:

20m

max.

Insulation resistance:

10,000 megohms min.

Dielectric strength:

1000 V rms min.

Operating temperature range:

-30°C to +85°C

Electrical Life:

6,000 cycles at full load

FEATURES

Single and double pole options.

Up to four positions.

Momentary and/or maintained switching.

Multiple key-pull position options.

45° or 90° indexing

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

SPECIFICATIONS

Contacts:

Gold over silver over copper alloy

Lock:

Nickel plated zinc alloy

Case:

Glass filled polyester Mounting Nut: Nickel Plated zinc alloy

Keys:

Nickel plated brass (2 keys with code stamped on case)

AGENCY RECOGNITION

ORDER FORMAT:

For complete model no.,

fill in boxes with selected

op-tions shown below.

Example of complete

model no. -

JD7509OA126

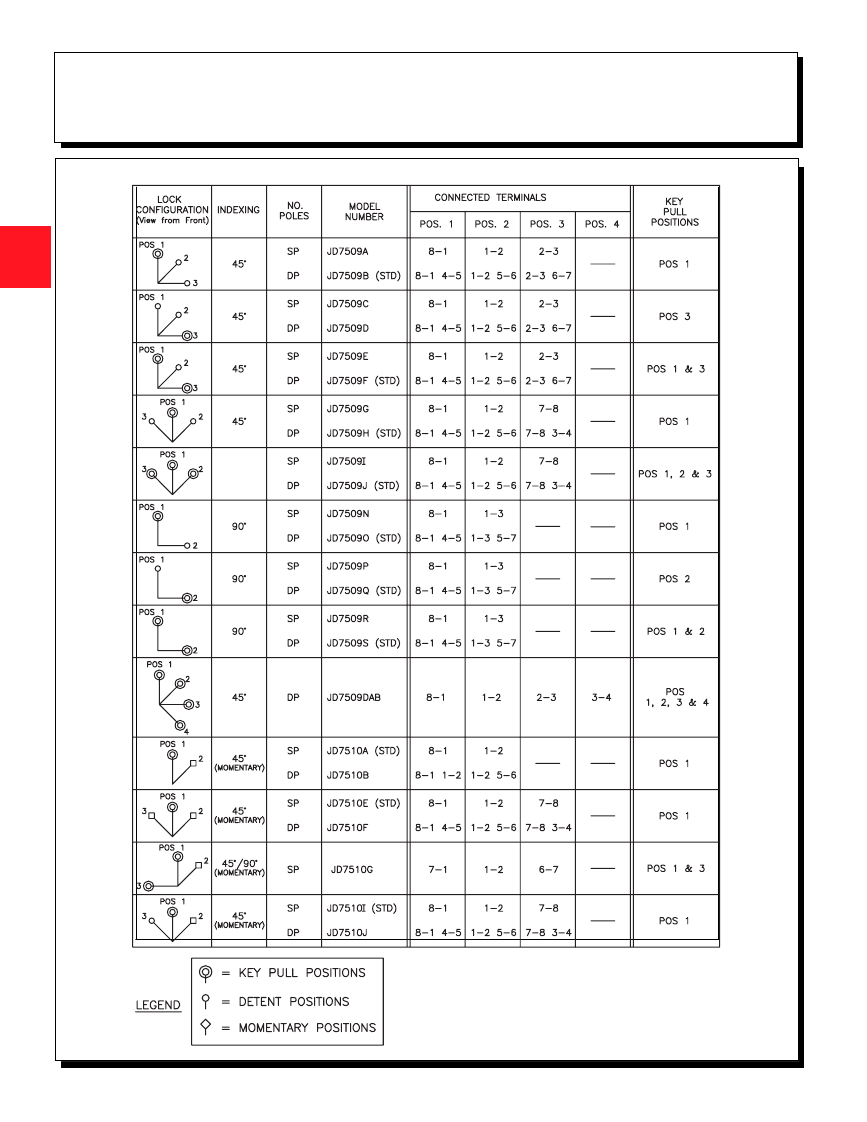

Series

Lock Function

Key Code

Maintained

7509A

7509B

(STD)

7509C

7509D

7509E

7509F

(STD)

7509G

7509H

7509I

7509J

(STD)

7509N

7509O

(STD)

7509P

7509Q

(STD)

7509R

7509S

(STD)

7509DAB

Momentary

7510A

(STD)

7510B

7510E

(STD)

7510F

7510I

(STD)

7510J

SP, 45°, Key pull position 1

DP, 45°, Key pull position 1

SP, 45°, Key pull position 3

DP, 45°, Key pull position 3

SP, 45°, Key pull position 1, 3

DP, 45°, Key pull position 1, 3

SP, 45°, Key pull position 1

DP, 45°, Key pull position 1

SP, 45°, Key pull position 1, 2, 3

DP, 45°, Key pull position 1, 2, 3

SP, 90°, Key pull position 1

DP, 90°, Key pull position 1

SP, 90°, Key pull position 2

DP, 90°, Key pull position 2

SP, 90°, Key pull position 1, 2

DP, 90°, Key pull position 1, 2

DP, 45°, Key pull position 1, 2, 3, 4

SP, 45°, Key pull position 1

DP, 45°, Key pull position 1

SP, 45°, Key pull position 1

DP, 45°, Key pull position 1

SP, 45°, Key pull position 1

DP, 45°, Key pull position 1

A126

(STD)

Other Codes

Available

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
