HB15CKW01-5F-FB datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> HB15CKW01-5F-FB

HB15CKW01-5F-FB: Descriptionilluminated pushbutton switches spdt ON-(ON) rnd grn; CategoryTopical application Mechanical and electrical/engineering/automation; File Size218KB，7 Pages; ManufacturerNKK; Websitehttps://www.nkkswitches.com.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

HB15CKW01-5F-FB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HB15CKW01-5F-FB	-	-	View	Buy Now

HB15CKW01-5F-FB Overview

illuminated pushbutton switches spdt ON-(ON) rnd grn

HB15CKW01-5F-FB Parametric

Parameter Name	Attribute value
Manufacture	NKK Switches
Product Category	Illuminated Pushbutton Switches
RoHS	Yes
Contact Form	SPDT
Switch Functi	ON - (ON)
Voltage Rating AC	30 V
Voltage Rating DC	30 V
Power Rating	0.1 VA
Mounting Style	Panel
Illuminati	LED
Illumination Col	Green, Brigh
Termination Style	Solder Lug
Actu	Round
Contact Plating	Silve
Housing Material	Polyamide, Glass Fiber Reinforced
Factory Pack Quantity	25
Terminal Seal	Epoxy

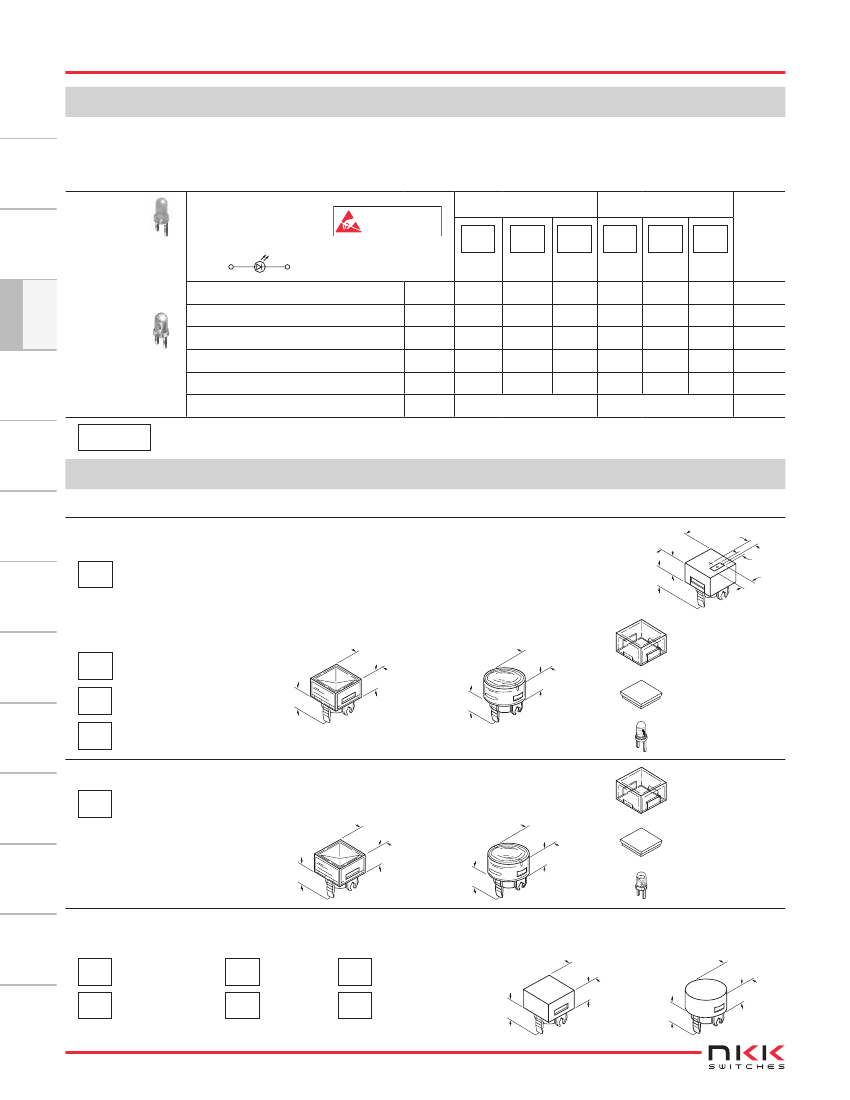

Preview

Download Datasheet

View All

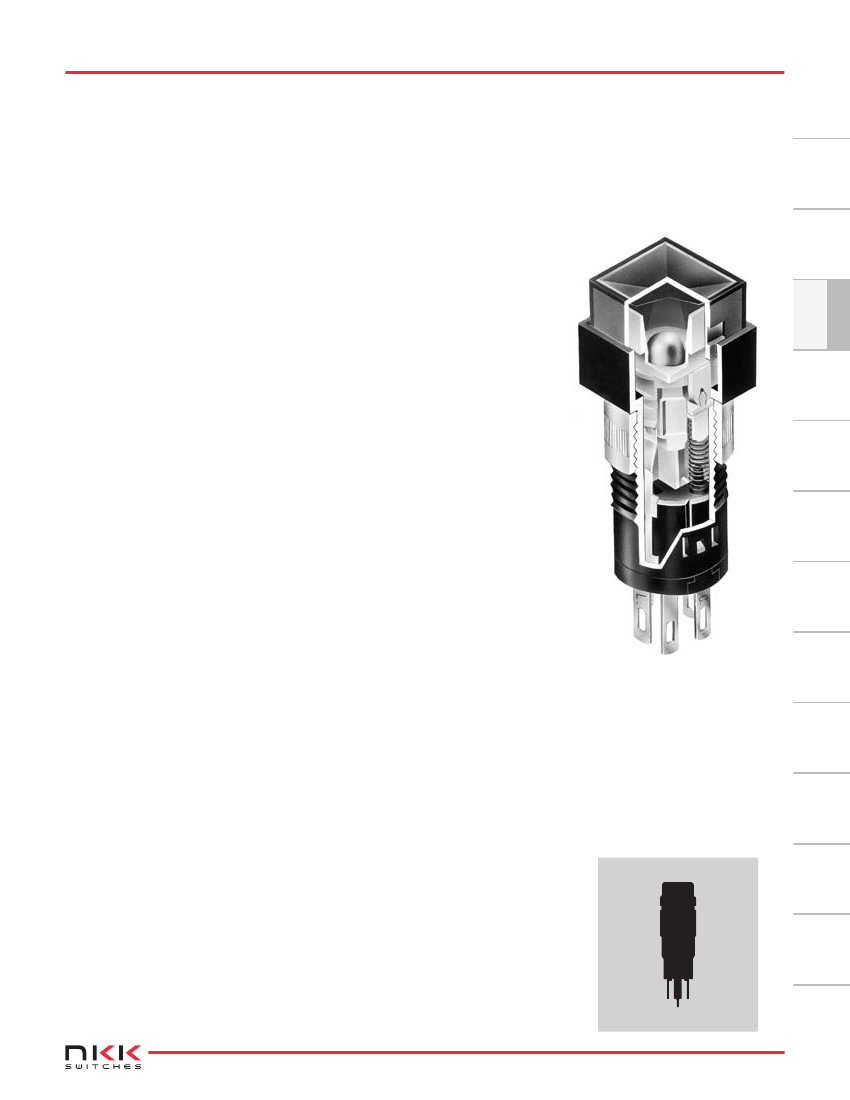

Series HB

Toggles

Subminiature Pushbuttons

Rockers

General

Specifications

Electrical Capacity (Resistive Load)

Power Level (silver):

0.1A maximum @ 30V AC/DC

Pushbuttons

Other Ratings

Programmable

Illuminated PB

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Mechanical Life:

Electrical Life:

Nominal Operating Force:

Contact Timing:

Travel:

50 milliohms maximum

100 megohms minimum @ 500V DC

500V AC minimum for 1 minute minimum

100,000 operations minimum

50,000 operations minimum

3.43N

Nonshorting (break before make)

Pretravel .087” (2.2mm); Overtravel .031” (0.8mm); Total Travel .118” (3.0mm)

Materials & Finishes

Rotaries

Housing:

Base:

Movable Contact:

Stationary Contacts:

Common Terminal:

End Terminals:

Lamp Terminals:

Glass fiber reinforced polyamide

Phosphor bronze with silver plating

Keylocks

Slides

Environmental Data

Operating Temperature Range:

Humidity:

Vibration:

Shock:

Tactiles

–25°C through +50°C (–13°F through +122°F) for Illuminated

–25°C through +70°C (–13°F through +158°F) for Nonilluminated

90 ~ 95% humidity for 96 hours @ 40°C (104°F)

10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning

in 1 minute; 3 right angled directions for 2 hours

50G (490m/s

) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

Installation

Tilt

Mounting Torque:

Cap Installation Force:

Soldering Time & Temperature:

0.49Nm (4.34 lb

•

in) maximum for round mounting nut

9.8N (2.2 lbf) maximum downward force on cap

Manual Soldering: See Profile A in Supplement section.

Touch

Standards & Certifications

UL:

Supplement

Accessories

Indicators

File No. E44145 - Recognized only when ordered with marking on switch.

Add “/U” or “/CUL” before first dash in part number to order UL recognized switch.

All models recognized at 0.1A @ 30V AC/DC.

D12

www.nkk.com

HB15CKW01-5F-FB Related Products

	HB15CKW01-5F-FB	HB16SKW01-5F-FB	HB16CKW01-5F-JB	HB15CKW01-5D-DB	HB16CKW01-6G-JB	HB15CKW01-5C-JB	HB15SKW01-5F-JB
Description	illuminated pushbutton switches spdt ON-(ON) rnd grn	illuminated pushbutton switches spdt ON-ON sqr grn	illuminated pushbutton switches spdt ON-ON round grn led/clr-wht cap	illuminated pushbutton switches spdt ON-(ON) rnd amb	illuminated pushbutton switches spdt ON-ON rnd blue led/clr-wht cap	illuminated pushbutton switches spdt ON-(ON) 0.1A illum red solder lug	illuminated pushbutton switches spdt ON-(ON) 0.1A illum grn square
Manufacture	NKK Switches	NKK Switches	NKK Switches	NKK Switches	NKK Switches	-	-
Product Category	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	Illuminated Pushbutton Switches	-	-
RoHS	Yes	Yes	Yes	Yes	Yes	-	-
Contact Form	SPDT	SPDT	SPDT	SPDT	SPDT	-	-
Switch Functi	ON - (ON)	ON - ON	ON - ON	ON - (ON)	ON - ON	-	-
Voltage Rating AC	30 V	30 V	30 V	30 V	30 V	-	-
Voltage Rating DC	30 V	30 V	30 V	30 V	30 V	-	-
Power Rating	0.1 VA	0.1 VA	0.1 VA	0.1 VA	0.1 VA	-	-
Mounting Style	Panel	Panel	Panel	Panel	Panel	-	-
Illuminati	LED	LED	LED	LED	LED	-	-
Illumination Col	Green, Brigh	Green, Brigh	Green, Brigh	Amber, Brigh	Blue. Super Brigh	-	-
Termination Style	Solder Lug	Solder Lug	Solder Lug	Solder Lug	Solder Lug	-	-
Actu	Round	Square	Round	Round	Round	-	-
Contact Plating	Silve	Silve	Silve	Silve	Silve	-	-
Housing Material	Polyamide, Glass Fiber Reinforced	Polyamide, Glass Fiber Reinforced	Polyamide, Glass Fiber Reinforced	Polyamide, Glass Fiber Reinforced	Polyamide, Glass Fiber Reinforced	-	-
Factory Pack Quantity	25	25	25	25	25	-	-
Terminal Seal	Epoxy	Epoxy	Epoxy	Epoxy	Epoxy	-	-
