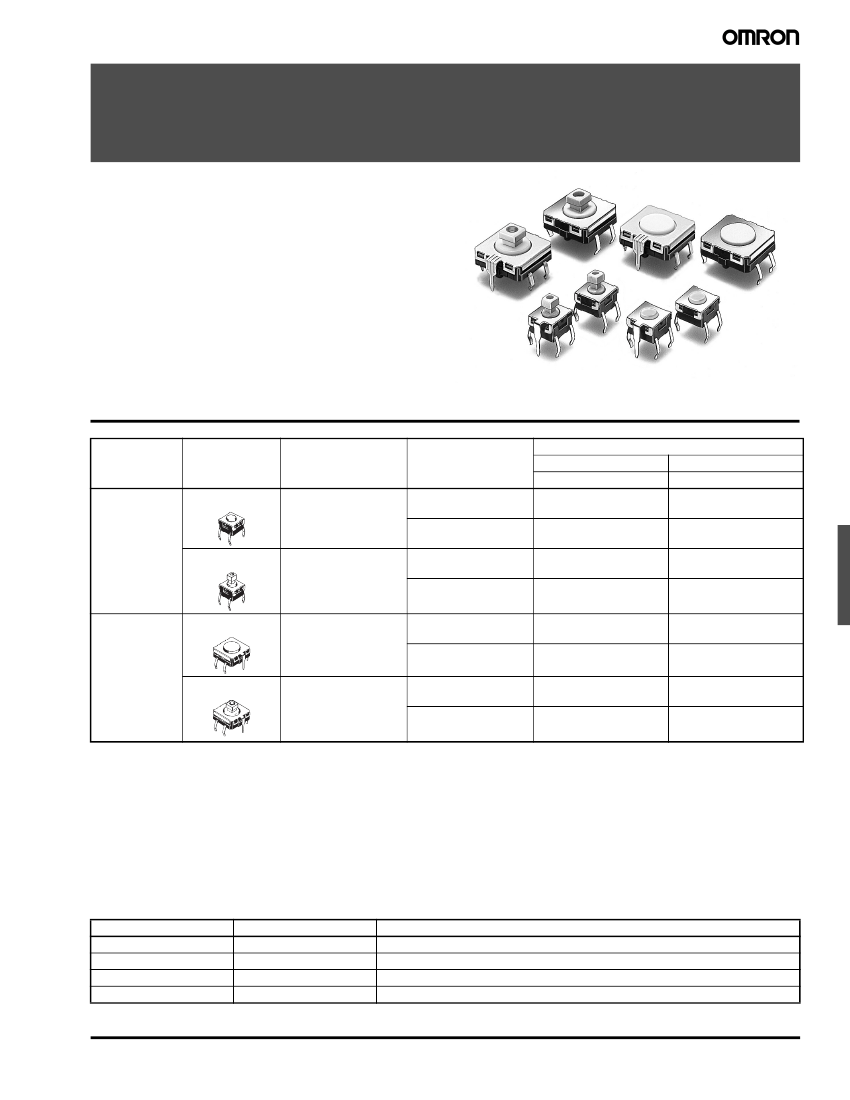

Tactile Switch
B3W
Tactile Switch with Sealed Construction
for Automatic Soldering
• Sealed construction conforming to IP67 (IEC-60529)
provides high reliability in locations exposed to dust or water.
• Available in two sizes: 6 mm square and 12 mm square
• Dome-shaped contact mechanism assures short key stroke
and a sharp click to confirm actuation
• Ground terminal available to protect against static electricity
• Projected plunger types that allow the installation of
B32-series Special Key Tops are available.
• RoHS Compliant
Ordering Information
Model
Without ground terminal
Type
Standard
6x6 mm
Plunger
Flat
Switch height
4.3 mm
Operating force
General-purpose: 160 g
High-force:
Projected
7.3 mm
230 g
Bags
B3W-1000
B3W-1002
B3W-1050
B3W-1052
B3W-4000
B3W-4005
B3W-4050
B3W-4055
With ground terminal
Bags
B3W-1100
B3W-1102
B3W-1150
B3W-1152
B3W-4100
B3W-4105
B3W-4150
B3W-4155
General-purpose: 160 g
High-force:
230 g
Standard
12x12 mm
Flat
4.3 mm
General-purpose: 200 g
High-force:
350 g
Projected
7.3 mm
General-purpose: 200 g
High-force:
350 g
Note:
Bulk Packaged, 100 switches per bag. Order in multiples of the package quantity.
Important Note:
Switches cannot be water-washed.
■
Accessories
See “B32” Tactile Switch Key Top data sheet for keycaps that fit projected plunger B3W models.
■
Plunger Identification Table
Use this table to determine keyswitch type by plunger color.
Plunger color
White
White
Yellow
Yellow
Operating force
160 g
200 g
230 g
350 g
Type
B3W-1000, 1050, 1100, 1150
B3W-4000, 4050, 4100, 4150
B3W-1002, 1052, 1102, 1152
B3W-4005, 4055, 4105, 4155
Tactile Switch
B3W
231
Specifications
■
Characteristics
Contact form
Switching capacity
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Ambient operating temperature
Ambient operating humidity
Service life
Weight
General purpose
High force
B3W-1@@@ :
SPST-NO
1 to 50 mA, 5 to 24 VDC (resistive load)
100 mΩ max. (rated: 1 mA, 5 VDC)
100 MΩ min. (at 250 VDC)
500 VAC, 50/60 Hz for 1 min.
5 ms max.
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 1,000 m/s
2
(approx. 100 G) max.
Malfunction: 100 m/s
2
(approx. 10 G) max.
-25° to 70°C (at 60% RH max.) with no icing or condensation
35% to 85% (at 5 to 35°C)
B3W-1@@@ :
1,000,000 operations min.
300,000 operations min.
Approx. 0.30 g
B3W-4@@@ : 3,000,000 operations min.
1,000,000 operations min.
B3W-4@@@ : Approx. 1.00 g
■
Operating Characteristics
B3W-1@@@
Characteristics
Operating force (OF) max.
Release force (RF) min.
Pretravel (PT)
General-purpose
160 g
20 g
0.25
+0.2
B3W-4@@@
High-force
General-purpose
200 g
30 g
0.3
+0.2
High-force
350 g
50 g
/
-0.1
mm
230 g
50 g
/
-0.1
mm

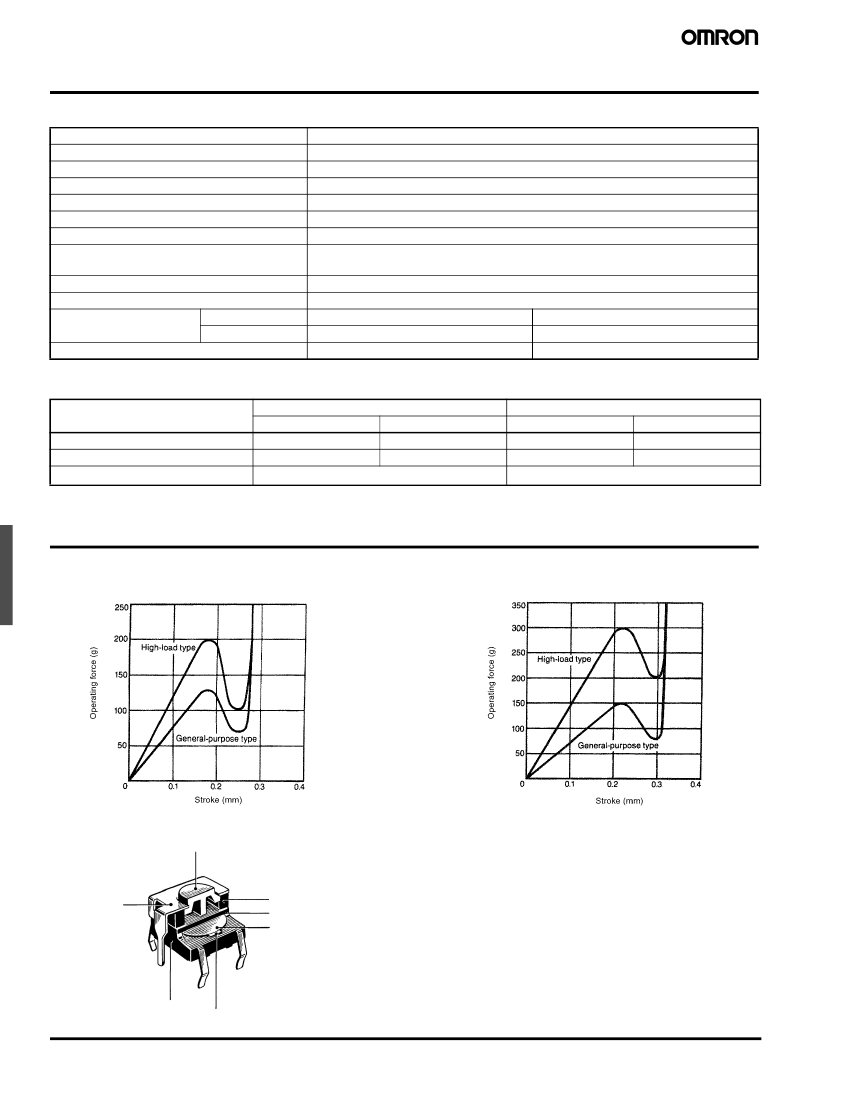

Engineering Data
■
Operating Force vs. Stroke
(Typical Example)
B3W-1@@@ series
B3W-4@@@ series
■
Construction
Plunger
Cover
Spacer
Sealed rubber
Contact dome
Base
Fixed contact
232
Tactile Switch
B3W

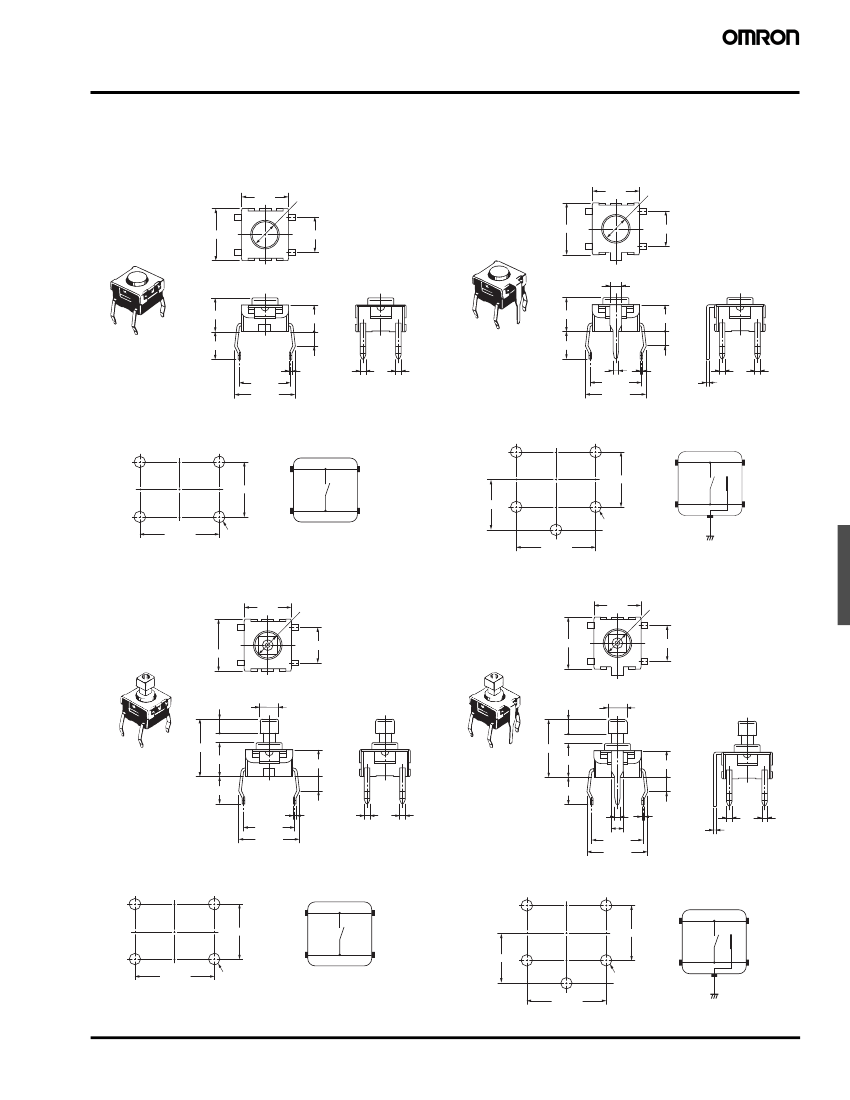

Dimensions
Note: 1.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
2.
Terminal numbers are not indicated on this switch. With the switch turned over so that the logo mark “OMRON” is visible on the upper
part of the rear side of the switch base, the terminal on the right of the logo mark is numbered “1” and that on the bottom right is “3.”
Accordingly, two terminals on the left side are numbered “2” and “4” respectively.
6 x 6 mm Models
Flat Plunger Type
(without Ground
Terminal)
B3W-1000
B3W-1002
6.6
±0.2
6
±0.2
3.3 dia.
Flat Plunger Type
(with Ground
Terminal)
B3W-1100
B3W-1102
6.6
±0.2
6
±0.2
3.3 dia.
4.5
±0.2
4.5
±0.2
1.5
4.3
±0.2
3.4
4.3
±0.2
3.4
3.5
(1.8)
0.3
6.5
±0.5
7.7
±0.5
0.7
0.7
3.5
0.7
6.5
±0.5
7.7
±0.5
0.25
(1.8)
0.3
0.7
0.7
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
4.5
±0.1
4.5
±0.1
2
6.5
±0.1
Four, 1
±0.05
dia.
6.5
±0.1
1
4.1
±0.1
Five, 1
±0.05
dia.
2
5
1
Projected Plunger Type
(without Ground
Terminal)
B3W-1050
B3W-1052
6.6
±0.2
6
±0.2
3.3 dia.
Projected Plunger Type
(with Ground
Terminal)
B3W-1150
B3W-1152
6.6
±0.2
6
±0.2
3.3 dia.
4.5
±0.2
4.5
±0.2
1.8
±0.1
2.4 2.4
±0.1
1.8
±0.1
2.4 2.4
±0.1
7.3
±0.2
4.3
±0.2
3.4
7.3
±0.2
4.3
±0.2
3.4
3.5
(1.8)
0.3
6.5
±0.5
7.7
±0.5
0.7
0.7
3.5
0.7
1.5
6.5
±0.5
7.7
±0.5
(1.8)
0.3
0.7
0.25
0.7
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
4.5
±0.1
2
6.5
±0.1
Four, 1
±0.05
dia.
1
4.1
±0.1
4.5
±0.1
2
Five, 1
±0.05
dia.
6.5
±0.1
1
Tactile Switch
B3W
233

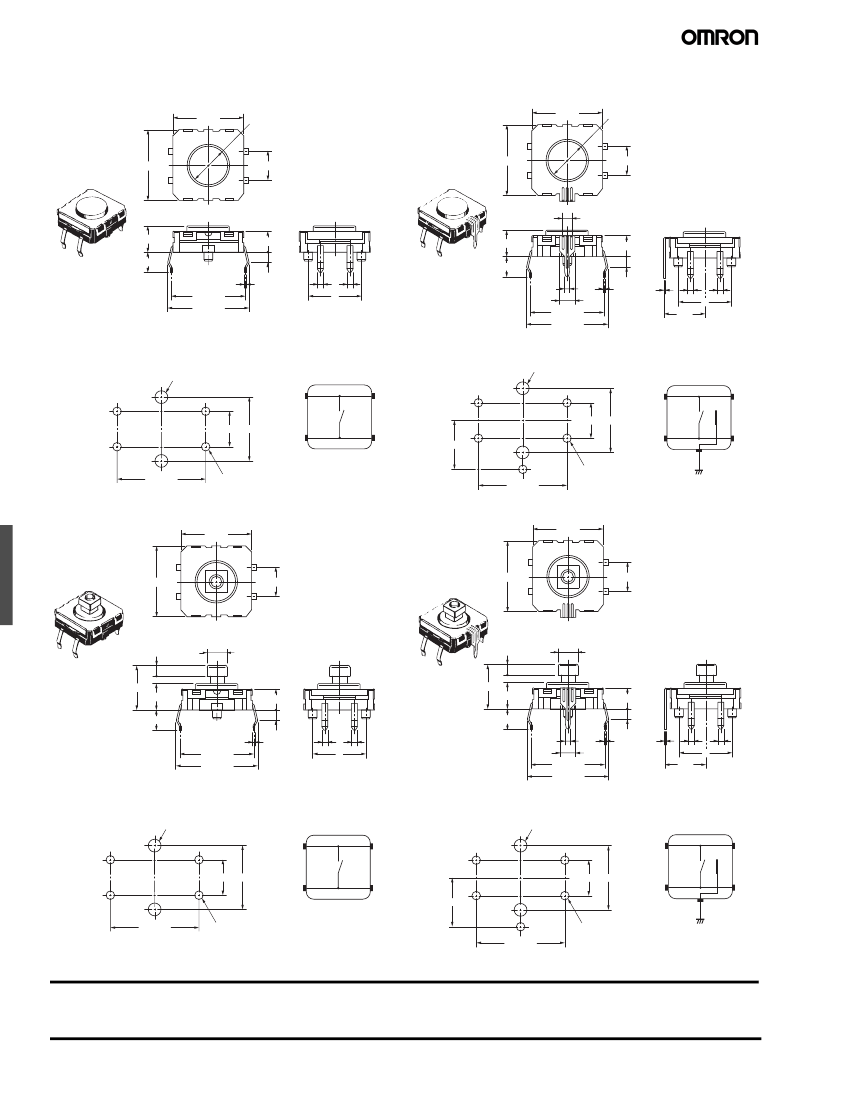

12 x 12 mm Models
Flat Plunger Type
(without Ground
Terminal)
B3W-4000
B3W-4005
12
±0.2
5
±0.2
12
±0.2
7.1 dia.
Flat Plunger Type
(with Ground
Terminal)
B3W-4100
B3W-4105
12
±0.2
12
±0.2
7.1 dia.
5
±0.2
1.6
4.3
±0.2
3.5
0.3
12.5
±0.5
13.8
±0.5
(1.8)
1
9
1
0.9
2.6
12.5
±0.5
13.8
±0.5
0.3
3.55
4.3
±0.2
3.5
(1.8)
0.25
1
6.9
9
1
3.55
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Two, 1.8
±0.05
dia.
(for positioning
boss)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Two, 1.8
±0.05
dia.
(for positioning
boss)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
5
±0.1
5
±0.1
9
±0.1
2
1
6.9
±0.1
9
±0.1
2
5
1
Five, 1.2
±0.05
dia.
12.5
±0.1
Four, 1.2
±0.05
dia.
12.5
±0.1
Projected Plunger Type
(without Ground
12
Terminal)
B3W-4050
B3W-4055
12
±0.2
±0.2
Projected Plunger Type
12
(with Ground
Terminal)
5
±0.2
±0.2
B3W-4150
B3W-4155
12
±0.2
5
±0.2
3.8 3.8
±0.1
1.8
±0.1
1.8
±0.1
3.8 3.8
±0.1
7.3
±0.2
4.3
±0.2
3.5
0.3
12.5
±0.5
13.8
±0.5
3.55
7.3
±0.2
4.3
±0.2
3.5
3.55
(1.8)
1
9
1
0.3
0.9
2.6
12.5
±0.5
13.8
±0.5
(1.8)
0.25
1
6.9
9
1
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Two, 1.8
±0.05
dia.
(for positioning
boss)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
PCB Mounting (Top View)
(Single-sided PCB, t=1.6)
Two, 1.8
±0.05
dia.
(for positioning
boss)
Terminal Arrangement
/Internal Connections
(Top View)
4
3
5
±0.1
9
±0.1
2
1
6.9
±0.1
5
±0.1
9
±0.1
2
5
1
12.5
±0.1
Four, 1.2
±0.05
dia.
12.5
±0.1
Five, 1.2
±0.05
dia.
Precautions
Be sure to read the precautions common to all Tactile Switches, contained in the Technical User’s Guide, “Tactile Switches, Technical Information”
for correct use.
234
Tactile Switch
B3W
