Standard Size Pushbuttons
Series LB
Toggles
Spot illumination available in single and bicolor LEDs.
Choice of super bright LEDs in white, green, and blue
in addition to standard or bright red, amber, and
green LEDs.
Stainless steel clips provide secure mounting with a
wide range of panel thicknesses.
Latchdown feature gives indication of circuit status.
Audible and tactile feedback with smooth and
responsive operation.
Snap-action contact mechanism gives long electrical
life and sensitivity of actuation.
Combination solder lug and .110” quick connect
terminals are epoxy sealed to prevent entry of flux,
dust, and other contaminants.
Panel sealed model meets IP65 of IEC60529 specifications
(similar to NEMA 4 & 13).
Compact switch design minimizes behind panel depth.
Matching indicators available.
D
Actual Size
Snap-in Mount
Page D46
www.nkk.com
D47
Supplement
Panel Seal
Page D57
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Carefully designed light diffusion and filtering system produces bright,
full surface illumination with front panel relamping.
Rockers
Distinctive
Characteristics
Standard Size Panel Seal Pushbuttons
Series LB
Toggles
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Other Ratings
D
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Contact Timing:
Travel:
Materials & Finishes
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Sealing:
IP65 of IEC60529 standard (similar to NEMA 4 & 13)
1.96Nm (17.35 lb
•
in) maximum
3.92N maximum downward force on cap
52.95N maximum downward force on connector
Manual Soldering: See Profile A in Supplement section.
UL94V-0 housing & base
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” before first dash in part number to order UL recognized switch.
All models recognized at 3A @ 125V or 250V AC or 0.4VA @ 28V AC/DC maximum.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” before first dash in part number to order CSA certified switch.
All models certified at 3A @ 125V or 250V AC or 0.4VA @ 28V AC/DC maximum.
Touch
Installation
Standards & Certifications
CSA:
www.nkk.com
D57
Supplement
Accessories
Flammability Standards:
UL:
Indicators
Mounting Torque:
Cap Installation Force:
Quick Connect Force:
Soldering Time & Temperature:
Tilt
–25°C through +50°C (–13°F through +122°F) for Illuminated
–25°C through +70°C (–13°F through +158°F) for Nonilluminated
Note: When used with a polyvinyl chloride splash cover, the lowest limit is 0°C (32°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tactiles
Slides
Housing:
O-ring:
Inner Seal:
Movable Contact:
Stationary Contacts:
Base:
Switch Terminals:
Lamp Terminals:
Glass fiber reinforced polyamide (UL94V-0)
Nitrile butadiene rubber
Silicone rubber
Silver alloy or copper with gold plating
Silver alloy or copper with gold plating
Liquid crystal polymer (UL94V-0)
Phosphor bronze with silver or gold plating
Brass with silver plating
Rotaries
Keylocks
Programmable
Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
50 milliohms maximum for silver; 100 milliohms maximum for gold
200 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
1,000,000 operations minimum for momentary circuit
200,000 operations minimum for maintained circuit
100,000 operations minimum
5.39N
Nonshorting (break-before-make)
Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)
Pushbuttons
Rockers
Series LB
Toggles
Standard Size Panel Seal Pushbuttons
TYPICAL SWITCH ORDERING EXAMPLE
Toggles
Rockers
Pushbuttons
Poles
1
SPDT
DPDT
6
5
2
Circuits
ON
ON
(ON)
ON
W
( ) = Momentary
Alternate Action
with Latchdown
Shape
Round
K
G
Housing
Black
Gray
Lamps
Incandescent Lamp Used with Solid Cap
05
12
No
Code
5-volt
12-volt
Nonilluminated
BJ
CJ
EJ
FJ
GJ
Cap Types & Colors
Solid Cap: Lens/Filter Colors
White/Clear
Red/Clear
Yellow/Clear
Green/Clear
Blue/Clear
Programmable
Illuminated PB
D
D
Contacts & Terminals
W01
Silver Contacts
Rated 3A @ 125/250V AC
Solder Lug/Quick Connect Terminals*
Gold Contacts
Rated 0.4VA @ 28V AC/DC
Solder Lug/Quick Connect Terminals*
Keylocks
IMPORTANT:
Switches are supplied without UL,
cULus & CSA marking unless specified.
UL, cULus & CSA recognized only when
ordered with marking on the switch.
Specific models, ratings, & ordering in-
structions are noted on General Specifi-
cations page.
G01
Incandescent or Neon Used with Insert Cap
01
05
12
No
Code
110-volt Neon
5-volt Incandescent
12-volt Incandescent
Nonilluminated
JB
JC
JE
*JF
*JG
Insert Cap: Lens/Filter Colors
Clear/White
Clear/Yellow
Clear/Green
*JF & JG not suitable with neon.
Clear/Blue
Clear/Red
Rotaries
Slides
Tactiles
Bright LED Used with LED Cap
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Colors
5C
5D
Red, 12-volt, Bright LED
with Resistor
5F
Clear Cap with Red Diffuser
Red
Amber
Green
05
12
24
Resistor
No Code
No Resistor
5-volt
12-volt
24-volt
JB
JC
JD
JF
LED Cap: Lens/Diffuser Colors
Clear/White
Clear/Red
Clear/Green
LB16WKW01-5C12-JC
Tilt
Touch
Round Shape
Indicators
SPDT ON-ON Circuit
Black Housing
Silver Contacts
Rated 3A @ 125/250V AC;
Solder Lug/Quick Connect Terminals
6B
6F
6G
White
Green
Blue
JB
Clear/White
Accessories
Supplement
D58
www.nkk.com
www.nkk.com
D59
Supplement
Accessories
Indicators
Super Bright LED Used with LED Cap
LED Cap: Lens/Diffuser Colors
Touch
Tilt
Clear/Amber
Tactiles
Slides
*
Wire harness & cable assemblies
offered only in Americas
Rotaries
Keylocks
Programmable
Illuminated PB
Pushbuttons
Rockers
LB
1
6
W
K
W01
5C 12
JC
Series LB
Toggles
Standard Size Panel Seal Pushbuttons
POLES & CIRCUITS
Plunger Position
( ) = Momentary
Rockers
Connected Terminals
Normal
Down
Throw & Switch/Lamp Schematics
Notes: Switch is marked with NC, NO, COM, L+, L–.
Lamp circuit is isolated and requires
external power source.
SPDT
1
1
3
NC
COM
L (+)
2
NO
(-) L
Normal
Pole
Model
Down
Pushbuttons
SP
LB15
*LB16
LB25
*LB26
ON
ON
ON
ON
(ON)
ON
(ON)
ON
1-3
1-2
Programmable
Illuminated PB
COM
NO
6
4
NC
COM
L (+)
(-) L
5
NO
D
DP
1-3 4-6
1-2 4-5
DPDT
3
NC 2
* When in latchdown position for the alternate circuit, cap position is .039” (1.0mm) above the built-in bezel.
SHAPE & PANEL CUTOUT
W
.866” (22.0mm)
Round
Recommended Panel Thickness:
.039” ~ .157” (1.0mm ~ 4.0mm)
Recommended Panel Thickness with Splash Cover:
.039” ~ .138” (1.0mm ~ 3.5mm)
Overtightening the mounting nut AT074
may damage the switch housing.
(1.7)
.067
(10.5)
.413
Keylocks
Rotaries
(22.0) Dia
.866
HOUSING
Housing Colors Available:
Slides
K
Black
G
Gray
Tactiles
CONTACT MATERIALS, RATINGS & TERMINALS
W01
Silver Contacts
Power Level
3A @ 125V AC & 250V AC
Logic Level
0.4VA max. @ 28V AC/DC max.
Solder Lug/Quick Connect
Epoxy
Seal
(7.5)
.295
(2.8)
.110
(1.2)
.047
(2.0)
.079
Tilt
G01
Gold Contacts
Touch
Complete explanation of operating range in Supplement section.
Optional PCB adaptors AT711
& AT712 available; illustrated
in previous snap-in subsection.
Thk = (0.5)
.020
INCANDESCENT & NEON LAMP CODES & SPECIFICATIONS
Indicators
AT607 & AT607N
AT607 Incandescent 5-volt or
12-volt; AT607N Neon 110-volt
05
V
I
5V AC
115mA
12
12V AC
60mA
01
*
110V AC
1.5mA
10,000
Accessories
Voltage
Current
Endurance
T-1 Bi-pin
The electrical specifications shown are
determined at a basic temperature of
25°C. Lamp circuit is isolated and
requires external power source.
*
Recommended Resistors for Neon:
33K ohms for 110V AC;
100K ohms for 220V AC
Avg. Hours
10,000
–25°C ~ +50°C
Supplement
Ambient Temp. Range
D60
www.nkk.com
Standard Size Panel Seal Pushbuttons

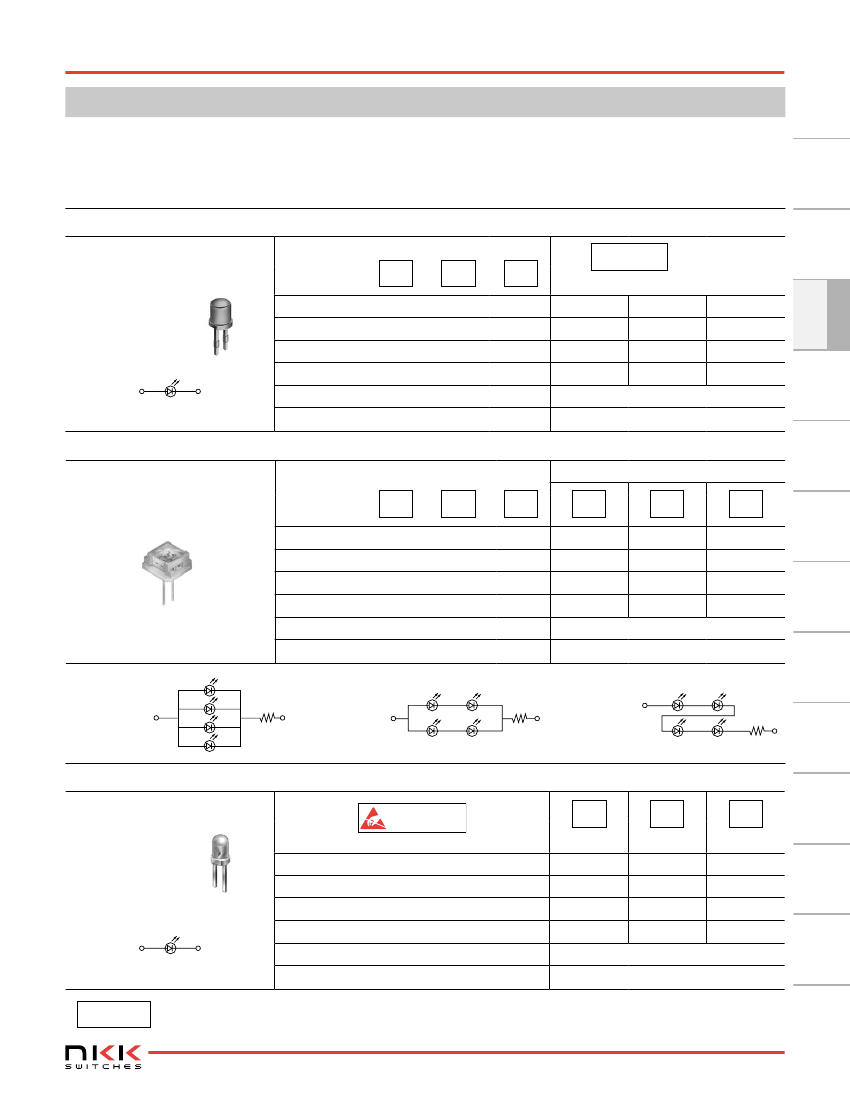

LED COLORS & SPECIFICATIONS
Series LB
Toggles
The electrical specifications shown are determined at a basic temperature of 25°C.
LED circuit is isolated and requires external power source. Polarity marks are on the switch.
If the source voltage exceeds the rated voltage, a ballast resistor is required.
The resistor value can be calculated by using the formula in the Supplement section.
Additional lamp detail is shown in the Accessories & Hardware section.
Bright LED without Resistor
AT635
LEDs are colored
in OFF state.
Color Codes
Red
Amber
Green
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
I
FM
I
F
V
F
V
RM
∆I
F
30mA
20mA
1.9V
5V
30mA
20mA
2.0V
5V
0.42mA/°C
–25° ~ +50°C
30mA
20mA
2.1V
5V
D
(+)
(-)
Current Reduction Rate Above 25°C
Ambient Temperature Range
Bright LED with Resistor
T-1
1
⁄
2
Bi-pin
AT627
with Resistor
Red
Color Codes:
Amber
Green
Resistor Codes
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate Above 25°C
T-1 Bi-pin
I
FM
I
F
V
F
V
RM
∆I
F
—
52mA
5V
4V
—
26mA
12V
8V
0.50mA/°C
–25° ~ +50°C
—
13mA
16V
24V
Super Bright Single Element LED
AT625G Blue
AT631B White
AT632F Green
ELECTROSTATIC
SENSITIVE DEVICES
ATTENTION
6B
Color
White
30mA
20mA
3.6V
5V
I
FM
I
F
V
F
V
RM
∆I
F
6F
Green
30mA
20mA
3.5V
5V
0.50mA/°C
–25° ~ +50°C
6G
Blue
20mA
3.6V
5V
30mA
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
(+)
(-)
Current Reduction Rate Above 25°C
Ambient Temperature Range
T-1 Bi-pin
No Code
No Lamp
www.nkk.com
D61
Supplement
Accessories
Indicators
Forward Peak Current
Touch
Tilt
AT627
5-volt
4-element
(+)
with Resistor
(-)
AT627
12-volt
4-element
(+)
with Resistor
(-)
AT627
24-volt
(+)
4-element
with Resistor
(-)
Tactiles
Ambient Temperature Range
Slides
Rotaries
5C
5D
5F
05
12
24
Keylocks
Programmable
Illuminated PB
5C
5D
5F
No Code
Red
No Resistor
Green
Amber
Pushbuttons
Rockers
京公网安备 11010802033920号
EEWORLD
