CR0201-JW-120GAS

Description
Fixed Resistor, Thick Film, 0.05W, 12ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP
CategoryPassive components    The resistor
File Size537KB,3 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

CR0201-JW-120GAS Overview

Fixed Resistor, Thick Film, 0.05W, 12ohm, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0201, CHIP

CR0201-JW-120GAS Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145070046755
package instructionCHIP
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresANTI-SULFUR
structureRectangular
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.23 mm
Package length0.6 mm
Package formSMT
Package width0.3 mm
method of packingTR, PAPER, 7 INCH
Rated power dissipation(P)0.05 W
Rated temperature70 °C
resistance12 Ω
Resistor typeFIXED RESISTOR
size code0201
surface mountYES
technologyTHICK FILM
Temperature Coefficient200 ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance5%
Operating Voltage25 V
Features
n
RoHS compliant*
n
Small package dimensions
n
Power rating at 70 °C = 1/20 W
n
Three layer termination process with nickel
barrier helps prevent leaching and provides
excellent solderability
This series is currently available but
not recommended for new designs.
Recommended replacement
products are available. The replacement
devices are functionally equivalent, but are
not in identical packages. See CR0201A-AS
Series.

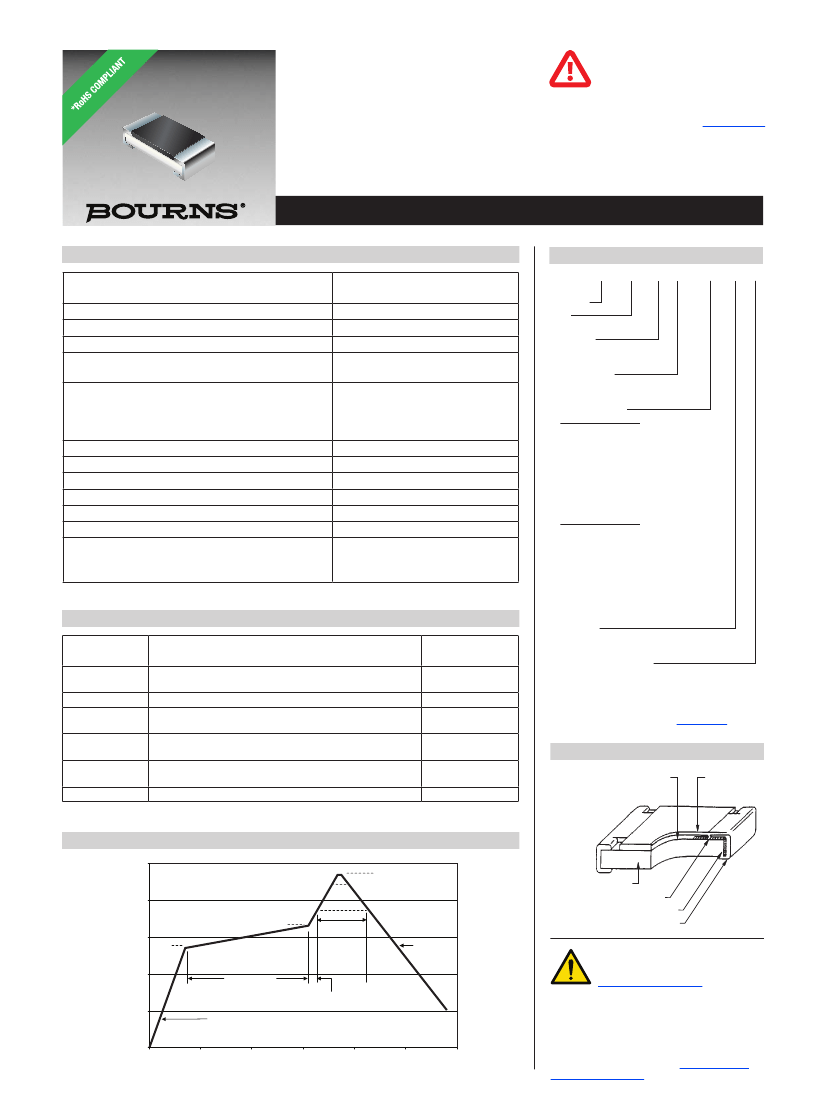

CR0201-AS Series
-
Sulfur-Resistant Thick Film Chip Resistors
General Characteristics
Characteristic
Power Rating @ 70 °C per Resistor
Resistor Tolerance
Resistance Range - 1 % Tolerance (E24 + E96)
Resistance Range - 5 % Tolerance (E24),
Zero-ohm Jumper
Temperature Coefficient of Resistance (TCR)
1 % Tolerance
5 % Tolerance
Zero-ohm Jumper
Maximum Overload Voltage
Maximum Working Voltage
Operating Temperature Range
Storage Conditions
Derating Temperature
Packaging (Paper Tape)
Zero-ohm Jumper:
Current Rating
Maximum Resistance
CR0201-AS
0.05 W
±1 %, ±5 %
10 ohms to 2 megohms
1 ohm to 10 megohms,
0 ohms
±200 ppm/°C
±200 ppm/°C**
N/A
50 V
25 V
-55 to +125 °C
How To Order
+5 ~ +40 °C, 25~75 % RH, 1 year
+70 °C
15,000 pcs. per reel
1 A per element
100 milliohms
**TCR for 1 ohm to 9.1 ohm resistance range, 5 % tolerance is -600 to +100 ppm/°C.
Environmental Characteristics
Specification
Test Method
(JIS C 5201-1)
Characteristics
±(2 % +0.1 ohm)
±(2 % +0.1 ohm)
±(5 % +0.05 ohm)
±(5 % +0.1 ohm)
±(5 % +0.1 ohm)
±(5 % +0.1 ohm)
Short Time
Overload
Soldering Heat
Temperature
Cycling
Moisture Load
Life
Load Life
Sulfur Test
Rated voltage x 2.5, 5 seconds
+260 °C ±5 °C, 10 ±1 seconds
-55 °C (30 minutes) - normal (2~3 minutes)
+125 °C (30 minutes) - normal (2~3 minutes), 5 cycles
+40 °C, 90~95 % RH, 1000 hours,
1.5 hours ON, 0.5 hours OFF
+70 °C, 1000 hours,
1.5 hours ON, 0.5 hours OFF
3 ppm H2S, +50 °C, 90~95 % RH, 100 hours
Chip
Resistor
Size
• 0201
Tolerance
• F=1%
• J=5%
TCR (ppm/°C)
• W = ±200
• / = N/A (for Jumper & R<10 ohms)
Resistance Code
• For 1 % Tolerance
<100 ohms:
“R” designates decimal point
(example: 24R3 = 24.3 ohms)
≥100 ohms:
First three digits are significant,
fourth digit represents number of
zeros to follow
(example: 8252 = 82.5K ohms)
• For 5 % Tolerance
<10 ohms:
“R” designates decimal point
(example: 4R7 = 4.7 ohms)
≥10 ohms:
First two digits are significant,
third digit represents number of
zeros to follow
(example: 474 = 470K ohms;
000 = Zero-ohm jumper)
Packaging
• G = Paper Tape
(15,000 pcs. on 7-inch plastic reel)
Special Characteristics
• AS = Sulfur-resistant, Tin-plated terminations
(RoHS compliant)
CR 0201 - F W - 1002 G AS
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Construction
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
NOTE: Zero-ohm jumper ≤100 milliohms.
Soldering Profile
275
<1>
Maximum of 20 seconds between
+255 °C and +260 °C
260 °C peak
<1>
255 °C
Alumina Substrate
Internal Electrode
Secondary Electrode (Nickel Plated)
60 - 90
seconds
Ramp Down
6 °C/second
225
Temperature (°C)
220 °C
190 °C
175
150 °C
External Electrode (Sn)
125
60 - 120 seconds
10 seconds minimum
WARNING Cancer and Reproductive Harm
www.P65Warnings.ca.gov
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their
specific applications.
The products described herein and this document are
subject to specific legal disclaimers as set forth on the
last page of this document, and at www.bourns.com/
docs/legal/disclaimer.pdf.
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
200
250
300
Time (Seconds)
