BHD-D-10-RA-GD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BHD-D-10-RA-GD

BHD-D-10-RA-GD: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-D-10-RA-GD Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-D-10-RA-GD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304485405
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.15
Other features	ROHS COMPLIANT
body width	0.323 inch
subject depth	0.396 inch
body length	0.566 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	BHD
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

SPECIFICATIONS

Contact Material:

Insulator Material:

Finish:

Brass

Nylon 6T

Gold flash plated over nickel

Series

BHD-D

Box Header

.05 x .100

Positions

See chart

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Item

100

Type

ST=Straight

RA=Right Angle

SM=Surface Mount

Dimensions

3.81

13.10

5.08

14.37

11.43

20.72

15.24

24.53

17.78

27.07

20.32

29.61

24.13

33.42

26.67

35.96

30.48

39.77

36.83

46.12

41.91

51.20

49.53

58.82

62.23

71.52

Plating

GD=Gold

Date

11/26/08

11/26/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-D-XX-RA-GD

0.00 ± 0.20 Angles ± 3°

UNIT: mm

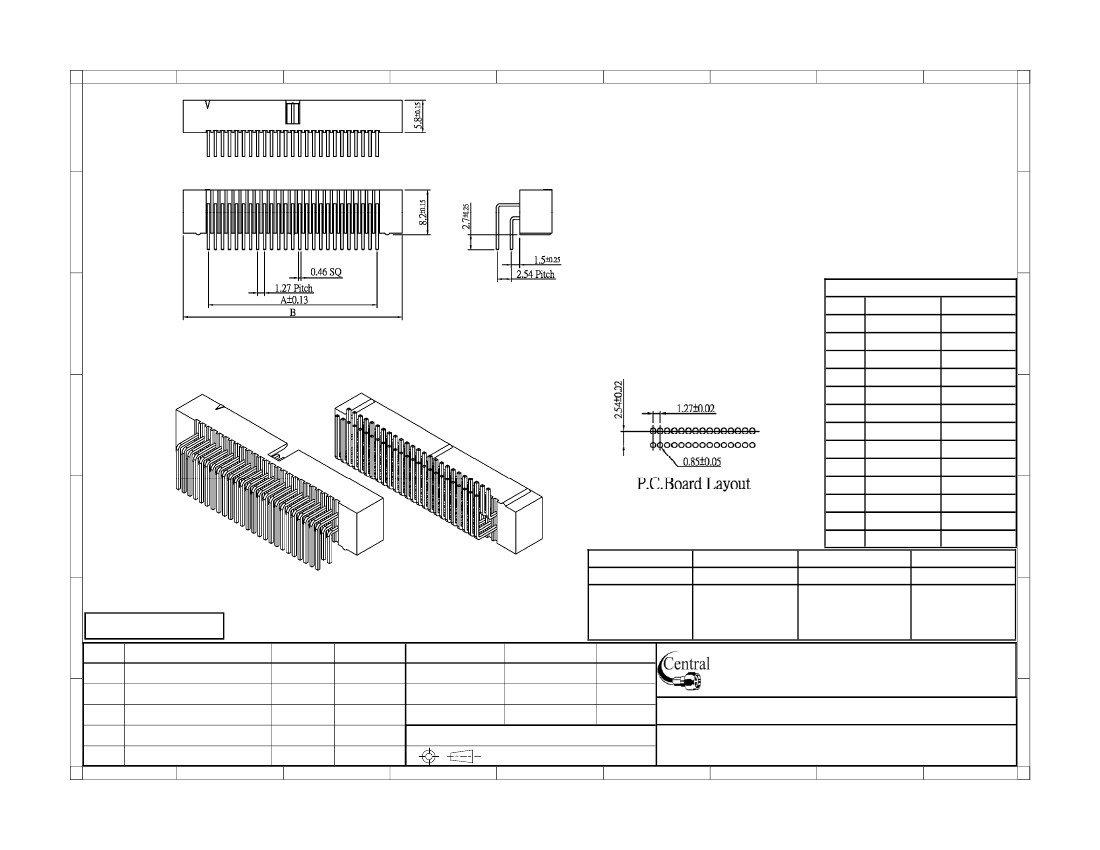

Description: Box header, right angle, 1.27mm pitch
