9000 series
Momentary pushbutton switches
Distinctive features and specifications
❑
Two case lengths
❑
Three electrical functions
❑
Sealing options
❑
Model X1146 with Ø 16 (.630) bushing
B
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contact (A) : 0,3A 250VAC - 0,6A 125VAC - 1A 30VDC
- gold plated contacts (CD) : 100mA 30VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals
1.500 Vrms 50 Hz min. between terminals and frame
• Electrical life : 250.000 cycles
MATERIALS
GENERAL SPECIFICATIONS
• Case : thermoplastique UL94-V0
• Actuator : polyamide, glass
filled
• Bushing : brass, nickel plated
• Contacts :
A
: silver
CD
: brass, gold plated
• Terminal seal : epoxy
• Total travel :
9600-9400-9400Y
Functions 3 and 5
1,3 mm
Function 2
2 mm
9600N-9400N
Function 3
0,9 mm
• Torque : 1,25 Nm (.922 Ft.lb) max. applied to nut
• Operating temperature : -30°C to +65°C
B-52
www.apem.com
APEM
9000 series
Momentary pushbutton switches
Overview
9
SERIES
Number of poles
3
Single pole
2
3
5
Electrical functions
Normally closed (NC)
Normally open (NO)
Combined (NC/NO)
Terminals, case and bushing
Case length 11,2 (.440)
All models have Ø 6,35 (1/4) threaded bushing.
4
Straight PC terminals
6
Solder lug terminals
4..Y
Straight PC terminals, bracket mounting
Case length 8,5 (.334)
4..N
Straight PC terminals
6..N
Solder lug terminals
6..NZ1
Quick-connect terminals
B
Contact materials
A
CD
Silver
Brass, gold
plated
Sealing
Blank
No sealing
B
Epoxy sealed
terminals
K
Front panel sealing
by two O-rings
X1146
X601
Special options
Bushing Ø 16 (.630)
Special contact, lower rating
U900
U1140
U1720
U480
U630
U2430
U2020
Caps
Ø 5 (.196)
Ø 8 (.314)
Ø 9,4 (.370)
Ø 10 (.393) standard
Ø 15 (.590)
Square - Height 4 (.157)
Square - Height 6 (.236)
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- their options in the same order as in above chart
Dimensions :
first dimensions are in mm while inches are shown as bracketted numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Sealing boots
are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories
: standard hardware supplied with all switches : 2 hex nuts 8 mm (.314) across flats and 1 lockwasher.
Standard and special hardware available are presented in section I.
Packaging unit
: 50 pieces, except for 9400Y (25 pieces)
APEM
www.apem.com
B-53
9000 series
Momentary pushbutton switches

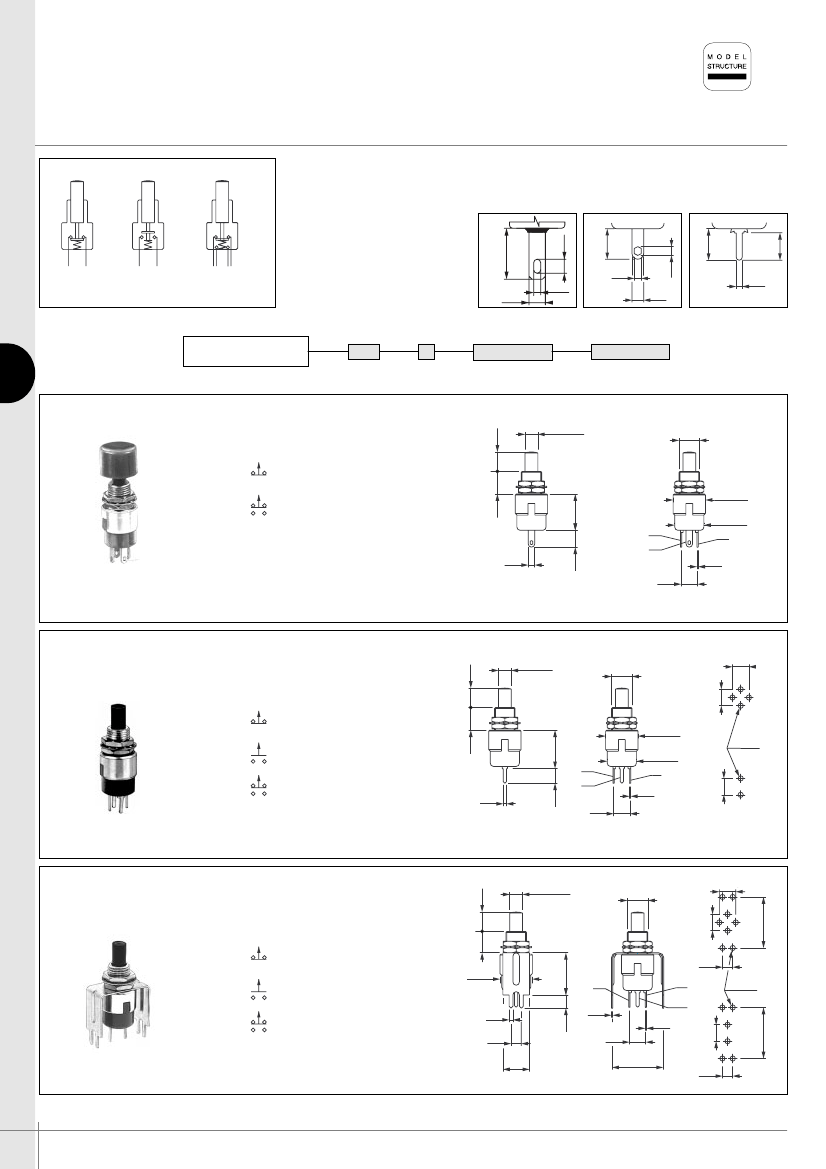

9600 - 9400 - 9400Y
• Single pole
•
Solder lug or straight PC terminals
9600Z1
2.40
(.094)
9600
5.20
(.204)
9400
5.20
(.204)
4.55
(.179)
1.00
(.039)
Ø10.0
(.393 DIA)
Ø9.00
(.354 DIA)
NO
NO
0.40
(.015)
5.08
(.200)
F5
5.08
(.200)
Ø1.60
(.062 DIA)
5.08
(.200)
Ø1.60
(.062 DIA)
8.70
(.342)
Function 2
(NC)
Function 3
(NO)
Function 5
(combined)
2.80
(.110)
1.20
(.047)
2.00
(.078)
B
MODEL
STRUCTURE
Solder lug terminals - case length 11,2 (.440) : 9600
6.00
(.236)
Ø4.00
(.157 DIA)
9632
9635
Normally Closed
7.00
(.275)
11.20
(.440)
Combined function
F2
For Normally Open (function 3), see next page.
Straight PC terminals - case length 11,2 (.440) : 9400
6.00
(.236)
Ø4.00
(.157 DIA)
5.20
(.204)
2.00
(.078)
NC
Ø6.35-40UNS
(1/4-40UNS)
5.08
(.200)
9432
9433
9435
Normally Closed
7.00
(.275)
11.85
(.466)
Ø10.0
(.393 DIA)
Ø9.00
(.354 DIA)
NO
NC
4.55
(.179)
1.00
(.039)
5.08
(.200)
NO
0.40
(.015)
5.08
(.200)
5.08
(.200)
Normally Open
Combined function
F2
F5
6.00
(.236)
Bracket mounting - case length 11,2 (.440) : 9400Y
Ø4.00
(.157 DIA)
Ø6.35-40UNS
(1/4-40UNS)
1.50
(.059)
Ø6.35-40UNS
(1/4-40UNS)
1.20
(.047)
6.60
(.259)
13.00
(.511)
9432Y
9433Y
9435Y
Normally Closed
Normally Open
Ø10.00
(.393 DIA)
3.18
(.125)
NO
NC
0.40
(.015)
5.08
(.200)
15.75
(.620)
NO
0.40
(.015)
1.17
(.046)
4.10
(.161)
Combined function
3.18
(.125)
8.20
(.322)
5.08
(.200)
15.75
(.620)
F5
The bracket is not fastened to the switch.
3.18
(.125)
F2
B-54
www.apem.com
APEM
15.75
(.620)
9000 series
Momentary pushbutton switches

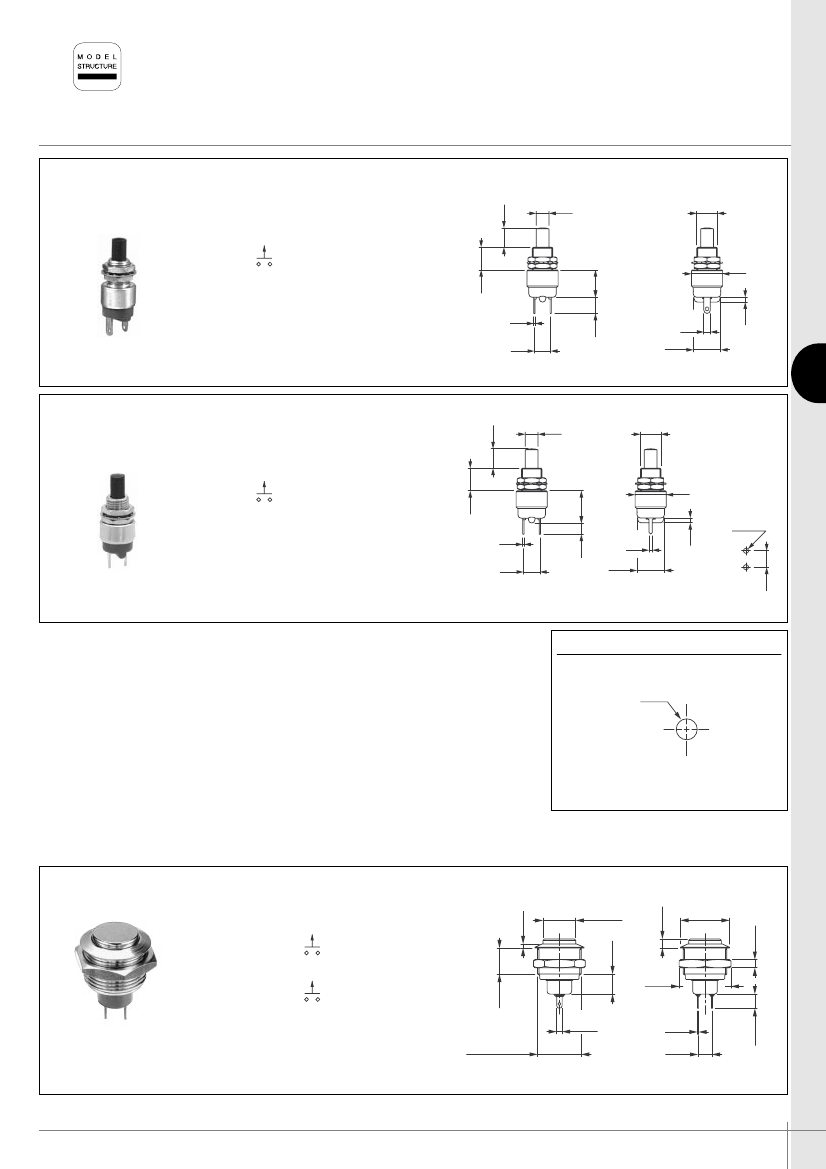

9600N - 9400N
Solder lug terminals - case length 8,5 (.334) : 9600N
6.00
(.236)
Ø4.00
(.157 DIA)
Ø6.35-40UNS
(1/4-40UNS)
9633N
Normally Open
7.00
(.275)
8.50
(.334)
Ø9.50
(.374 DIA)
5.08
(.200)
5.00
(.196)
2.00
(.078)
Ø8.50
(.334 DIA)
1.50
(.059)
0.40
(.015)
Also available with quick-connect terminals 2,8 x 0,5 mm :
9633NZ1
B
6.00
(.236)
Ø4.00
(.157 DIA)
Ø6.35-40UNS
(1/4-40UNS)
Straight PC terminals - case length 8,5 (.334) : 9400N
9433N
Normally Open
7.00
(.275)
10.00
(.393)
0.40
(.015)
5.08
(.200)
3.50
(.137)
Ø9.50
(.374 DIA)
Ø1.60
(.062 DIA)
1.00
(.039)
Ø8.50
(.334 DIA)
5.08
(.200)
1.50
(.059)
3.30
(.129)
Ø18.00
(.708DIA)
3.00
(.118)
19.00
(.748)
5.08
(.200)
5.20
(.204)
0.40
(.015)
PANEL CUT
-
OUT
Ø6.50
(.255 DIA)
Bushing Ø 16 (.630) - metal button : 9633•X1146
Silver contacts
9633AX1146
1.50
(.059)
Ø12.00
(.472DIA)
9.50
(.374)
Gold plated silver contacts
9633ADX1146
Normally open
2.00
(.078)
Panel cut-out : Ø 16,2 (.637)
Max. current/voltage rating. : 0,3A 250VAC - 1A 30VDC
Epoxy sealed terminals. Options of the following pages not applicable.
Ø16.00x1.00SI
(.629DIAx1.00IS)
Hex nut 19 (.748) across flats
APEM
www.apem.com
7.40
(.291)
Normally open
B-55
9000 series
Momentary pushbutton switches
CONTACT MATERIALS
A
CD
Silver
Brass, gold plated
Special contact, lower rating : see X601 under "Special options".
B
SEALING
Blank
B
No sealing
Epoxy sealed terminals
1
KB
Combined sealings
K
Sealing boots : see section H.
➀
O-rings
SPECIAL OPTIONS
X601
Silver plated brass contacts
Current/voltage rating for an electrical life of 20.000 cycles :
0,2A 250VAC - 0,4A 125VAC - 0,5A 30VDC.
Minimum quantity : 5.000 pieces per model and shipment.
Model with dia. 16 (.630) bushing and metal plunger
See previous page.
X1146
B-56
www.apem.com
APEM
5.50 Maxi
(.216 MAX)
K
Front panel sealing by two O-rings. Protects the switch against
water and dust.
Panel seal withstands 0,1 bar pressure and remains tight even when
switch is operated.
