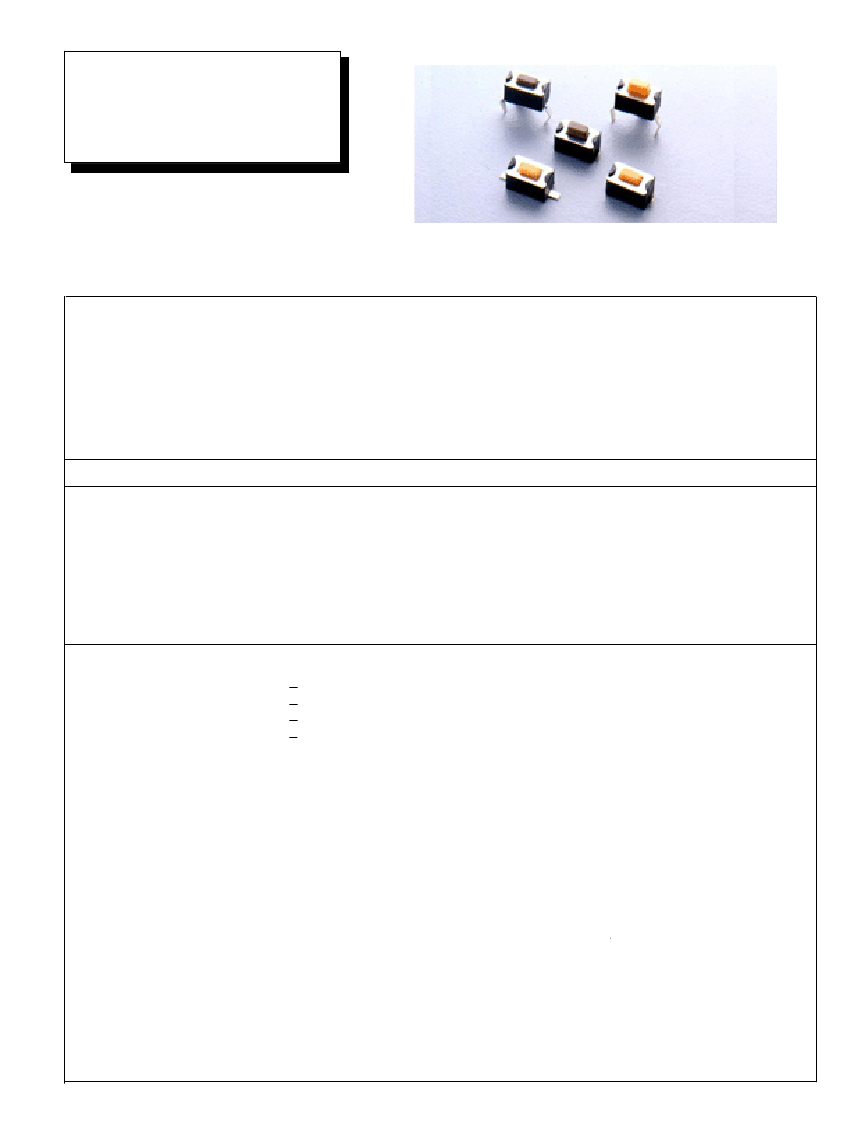

ADTS3 SERIES
3.5 x 6mm TACT SWITCH
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
FEATURES
Sharp click feel with a positive tactile feedback.
Ultraminiature structure suitable for high density mounting. Economic but high reliability.
Insert molded contacts with special treatment prevents flux build-up during soldering and permits auto-dipping.
MATERIALS
COVER:
BASE:
STEM:
DOME CONTACT:
TERMINALS:
GENERAL SPECIFICATIONS
ELECTRICALS
Electrical life:
Rating:
Contact resistance:
Insulation resistance:
Dielectric Strength:
Contact Arrangement:
MECHANICALS
Actuation Force:
520 + 130gf Yellow
320 + 80gf Salmon
260 + 50gf Red
160 + 50gf Brown
0.25 + 0.2 mm
- 0.1 mm
(Y)
(S)
(R)
(N)
50,000 cycles for 160gf, 320gf.
30,000 cycles for 260gf, 520gf.
50 mA,12 VDC.
100 m
illiohms
max.
100 megohms min. 500 VDC.
250 VAC /1 minute.
1 pole 1 throw.
Stainless Steel.
UL94V-0 Nylon, High Temperature Thermoplastic.
Color: Black
UL94V-0 Nylon, High Temperature Thermoplastic.
Color: Brown(160gf), Red(260gf), Salmon(320gf),Yellow(520gf)
Stainless with silver cladding.
Brass with silver plated.
M
Stoke:
Operating Temperature Range: -25ºC to + 70ºC
Storage Temperature Range: -30ºC to + 80ºC
MIL-STD-202F METHOD 201A.
Vibration resistance:
Frequency: 10-55-10Hz/1minute.
Directions: X,Y,Z, three mutually perpendicular directions.
Time: 2 hours each direction.
High reliability.
Shock resistance:
MIL-STD-202F METHOD 213B.
CONDITION A.
Gravity: 50G (peak value), 11 msec.
Direction and times: 6 sides and 3 times in each direction.
High reliability.
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SOLDERING PROCESSES
HAND SOLDERING:
320ºC max. for 2.5 seconds max. (30 watt iron).
REFLOW SOLDERING: 260ºC max.
WAVE SOLDERING:
360ºC max. for 5 seconds max (1.6 mm Board thickness).
CIRCUIT
HOW TO ORDER
M
ADTS
3
V
B = Tube Package
R = Tape & Reel
= Bag for Thru-hole type
V = Lead Free Solerable
Color Of Stem For Operating Force:
N = Brown, 160gf
R = Red, 260gf
S = Salmon, 320gf
Y = Yellow, 520gf

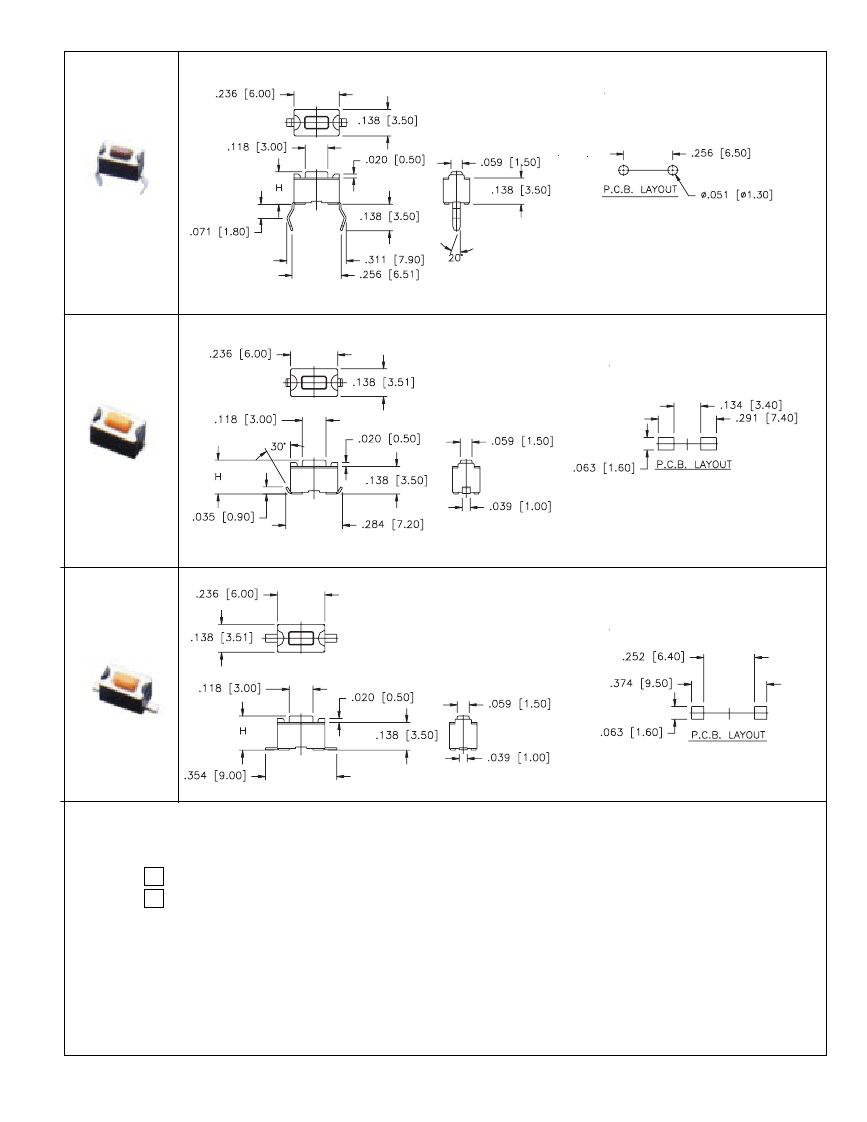

Dimension H:
1 = 4.3mm
2 = 5.0mm
Product Size: 3 = 3.5 x 6mm
M: Surface Mounting Type
ML: Surface Mounting Type
: Through Hole Type
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
