1
-
-
-
-
-
-
-
-
PRODUCT DESCRIPTION
housing and actuator are made of high-quality stainless steel
particularly suitable for the use in harsh environments
the switch can be used in applications where an additional second contact is required for a
safety circuit
available with mounting diameters of 19, 22 and 30 mm
equipped with two separated switching contacts which are available as normally open,
normally closed or as change-over
permissible switching voltages from 30 VDC to 250 VAC, switching currents from 0.1 to 10
Ampere
equipped with flat-pin plugs to permit fast connection
point and ring-illuminated versions for applications at night or as an optical status display
2
2.1
TECHNICAL DAT A AND DIMENSIONAL DRAWINGS
Technical Data
Micro Switch for Electrical Rating
(Protection Class IP 40)
Electrical Data
Contact Material
Switching Voltage max.
Switching Current max.
Rated Braking Capacity
Lifetime
1)
0.1 A
30 VDC
5A
3A
125 VAC 250 VAC
10 A
250 VAC
gold
(VAC)
(VDC)
(A)
(W)
silver
125 / 250
silver
250
30
0.1
3
200,000
5/3
1250
200,000
1,500,000
10
2500
50,000
(
at Rated Braking Capacity)
Lifetime (
160mA at 48VDC)
Initial Contact Resistance, new
Insulation Resistance
(IEC 512-2)
Contact Bounce Time
1)
(mΩ)
(MΩ)
(ms)
< 50
> 100
<5
< 30
> 100
<5
< 30
> 100
<5
The electrical lifetime according to ENEC or UL approbation can vary, depending on the corresponding micro switch, under
the lifetime indicated above. The type and license numbers for the individual micro switches can be found in “point 6
approvals”.
Changes that contribute to technical improvement are subject to alternations
Seite
3 of 22
Erstelldatum:
07.03.2008
Ersteller:
Schillak
Änderungsdatum: Geändert von:
30.11.2011
Seiler
Änderungs-Nr.
10518
Datenblatt Nr.
Index
105.9534
g
Print date: 09/12/2011 07:04:00
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com
Micro Switch for Electrical Rating
(Protection Class IP 67)
Electrical Data
Switching Voltage max.
Switching Current max.
Rated Braking Capacity
Lifetime
1)
0.1 A
250 VAC
5A
250 VAC
10 A
250 VAC
(VAC)
(A)
(W)
250
0.1
25
50,000
250
5
1500
50,000
250
10
2500
10,000
(
at Rated Braking Capacity)
Italically written types on request
1)
The electrical lifetime according to ENEC or UL approbation can vary, depending on the corresponding micro switch, under
the lifetime indicated above. The type and license numbers for the individual micro switches can be found in “point 6
approvals”.
Mechanical Data
Actuating Force
Actuating Travel
Mounting Diameter 19, 22 mm
(N)
(mm)
(mm)
(Actuations)
(IK)
5.0
1.0
1.2
1,500,000
07
Actuating Travel
Mounting Diameter 30 mm
Lifetime
Shock Resistance DIN EN 50102
Climatical Data
Operating/Storage Temperature
Degree of Protection Front Side
mechanical*
Degree of Protection Front Side
Contact Area
Degree of Protection Rear Side
Contact Area
(°C)
(IP)
(IP)
(IP)
- 25 to + 85
40
67
40 / 67
Ring Illumination
Supply Voltage
Ring Illumination
(VDC)
5/ 12/ 24
Other supply voltages on request
*The degree of protection refers to the area of the movable actuator.
Changes that contribute to technical improvement are subject to alternations
Seite
4 of 22
Erstelldatum:
07.03.2008
Ersteller:
Schillak
Änderungsdatum: Geändert von:
30.11.2011
Seiler
Änderungs-Nr.
10518
Datenblatt Nr.
Index
105.9534
g
Print date: 09/12/2011 07:04:00
SCHURTER GmbH
D – 79346 Endingen
www.schurter.com
Point Illumination
Characteristics
red LED
Point Illumination
Characteristics
green LED
Point Illumination
Characteristics
yellow LED
Point Illumination
Characteristics
blue LED
Point Illumination
Characteristics
white LED
Point Illumination
Attention: Parts are delivered without series resistor.
Forward Current max. 30 mA
Forward Voltage at 10 mA = 1.9 VDC
Forward Voltage max. = 3.0 VDC
Forward Current max. 30 mA
Forward Voltage at 10 mA = 2.1 VDC
Forward Voltage max. = 3.0 VDC
Forward Current max. 30 mA
Forward Voltage at 10 mA = 2.1 VDC
Forward Voltage max. = 3.0 VDC
Forward Current max. 20 mA
Forward Voltage at 8 mA = 3.7 VDC
Forward Voltage max. = 4.5 VDC
Forward Current max. 30 mA
Forward Voltage at 20 mA = 3.6 VDC
Forward Voltage max. = 4.0 VDC

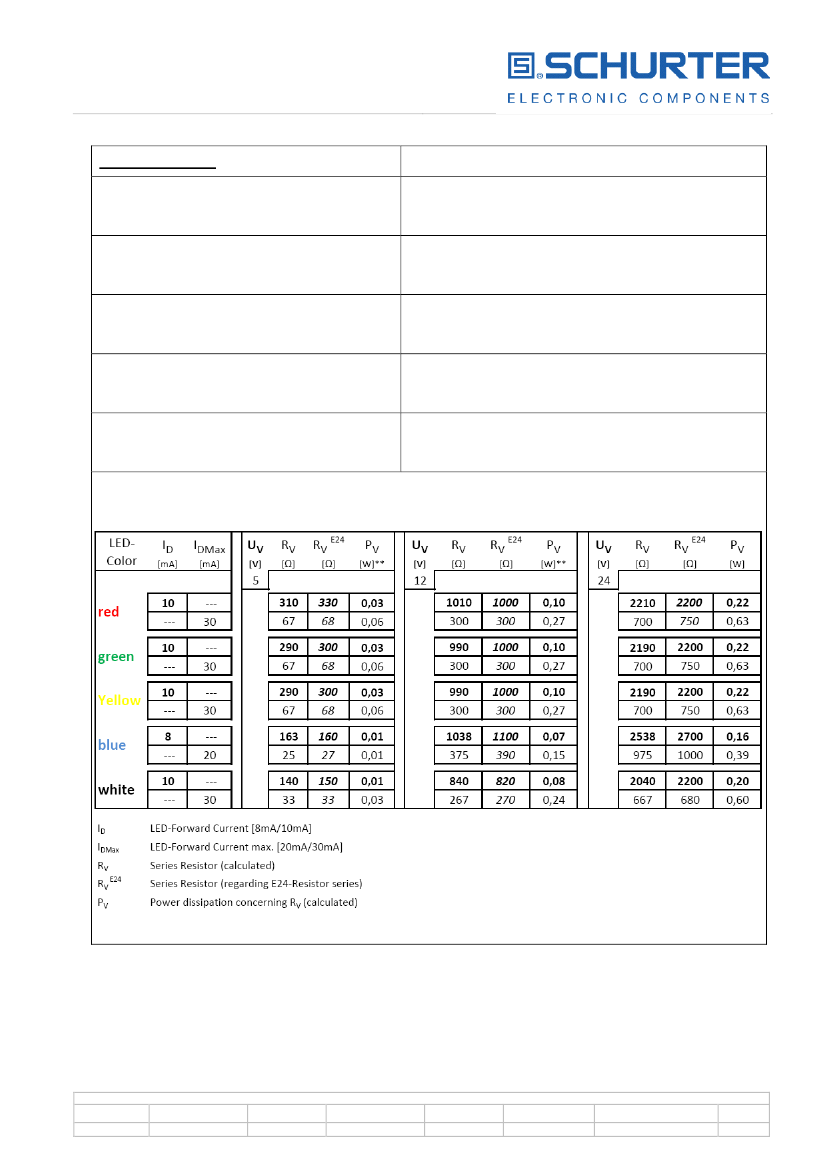

Recommendation of series resistors for Point Illumination:
