10129187-41220TRLF datasheet, PDF

10129187-41220TRLF: DescriptionBoard Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size171KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10129187-41220TRLF Overview

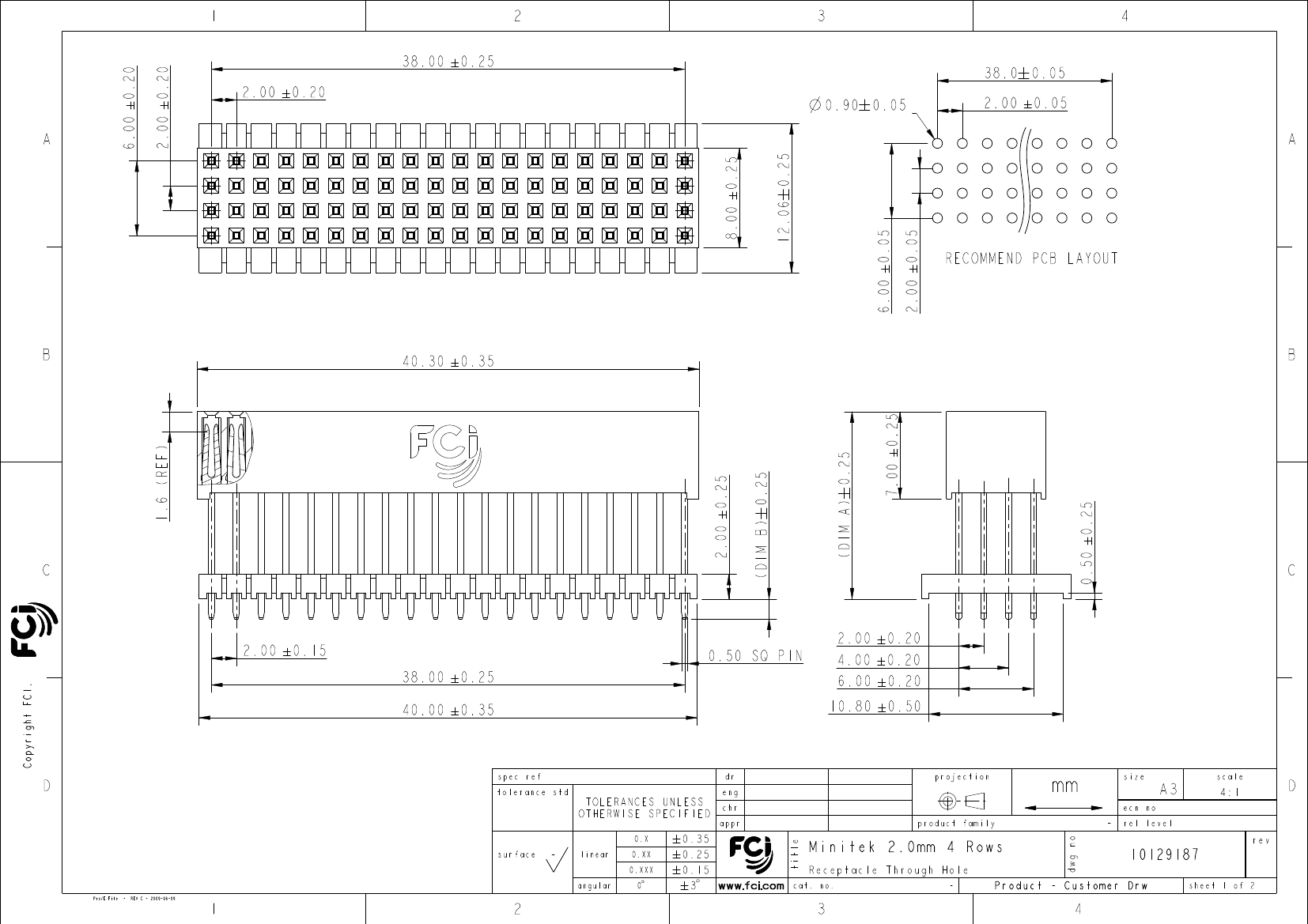

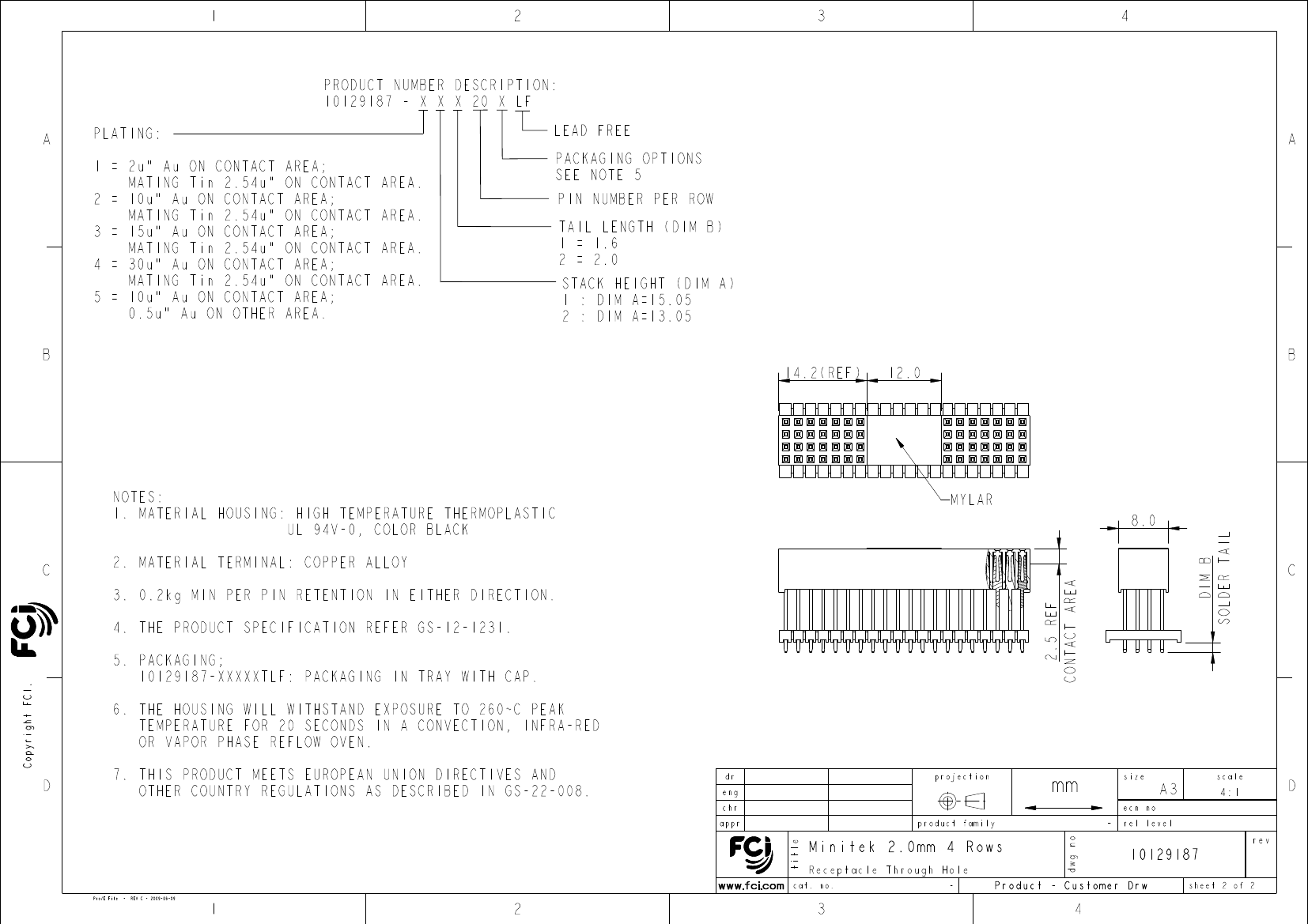

Board Connector, 80 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	315319454
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.7
body width	0.475 inch
subject depth	0.593 inch
body length	1.587 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	840VAC V
Durability	100 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Manufacturer's serial number	10129187
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	80

Guo-Min Sun

Rick Bian

2014/02/24

2014/09/16

2014/09/17

ELX-N-18701-1

Released

PDS: Rev :B

STATUS:Released

Printed: Sep 17, 2014
