IDS-94-2
Amphenol
®

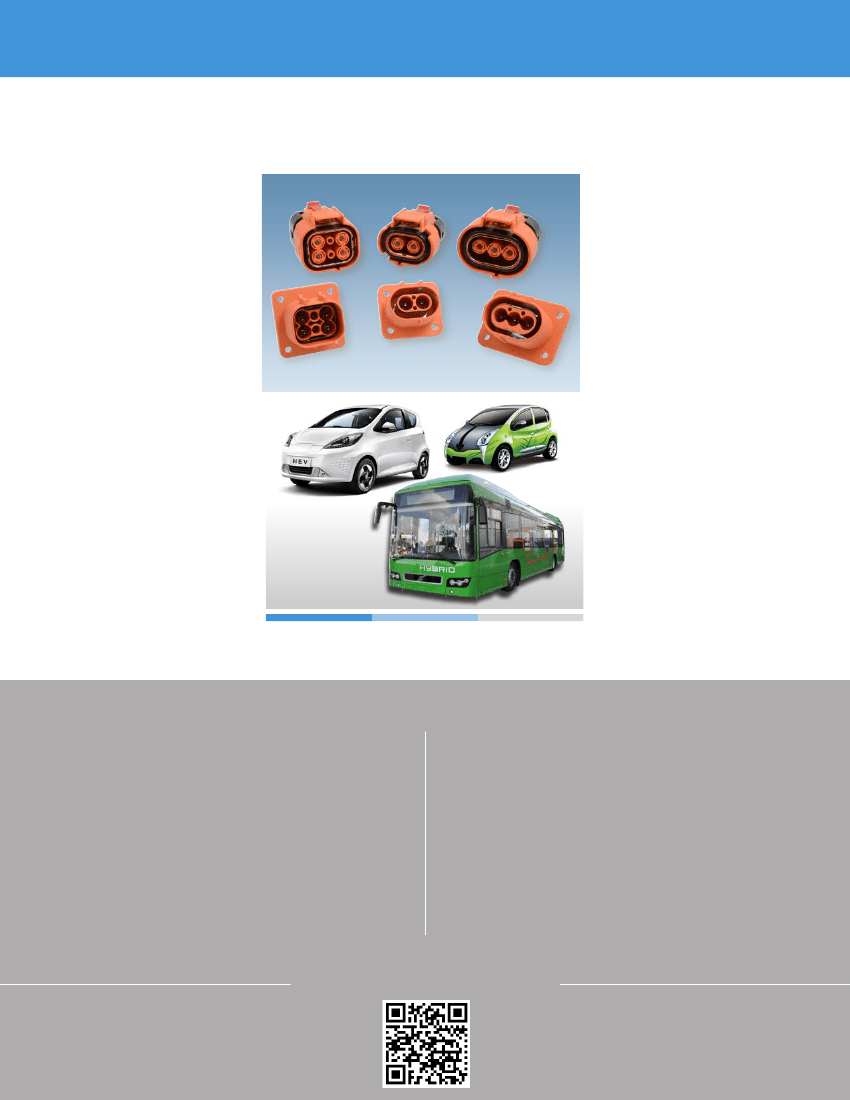

ePower-Lite
The ePower-Lite is a plastic power connector series designed
to be used in the hybrid electric vehicle market. The series
offers 2-pole, 3-pole and 4-pole options. The robust plastic shell
can withstand high temperatures up to 125°C and provides
dielectric protection for the connector.
With patented RADSOK® technology, the connector features
higher amperage, lower T-rise and voltage drop, and less
resistance.
The compact, plastic shell structure is light weight with a small
footprint, and is field installable and repairable. ePower-Lite also
includes a CPA to provide connector position assurance that it is
mated. All these attributes make ePower-Lite the interconnect of
choice for the EV and Hybrid markets.
Features and Benefits:
•
•
•
•
•
•
•
•
•
•
Plastic shell, light weight
Compact design for space considerations with EVs
Low mating/un-mating force
Durability: 100 mating cycles minimum
Water Proof: IP67
Touch-Proof: IEC 60529
Flammability: UL 94V-0
EMC optional
HVIL optional
RoHS Compliant
www.amphenol-industrial.com
EV/HEV Application
Technical Data
2-Pole
Contact Test Current
3-Pole
4-Pole
2-Pole
Number of Contacts
3-Pole
4-Pole
2-Pole
Contact Size
3-Pole
4-Pole
70A RADSOK
®
/5A HVIL
70A RADSOK /5A HVIL
®
®
Test Voltage (Sea Level)
Operating Temperature
Operating Voltage
Finger Proof
Durability
Water Proof
Salt Spray
HVIL
Recommended Torque
3000 VAC RMS
-40°C to 125°C
800V AC
IEC 60529
100 (Min)
IP67 (Mated)
96H
Optional
M4: 0.5 ~ 0.7N.M
70A RADSOK /5A HVIL
2&2
3&2
4&2
3.6mm/#20
3.6mm/#20
3.6mm/#16

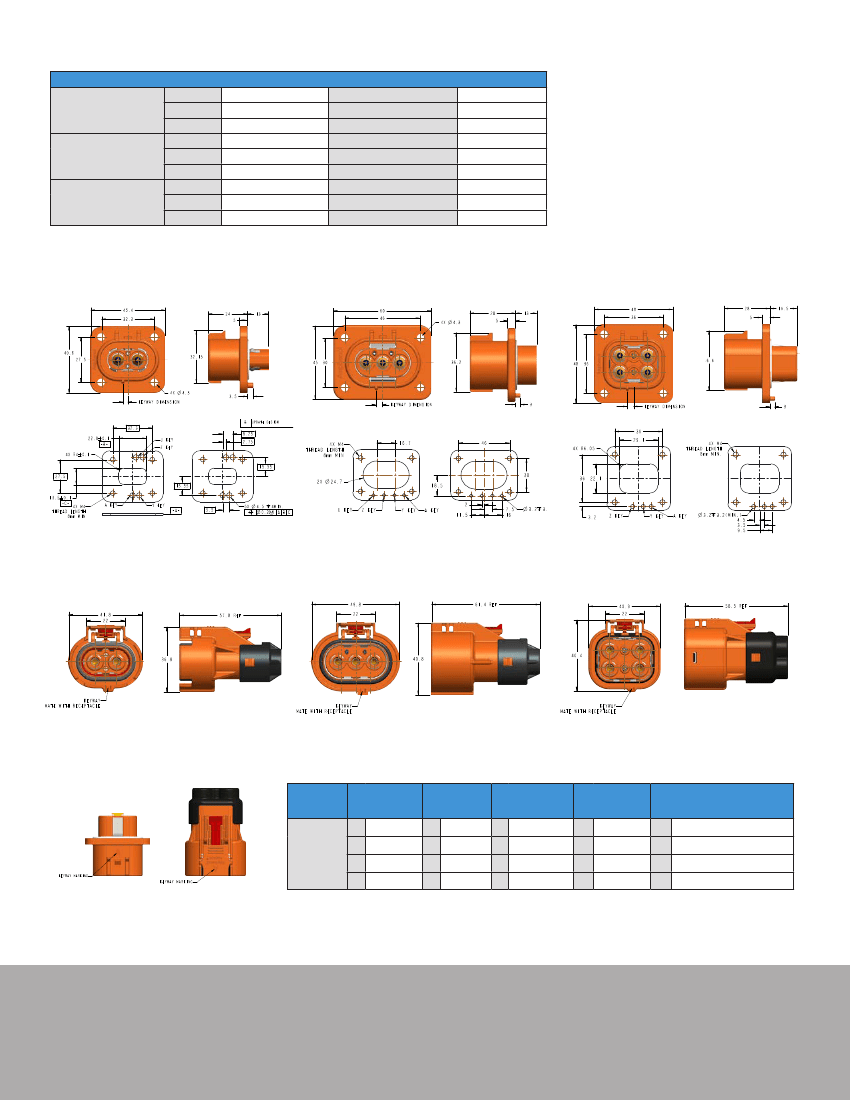

2-Pole Electrical Receptacle
with HVIL & Shielding Shell
3-Pole Electrical Receptacle
with HVIL & Shielding Shell
4-Pole Electrical Receptacle
with HVIL & Shielding Shell
2-Pole Electrical Plug
with HVIL & Shielding Shell
3-Pole Electrical Plug
with HVIL & Shielding Shell
4-Pole Electrical Plug
with HVIL & Shielding Shell
Key Marking
How To Order
Product
Series
Connector
Type
P
EL
R
Plug
Receptacle
2
3
4
Pole
Number
2-Pole
3-Pole
4-Pole
A
Y
Z
U
Index / Key
Key/A
Key/Y
Key/Z
Key/U
Crimped
Wire Size
01
02
03
04
2.5mm
2
4.0mm
2
6.0mm
2
(Omit to include EMI & HVIL)
01
10
11
Yes EMI but No HVIL
No EMI but Yes HVIL
No EMI & No HVIL
EMI & HVIL Options
10.0mm
2
