237XBXPLM-020-115-125VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 237XBXPLM-020-115-125VDC

237XBXPLM-020-115-125VDC: DescriptionMulti-Delay Relay, DPDT, Momentary, 0.02A (Coil), 125VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), 0.2s Adj Min, 20s Adj Max, DC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size82KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

237XBXPLM-020-115-125VDC Overview

Multi-Delay Relay, DPDT, Momentary, 0.02A (Coil), 125VDC (Coil), 2500mW (Coil), 10A (Contact), 28VDC (Contact), 0.2s Adj Min, 20s Adj Max, DC Input, AC/DC Output, Socket Mount

237XBXPLM-020-115-125VDC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum adjustable time delay	20 s
Minimum adjustable time delay	0.2 s
Maximum coil current (DC)	0.02 A
Coil operating voltage (DC)	100 V
Coil power	2500 mW
Coil resistance	6250 Ω
Maximum coil voltage (DC)	125 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	237
Installation features	SOCKET MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	MULTI-DELAY RELAY
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

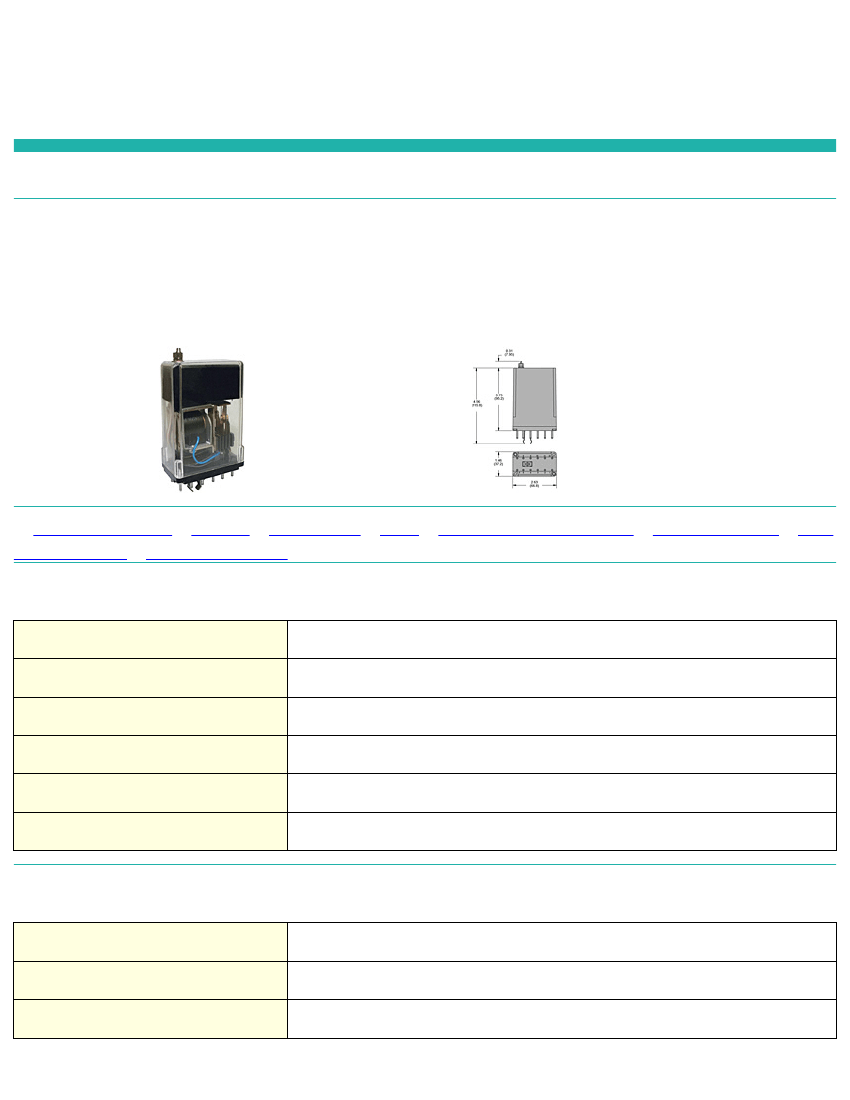

Item # 237XBXPLM-020-115-125VDC, 236TD /237 Series - Time Delay Relays

Rugged, industrial time delay versions of the popular 219 series. On delay, off delay and interval timing is available. Contacts can be configured up to four pole double

throw or six pole single throw. Blow out magnets can be added to increase DC switching capability. Time ranges are adjustable over a 1:100 range. Locking shaft

potentiometer and integral hold down clip are standard. A large option list makes this product easily customized for special applications.

Nuclear versions available

For Additional Configuration please contact the manufacturer.

SPECIFICATIONS

TIMING

CONTACTS

COIL

DIELECTRIC STRENGTH

TEMPERATURE

LIFE

EXPECTANCY

MISCELLANEOUS

SPECIFICATIONS

Series

237

Contact Arrangement

XBX (DPDT) - (2 form C)

Mounting Options

Plug-in

Timing Range

0.2 - 20 s

Adjustment Options

Locking shaft potentiometer

Operating Voltage

115-125 VDC

TIMING

Functions Available

On-delay, Off-delay, Interval

Time Range

Up to 7 hours

Timing Adjustment

Locking shaft potentiometer

7/31/2013 | Page 1 of 3
