nanoX-TC-E640-1G datasheet, PDF

Datasheet> All Categories > Module/solution> nanoX-TC-E640-1G

nanoX-TC-E640-1G: Descriptioncomputer-On-modules - com mini size com exp intel atom e640; CategoryModule/solution; File Size283KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

nanoX-TC-E640-1G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	nanoX-TC-E640-1G	-	-	View	Buy Now

nanoX-TC-E640-1G Overview

computer-On-modules - com mini size com exp intel atom e640

nanoX-TC-E640-1G Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Computer-On-Modules - COM
RoHS	Yes
Form Fac	Mini COM Express Type 10
Processor Brand	Intel
Processor Type	Intel Atom E640
Chipsets	EG20T
Frequency	1 GHz
Memory Size	1 GB
Memory Type	DDR2, L2 Cache
Interface Type	CAN, Serial, SATA, USB
Operating Supply Voltage	4.75 V to 21 V
Maximum Operating Temperature	+ 70 C
Dimensions	84 mm x 55 mm
Backup Battery	Yes
Cache Memory	512 KB
Description/Functi	Mini size COM Express type 10 module with Intel Atom E640 processor at 1 GHz, PCH EG20T, and 1 GB soldered DDR2 SDRAM
Minimum Operating Temperature	0 C
Power Consumpti	3.3 W
Processor Series	Intel Atom E640

Preview

Download Datasheet

View All

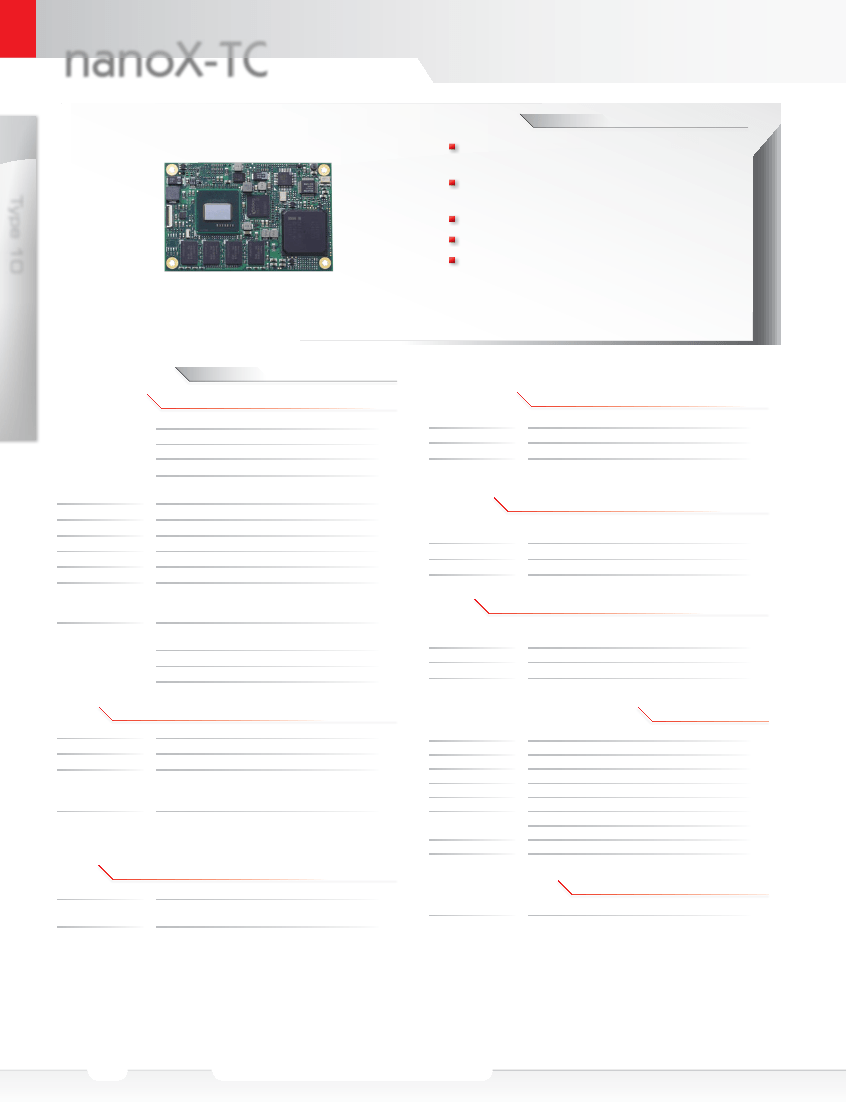

nanoX-TC

Type 10

COM Express

Mini Size Type 10 Module with

Intel

Atom™ Processor

Features

Intel

Atom™ Processor E6xx from

600 MHz up to 1.6 GHz

Up to 2 GB soldered DDR2 SDRAM at

800 MHz

24-bit LVDS and SDVO support

4x PCI Express x1 lanes

Optional Intel

Platform Controller Hub

EG20T for USB, LAN, SDIO, Serial & CAN

bus and SATA

Specifications

Core System

CPU

Intel

Atom™ E680, 1.6 GHz, 3.9 W TDP

Intel

Atom™ E660, 1.3 GHz, 3.3W TDP

Intel

Atom™ E640, 1.0 GHz, 3.3W TDP

Intel Atom™ E620, 600 MHz, 2.7W TDP

I/O Interfaces

Chipset

USB

SATA

SDIO Port

Integrated in Intel

PCH EG20T

Six USB 2.0 host ports and one USB 2.0 client port

Two ports supporting SATA 1.5 Gb/s and 3 Gb/s

SDIO/MMC supporting SDHC speed class 6

(shared with GPIO, selectable in the BIOS setup)

All processors support Intel Hyper-Threading and Intel

Virtualization Technology

L2 cache

Memory

BIOS

Hardware Monitor

Debug Interface

Embedded Features

512 KB on all processors

Soldered 512 MB, 1 or 2 GB DDR2 at 800 MHz

License-free bootloader or AMI UEFI flash

Supply voltages and CPU temperature

XDP SFF-26 extension for ICE debug

Instant on with Intel Bootloader support, OEM BIOS settings,

Board Info & Statistics, ACPI 3.0, Smart Battery Management

support, Watchdog with programmable timer ranges

4 PCI Express x1 (0/1/2/3, port 3 is optionally used for

EG20T PCH; no PCIe x4 support)

LPC Bus, SMBus (system) , I

C (user)

4 GPI and 4 GPO (shared with SDIO on optional EG20T)

SPI (supports BIOS only)

Ethernet

Serial and CAN

GbE MAC

PHY

Speed

One RS-232 (RX/TX) and one CAN (AX/RX) port

(optional 2x RS-232 w/o CAN)

Integrated in Intel

EG20T PCH

Realtek RTL8211CL

10/100/1000 Mbps

Power

Input Power

Power States

Power Consumption

Smart Battery Support

4.75 V – 21 V wide range, supports AT mode and ATX mode

(with additional 5 Vsb)

Supports S0, S1, S3, S4, S5

5W at 5V typical, 3W idle

Yes

Expansion Busses

Video

2D/3D Graphic Engine

Decoding

Encoding

LVDS Interface

Integrated in Intel Atom™ Processor E6xx

Mechanical and Environmental

MPEG2, MPEG4, VC1, WMV9, H.264 and DivX

MPEG4, H.264 (baseline at L3)

Single channel 18- or 24-bit pixel color depths with maximum

resolution of up to 1280x768 @ 60 Hz. Pixel clock rate

between 19.75 MHz (minimum) and 80 MHz (maximum).

Serial digital video output supporting devices for DVI, TV-out,

analog VGA. Maximum resolution of up to 1280x1024

@ 85 Hz and pixel clock rate up to 160 MHz.

Specification

Form Factor

Operating Temperature

Storage Temperature

Humidity

Shock

Vibration

Compatibility

Certification

PICMG COM.0: Rev 2.1 Type 10

Mini size: 84 mm x 55 mm

Standard: 0°C to +60°C

-20°C to +80°C

90% at +60°C

15G peak-to-peak, 11ms duration, non-operation

Non-operating: 1.88 Grms, 5-500 Hz, each axis

Operating: 0.5 Grms, 5-500 Hz, each axis

PICMG COM Express

COM.0 R2.0 Type 10

CE, FCC, HALT

SDVO

Audio

High Definition Audio

Characteristics

Audio Codec

Integrated in Intel

Atom™ Processor E6xx

Multi-channel audio stream, 32-bit sample depth, sample

rate up to 192 kHz

On carrier (standard support for ALC886)

Operating Systems

Standard Support

Windows XP/Windows 7, Linux

Extended Support (BSP) Embedded XP, WinCE 6.0, Linux/Moblin, VxWorks 6.x, QNX,

AIDI Library

http://www.adlinktech.com/Computer-on-Module
