RB-910-S Overview

single board computers READYboard 910 intel core i7

RB-910-S Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Single Board Computers
RoHS	Yes
Form Fac	EPIC
Processor Brand	Intel
Processor Type	Intel Core i3/i5/i7
Frequency	1.6 GHz to 2.5 GHz
Memory Size	8 GB
Memory Type	DDR3, LLC
Interface Type	Ethernet, PS/2, SATA, Serial, USB
Operating Supply Voltage	5 V, 12 V
Maximum Operating Temperature	+ 60 C
Dimensions	165.1 mm x 114.3 mm
Backup Battery	N
Cache Memory	6 MB (max)
Chipsets	HM65
Description/Functi	ReadyBoard 910, PCI-104, HM65, Socket G2, 4GB on board SSD
Minimum Operating Temperature	0 C
Power Consumpti	35 W to 45 W
Processor Series	Intel Core i3/i5/i7

Preview

Download Datasheet

View All

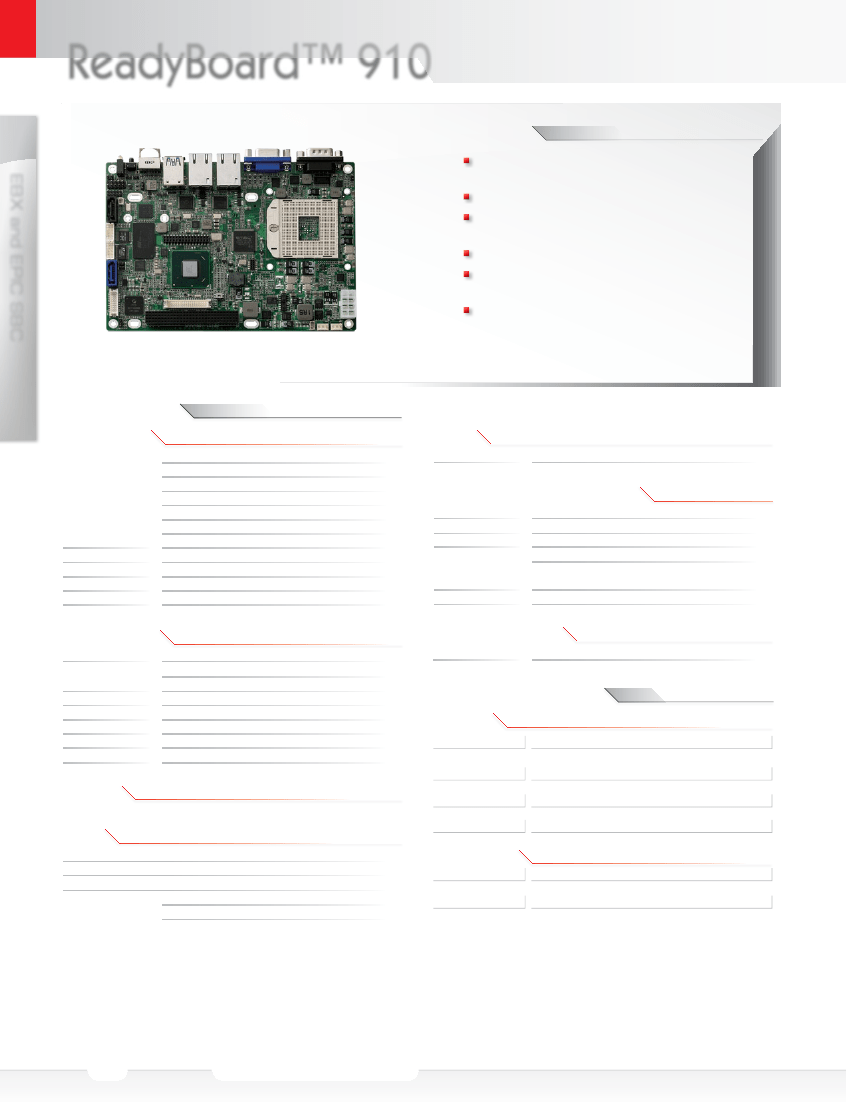

ReadyBoard™ 910

EBX and EPIC SBC

EPIC Single Board Computer with

Intel

Core™ Processor

Features

Generation Intel

Core™ i7/i5/i3

Processor

Dual Gigabit Ethernet

USB 3.0 with SuperSpeed 5Gb/s Data

Transfer Rate

Analog VGA, LVDS and DVI-D display

PCI Express Mini Card socket, PCI-104

expansion

Onboard SSD

Specifications

Core System

CPU

Intel Core™ i7-3610QE, 2.3GHz, 6M L3 Cache, 45W TDP

Intel

Core™ i5-3610ME, 2.7GHz, 3M L3 Cache, 35W TDP

Intel

Core™ i3-3120ME, 2.4GHz, 3M L3 Cache, 35W TDP

Intel

Core™ i7-2710QE, 2.1GHz, 6M LLC, 45W TDP

Intel

Core™ i5-2510E, 2.5GHz, 3M LLC, 35W TDP

Intel

Core™ i3-2330E, 2.2GHz, 3M LLC, 35W TDP

Intel

Celeron

B810, 1.6GHz, 2M LLC, 35W TDP

Up to 16GB dual channel DDR3 1066/1333MHz SODIMM

Intel

HM65 Platform Controller Hub

AMI with CMOS backup in 32 Mbit SPI flash with ACPI 2.0

Supply voltages and CPU temperature

PCI-104, PCIe Mini Card

Power

Input Power

Power States

AT mode (12 V +/- 5%), ATX mode (12 V and 5 Vsb +/- 5%)

Supports S0, S1, S3, S4, S5

Mechanical and Environmental

Form Factor

Dimensions

Board Thickness

Operating Temperature

EPIC

165.1 x 114.3 mm (6.5 x 4.5”)

2.36 mm (0.093”)

Standard: 0°C to +60°C

Industrial: -20°C to +80°C (35W CPU with fansink thermal module)

-20°C to +70°C (35W CPU with passive heatsink)

-20°C to +75°C

90% at +60°C

Memory

Chipset

BIOS

Hardware Monitor

Expansion Buses

Storage Temperature

Humidity

I/O Interfaces

SATA

USB

Serial

LED & Reset

Keyboard/Mouse

GPIO

Audio

Storage

2 devices

2x USB 3.0 with 5Gb/s data transfer rate (faceplate)

2x USB 2.0 (onboard pin header)

2 configurable ports for RS-232/422/485

Power, SATA active, reset button

PS/2 interface

4x GPI and 4x GPO

High Definition Audio; S/PDIF

Onboard SSD (default 4GB)

Operating Systems

Standard Support

Win 7, Windows XP, Linux

Extended Support (BSP) Win XPe, WES 2009, WES 7, WEC 7, VxWorks 6.9, QNX 6.5

Ordering Information

Modules

Model Number

RB-910-S

RB-910-S-2710

RB-910-L-2710

Description/Configuration

ReadyBoard 910, PCI-104, HM65, Socket G2, 4GB on

board SSD with fansink thermal module

ReadyBoard 910, PCI-104, HM65, Intel

Core™ i7-2710QE

Processor, 4GB on board SSD, fansink thermal module

Quick Start Kit (Intel

Core™ i7-2710QE Processor, cable

kit, 2GB RAM, QuickDrive, fansink thermal module)

Ethernet

Dual Gigabit Ethernet (Intel

82574IT controller)

Video

Integrated Intel

HD Graphics 4000 supporting dual independent displays

Intel

Dynamic Video Memory Technology (DVMT 5.0)

DirectX 10.1/11 and OpenGL 3.0/4.0

Graphics Outputs

DVI-D: Resolution up to 1920 x 1200 @ 60Hz (WUXGA)

VGA: Resolution up to 2048 x 1536 @ 60Hz (QXGA)

LVDS: Dual-channel 24-bit LVDS; resolution up to

1920 x 1080 @ 60Hz

Accessories

Model Number

DDR3 memory

Description/Configuration

Verified industrial grade 1GB, 2GB, 4GB, 8GB DDR3

SODIMM memory available

http://www.adlinktech.com/rugged
