Input Type Photo Coupler
SOP Package AC
.
WPPC-A11064
Series
USR/CNR Listed (File # 223387)
Features
1. AC inputs.
2. Opaque type, SOP package.
3. Subminiature type. (The volume is smaller than that of our
conventional DIP type by as far as 30%)
4. Isolation voltage between input and output.
(Viso: 3750V
RMS
)
Part Numbering System:
Page 2.
Part Marking System:
Page 4.
Outside Dimension: Unit
(mm)
_
_
4.40
4.20
0.50 + 0.3
7.00 + 0.4
2.35 Max.
1. Hybrid substrates that require high density mounting.
2. Programmable controllers.
0.40
2.54
t=0.254+0.05mm
TOLERANCE :+ 0.2mm
Classification table of current transfer ratio is
shown below.
Schematic: Top View
1. Anode/ Cathode
2. Anode/ Cathode
3. Emitter
4. Collector
Absolute Maximum Ratings
Parameter
Input
Forward current
Peak forward current
Power dissipation
Output
Collector-emitter voltage
Emitter-collector voltage
Collector current
Collector power dissipation
Total power dissipation
Isolation voltage 1 minute
Operating temperature
Storage temperature
Soldering temperature 10 second
Symbol
I
F
I
FM
P
V
CEO
V
ECO
I
C
P
C
Ptot
Viso
Topr
Tstg
Tsol
Rating
± 50
±1
70
60
5
50
150
170
3750
-30 to +100
-40 to +125
260
ggg
(Ta=25°C)
Unit
mA
A
mW
V
V
mA
mW
mW
Vrms
°C
°C
°C
Electro-optical Characteristics
Parameter
Input
Output
Forward voltage
Terminal capacitance
Collector dark current
Collector-emitter breakdown voltage
Emitter- collector breakdown voltage
Transfer
charac-
teristics
Current transfer ratio
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Response time (Rise)
Response time (Fall)
Symbol
V
F
Ct
I
CEO
BV
CEO
BV
ECO
C
TR
V
CE
(sat)
Riso
Cf
tr
tf
Conditions
I
F
=± 20mA
V =0, f=1kHz
V
CE
=20V, I
F
=0
I
C
=0.1mA, I
F
=0
I
E
=100uA, I
F
=0
I
F
=± 1mA, V
CE
=5V
I
F
=± 20mA, I
C
=1mA
DC500V,40 to 60%RH
V =0, f =1MH
Z
V
CE
=2V, I
C
=2mA, R
L
=100ohm
MIN.
—
—
—
60
5
20
—
5X10
—
—
—
10
(Ta=25°C)
TYP.
1.2
30
—
—
—
–
0.1
10
4
3
11
MAX.
1.4
250
0.1
—
—
400
0.3
—
1.0
18
18
Unit
V
pF
uA
V
V
%
V
ohm
pF
us
us
0.6
WORLD PRODUCTS INC.
http://www.worldproducts.com
+0
0.05
-0.05
Applications
2.30
P.O. Box 517, 19654 Eighth Street East, Sonoma, CA 95476 Phone (707) 996-5201 Fax (707) 996-3380
r031103
11
WPPC-A11064
Series

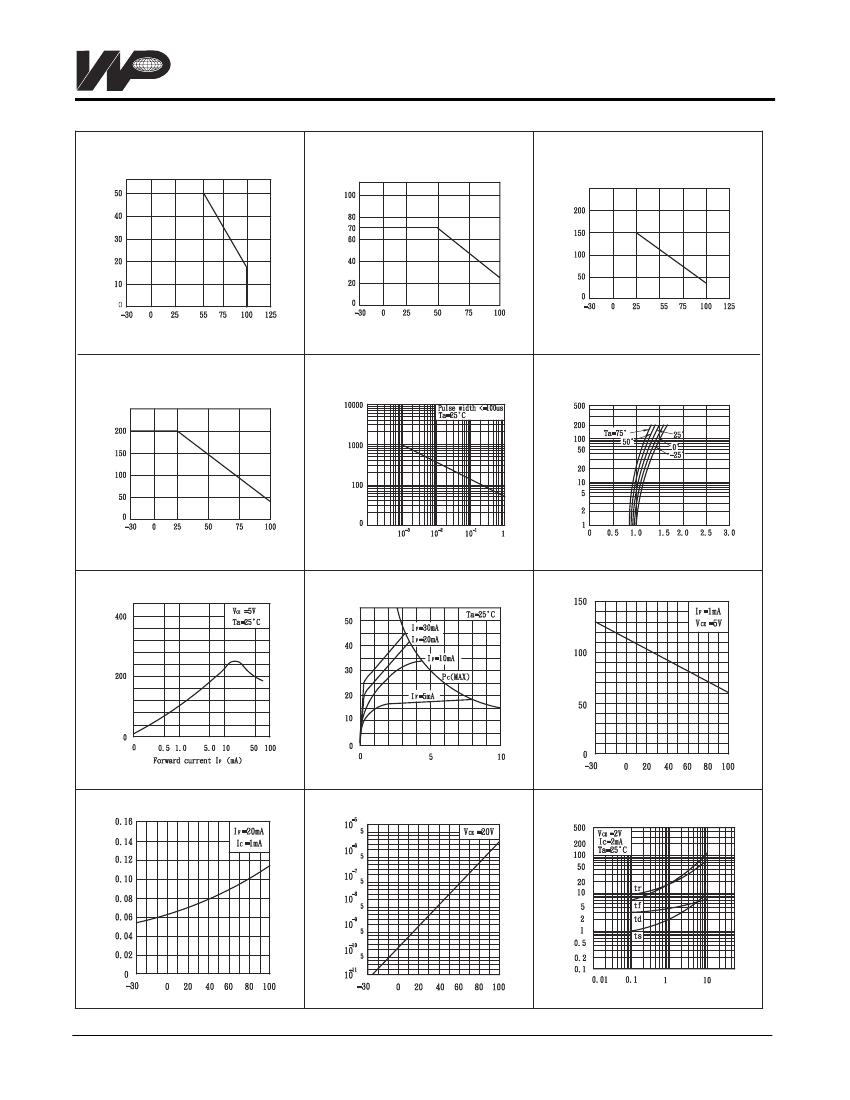

Fig.1
Forward Current vs. Ambient
Temperature
Fig.2
Diode Power Dissipation vs.
Ambient Temperature
Fig.3
Collector Power Dissipation vs.
Ambient Temperature
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Collector power dissipation Pc (mW)
Diode power dissipation P (mW)
Forward Current I
F
(mA)
Ambient Temperature Ta (°C)
Fig.4
Total Power Dissipation vs.
Ambient Temperature
Fig.5
Peak Forward Current vs. Duty
Ratio
Fig.6
Forward Current vs. Forward
Voltage
Total power dissipation Pc (mW)
Peak Forward Current I
FM
(mA)
Ambient Temperature Ta (°C)
Duty ratio
Forward Current I
F
(mA)
Forward voltage V
F
(V)
Fig.7
Current Transfer Ratio vs.
Forward Current
Fig.8
Collector Current vs. Collector-
emitter Voltage
Fig.9
Relative Current Transfer Ratio
vs. Ambient Temperature
Forward Current I
F
(mA)
Collector-emitter Voltage V
CE
(V)
Relative current transfer ratio (%)
Current transfer ratio CTR (%)
Collector Current Ic (mA)
Ambient Temperature Ta (°C)
Fig.10
Collector-emitter Saturation
Voltage vs. Ambient Temperature
Collector-emitter saturation Voltage V
CE (SAT)
(V)
Fig.11
Collector Dark Current vs.
Ambient Temperature
Fig.12
Response Time vs. Load
Resistance
Collector dark current I
CEO
(A)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Response Time (us)
Load resistance R
L
(K ohm)
12
