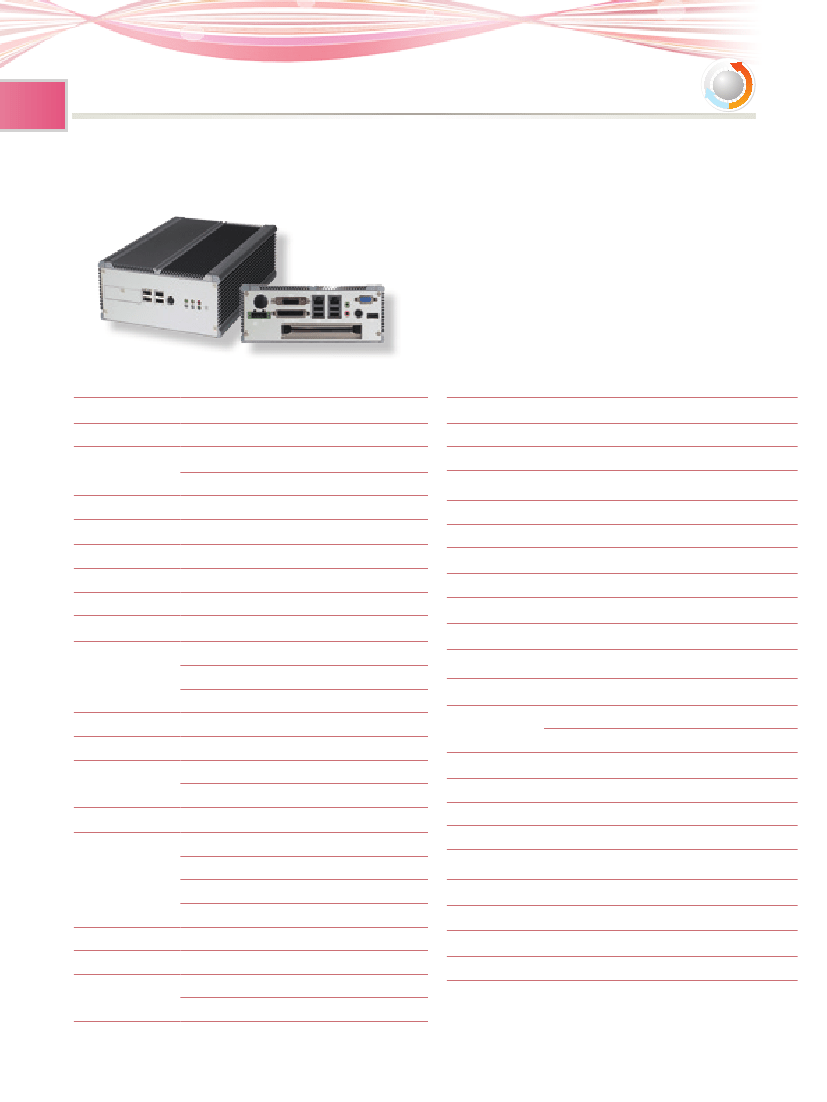

Rigid-730
•
•
•
•
•
•
•
•
•
+70
-40
C
Extreme Rugged, Intel® Core™ 2 Duo P8400, Fanless Embedded
Controller
Features
Wide Operating Temperature (-40 ~ 70˚C)
Fanless Design
Wide Range DC Power Input (10 ~ 28V)
Various Video Interfaces (Analog RGB, DVI, DisplayPort, TV-out)
1 x Outside Accessible CF Slot
Support Optional WiFi Connection
Rugged Design for Shock/Vibration Protection
Easy Installation/Maintenance
Intel® SSD Compatible
System
CPU
Memory
Chipset
Graphics
ATA
LAN Chipset
Watchdog Timer
Intel
®
Core™ 2 Duo P8400 2.26GHz processor
2 x 200-pin DDR2 SO-DIMM sockets, supporting
667/800MHz SDRAM up to 4GB
2GB WT DDR2 memory module installed
Intel
®
GM45 + ICH9M
Intel GM45 integrated GMA X4500, supporting DirectX
10, Shader Model 4.0
2 x Serial ATA ports with 300MB/s HDD transfer rate
2 x Realtek 8111 GbE controllers
1~255 levels reset
®
Environmental
Operating Temp.
-40 ~ 70°C (-40 ~ 158°F), ambient w/ air flow
Storage Temp.
Operating
Humidity
Vibration
Shock
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% @ 70°C (non-condensing)
3 Grms/5~500Hz/random operation
Operating 40G (11ms), Non-operating 60G with CF/SSD
Qualification
Certification
CE, FCC Class A
I/O
1 x DB-44 female connector
Power Requirement
Power Input
DC 10~28V input (4-pin DC input terminal block with
remote power on/off switch)
Max. 50W (w/o I/O card)
Serial Port
3 x RS-232 ports
1 x RS-232/422/485 selectable port
Power
Consumption
Storage
Type
1 x 2.5" drive bay for HDD/SSD
1 x CompactFlash Type II socket (outside accessible)
USB Port
LAN
Video Port
TV-out
8 x USB 2.0 ports
2 x RJ-45 ports for GbE
1 x DB-15 female connector for Analog RGB
1 x DisplayPort
1 x 6-pin Mini-DIN connector for S-Video output, or
Composite output via external cable
DVI-D by defualt, can be changed to DIO or LPT
Mechanical
Construction
Mounting
Weight
Dimensions
(W x D x H)
Aluminum alloy
Wall-mount (default is integrated)
3.9 kg (8.6 lb), w/o storage device
195 x 268 x 80 mm (7.68" x 10.55" x 3.15")
Selectable Port
1 x DVI-D female connector for Digital Video output
1 x 16-bit digital I/O, 8 in/8 out
SPP/EPP/ECP mode selectable for LPT
OS Support
Windows XP Embedded / Windows XP Professional / Windows Embedded 7
Professional / Windows Embedded 7 Standard
Audio
KB/MS
Expansion Bus
Mic-in/Line-out (6W pre-amplified)
1 x 6-pin Mini-DIN for keyboard and mouse
1 x PCI slot
1 x Mini-card slot for optional WiFi module
Ordering Information
Rigid-730
Fanless embedded controller
24
All specifications are subject to change without notice.

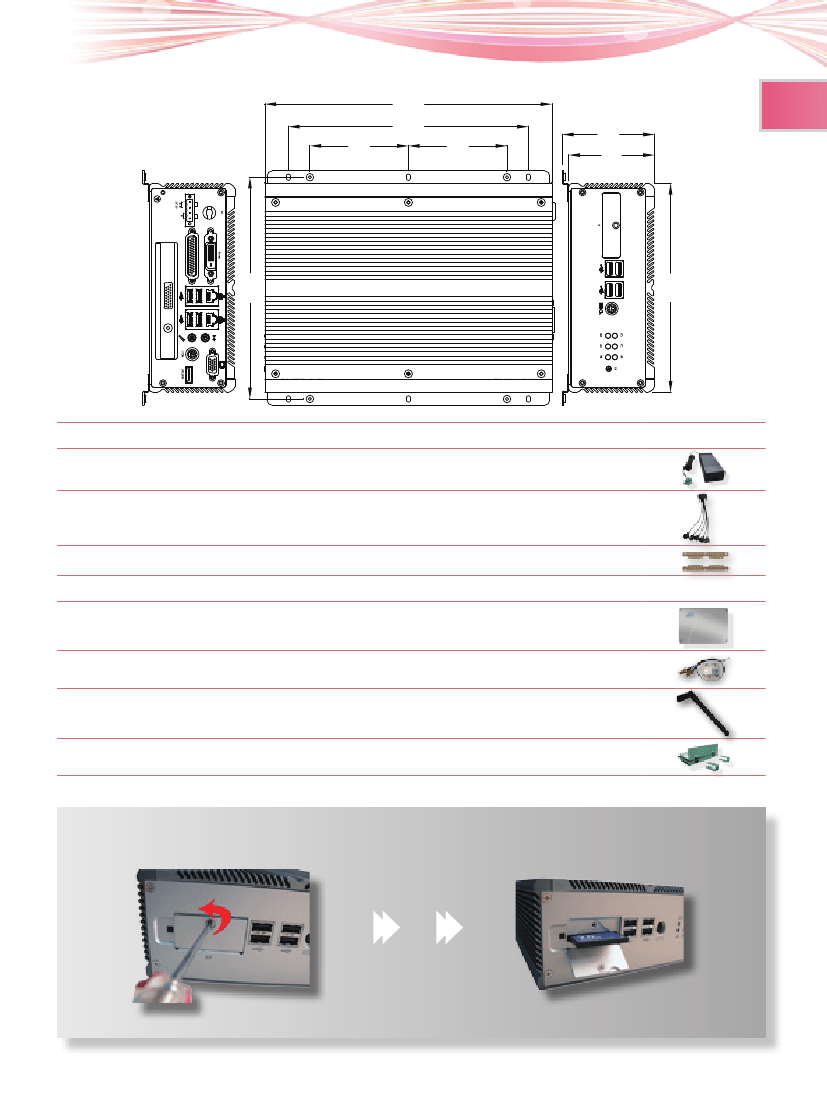

Dimensions
268
224
92
92
86
80
Standard Accessories
PAC-B120W-FSP
19V/6.32A 120W AC/DC adapter kit
COM1~COM4
195
207
Unit: mm
CBL-7100-COM
WMK-7000
4 x COM ports converter cable
Wall-mount kit for FPC-7XXX Series
Optional Configuration (CTOS* Kit)
SSD-25040
WIFI-IN1300
ANT-D11
MK-2I-2G-2
Intel
®
2.5” 40GB SATAII SSD kit
Intel
®
Centrino
®
Advanced-N 6205 WiFi module w/ 20cm internal wiring
1 x WiFi Dual-band 2.4G/5G antenna
Industrial 2GB DDR2 SDRAM DIMM2 kit
*CTOS means Configure to Order Service.
» Front-access CF for Easy Maintenance
Unscrew and pull down the door
All specifications are subject to change without notice.
Insert CF card
25
