CE-ECO2-E-E640T/1G datasheet, PDF

Datasheet> All Categories > Module/solution> CE-ECO2-E-E640T/1G

CE-ECO2-E-E640T/1G: Descriptioncomputer-On-modules - com coreexpress-eco2 intel e640t 1.0ghz; CategoryModule/solution; File Size436KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

CE-ECO2-E-E640T/1G Overview

computer-On-modules - com coreexpress-eco2 intel e640t 1.0ghz

CE-ECO2-E-E640T/1G Parametric

Parameter Name	Attribute value
Manufacture	ADLINK Technology
Product Category	Computer-On-Modules - COM
RoHS	Yes
Form Fac	CoreExpress
Processor Brand	Intel
Processor Type	Intel Atom E640T
Chipsets	EG20T
Frequency	1 GHz
Memory Size	1 GB
Memory Type	DDR2
Interface Type	CAN, Ethernet, LAN, PCI, SATA, USB
Operating Supply Voltage	5 V
Maximum Operating Temperature	+ 60 C
Dimensions	65 mm x 58 mm
Backup Battery	N
Description/Functi	CoreExpress module with Intel Atom E640T processor, 1 GHz, 1 GB DDR2 RAM
Minimum Operating Temperature	- 20 C
Packaging	Bulk
Power Consumpti	5 W
Processor Series	Intel Atom E640

Preview

Download Datasheet

View All

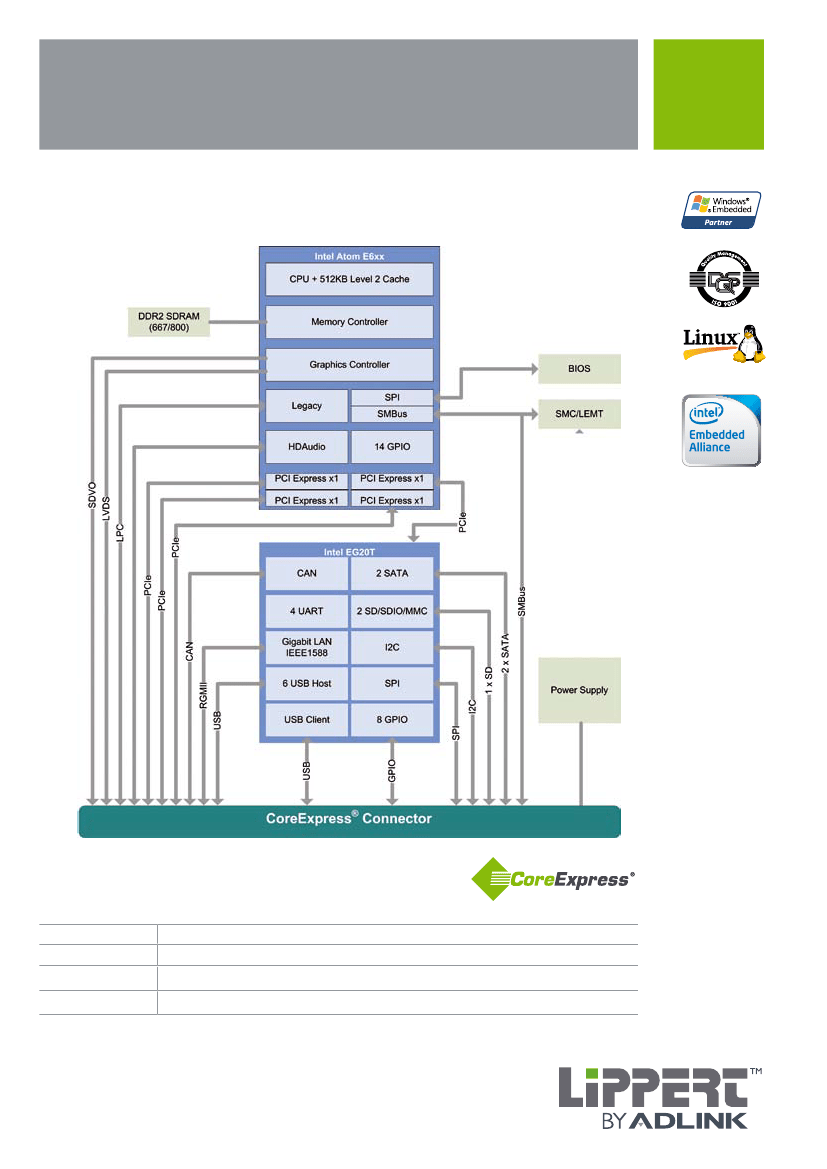

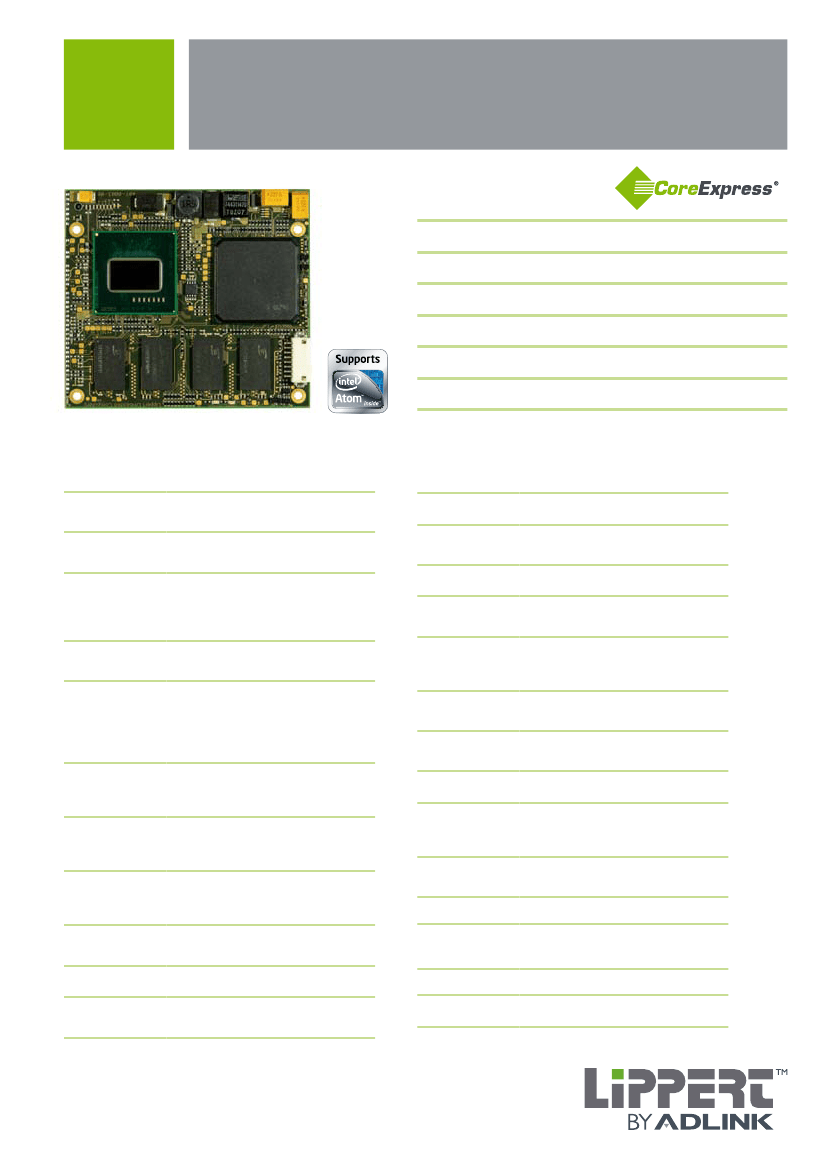

CoreExpress

-ECO2

CoreExpress Module

Intel

Atom™ E6xx Series Processor

Features

Intel Atom E6xx Processor Series

Intel® Platform Controller Hub EG20T

512MB, 1GB, 2GB DDR2 RAM

PCI Express 3 x1 lanes

Single channel 18/24 bit LVDS, SDVO

SATA, Gigabit LAN, USB 2.0, CAN

Specifications

Board Format

Processor

Chipset

CoreExpress,

58 mm x 65 mm

Intel Atom E6xx Processor

E620T, E640T, E660T, E680T

Intel® Platform Controller Hub EG20T

6x USB 2.0, 1x USB client, 2x SATA

1x Gigabit MAC: RGMII

1x SDIO, 1x CAN, SPI, I2C

512MB, 1GB, 2GB DDR2 RAM,

667 / 800 MHz

Integrated Graphics Engine (SDVO,

LVDS), Video Engine (H.264, H.263,

MPEG2, MPEG4, VC1, WMV9)

integrated memory controller,

supports 3D, DirectX and OpenGL

up to 1920 x 1280 @50 Hz

Digital Display port for ADD2 card or

SDVO-DVI transmitter on carrier

18/24 bit single channel

up to 1280 x 768 @60 Hz

Display backlight support

•

6 USB 2.0 host ports, with boot

device support

•

1 USB 2.0 client

Controller integrated in chipset

PHY on carrier required

2 SATA ports (3.0 Gb/s)

2.0B interface with up to 1Mbps

Transceiver on carrier required

SDIO

Audio

8 bit, integrated in chipset

HDA link on CoreExpress connector

Codec on carrier required

PCI Express Bus

PCI Express bus 3 x1 lanes

Power Supply

Power

Consumption

Power

Managment

Status LED

Watchdog

Operating

temperature

Cooling

MTBF

BIOS

LEMT

Supported OS

+5 V only. All necessary voltages are

generated on-board.

0.6 GHz: 5.0 W (approx.)

1.0 GHz: 7.9 W (max),

1.6 GHz: 8.5 W (max.)

BIOS supports ACPI power saving

modes

Status (Service)

S3 mode

Yes (LEMT)

0°C…+60°C (commercial, all versions)

-20°C…+60°C (industrial, all versions)

-40°C…+85°C (extended, optional)

Passive cooling possible

Heat spreader is available

228,412 hours @ 25°C

Phoenix BIOS

BIOS parameters are saved in Flash

Yes, Condition Monitoring

Windows, Linux

RAM

Graphics

SDVO

LVDS

USB

Ethernet

SATA

CAN

LiPPERT ADLINK TECHNOLOGY

Hans-Thoma-Str. 11 · D-68163 Mannheim

Phone +49 621 43214-0 · Fax +49 621 43214-30

sales@lippertembedded.com

www.lippertembedded.com

Ampro ADLINK Technology, Inc.

5215 Hellyer-Avenue, #110

San Jose, CA 95138, U.S.A.

Toll Free (800) 966 5200 · Fax (408) 360 0222

info@adlinktech.com

CE-ECO2-E-E640T/1G Related Products

	CE-ECO2-E-E640T/1G	CE-ECO2-E-E680T/2G	CE-ECO2-R-E640T/1G	CE-ECO2-R-E680T/2G	CE-ECO2-E-E620T/512	CE-ECO2-R-E620T/512
Description	computer-On-modules - com coreexpress-eco2 intel e640t 1.0ghz	computer-On-modules - com coreexpress-eco2 intel e680t 1.6ghz	computer-On-modules - com coreexpress-eco2 intel e640t 1.0ghz	computer-On-modules - com coreexpress-eco2 intel e680t 1.6ghz	computer-On-modules - com coreexpress-eco2 intel e620t 600mhz	computer-On-modules - com coreexpress-eco2 intel e620t 600mhz
Manufacture	ADLINK Technology	ADLINK Technology	ADLINK Technology	ADLINK Technology	ADLINK Technology	ADLINK Technology
Product Category	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM	Computer-On-Modules - COM
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Form Fac	CoreExpress	CoreExpress	CoreExpress	CoreExpress	CoreExpress	CoreExpress
Processor Brand	Intel	Intel	Intel	Intel	Intel	Intel
Processor Type	Intel Atom E640T	Intel Atom E680T	Intel Atom E640T	Intel Atom E680T	Intel Atom E620T	Intel Atom E620T
Chipsets	EG20T	EG20T	EG20T	EG20T	EG20T	EG20T
Frequency	1 GHz	1.6 GHz	1 GHz	1.6 GHz	600 MHz	600 MHz
Memory Size	1 GB	2 GB	1 GB	2 GB	512 MB	512 MB
Memory Type	DDR2	DDR2	DDR2	DDR2	DDR2	DDR2
Interface Type	CAN, Ethernet, LAN, PCI, SATA, USB	CAN, Ethernet, LAN, PCI, SATA, USB	CAN, Ethernet, LAN, PCI, SATA, USB	CAN, Ethernet, LAN, PCI, SATA, USB	CAN, Ethernet, LAN, PCI, SATA, USB	CAN, Ethernet, LAN, PCI, SATA, USB
Operating Supply Voltage	5 V	5 V	5 V	5 V	5 V	5 V
Maximum Operating Temperature	+ 60 C	+ 60 C	+ 85 C	+ 85 C	+ 60 C	+ 85 C
Dimensions	65 mm x 58 mm	65 mm x 58 mm	65 mm x 58 mm	65 mm x 58 mm	65 mm x 58 mm	65 mm x 58 mm
Backup Battery	N	N	N	N	N	N
Description/Functi	CoreExpress module with Intel Atom E640T processor, 1 GHz, 1 GB DDR2 RAM	CoreExpress module with Intel Atom E680T processor, 1.6 GHz, 2 GB DDR2 RAM	CoreExpress module with Intel Atom E640T processor, 1 GHz, 1 GB DDR2 RAM	CoreExpress module with Intel Atom E680T processor, 1.6 GHz, 2 GB DDR2 RAM	CoreExpress module with Intel Atom E620T processor, 600 MHz, 512 MB DDR2 RAM	CoreExpress module with Intel Atom E620T processor, 600 MHz, 512 MB DDR2 RAM
Minimum Operating Temperature	- 20 C	- 20 C	- 40 C	- 40 C	- 20 C	- 40 C
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Power Consumpti	5 W	5 W	5 W	5 W	5 W	5 W
Processor Series	Intel Atom E640	Intel Atom E680	Intel Atom E640	Intel Atom E680	Intel Atom E620	Intel Atom E620
