2503S-15TW-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2503S-15TW-L

Preview

2503S-15TW-L: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size260KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

2503S-15TW-L Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

2503S-15TW-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305231050
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.224 inch
subject depth	0.276 inch
body length	1.575 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	2503
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	15

Preview

Download Datasheet

View All

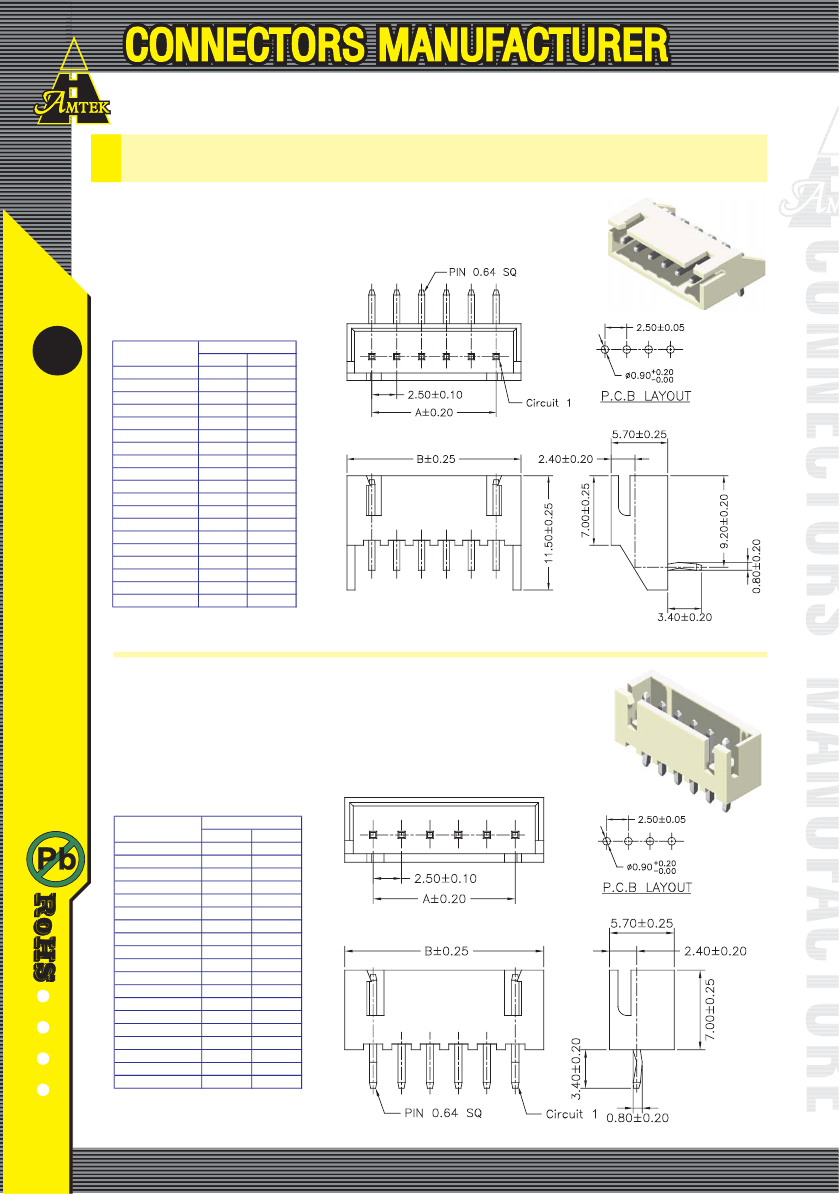

2.5mm Wafer Right Angle / Straight Type

Specifications

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1000V AC/minute

Terminal:Brass / Tin Plated

Material:Nylon 66,UL94V-0

H

ousing wafer Terminal

3-69

Part No.

2503R-02TW-L

2503R-03TW-L

2503R-04TW-L

2503R-05TW-L

2503R-06TW-L

2503R-07TW-L

2503R-08TW-L

2503R-09TW-L

2503R-10TW-L

2503R-11TW-L

2503R-12TW-L

2503R-13TW-L

2503R-14TW-L

2503R-15TW-L

2503R-16TW-L

2503R-17TW-L

2503R-18TW-L

2503R-19TW-L

2503R-20TW-L

Dimensions

A

B

2.50

7.50

5.00

10.00

7.50

12.50

10.00

15.00

12.50

17.50

15.00

20.00

17.50

22.50

20.00

25.00

22.50

27.50

25.00

30.00

27.50

32.50

30.00

35.00

32.50

37.50

35.00

40.00

37.50

42.50

40.00

45.00

42.50

47.50

45.00

50.00

47.50

52.50

Part No.:2503R-XXTW-L

Specifications

Current Rating: 3A AC,DC

Voltage Rating: 250V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1000V AC/minute

Terminal:Brass / Tin Plated

Material:Nylon 66,UL94V-0

Part No.

2503S-02TW-L

2503S-03TW-L

2503S-04TW-L

2503S-05TW-L

2503S-06TW-L

2503S-07TW-L

2503S-08TW-L

2503S-09TW-L

2503S-10TW-L

2503S-11TW-L

2503S-12TW-L

2503S-13TW-L

2503S-14TW-L

2503S-15TW-L

2503S-16TW-L

2503S-17TW-L

2503S-18TW-L

2503S-19TW-L

2503S-20TW-L

Dimensions

A

B

2.50

7.50

5.00

10.00

7.50

12.50

10.00

15.00

12.50

17.50

15.00

20.00

17.50

22.50

20.00

25.00

22.50

27.50

25.00

30.00

27.50

32.50

30.00

35.00

32.50

37.50

35.00

40.00

37.50

42.50

40.00

45.00

42.50

47.50

45.00

50.00

47.50

52.50

Part No.:2503S-XXTW-L

www.amtek-co.com.tw
