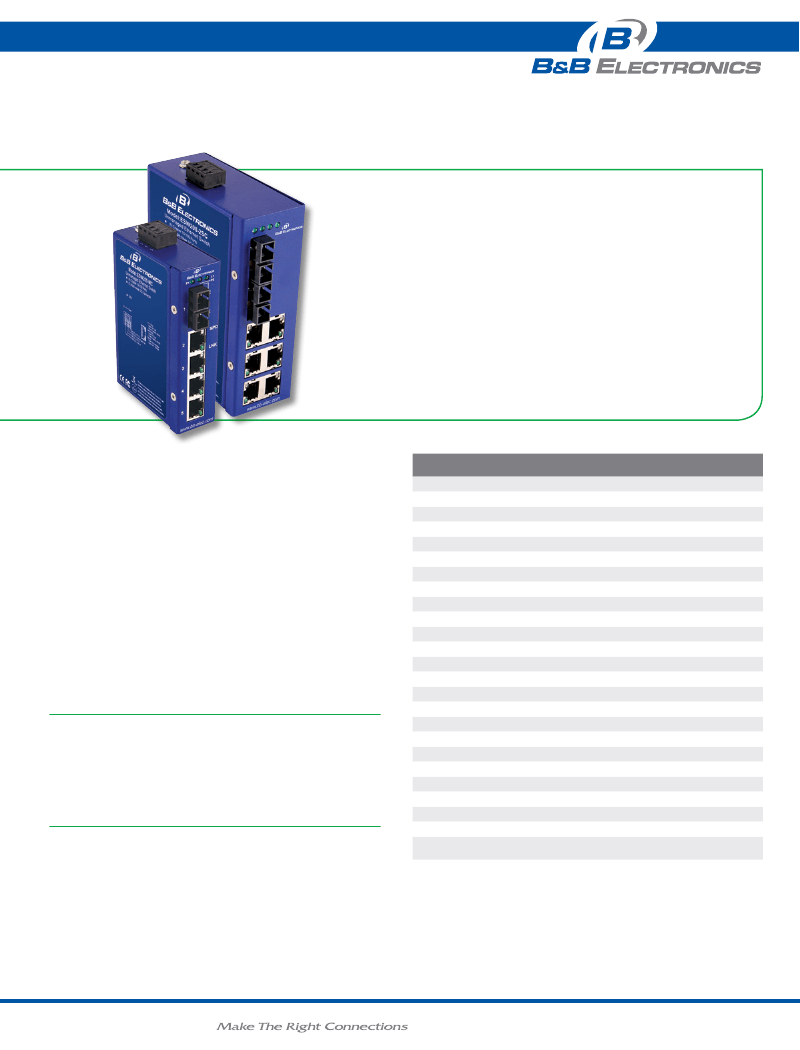

5 & 8 Port, compact Industrial
ethernet switches
ESW205 & ESW208 Series
Product FeAtures
•
•
•
•
•
•
•
•
•
•
UL/cUL Class I Division 2 Groups A,B,C, and D
EN61000-6-2 - Generic standard for (heavy) industrial environments
NEMA TS2 options
Shock, vibration, tested
Operating temperature
-10° to 60°C (Standard)
-40° to 75°C (-T models)
10/100M, full/half duplex, MDI/MDI-X (Auto-negotiate)
Supports IEEE 802.3, 802.3u, and 802.3x standards
Industrial IP30 rated DIN rail case with 6 way panel mount options
Dual power inputs, 12 to 36 VDC and 10 to 24 VAC
2K MAC addresses
Designed to fit many applications, the ESW205 and ESW208 series are
more than just an Ethernet switch with low pricing. They are plug-and-
play industrial Ethernet Switches with an compact IP30 DIN rail case, 6
way mountable panel brackets, LEDs for Power, (Link / Speed / Activity for
each port), 12 to 36 VDC and 10 to 24 VAC power inputs with removable
terminal blocks. These switches are perfect for any applications that
require special protection from hash environments.
Choose a switch with five or eight copper ports, or a combination of
copper and fiber ports. Multi-mode fiber models extend range up to 2 km.
Single-mode fiber models extend range up to 20 km. All models require an
external power supply (sold separately).
The switch ships with 4 panel mount clips giving the user 6 different ways
to panel mount the unit.
AccessorIes
DFMM-SCSC-1M
- Multi-Mode Duplex Fiber Cable, SC to SC, 1 Meter
MDR-20-24
- DIN rail mount power supply 24VDC, 1.0 A output power
MDR-40-24
- DIN rail mount power supply 24VDC, 1.7 A output power
EIRSP1
- Industrial DIN rail mount Ethernet Surge Suppressor
orderIng InFormAtIon
Model nuMBer
10/100 coPPer Multi-Mode
FiBer
ESW205
5
ESW205-MT
4
1 (ST)
ESW205-MC
4
1 (SC)
ESW205-ST
4
ESW205-SC
4
ESW205-T*
5
ESW205-MT-T*
4
1 (ST)
ESW205-MC-T*
4
1 (SC)
ESW205-ST-T
4
ESW205-SC-T*
4
ESW208
8
ESW208-2MT
6
2 (ST)
ESW208-2MC
6
2 (SC)
ESW208-2ST
6
ESW208-2SC
6
ESW208-T*
8
ESW208-2MT-T*
6
2 (ST)
ESW208-2MC-T
6
2 (SC)
ESW208-2ST-T*
6
ESW208-2SC-T*
6
ESW208-4MT-T*
4
4 (ST)
ESW208-4MC-T*
4
4 (SC)
ESW208-4ST-T*
4
ESW208-4SC-T*
4
-T Models available in wide temperature
* NEMA TS2 models
single-Mode
FiBer
1 (ST)
1 (SC)
1 (ST)
1 (SC)
2 (ST)
2 (SC)
2 (ST)
2 (SC)
4 (ST)
4 (SC)
www
.
bb
-
elec
.
com
|
ESW20x Series_3713ds
5 & 8 Port, compact Industrial
ethernet switches
ESW205 & ESW208 Series

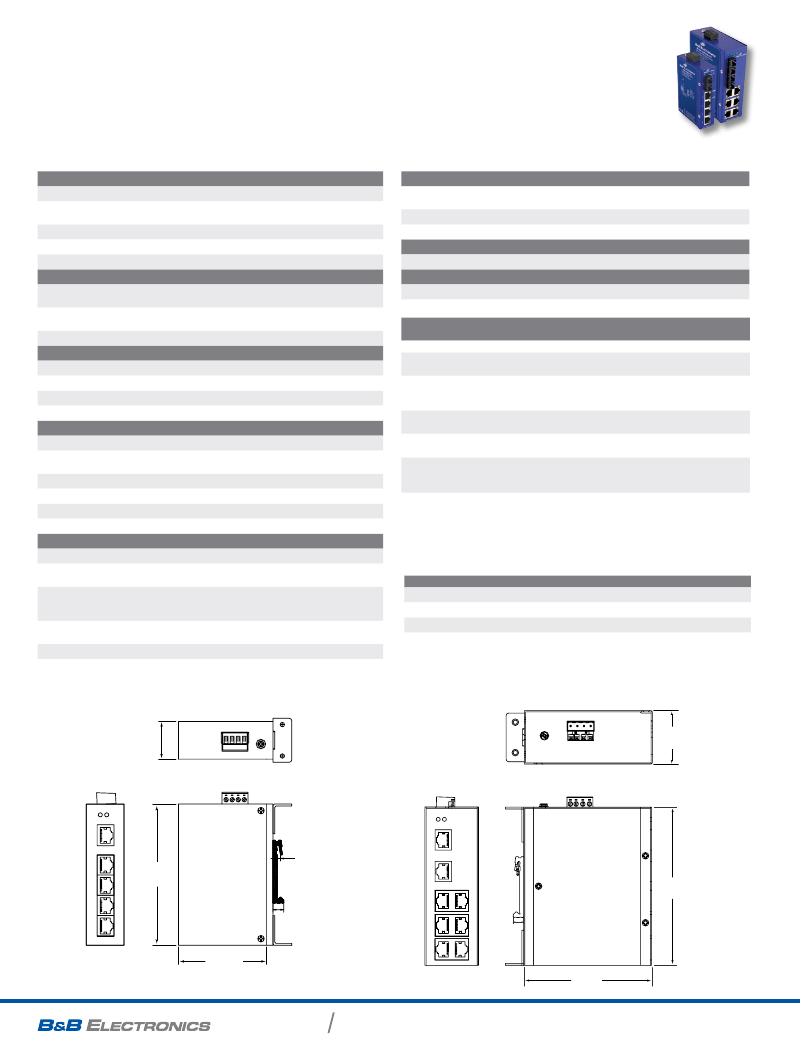

sPecIFIcAtIons
technology
Standards:
IEEE802.3, 802.3u, 802.3x
Store and forward with IEEE802.3x full duplex,
Processing Type:
non-blocking flow control
Flow Control:
IEEE802.3x flow control, back pressure flow control
Packet buffer memory: 64K bytes
Address Table Size
2K MAC Addresses
interFace
10/100BaseT(X) auto negation, Full/Half duplex, auto
RJ45 Ports:
MDI/MD-X
100BaseFX, (multi-mode or single–mode with LC
Fiber Ports:
connectors)
LED Indicators:
Power, (Link / Speed / Activity for each port)
Power
Input Voltage
12 to 36 VDC and 10 to 24 VAC
Power Consumption
4.00 W Max
Input Connection
Removable Terminal Block
Protection
Reverse Polarity Protection
enVironMental
Operating Temperature -10 to 60°C (14 to 140°F)
Wide Temperature
-40 to 75°C (-40 to 167°F)
(-T Model)
Storage Temperature
-40 to 80°C (-40 to 176°F)
Humidity
10 to 95% Non-condensing
MTBF
200,000 hours
MTBF Calculation
Parts count reliability prediction
Mechanical
Enclosure
IP30 DIN mount metal case
H 112mm x W 30mm x D 75.2 mm
Dimensions (5 ports)
(4.41 in x 1.18 in x 2.96 in)
Dimensions (8 ports)
8 copper,
H 130 mm x W 44 mm x D 105 mm
6 copper/2 fiber ports
(5.1 in x 1.73 in x 4.13 in)
Dimensions (8 ports)
H 130mm x W 44mm x D 105mm
4 copper/4 fiber ports
(5.1 in X 1.7 in x 4.13 in)
Installation
35 mm DIN or 6 way panel mount
mechAnIcAl dIAgrAm -
esw205 model
Fiber Optics
Fiber type
Distance Wavelength transmit power
Multi-mode 2 km
1310 nm
Single-mode 20 km
1310 nm
regulatOry apprOvals
CE, FCC, RoHS
HazarDOus lOcatiOns
UL/cUL Class I Div 2 Groups A,B,C, and D
receive
sensitivity
Neg. 23.5 to Neg. 14 dBm ≤ Neg. 35 dBm
Neg. 15 to Neg. 8 dBm
≤ Neg. 35 dBm
sPeciFications–leVel 3, en 61000-6-2: 2006
generic standards For (heaVy) industrial enVironMents
test
description
test level
EN 55022: 2006 +
Class B Emissions
A1:2007
Enclosure
6kV
Contact
EN 61000-4-2: 2009 Electro-Static
Discharge (ESD)
Enclosure Air 8kV
EN61000-4-
Radiated Field
Enclosure
10V/m
3:2006+A1:2008
Immunity (RFI)
Ports
Signal Ports 1kV@2.5Khz
EN61000-4-4:2004 Burst (Fast Transient)
DC Ports
2kV
Signal Ports 1kV
EN61000-4-5:2006 Surge
DC Power
2kV
Ports
Signal Ports 10 V RMS
EN61000-4-6: 2009 Induced (Conductive) DC Power
10 V RMS
RFI
Ports
level
3
3
3
3
3
3
3
3
3
envIronmentAl sPecIFIcAtIons
test
descriPtion
test leVel
Test Fc
2G
IEC60068-2-6
Vibration
Test Ea
30G
IEC60068-2-27 Shock
IEC 60068-2-32 Free Fall
leVel
-----
-----
-----
mechAnIcAl dIAgrAm -
esw208 model
3.0 cm
1.18 in
4.4 cm
1.73 in
11.2 cm
4.41 in
13.0 cm
5.12 in
7.52 cm
2.96 in
Optional
10.5 cm
4.13 in
orders@bb-elec.com
support@bb-elec.com
