BG080-32-A-0710-0150-0150-W-E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BG080-32-A-0710-0150-0150-W-E

Preview

BG080-32-A-0710-0150-0150-W-E: DescriptionBoard Connector, 32 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG080-32-A-0710-0150-0150-W-E Overview

Board Connector, 32 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

BG080-32-A-0710-0150-0150-W-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1541771046
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	32
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

H

G

F

0.15

E

D

SPECIFICATIONS

规格

Ordering Grid

CURRENT RATING

电流额定值

: 3 AMP

INSULATION RESISTANCE

绝缘电阻值

: 1000MΩ MIN.

CONTACT RESISTANCE

接触电阻值

: 20mΩ MAX.

DIELECTRIC WITHSTANDING

耐电压

: 600V AC

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

No. of Contacts

INSULATOR MATERIAL

绝缘½物料

:

02 to 40

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T BLACK, UL 94-V0

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

, NYLON 6T WHITE, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP BLACK, UL 94-V0

Contact Plating

SOLDERING PROCESS

可焊性

:

A = Gold Flash All Over

NYLON 6T (STANDARD

标准物料

) -

B = Selective Gold Flash Contact Area/

IR REFLOW

回流焊

: 260°C for 10 sec.

Tin On Tail

WAVE

波峰焊

: 230°C for 5-10 sec.

C = Tin All Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G = 10µ" Gold Contact Area/Tin On Tail

LCP (OPTION

可选物料

) -

I = 30µ" Gold Contact Area/Tin On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

Standard = Gold Flash All Over

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG090

BG095

BG096

BG100

BG110

BG115

BG125

BG130

BG135

BG145

BG205

BG080

XX

X

XXXX

X

Request Samples

and Quotation

C

Insulator Material

N = Nylon 6T Black (Standard)

L = LCP Black

W = Nylon 6T White

Dimension D (1/100mm)

(Pin Solder Area)

Standard - 1.50mm = 0150

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

B

Dimension C (1/100mm)

(Post Length)

Standard - 7.10mm = 0710

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension E (1/100mm)

(Insulator to Pin Solder Area)

Standard - 1.50mm = 0150

Or specify Dimension E

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Part Number

Product Description

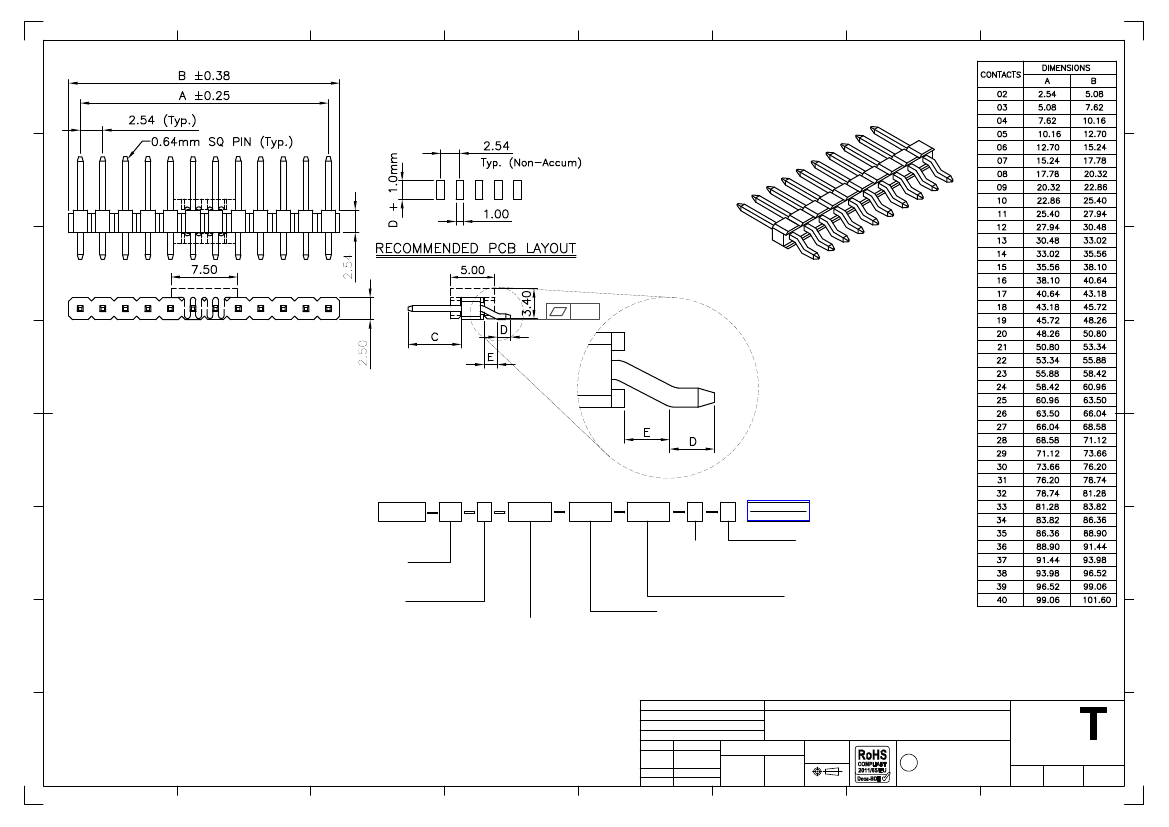

BG080

Drawing Date

A

30th October 2006

By

Detail

Revision

Date

D1

16/12/14

AJO

Length

2.54mm Pitch Pin Header, Single Row,

Surface Mount, Horizontal, without Locating Peg

Tolerances

(Except as Noted)

Angle

Units:

Metric (mm)

X.X ± 0.30

X.XX ± 0.20

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1

1

2

3

4

5

6

8
