81026-520403 datasheet, PDF - EEWORLD Datasheet

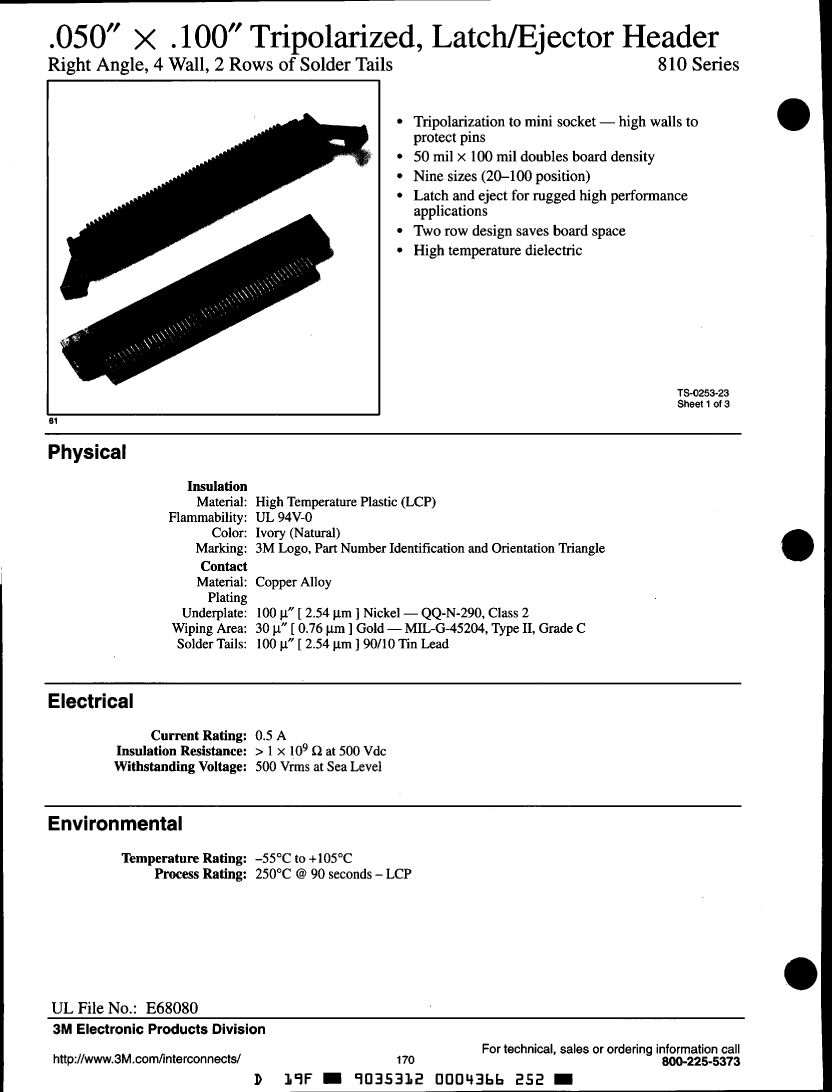

81026-520403: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BEIGE; CategoryThe connector The connector; File Size231KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

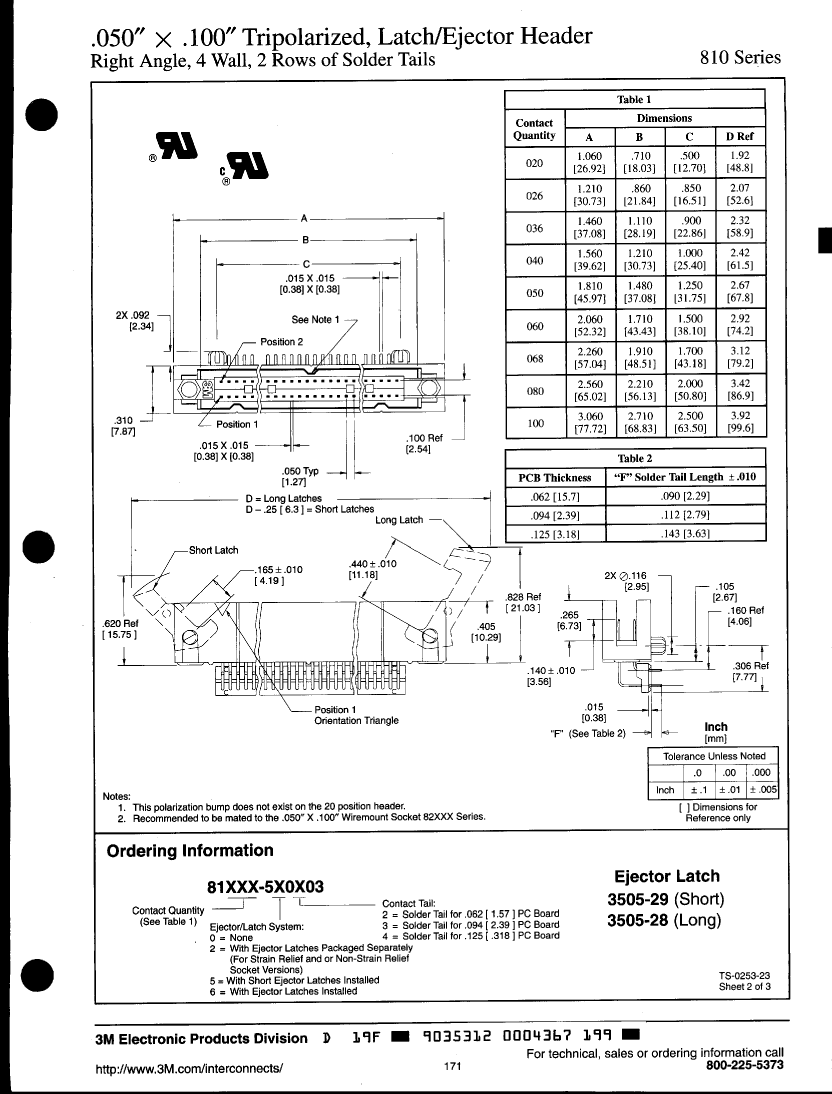

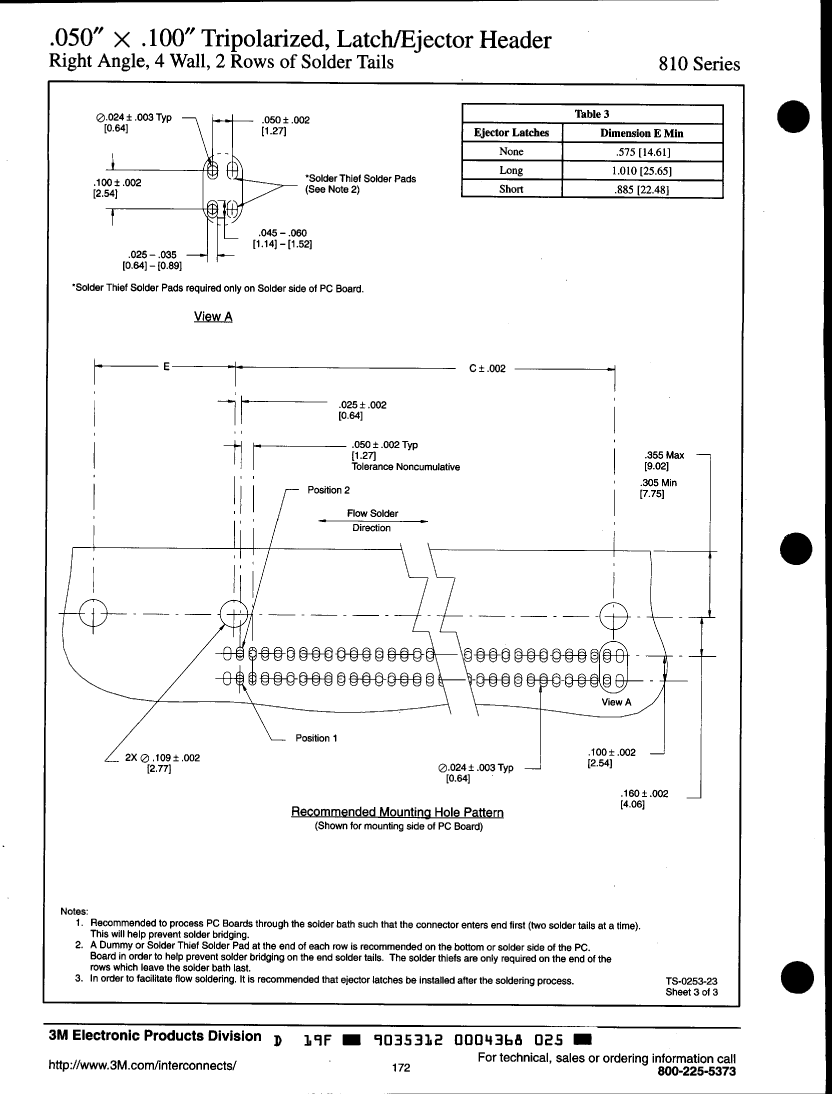

81026-520403 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BEIGE

Parameter Name	Attribute value
Objectid	300530980
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	9.15
Other features	POLARIZED
Board mount options	PEG
body width	0.31 inch
subject depth	0.629 inch
body length	1.21 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	700VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e0
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	SHRD TRIPOLARIZED
Rated current (signal)	0.5 A
Guideline	UL
Terminal length	0.143 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0
