Kit Description
Rev. 1.00 / January 2014
ZSPM8835-KIT
Evaluation Kit for the ZSPM1035D True Digital PWM
Controller and the Murata OKLP-X/35-W12-C Power Block
Smart Power Management ICs
Power and Precision
ZSPM8835-KIT
Evaluation Kit for the ZSPM1035D Controller
Restrictions:
Zentrum Mikroelektronik Dresden AG’s ZSPM8835-KIT Evaluation Kit hardware and the Pink Power Designer™ software
are designed only for evaluation of the ZSPM1035D PWM Controller IC and the Murata OKLP-X/35-W12-C Power Block;
laboratory setup; and module development. The kit hardware and software must not be used for module production and
production test setups.
Zentrum Mikroelektronik Dresden AG (ZMD AG, ZMDI) shall not be liable for any damages arising out of defects resulting
from (i) delivered hardware and software, (ii) non-observance of instructions contained in this manual, or (iii) misuse,
abuse, use under abnormal conditions, or alteration by anyone other than ZMD AG. To the extent permitted by law, ZMD
AG hereby expressly disclaims and User expressly waives any and all warranties, whether express, implied, or statutory,
including, without limitation, implied warranties of merchantability and of fitness for a particular purpose, statutory warranty
of non-infringement, and any other warranty that may arise by reason of usage of trade, custom, or course of dealing.
Important Safety Warning:
These procedures can result in high currents, which can cause
severe injury or death. Only trained professional staff should connect external equipment.
Ensure that all staff have read and understood this document and the high voltage safety
disclaimer that is included with the kit.
Contents
1
Introduction ....................................................................................................................................................... 4
1.1. Kit Contents ............................................................................................................................................... 4
2 ZSPM8835 Evaluation Board ........................................................................................................................... 5
2.1. Evaluation Board Overview ....................................................................................................................... 5
2.2. General Setup for the Evaluation System ................................................................................................. 7
2.2.1. User Instrumentation ........................................................................................................................... 8
2.2.2. User Computer .................................................................................................................................... 8
3 Software Installation and Setup........................................................................................................................ 8
4 Pink Power Designer™ Software Overview ..................................................................................................... 9
5 Evaluation Kit Setup for a 1.5V Output Voltage ............................................................................................. 10
6 Evaluation Board Hardware Setup ................................................................................................................. 12
6.1. Introduction .............................................................................................................................................. 12
6.2. Output Voltage Selection ......................................................................................................................... 12
6.3. Output Capacitor Range Selection .......................................................................................................... 13
6.3.1. Output Capacitor Range Test Procedure ......................................................................................... 14
6.4. On-Board Transient Loads ...................................................................................................................... 14
7 Support ........................................................................................................................................................... 16
8 Related Documents ........................................................................................................................................ 16
9 Definitions of Acronyms .................................................................................................................................. 16
10 Document Revision History ............................................................................................................................ 17
Appendix A: ZSPM8835 Evaluation Board ............................................................................................................ 18
Appendix B: ZSPM8835 Evaluation Board Schematic .......................................................................................... 19
Kit Description
January 23, 2014
© 2014 Zentrum Mikroelektronik Dresden AG — Rev. 1.00
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
2 of 20
ZSPM8835-KIT
Evaluation Kit for the ZSPM1035D Controller
List of Figures
Figure 1.1
Figure 2.1
Figure 2.2
Figure 2.3
Figure 4.1
Figure 5.1
Figure 5.2
Figure 6.1
Figure 6.2
Figure 6.3
ZSPM8835-KIT Evaluation Kit Contents ............................................................................................ 4
ZSPM8835-KIT Evaluation Board (Top Side) ..................................................................................... 6
ZSPM8835-KIT Evaluation Board (Bottom Side) ............................................................................... 7
Pink Power Evaluation Kit Setup ........................................................................................................ 7
The Pink Power Designer™ GUI ........................................................................................................ 9
ZSPM8835-KIT – PMBus™CI Connection (Top Side of the PCB) .................................................. 11
Control Pin Button ............................................................................................................................. 11
J106 - Output Capacitor Range Hardware Selection ....................................................................... 13
J100 and J101 – Transient Load Selection ...................................................................................... 15
Timing for the On-Board Transient Loads ........................................................................................ 15
For more information, contact ZMDI via
SPM@zmdi.com.
© 2014 Zentrum Mikroelektronik Dresden AG — Rev. 1.00
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
Kit Description
January 23, 2014
3 of 20
ZSPM8835-KIT
Evaluation Kit for the ZSPM1035D Controller
1
Introduction
This document describes the use of ZMDI’s ZSPM8835-KIT for evaluating DC/DC point-of-load (POL) applica-
tions and provides additional kit information, including the circuit diagram and board layout. The kit incorporates
ZMDI’s ZSPM1035D digital PWM controller IC and the Murata OKLP-X/35-W12-C Power Block to form a “smart”
buck converter (a.k.a. step-down DC-to-DC converter).
The ZSPM8835-KIT Evaluation Kit hardware functions with the ZSPM1035D Pink Power Designer™ graphical
user interface (GUI), which is used for monitoring the internal measurements and fault conditions of the
ZSPM1035D. The GUI software must be downloaded to the user’s PC from the ZMDI website to ensure receiving
the latest release as described in section 3. See section 2.2.2 for the requirements for the user’s PC.
The PMBus™ Communication Interface (CI) provides the interface between the ZSPM8835-KIT Evaluation Kit
and the user’s PC.
1.1.
Kit Contents
ZSPM8835 Evaluation Board
PMBus™ Communication Interface (CI)
USB Cable
Startup Information
document
Safety Disclaimer
document

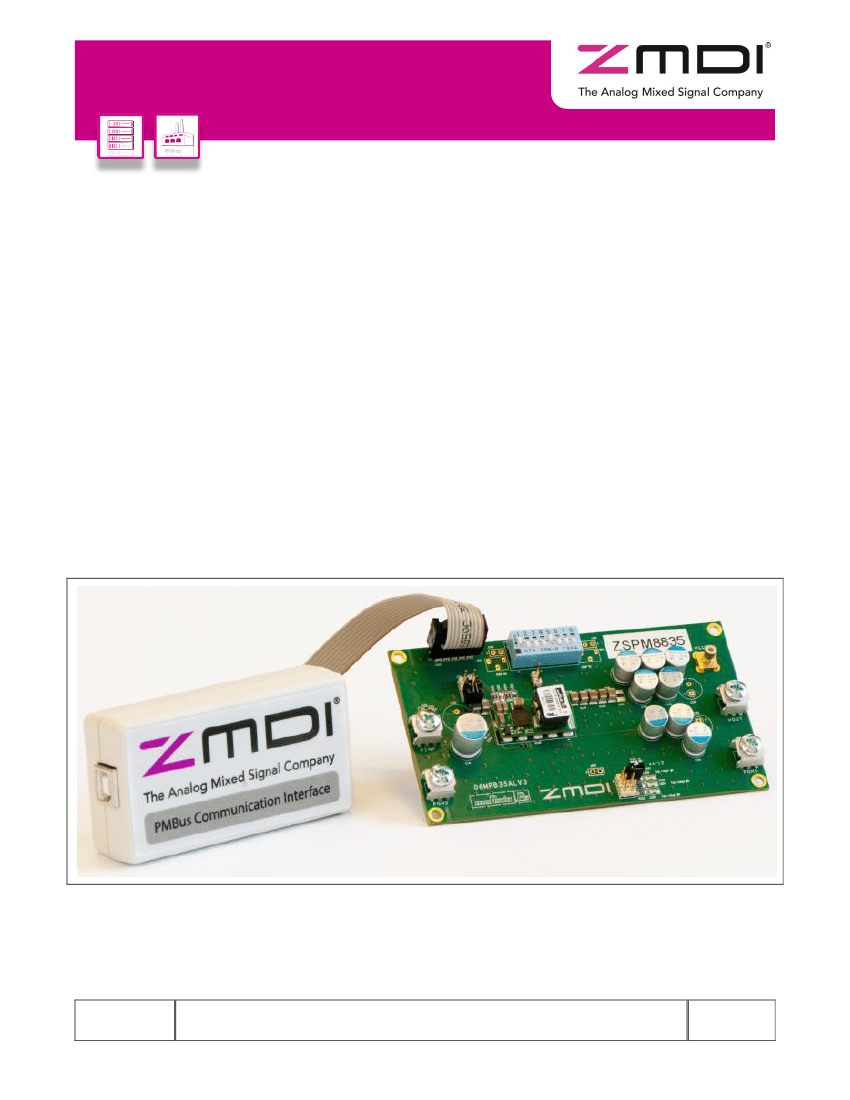

ZSPM8835-KIT Evaluation Kit Contents
Figure 1.1
PMBus™ Communication Interface (CI)
ZSPM8835 Evaluation Board
Kit Description
January 23, 2014
© 2014 Zentrum Mikroelektronik Dresden AG — Rev. 1.00
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
4 of 20
ZSPM8835-KIT
Evaluation Kit for the ZSPM1035D Controller
2
2.1.
ZSPM8835 Evaluation Board
Evaluation Board Overview
The ZSPM8835 Evaluation Kit provides all the necessary components for a first evaluation of ZMDI’s
ZSPM1035D digital PWM controller. The ZSPM1035D can be configured using the two pin-strap resistors to
select the output voltage and the control loop performance. See the
ZSPM1035D Data Sheet
for more details.
In addition to the ZSPM1035D controller, the Evaluation Board features the Murata OKLP-X/35-W12-C Power
Block. The number of output capacitors can be selected with a jumper on the Evaluation Board. The electrical
specifications can be found in Table 2.1, and the schematic is provided in Appendix B.
Table 2.1
Key Design Parameters for the Evaluation Kit Power Stage
Parameter
Input voltage
Output voltage
Maximum output current
Switching frequency
7 – 13.2V
1.25 to 3.4V
35A*
500kHz
Value
*
Important:
The Murata OKLP-X/35-W12-C Power Block has an output power limit of 82.5W. The maximum output current is therefore
a function of the output voltage.
The board also provides the connections needed for digital communication between the ZSPM1035D and the GUI
software via the PMBus™ Communications Interface (CI).
An on-board transient load is also provided for generating load transients with high current slew rates.
Figure 2.1 shows the ZSPM8835 Evaluation Board and the board connections that will be completed in the
subsequent setup steps. Do not make the connections at this point. Note that some settings for the DIP switches
are not allowed; therefore, before using the kit, ensure that switches 1 and 5 are in the “ON” position and the rest
of the switches are in the “OFF” position as shown in Figure 2.1.
Kit Description
January 23, 2014
© 2014 Zentrum Mikroelektronik Dresden AG — Rev. 1.00
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior
written consent of the copyright owner. The information furnished in this publication is subject to changes without notice.
5 of 20
