UM232H-B-NC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Development board/suite/development tools> UM232H-B-NC

UM232H-B-NC: Descriptioninterface development tools usb to serial/paral. break out board; CategoryDevelopment board/suite/development tools; File Size592KB，14 Pages; ManufacturerFTDI [Future Technology Devices International Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

UM232H-B-NC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UM232H-B-NC	-	-	View	Buy Now

UM232H-B-NC Overview

interface development tools usb to serial/paral. break out board

UM232H-B-NC Parametric

Parameter Name	Attribute value
Manufacture	FTDI
Product Category	Interface Development Tools
RoHS	Yes
Produc	Development Modules
Type	USB to Serial/Parallel
Tool Is For Evaluation Of	FT232H
Interface Type	245 FIFO, FT1248, GPIO, I2C, SPI, UART, USB
Operating Supply Voltage	3.3 V
Dimensions	38.5 mm x 19.2 mm x 2 mm
For Use With	FT232H
Operating Supply Curre	90 mA
Packaging	Bulk
Factory Pack Quantity	25

Preview

Download Datasheet

View All

UM232H-B Datasheet

Version 1.0

Document Reference No.: FT_000721

Clearance No.: FTDI#

320

Future Technology

Devices

International Ltd

Datasheet

UM232H-B USB to

Serial/Parallel Break-Out

Module

UM232H-B is a multiple-interface Hi-Speed USB to

UART, 245 FIFO,

FT1248, I

C, SPI and GPIO

break-out module.

Introduction

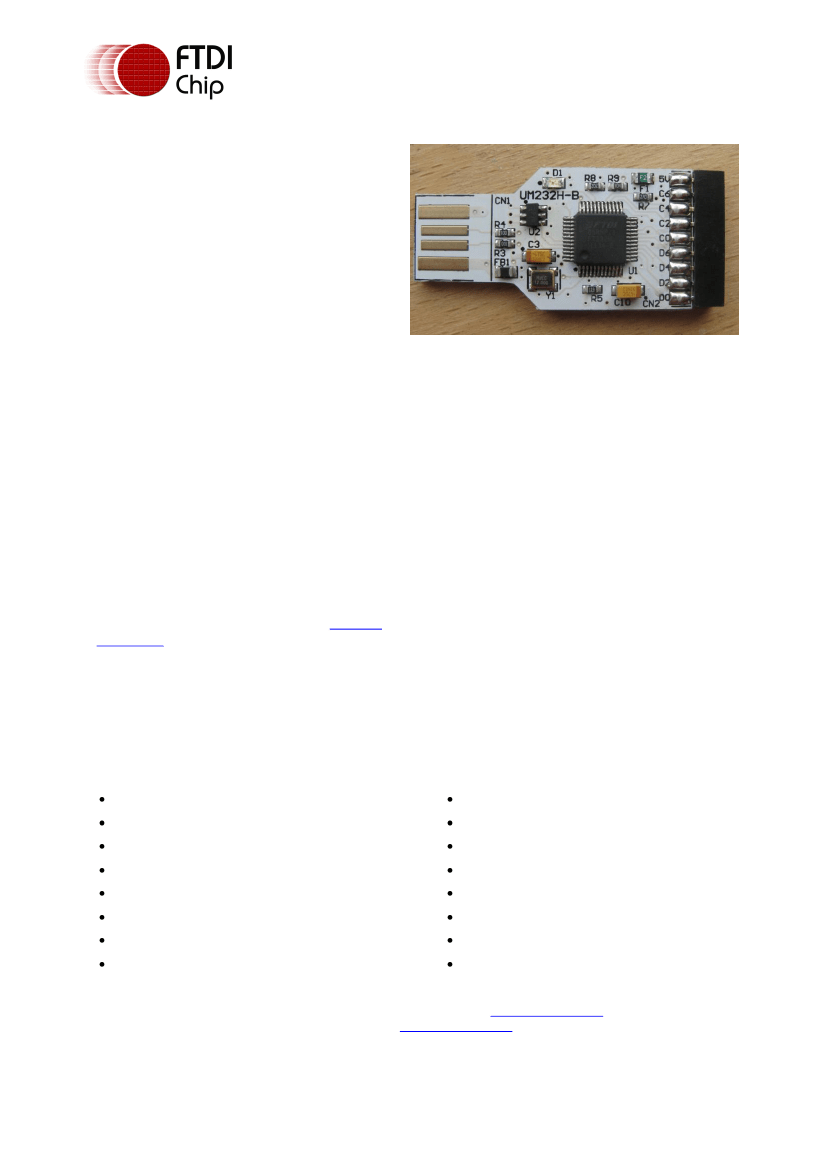

The UM232H-B is a development module

for FTDI’s FT232H Hi-Speed to

Serial/Parallel interface converter. This

single interface channel IC can be

configured to transfer data over the

following interfaces UART, 245 FIFO,

FT1248, I

C, SPI and GPIO.

For detail on FT232H, refer to the

FT232H

datasheet.

1.1

Features

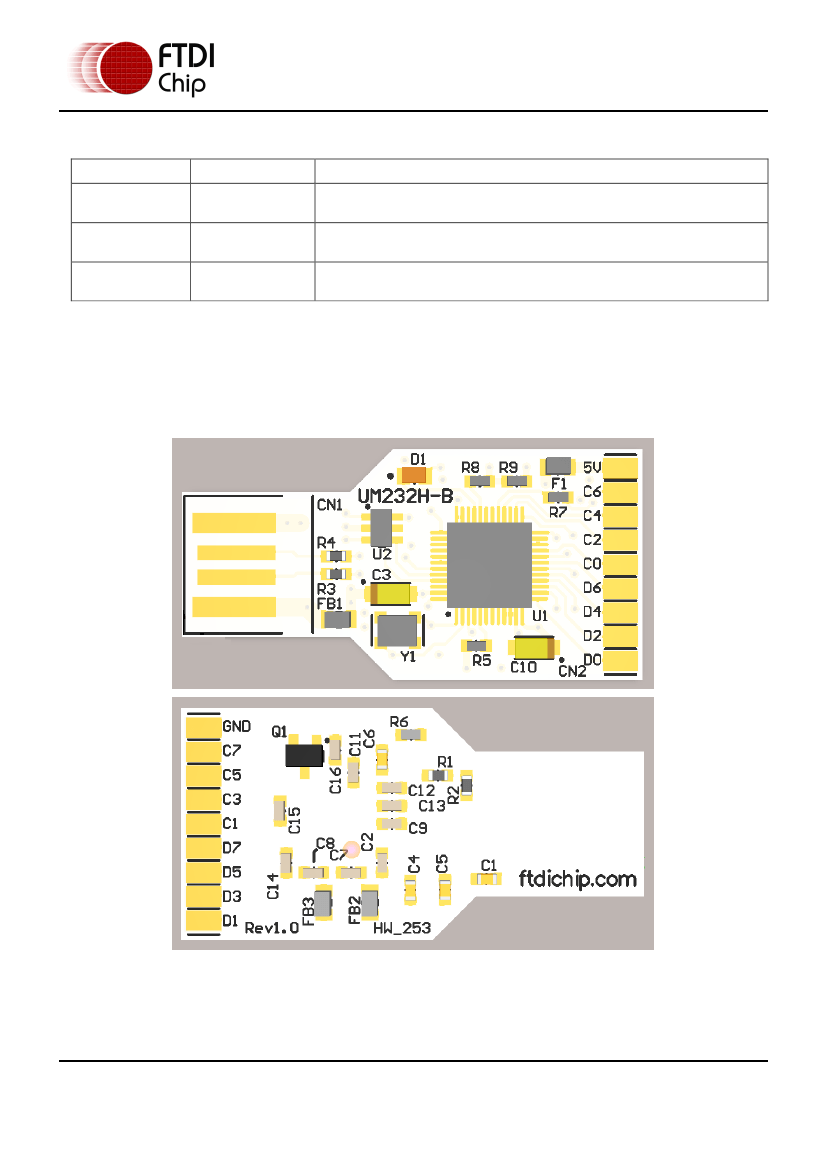

This hardware is a breakout board that

converts Hi-Speed USB2.0 to a

serial/parallel interface and connects the

signals to a 2.00mm pitch 18pin female

receptacle. No USB connector is used,

instead this modules plugs directly into the

USB host connector and the pads of the PCB

makes electrical contact with the electrical

contacts of the host USB connector.

All signals on these modules operate at

+3.3V voltage levels, however all I/Os are

5V tolerant.

Driver Support

Royalty-Free D2XX Direct Drivers (USB Drivers +

DLL S/W Interface):

Windows 7 32,64-bit

Windows Vista

Windows XP 32,64-bit

Windows XP Embedded

Windows CE.NET 4.2, 5.0 and 6.0

MAC OS OS-X

Linux 3.0 and greater

Android

Royalty-Free VIRTUAL COM PORT (VCP)

DRIVERS for:

Windows 7 32,64-bit

Windows Vista

Windows XP 32,64-bit

Windows XP Embedded

Windows CE.NET 4.2 , 5.0 and 6.0

MAC OS OS-X

Linux 3.0 and greater

Android

The drivers listed above are all available to download for free from

www.ftdichip.com.

Third Party Drivers

are also available for other operating systems - visit

www.ftdichip.com

for details.

Use of FTDI devices in life support and/or safety applications is entirely at the user’s risk, and the user agrees

to defend, indemnify and hold harmless FTDI from any and all damages, claims, suits or expense resulting

from such use.

UM232H-B-NC Related Products

	UM232H-B-NC	UM232H-B-WE
Description	interface development tools usb to serial/paral. break out board	interface development tools usb to serial/paral. break out board
Manufacture	FTDI	FTDI
Product Category	Interface Development Tools	Interface Development Tools
RoHS	Yes	Yes
Produc	Development Modules	Development Modules
Type	USB to Serial/Parallel	USB to Serial/Parallel
Tool Is For Evaluation Of	FT232H	FT232H
Interface Type	245 FIFO, FT1248, GPIO, I2C, SPI, UART, USB	245 FIFO, FT1248, GPIO, I2C, SPI, UART, USB
Operating Supply Voltage	3.3 V	3.3 V
Dimensions	38.5 mm x 19.2 mm x 2 mm	38.5 mm x 19.2 mm x 2 mm
For Use With	FT232H	FT232H
Operating Supply Curre	90 mA	90 mA
Packaging	Bulk	Bulk
Factory Pack Quantity	25	25
