Description
The Si5342-D-EVB is used for evaluating the Si5342
Any-Frequency, Any-Output, Jitter-Attenuating Clock
Multiplier revision D. The device revision is
distinguished by a white 1 inch x 0.187 inch label with
the text “SI5342-D-EB” installed in the lower left hand
corner of the board. (For ordering purposes only, the
terms “EB” and “EVB” refer to the board and the kit
respectively. For the purpose of this document, the
terms are synonymous in context.)
EVB Features
Powered from USB port or external power supply.
Onboard 48 MHz XTAL or Reference SMA Inputs
allow holdover mode of operation on the Si5342.
CBPro
GUI programmable V
DD
supply allows
device to operate from 3.3, 2.5, or 1.8 V.
CBPro
GUI programmable V
DDO
supplies allow
each of the 4 outputs to have its own power supply
voltage selectable from 3.3, 2.5, or 1.8 V.
CBPro
GUI allows control and measurement of
voltage, current, and power of V
DD
and all 4 V
DDO
supplies.
Status LEDs for power supplies and control/status
signals of Si5342.
SMA connectors for input clocks, output clocks, and
optional external timing reference clock.

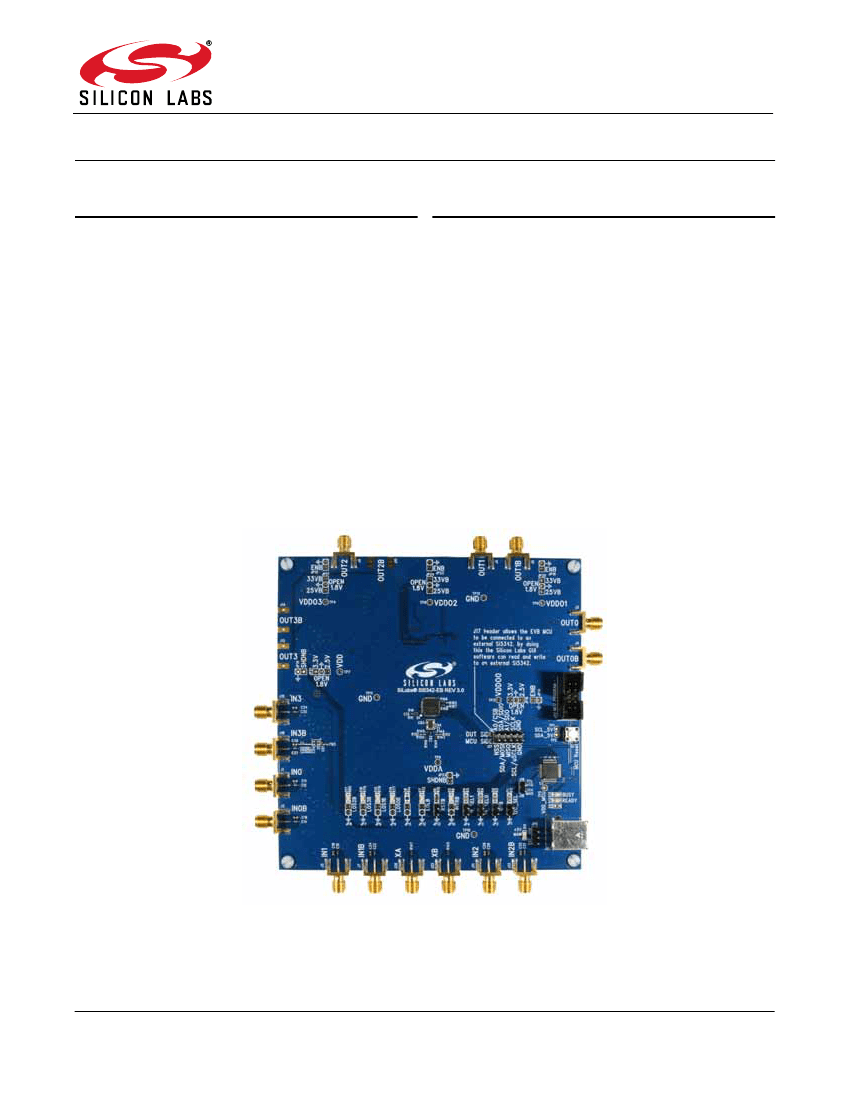

Figure 1. Si5342-D Evaluation Board
Rev. 0.9 7/16
Copyright © 2016 by Silicon Laboratories
Si5342-D-EVB
Si5342- D- EV B
1. Si5342-D-EVB Functional Block Diagram
Below is a functional block diagram of the Si5342-D-EB. This evaluation board can be connected to a PC via the
main USB connector for programming, control, and monitoring. See “3. Quick Start” or section “9. Installing
ClockBuilderPro (CBPro) Desktop Software” for more information.

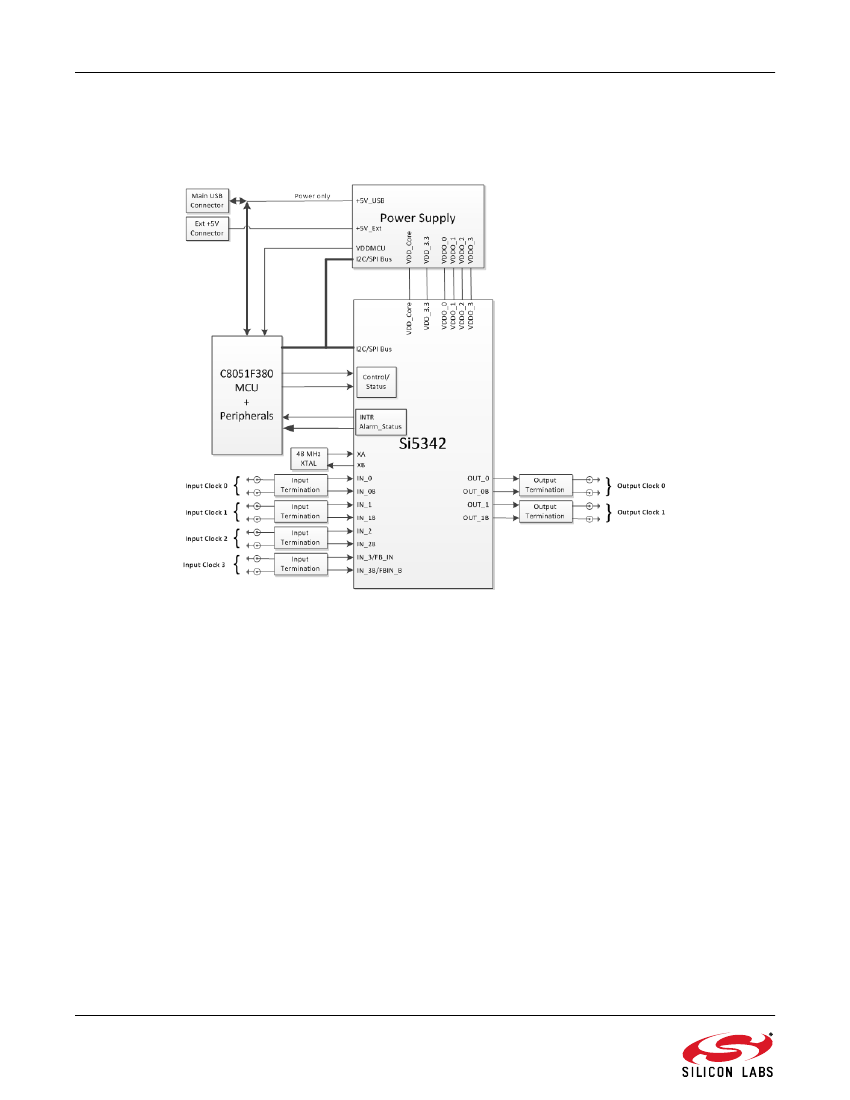

Figure 2. Si5342-D-EB Functional Block Diagram
2
Rev. 0.9
Si5 342-D -E V B
2. Si5342-D-EVB Support Documentation and ClockBuilderPro
Software
All Si5342-D-EB schematics, BOMs, User’s Guides, and software can be found online at the following link:
http://www.silabs.com/products/clocksoscillators/pages/si538x-4x-evb.aspx
3. Quick Start
1. Install ClockBuilderPro
desktop software from
http://www.silabs.com/CBPro.
2. Connect a USB cable from Si5342-D-EB to the PC where the software was installed.
3. Leave the jumpers as installed from the factory, and launch the ClockBuilderPro software.
4. You can use ClockBuilderPro
to create, download, and run a frequency plan on the Si5342-D-EB.
5. For the Si5342 data sheet, go to
http://www.silabs.com/timing.
Rev. 0.9
3
Si5342- D- EV B
4. Jumper Defaults
Table 1. Si5342-D-EB Jumper Defaults*
Location
JP1
JP2
JP3
JP4
JP5
Type
2 pin
2 pin
2 pin
2 pin
3 pin
I = Installed
0 = Open
I
I
O
O
1 to 2 (USB)
Location
Type
I = Installed
0 = Open
JP13
2 pin
O
J17
5x2 Hdr
All 5 installed
*Note:
Refer to the Si5342-D-EB schematics for the functionality associated with each jumper.
4
Rev. 0.9
Si5 342-D -E V B
5. Status LEDs
Table 2. Si5342-D-EB Status LEDs*
Location
D5
D7
D8
D14
D15
D16
D17
D11
D12
D13
Silkscreen
INTRB
LOLB
LOSXAXBB*
LOS0B
LOS1B
LOS3B
LOS2B
+5V MAIN
READY
BUSY
Color
Blue
Blue
Blue
Blue
Blue
Blue
Blue
Green
Green
Green
Status Function Indication
DUT Interrupt
DUT Loss of Lock
DUT Loss of Reference
IN0 Loss of Signal indicator
IN1 Loss of Signal indicator
IN3 Loss of Signal indicator
IN2 Loss of Signal indicator
Main USB +5V present
MCU Ready
MCU Busy
*
Errata:
"LOSXAXBB" silkscreen is missing from Si5342-EB REV 3.1.
D5, D7, D8, D14, D15, D16, and D17 are status LEDs indicating the device alarms currently asserted. D11 is
illuminated when USB +5 V supply voltage is present. D12 and D13 are status LEDs showing on-board MCU
activity.

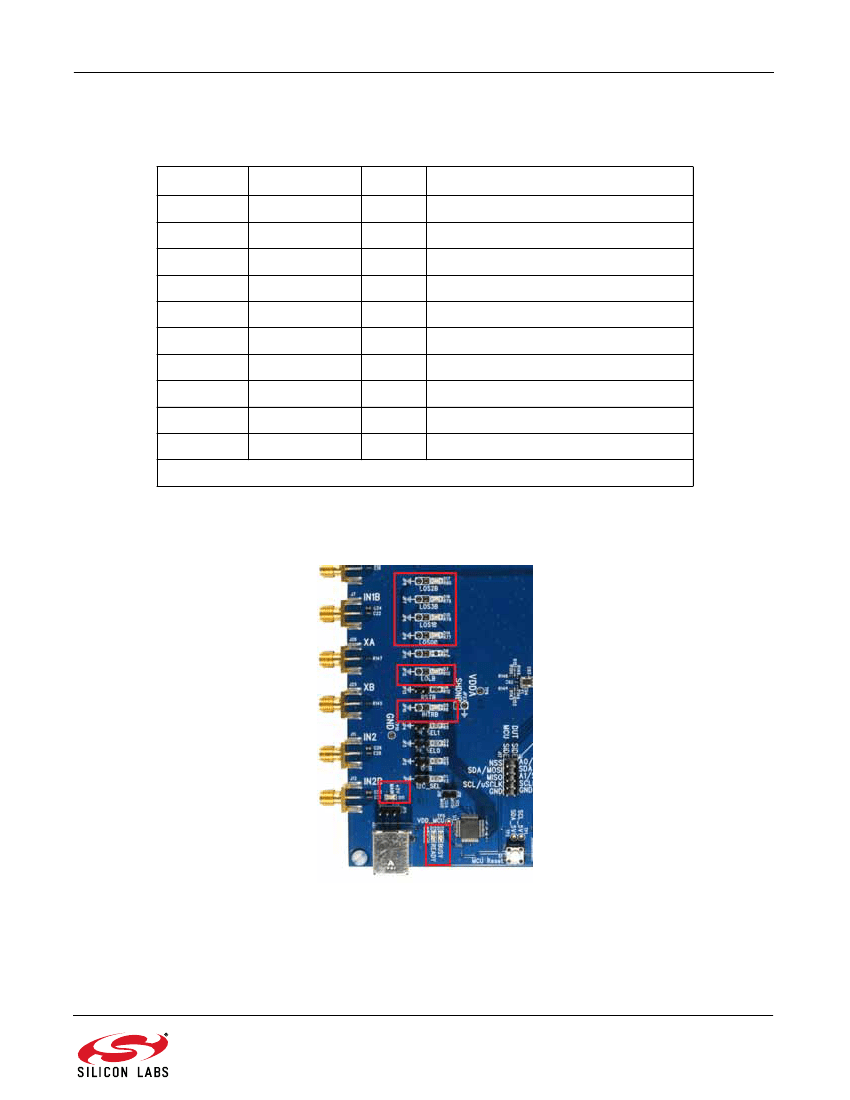

Figure 3. Status LEDs
Rev. 0.9
5
