14139-00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 14139-00

14139-00: DescriptionLED Driver, 128-Segment, CMOS, PBGA352, MO-151, BGA-352; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size399KB，21 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

14139-00 Overview

LED Driver, 128-Segment, CMOS, PBGA352, MO-151, BGA-352

14139-00 Parametric

Parameter Name	Attribute value
Maker	IXYS
Parts packaging code	BGA
package instruction	BGA,
Contacts	352
Reach Compliance Code	unknow
ECCN code	EAR99
data entry mode	SERIAL
Interface integrated circuit type	LED DISPLAY DRIVER
JESD-30 code	S-PBGA-B352
length	35 mm
Multiplex display function	YES
Number of functions	1
Number of segments	128
Number of terminals	352
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum seat height	2.59 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Supply voltage 1-max	30 V
Mains voltage 1-minute	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	35 mm
minfmax	0.1 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

MXED202

128-Channel OLED Row Driver

Preliminary

FEATURES:

•

For all Passive-Matrix Organic Light Emitting

Diode (OLED) Displays

Monochome and Color

Small Molecule and Polymer

Common-Cathode Row Switching

CMOS High Voltage Process: 5V-30V

Display Panel Supply Compatible

128 Output Channels, Cascadable;

Configurable 120-Output Mode

150mA Maximum Current Capability per

Channel (two channels maximum active

simultaneously)

20 Ohm Maximum Row Switch “On”

Resistance

Token-Based Control; Bidirectional data

transfer; Single- and Dual-Token Modes

3V to 5.5V logic supply

up to 100 kHz Clock Frequency

Gold-Bumped Die @ ~60 micron Output Pitch

TCP package option

Compatible with

Clare Micronix

100 Series

OLED Column Drivers

OVERVIEW:

Clare Micronix’s MXED202 is a row-multiplexed

display driver for OLED panel displays. The

MXED202 directly supports up to 128-row OLED

panel displays, or can be cascaded for controlling

additional rows. The MXED202’s low “on” switch

resistance ensures uniform luminance at rapid row

scan rates. This is the first production row driver

for OLED display OEM’s, enabling the development

and production of this new standard in flat-panel

display technology.

FUNCTIONAL DESCRIPTION:

MXED102 or similar column driver, or a controller.

In “normal mode” (single token), the token may be

entered at either end of the MXED202 row shift

rection selection control “Shift Right” (SHR). The

token bit is shifted one row (one channel) per clock

cycle (CLK), during which time only one row maxi-

Device settings, such as token direction, number mum is active at a time. In “dual mode” (DUAL),

of active rows, dual or single-token mode, and oth- the token bit is entered at one end and automati-

cally in the center, and again the token bits may be

ers, are set by dedicated input pins.

selectively shifted left or right at the CLK rate; dur-

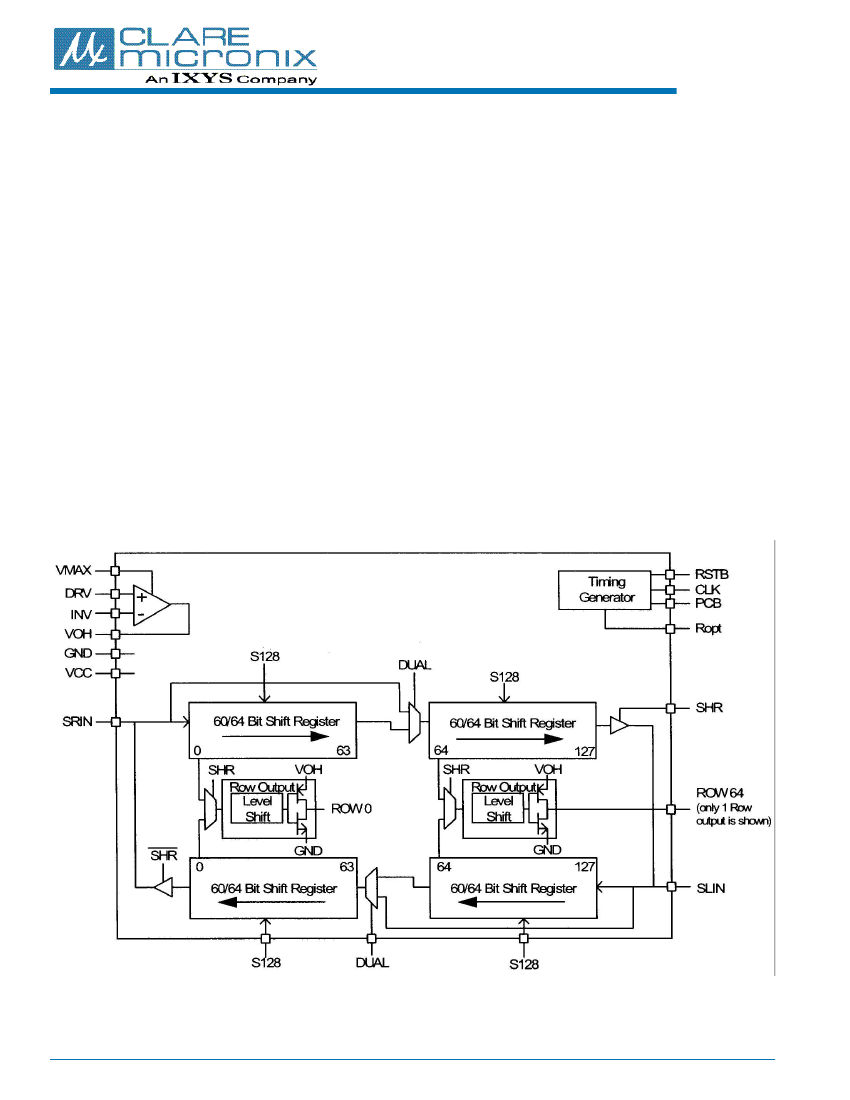

Figure 1 is a block diagram of the MXED202. Each ing which time only two rows maximum are active

row output has two possible sources: ground, to at a time. The MXED202 may be used for either

turn the LED on, and VOH (Voltage Output High) to 128- or 120-row display panels. When the “Select

turn the LED off. To begin a scan of the rows, the 128” (S128) control input is low, the MXED202 is

user inputs a token bit so that it is high at the rising set for 120 outputs. When S128 is low, Rows 4

edge of CLK, which is typically provided by the through 123 must be used. (Note: A lesser num-

The MXED202 is capable of sinking current for up

to 128 rows (LED cathodes) of an OLED display.

One or two outputs may be active at a time. For

displays requiring more than 150mA sink current

per row, multiple MXED202’s may be placed in

parallel.

14180B

www.claremicronix.com

November 12, 2002
