4361H1/5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 4361H1/5

4361H1/5: Descriptionstandard leds - through hole red/grn diffused 3-leads; CategoryLED optoelectronic/LED photoelectric; File Size131KB，2 Pages; ManufacturerChicago Miniature; Environmental Compliance

Download Datasheet Parametric Compare View All

4361H1/5 Overview

standard leds - through hole red/grn diffused 3-leads

4361H1/5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PLASTIC PACKAGE-3
Reach Compliance Code	unknow
color	RED/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.02 A
Lens type	DIFFUSED
Nominal luminous intensity	6.3/10.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	DUAL COLOR LED
total height	17.3736 mm
method of packing	BULK
peak wavelength	650/563 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	4.9784 mm
perspective	40 deg
Base Number Matches	1

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

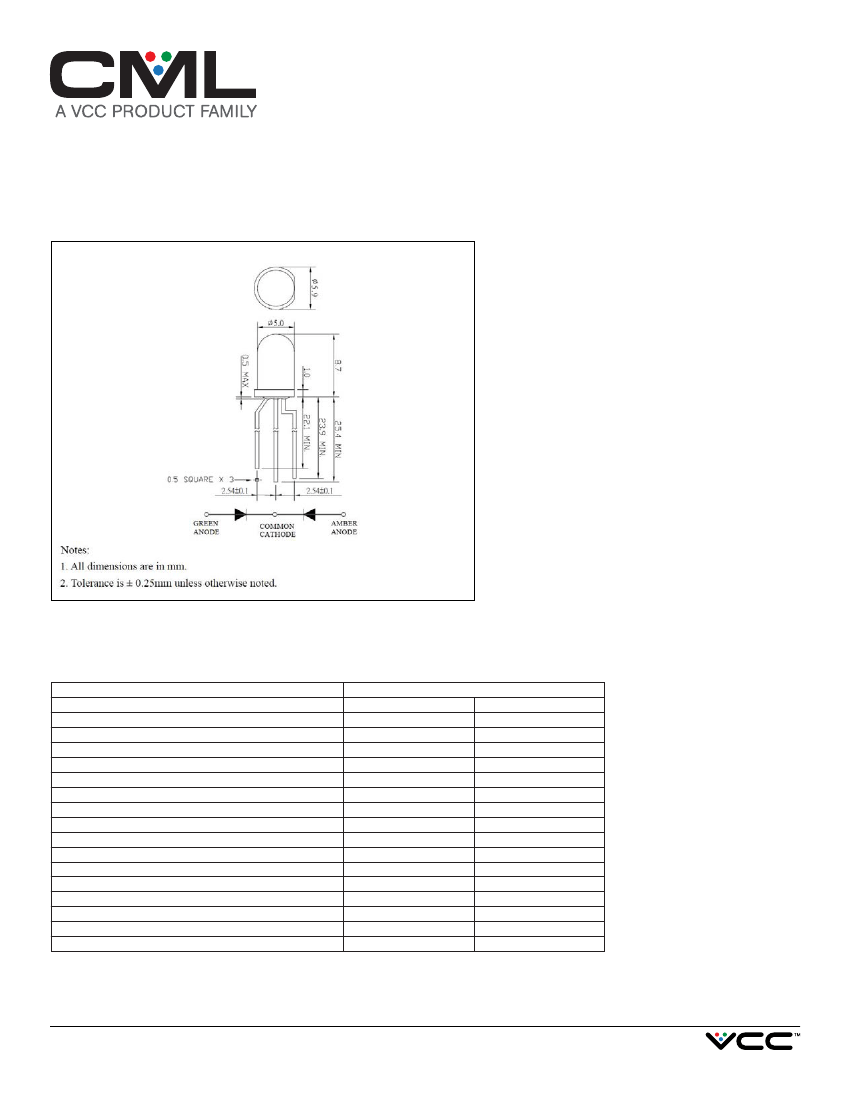

4361H1/5 High Brite Tri-Color T-1 3/4 LED Lamp

Description and Features

6.0

RED

INDE X

5.0

Tolerance: ± 0.2

(Unit: mm)

8.7

Features

T-1 3/4 Tri-color LED

• Provides red, green and amber in same three lead

package.

• Chips are brightness matched.

• Lights amber when both chips are illuminated.

.5 S Q.

TYP.

2 3

24.0 MIN

2.5

1:ANODE R E D

2:C AT HODE

3:ANODE G R E E N

Electro-Optical Characteristics and Ratings

PART NUMBER

Output Color

Di usion

Package Color

Test Current (mA)

Foward Voltage Typ. (V)

Foward Voltage Max. (V)

Luminous Intensity Min. (mcd)

Luminous Intesity Typ. (mcd)

Luminous Intensity Max. (mcd)

Peak Wavelength (nm)

Viewing Angle 20 1/2 (degrees)

Power Dissipation (mW)

Operating Temperature (°C)

Storage Temperature (°C)

Peak Forward Current Max. (1µs @ 10% duty cycle) (mA)

Reverse Voltage (IR = 100µA) (V)

Lead Solder Time @ 260°C

4361H1/5

Red

Di used

White

2.0

3.0

2.2

6.3

650

-25 to +85

-30 to + 100

Green

Di used

White

2.1

3.0

3.6

563

-25 to +85

-30 to + 100

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

4361H1/5 Related Products

	4361H1/5	4361H3/5
Description	standard leds - through hole red/grn diffused 3-leads	standard leds - through hole amber/green 2.1V
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Reach Compliance Code	unknow	unknow
color	RED/GREEN	AMBER/GREEN
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Maximum forward current	0.02 A	0.03 A
Lens type	DIFFUSED	DIFFUSED WHITE
Nominal luminous intensity	6.3/10.0 mcd	17.7/15.3 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	3	3
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	DUAL COLOR LED	DUAL COLOR LED
total height	17.3736 mm	17.3736 mm
method of packing	BULK	BULK
peak wavelength	650/563 nm	635/567 nm
shape	ROUND	ROUND
size	5 mm	5 mm
surface mount	NO	NO
T code	T-1 3/4	T-1 3/4
Terminal pitch	4.9784 mm	4.9784 mm
perspective	40 deg	60 deg
Base Number Matches	1	1
