MKP4PCM150.068/5/630VDCREEL16.5/360 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> MKP4PCM150.068/5/630VDCREEL16.5/360

MKP4PCM150.068/5/630VDCREEL16.5/360: DescriptionFilm Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.068uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size468KB，5 Pages; ManufacturerWIMA; Websitehttps://www.wima.de/; Environmental Compliance

Download Datasheet Parametric View All

MKP4PCM150.068/5/630VDCREEL16.5/360 Overview

Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.068uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

MKP4PCM150.068/5/630VDCREEL16.5/360 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1899253000
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.068 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 14 INCH
positive tolerance	5%
Rated (AC) voltage (URac)	280 V
Rated (DC) voltage (URdc)	630 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

WIMA MKP 4

Metallized Polypropylene (PP) Capacitors

PCM 7.5 mm to 37.5 mm

Special Features

High volume/capacitance ratio

Self-healing

Very low dissipation factor

Negative capacitance change

versus temperature

Very low dielectric absorption

According to RoHS 2002/95/EC

Electrical Data

Capacitance range:

0.01

to 33

(E12-values on request)

Rated voltages:

100 VDC, 250 VDC, 400 VDC,

630 VDC, 1000 VDC

Capacitance tolerances:

± 20%, ± 10%, ± 5%

Operating temperature range:

–55+ C to +100+ C

Climatic test category:

55/100/56 in accordance with IEC

Insulation resistance

at +20+ C:

0.33

1 x 10

(mean value: 5 x 10

)



0.33

30 000 sec (M

(mean value: 100 000 sec)

Measuring voltage: 100 V/1 min.

Dissipation factors

at + 20) C:

tan

10 x 10

-4

at 1 kHz

Maximum pulse rise time:

Capacitance

0.01

0.033

0.1

0.33

1.0

3.3

6,8

...

0.022

0.068

0.22

0.68

2.2

4.7

100 VDC

450

250

150

100

Test specifications:

In accordance with IEC 60384-16

and EN 131 200

Test voltage:

1.6 U

, 2 sec.

Dielectric absorption:

0.05 %

Voltage derating:

A voltage derating factor of 1.35 % per K

must be applied from +85+ C for DC

voltages and from +75+ C for AC

voltages.

Reliability:

Operational life



300 000 hours

Failure rate



2 fit (0.5 x U

and 40) C)

Typical Applications

For high frequency applications e.g.

Sample and hold

Timing

Oscillating circuits

High frequency coupling and

decoupling

Construction

Dielectric:

Polypropylene (PP) film

Capacitor electrodes:

Vacuum-deposited

Internal construction:

MKP 4: 63 VAC, 160 VAC, 200 VAC, 280 VAC

Plastic film

Vacuum-deposited

electrode

Metal contact layer

(schoopage)

Terminating wire

max. pulse rise time V/msec at T

< 40) C

250 VDC

400 VDC

630 VDC

1000 VDC

450

250

150

100

450

300

200

150

100

–

500

350

250

200

150

120

–

550

400

300

200

150

–

for pulses equal to the rated voltage

MKP 4: 400 VAC

Plastic film

Vacuum-deposited

electrode

Metal contact layer

(schoopage)

Terminating wire

Mechanical Tests

Pull test on leads:

0.8

: 10 N in direction of leads

d > 0.8

: 20 N in direction of leads

according to IEC 60068-2-21

Vibration:

6 hours at 10 ... 2000 Hz and 0.75 mm

displacement amplitude or 10 g in

accordance with IEC 60068-2-6

Low air density:

1kPa = 10 mbar in accordance with

IEC 60068-2-13

Bump test:

4000 bumps at 390 m/sec

in accordance with IEC 60068-2-29

Packing

Available taped and reeled up to and

including case size 15 x 26 x 31.5 /

PCM 27.5 mm.

Detailed taping information and graphs

at the end of the catalogue.

Encapsulation:

Solvent-resistant, flame-retardant plastic

case with epoxy resin seal, UL 94 V-0

Terminations:

Tinned wire.

Marking:

Colour: Red. Marking: Black.

Epoxy resin seal: Red

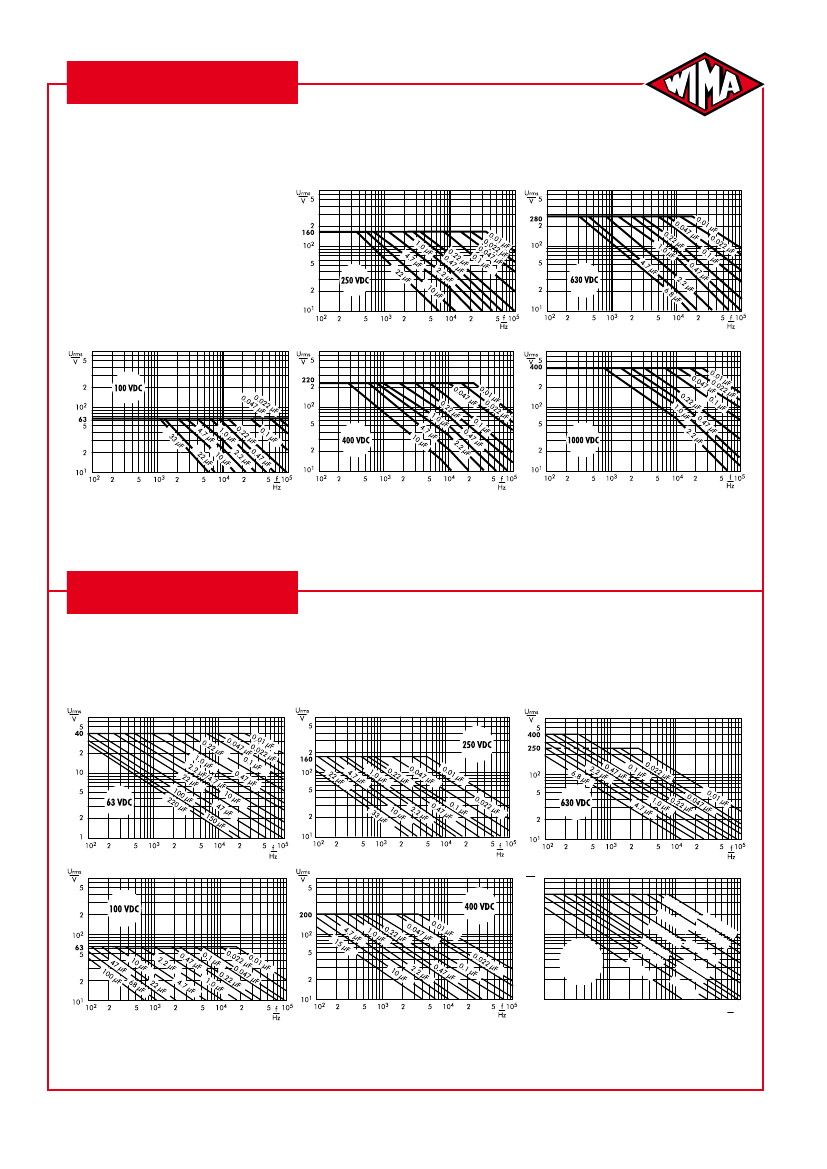

For further details and graphs please

refer to Technical Information.

11.08
