Mini half-watt SMD 3.5mm
(120° Viewing Angle)
OVS5MxBCR4 Series
•
•
•
•
•
•
Compact Package Outline of 3.5 x 3.5 x 1.2 mm
Robust energy-efficient design with long operating life
Low thermal resistance
Exceptional spatial uniformity
Compatible to IR reflow soldering
High Lumens output
The
mini-half watt
is an energy-efficient packaged LED source that offers high luminance, and a long
operating lifespan. This device offers a 120° view ing angle and an ultra-low profile (1.2 mm) making it highly
suitable for conventional lighting and specialized applications.
Applications
•
Automotive exterior and interior lighting
•
Architectural indoor and outdoor lighting
•
General lighting
•
Display Backlighting
•
Electronic signs and signals
Part Number
OVS5MWBCR4
OVS5MWWBCR4
120
OVS5MBBCR4
OVS5MGBCR4
Viewing
Angle
Emitted
Color
White
Warm
White
Blue
Green
Typ. Luminous Forward Voltage Power Dissipation
Flux (lm)
V
F
@ 150 mA
30
30
6
22
3.4
3.6
3.4
3.4
0.51 W
0.54 W
Clear
0.51 W
0.51 W
Lens Color
Part Number
OVS5MRBCR4
OVS5MABCR4
OVS5MYBCR4
Viewing
Angle
Emitted
Color
Red
Typ. Luminous Forward Voltage Power Dissipation
Intensity (mcd)
V
F
@ 150 mA
7150
7150
7150
2.2
2.2
2.2
0.33 W00.33
0.33 W
0.33 W
Lens Color
120
Amber
Yellow
Clear
2a
RoHS
Moisture
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue C 10/2011
Page 1 of 11

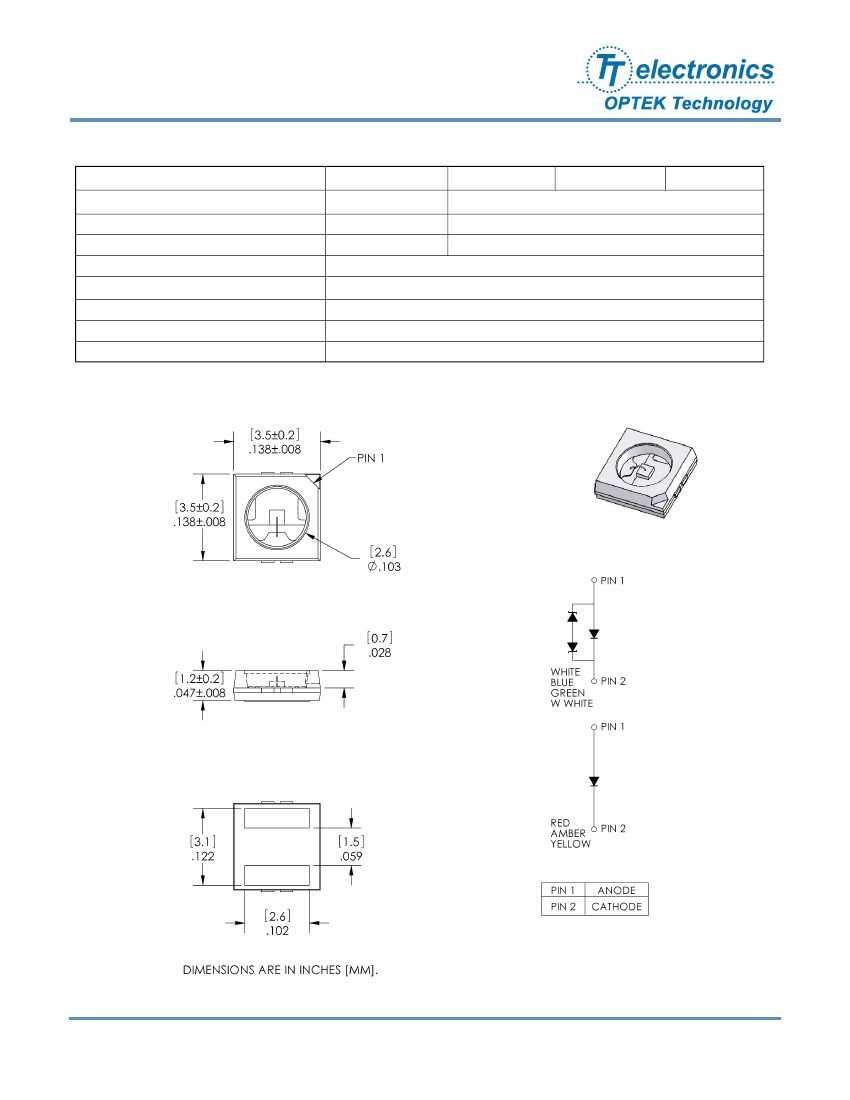

Mini half-watt SMD 3.5mm
OVS5MxBCR4
Absolute Maximum Ratings
T
A
= 25°C
Red, Amber, Yellow
DC Forward Current
Peak Pulsed Forward Current
1
Reverse Voltage
Junction Temperature
2
Power Dissipation
Storage and Operating Temperature
ESD (JEDEC-JESD22-A114F)
MSL (IPC / JEDEC J-STD-020C)
Notes:
1. Pulse width tp
≤
10µs, Duty cycle = 0.1
2. Thermal Resistance = 5 C/W
Green, Blue
White
Warm White
200 mA
1000 mA
12V @ 10 uA
125°
C
180 mA
350 mA
Not designed for reverse bias
750mW
-40° ~ +100 ° C
Class 2
2a / 672 Hrs
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue C 10/2011
Page 2 of 11
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Mini half-watt SMD 3.5mm
OVS5MxBCR4
Optical and Electrical Characteristics - Red, Amber, Yellow
(I
F
= 140 mA, T
A
= 25° C)
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
V
F
Forward Voltage
Red
1.9
2.2
2.65
V
Φ
Luminous Intensity
Amber
Yellow
Red
4500
7150
9000
mcd
620
610
585
----
----
625
615
590
10
120
630
621
594
----
----
µA
deg
λ
D
Dominant Wavelength
Reverse Current @ 12 V
50% Power Angle
Amber
Yellow
nm
I
R
2
Θ½
Optical and Electrical Characteristics - Blue, Green
SYMBOL
PARAMETER
MIN
(I
F
= 150 mA, T
A
= 25° C)
TYP
MAX
UNITS
V
F
Φ
Forward Voltage
Luminous Flux
Blue
Green
Blue
Green
3.0
4.9
18.1
460
520
----
3.4
6.0
22.0
465
525
120
3.9
8.2
30.6
470
535
----
V
lm
λ
D
2
Θ½
Dominant Wavelength
50% Power Angle
nm
deg
Optical and Electrical Characteristics - White, Warm White
SYMBOL
V
F
Φ
2
Θ½
PARAMETER
Forward Voltage
White
Warm White
White
Warm White
MIN
3.0
(I
F
= 150 mA, T
A
= 25° C)
MAX
4.1
UNITS
V
TYP
3.4
3.6
30.6
120
Luminous Flux
50% Power Angle
23.5
----
39.8
----
lm
deg
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue C 10/2011
Page 3 of 11
Mini half-watt SMD 3.5mm
OVS5MxBCR4
Standard Bins
LEDs are sorted to luminous intensity (I
V
) or luminous flux (Φ) and dominant wavelength (nm) bins shown. Each
reel consists of a single intensity bin and a single color bin. Orders are filled using all intensity and color bins
listed in the following tables. Optek will not accept orders for single intensity bins or single color bins.
Luminous Flux (Φ) @ 150mA (lm)
Blue: OVS5MBBCR4
IV Code
H2
H3
J2
J3
Min (lm)
4.9
5.5
6.3
7.1
Max (lm)
5.5
6.3
7.1
8.2
Green: OVS5MGBCR4
nm Code
Green: OVS5MGBCR4
IV Code
N2
N3
P2
P3
Min (lm)
18.1
20.6
23.5
26.8
Max (lm)
20.6
23.5
26.8
30.6
A
B
C
Min (nm)
520
525
530
Max (nm)
525
530
535
Dominant Wavelength (nm)
Blue: OVS5MBBCR4
nm Code
A
B
Min (nm)
460
465
Max (nm)
465
470
Luminous Intensity (I
V
) @ 140mA
Amber: OVS5MABCR4
IV Code
Z1
Z2
AA
Min (mcd) Max (mcd)
4500
5600
7150
5600
7150
9000
Dominant Wavelength (nm)
Amber: OVS5MABCR4
nm Code
W
X
Min (nm)
610
615
Max (nm)
615
621
Red: OVS5MRBCR4
Red: OVS5MRBCR4
IV Code
Z1
Z2
AA
Min (mcd) Max (mcd)
4500
5600
7150
5600
7150
9000
Yellow: OVS5MYBCR4
nm Code
X
Yellow: OVS5MYBCR4
IV Code
Z1
Z2
AA
Min (mcd) Max (mcd)
4500
5600
7150
5600
7150
9000
Y
Z
Min (nm)
585
588
591
Max (nm)
588
591
594
nm Code
Full
Min (nm)
620
Max (nm)
630
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue C 10/2011
Page 4 of 11
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Mini half-watt SMD 3.5mm
OVS5MxBCR4
Standard Bins
(I
F
= 150mA)
LEDs are sorted to luminous flux (Φ) and chromaticity coordinates (x, y) bins shown. Each reel consists of a
single intensity bin and a single chromaticity bin. Orders are filled using all intensity and chromaticity bins listed
in the following table. Optek will not accept orders for single intensity bins or single chromaticity bins.

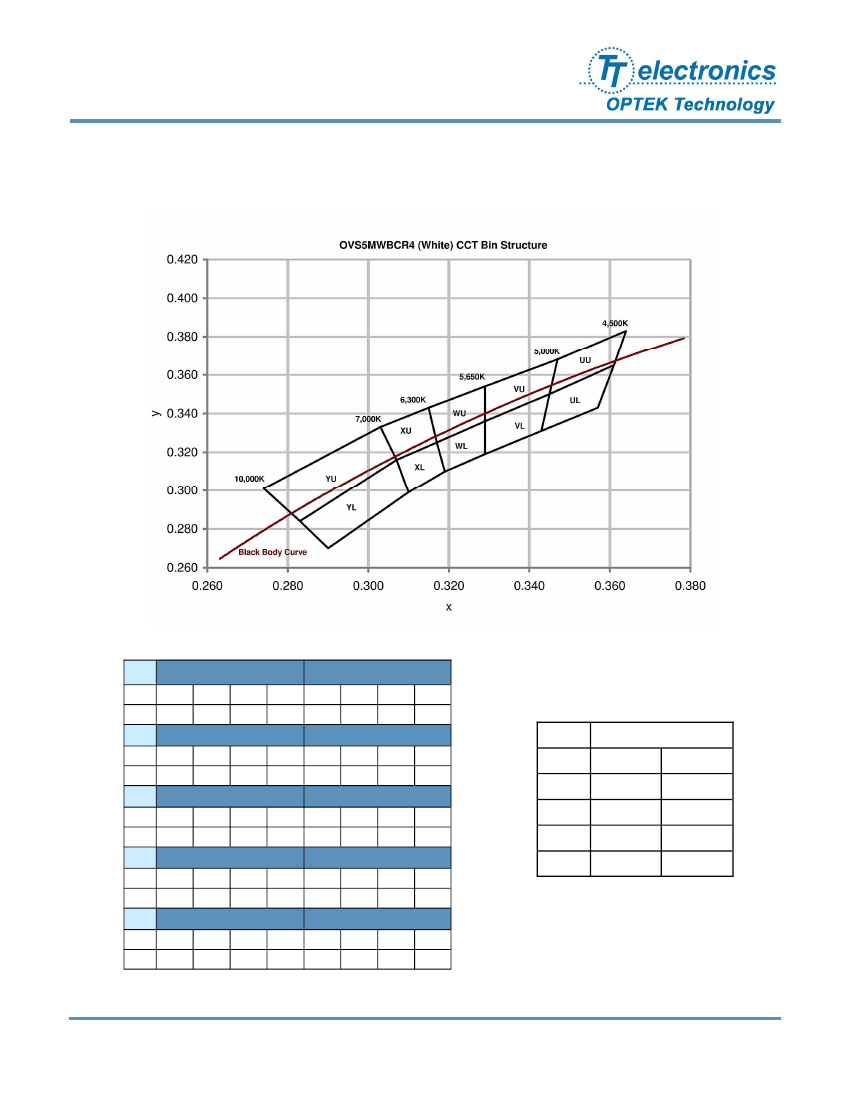

Chromaticity Coordinates (x, y)
Rank
YU
0.274
0.301
0.283
0.284
0.307
0.316
0.303
0.333
0.283
0.284
YL
0.290
0.270
0.310
0.299
0.307
0.316
Cx
Cy
Rank
XU
0.303
0.333
0.307
0.316
0.317
0.325
0.315
0.343
0.307
0.316
XL
0.310
0.299
0.319
0.310
0.317
0.325
Φ
Bin
P2
P3
Q2
Q3
0.345
0.350
Luminous Flux (lm)
Min
23.5
26.8
30.6
34.8
Max
26.8
30.6
34.8
39.8
Cx
Cy
Rank
WU
0.315
0.343
0.317
0.325
0.329
0.336
0.329
0.354
0.317
0.325
WL
0.319
0.310
0.329
0.319
0.329
0.336
Cx
Cy
Rank
VU
0.329
0.354
0.329
0.336
0.345
0.350
0.347
0.368
0.329
0.336
VL
0.329
0.319
0.343
0.331
Cx
Cy
Rank
UU
0.347
0.368
0.345
0.350
0.361
0.365
0.364
0.383
0.345
0.350
UL
0.343
0.331
0.357
0.343
0.361
0.365
Cx
Cy
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue C 10/2011
Page 5 of 11
