HLMA-QL00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMA-QL00

HLMA-QL00: Descriptionstandard leds - smd poly dome yellow; CategoryLED optoelectronic/LED photoelectric; File Size73KB，9 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric View All

HLMA-QL00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HLMA-QL00	-	-	View	Buy Now

HLMA-QL00 Overview

standard leds - smd poly dome yellow

HLMA-QL00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	17 weeks
color@wavelength	Ambe
Maximum forward voltage	2.4 V
JESD-609 code	e3
Lens type	TRANSPARENT
minimum luminous intensity	28 cd
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
total height	2.9 mm
peak wavelength	590 nm
Maximum reverse voltage	5 V
Terminal surface	Tin (Sn)
perspective	0.1 deg
Base Number Matches	1

Preview

Download Datasheet

View All

HLMA-Qx00, HLMA-Px00 HLMT-Px00 and HLMT-Qx00

Subminiature High Performance AlInGaP LED Lamps

Data Sheet

SunPower Series

HLMA-PF00, HLMA-PG00, HLMA-PH00, HLMA-PL00, HLMA-QF00, HLMA-QG00, HLMA-QH00,

HLMA-QL00, HLMT-PG00, HLMT-PH00, HLMT-PL00, HLMT-QG00, HLMT-QH00, HLMT-QL00

Description

Flat Top Package

The HLMX-PXXX flat top lamps use an untinted, nondif-

fused, truncated lens to provide a wide radiation pattern

that is necessary for use in backlighting applications. The

flat top lamps are also ideal for use as emitters in light

pipe applications.

Features



Subminiature flat top package

Ideal for backlighting and light piping applications



Subminiature dome package

Nondiffused dome for high brightness



Wide range of drive currents



Colors: 590 nm Amber, 605 nm Orange, 615 nm Red-

dish-Orange, 622/626 nm Red, and 635 nm Red



Ideal for space limited applications



Axial leads



Available with lead configurations for surface mount

and through hole PC board mounting

Dome Packages

The HLMX-QXXX dome lamps use an untinted, nondif-

fused lens to provide a high luminous intensity within a

narrow radiation pattern.

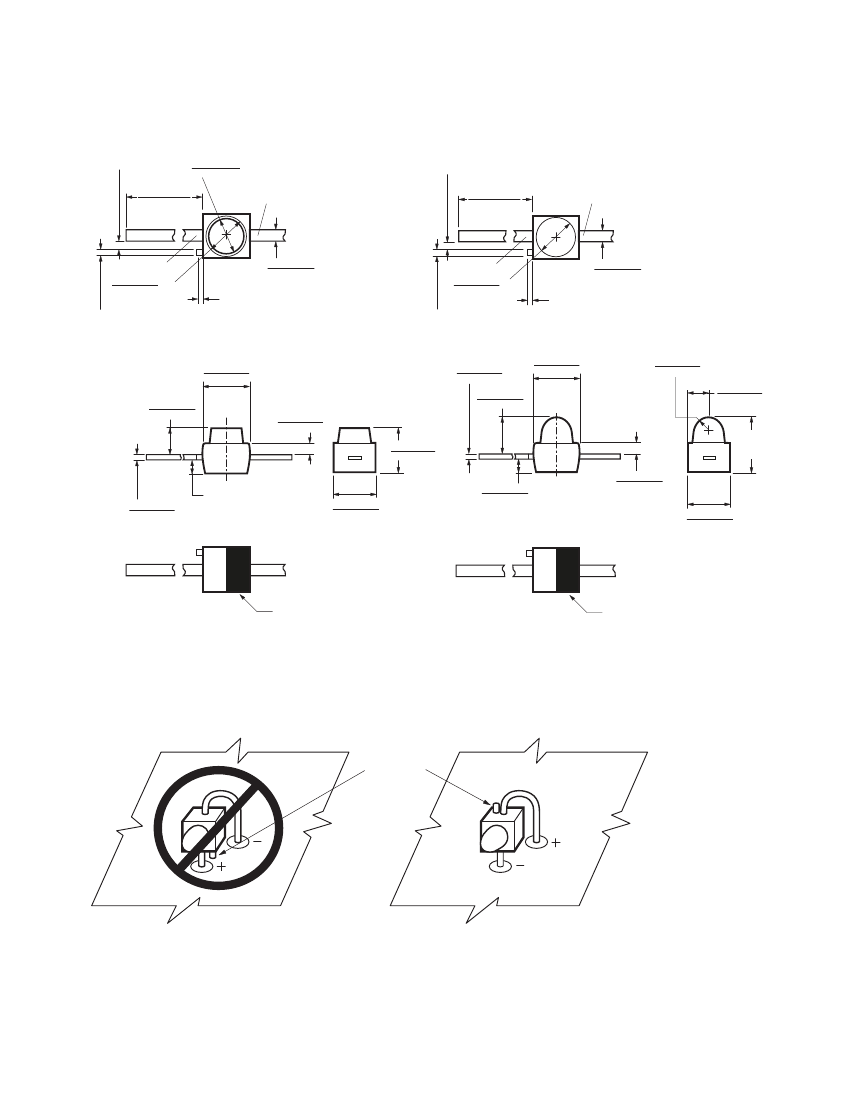

Lead Configurations

All of these devices are made by encapsulating LED chips

on axial lead frames to form molded epoxy submini-

ature lamp packages. A variety of package configuration

options is available. These include special surface mount

lead configurations, gull wing, yoke lead, or Z-bend. Right

angle lead bends at 2.54 mm (0.100 inch) and 5.08 mm

(0.200 inch) center spacing are available for through hole

mounting. For more information refer to Standard SMT

and Through Hole Lead Bend Options for Subminiature

LED Lamps data sheet.

Technology

These subminiature solid state lamps utilize one of the

two newly developed aluminum indium gallium phos-

phide (AlInGaP) LED technologies. The HLMT-Devices

are especially effective in very bright ambient lighting

conditions. The colors 590 nm amber, 605 nm orange,

615 nm reddish-orange, 622/626 nm red, and 635 nm red

are available with viewing angles of 15° for the domed

devices and 125° for the flat top devices.
