EARS-02-08-GD-OA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> EARS-02-08-GD-OA

Preview

EARS-02-08-GD-OA: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

EARS-02-08-GD-OA Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug

EARS-02-08-GD-OA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1294625457
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.335 inch
body length	0.42 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.433 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	8

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulation material:

Withstanding:

Insulation resistance:

Operating temperature:

3 amps

Phosphor bronze

20 milliohms max.

PBT, UL94V-0

600VAC for 1 min.

1,000 megohms min.

-40°C to +105°C

A

B

C

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Series

No. of Rows

Positions

Plating

Tail Length

EARS

XX

OX

Elevated 01=Single row Single row 02-40 TN=Tin

OA=11.00mm

receptacle 02=Dual row Double row 04-80 GD=Gold flash

OC=14.75mm

strip

SG=Gold flash/tin

Date

08/10/99

08/10/99 Part No.:

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

EARS-XX-XX-XX-OA

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

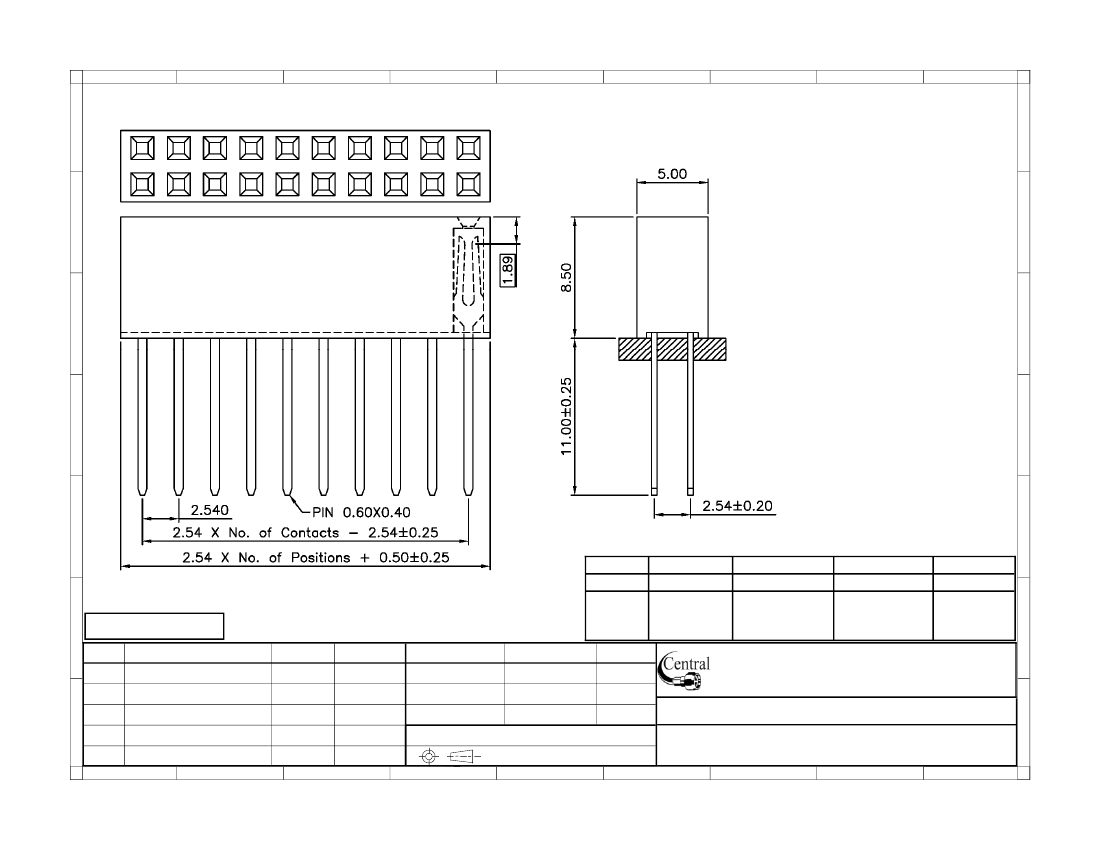

Description: Header, 2.54 pitch, female, dual rows, DIP type, base

8.50mm high

G
