SPECIFICATIONS
Current rating:
Voltage rating:
Contact resistance:
Insulation resistance:
Shell material:
Shell plating:
Insulator material:
Insulator color:
Retention springs:
Operating temperature:
5 amps
500VAC
15 milliohms max.
1,000 megohms min.
Steel
Tin or chromate
PBT+30% glass fiber, UL94V-0
Black
Stainless steel
-50°C to +100°C
A
B
C
C
D
Pos.
15
26
44
62
78
Dimensions (mm)
A
B
C
D
30.80 24.99 16.92 19.20
39.15 33.32 25.25 27.20
53.00 47.04 38.96 41.10
69.30 63.50 55.42 57.30
67.00 61.00 52.80 55.10
E
15.40
24.22
38.05
54.54
51.90
D
E
Series
Size
Package
HCXX
X
XX
HCRM=Male terminal A=40-30AWG BG=1,000 pcs/bag
HCRF=Female terminal
RL=5,000 pcs/reel
Series
Gender
Mounting Options
Special Options
HDSXX
XXX
XXX
XXX
High-density D-sub, MCP=Male
[blank]=.120” through holes
[blank]=None
Crimp housing type FCP=Female RCN=Riveted clinch nuts #4-40 30GD=30µ” gold plate
XX=Positions
RJS=Riveted jackscrews #4-40 WT=Optional white insulator
15, 26, 44, 62, 78
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
E
F
RoHS compliant
Rev.
Description
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
HDSXX-MCP-XXX-XXX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

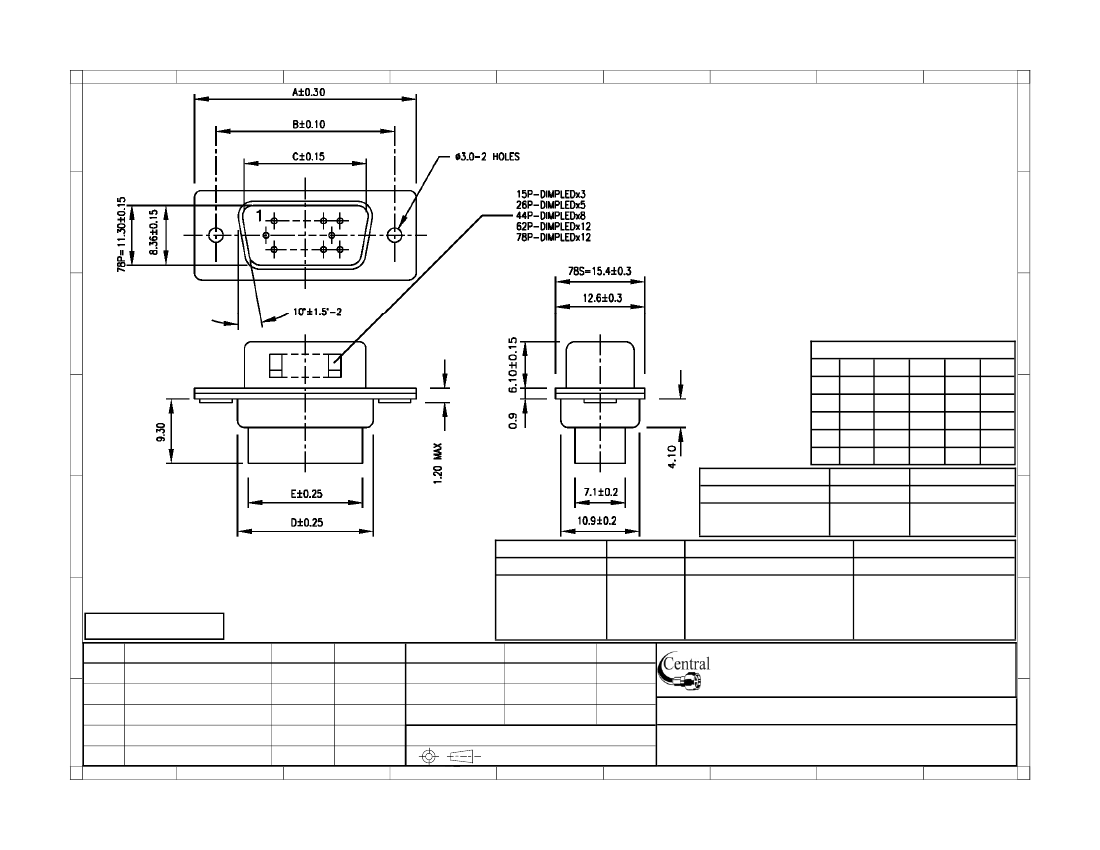

Description: High-density D-subminiature connector, crimp housing
type
G
