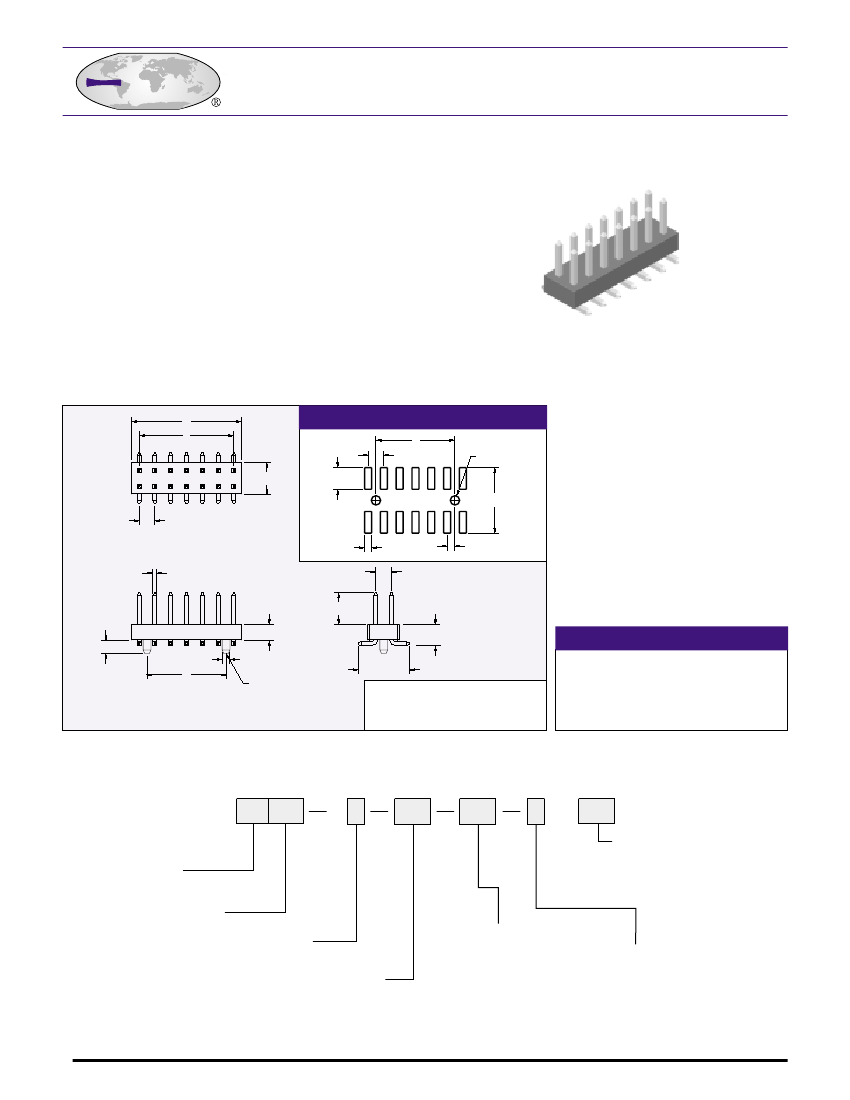

Specifications
.079 x .079 SMT Header
9400 Series Header
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold and/or Tin over .000050” Ni
(See contact plating options)
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Contact Resistance:
20 m ohms max
Operating Temperature:
-40°C To +105°C
Max. Processing Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
A
B
PCB LAYOUT
C
.0787 [2.0]
.158 [4.0]
.108 [2.75]
Ø.047 [1.2]
.327 [8.3]
.0787 [2.0] TYP
.
.035 [.89]
.020 [0.5] SQ. TYP
.
.079 [2.0]
.039 [1.0]
CONTACT HEIGHT
INSULATOR HEIGHT
.067 [1.7]
.039 [1.0]
C
.106 [2.7] OR .087 [2.2]
SUGGESTED MATING CONNECTORS
.256 [6.5]
LOCATING PEG
(OPTIONAL)
A
= .0787 x No. of Pos.±.020
B
= .0787 x (No. of Cont./2 -1)
C
= .0787 x (No. of Cont./2 -2)
94XXS-CX-XX-XX
94XXS-DX-XX-XX
94XXS-EX-XX-XX
94XXS-FX-XX-XX
94XXS-FL-XX-XX
94XXS-GX-XX-XX
(PAGE F-30)
(PAGE F-31)
(PAGE F-32)
(PAGE F-33)
(PAGE F-34)
(PAGE F-35)
DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
94 XX
SERIES CODE
.079 HEADERS
E X
XX
XX
X
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING
AVAILABILITY
NO. OF CONTACTS
06 - 80
INSULATOR HEIGHT
1
= .059 [1.50]
2
= .0787 [2.00]
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
03
= Au Flash
Au Flash
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
LOCATING PEG
CONTACT HEIGHT
01
= .157 [4.00] (1.5mm INSULATOR)
02
= .138 [3.50] (2.0mm INSULATOR)
CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS
0
= WITHOUT LOCATING PEG
1
= WITH LOCATING PEG
CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION
WWW.ECSCONN.COM
