SMT flyback transformers
EFD series
B82802A
Construction
EFD type ferrite core
10 gull wing terminals
Features
Low profile SMT package with high
through-put power capability
Industry standard footprints
Compliant with JEDEC J-STD-020D
MSL level 1
RoHS compatible
Custom variations available (on request)
Applications
General purpose isolated DC/DC
converters (up to 55W)
Power over Ethernet ( PoE/12W and PoE
+/30W) Powered Devices(PD) and Power
Sourcing Equipment (PSD)
Marking
Manufacturer, middle block of ordering
code , date code, pin1 marker
Delivery mode and packing unit
44/56-mm blister tape , 330-mm Ø reel
Packing unit : 300 pcs./ reel (EFD15)
Packing unit : 160 pcs./ reel (EFD20)
Packing unit : 80 pcs./ reel (EFD25)

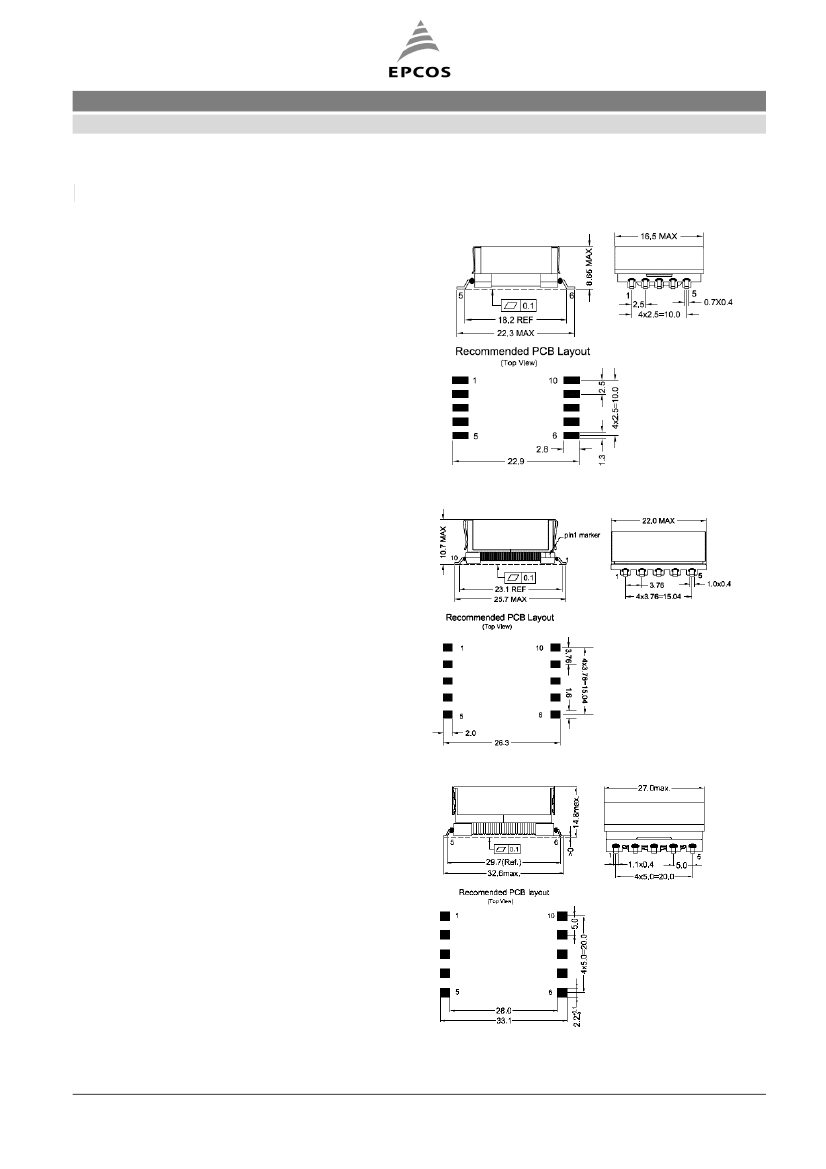

Dimensional drawing
EFD15
EFD20
EFD25
EPCOS Ho PD
Please read Cautions and warnings and
Important notes at the end of this document.
Page 2 of 7
October 2012
SMT flyback transformers
EFD series
B82802A

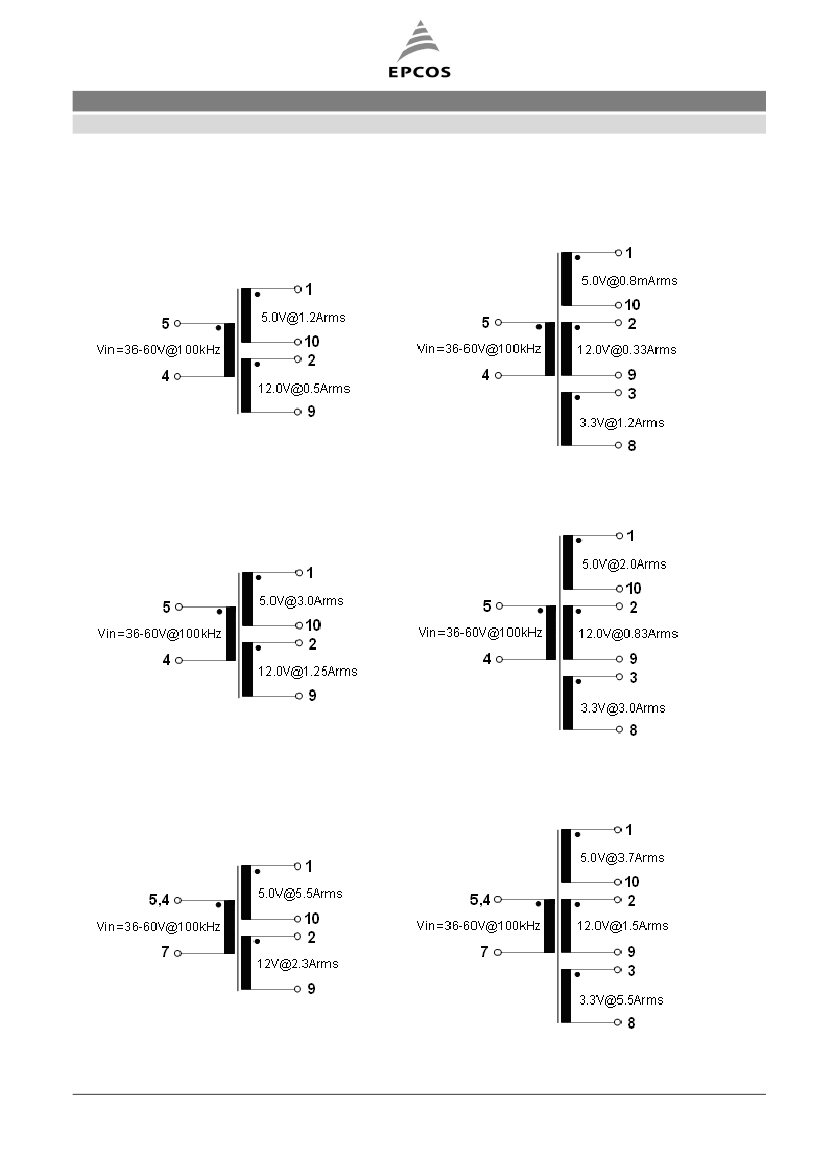

Schematic :
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
EPCOS Ho PD
Please read Cautions and warnings and
Important notes at the end of this document.
Page 3 of 7
October 2012
SMT flyback transformers
EFD series
B82802A
Technical data and measuring conditions
Input voltage V
in
Test voltage V
test
Main inductance L
Inductance tolerance
DC current I
DC
Operating frequency f
DC resistance R
max
Solderability
Operating temperature range
Characteristics and ordering codes
Ordering code
Core
Schematic L
μH
B82802A0012A215
B82802A0012A315
B82802A0030A220
B82802A0030A320
B82802A0055A225
B82802A0055A325
EFD15 Fig 1
EFD15 Fig 2
EFD20 Fig 3
EFD20 Fig 4
EFD25 Fig 5
EFD25 Fig 6
L
stray,max
Turns ratio
μH
(1-10):(2-9):(5-4)
(1-10):(2-9):(3-8):(5-4)
(1-10):(2-9):(5-4)
(1-10):(2-9):(5,4-7)
1:2.25:6.5
1:2.5:0.75:7.5
1:2.25:6.5
1:2.5:7.5
0.03
0.05
DC resistance R
max
(Ω)
Pri
100 3.0
100 3.0
40
40
22
22
1.5
1.8
1.5
1.2
Sec
V
out1
0.19
0.37
V
out2
V
out3
0.45 -
0.43 0.03
0.1
0.1
-
0.01
36 V DC … 60 V DC
1500 V AC
100 kHz, 100 mV, +25 °C
±10% at +25 °C
With I
DC
bias L
drop
approx. 20%
100 kHz
Measured at +25 °C, maximum values (specified per winding)
≥99.9
Sn or Sn96.5Ag3.0Cu0.5: +(245± 5) °C, (3±0.3) s
Wetting of soldering area:
≥95%
(to IEC 60068-2-58)
–40°C … +125°C
0.015 0.04
0.003 0.04
(1-10):(2-9):(3-8):(5-4) 1:2.25:0.75:6.5 0.018 0.04
(1-10):(2-9):(3-8):(5-4) 1:2.33:0.66:6.67 0.015 0.04
0.03 -
0.05 0.003
Ordering code
B82802A0012A215
B82802A0012A315
B82802A0030A220
B82802A0030A320
B82802A0055A225
B82802A0055A325
Core
EFD15
EFD15
EFD20
EFD20
EFD25
EFD25
Schematic
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Power
W
V
out1
V/A
V
out2
V/A
V
out3
V/A
12
12
30
30
55
55
12/0.5
5.0/0.8
12/1.25
5.0/2.0
12/2.3
5.0/3.7
5.0/1.2
3.3/1.2
5.0/3.0
3.3/3.0
5.0/5.5
3.3/5.5
-
12/0.33
-
12/0.83
-
12/1.5
EPCOS Ho PD
Please read Cautions and warnings and
Important notes at the end of this document.
Page 4 of 7
October 2012
SMT flyback transformers
EFD series
B82802A

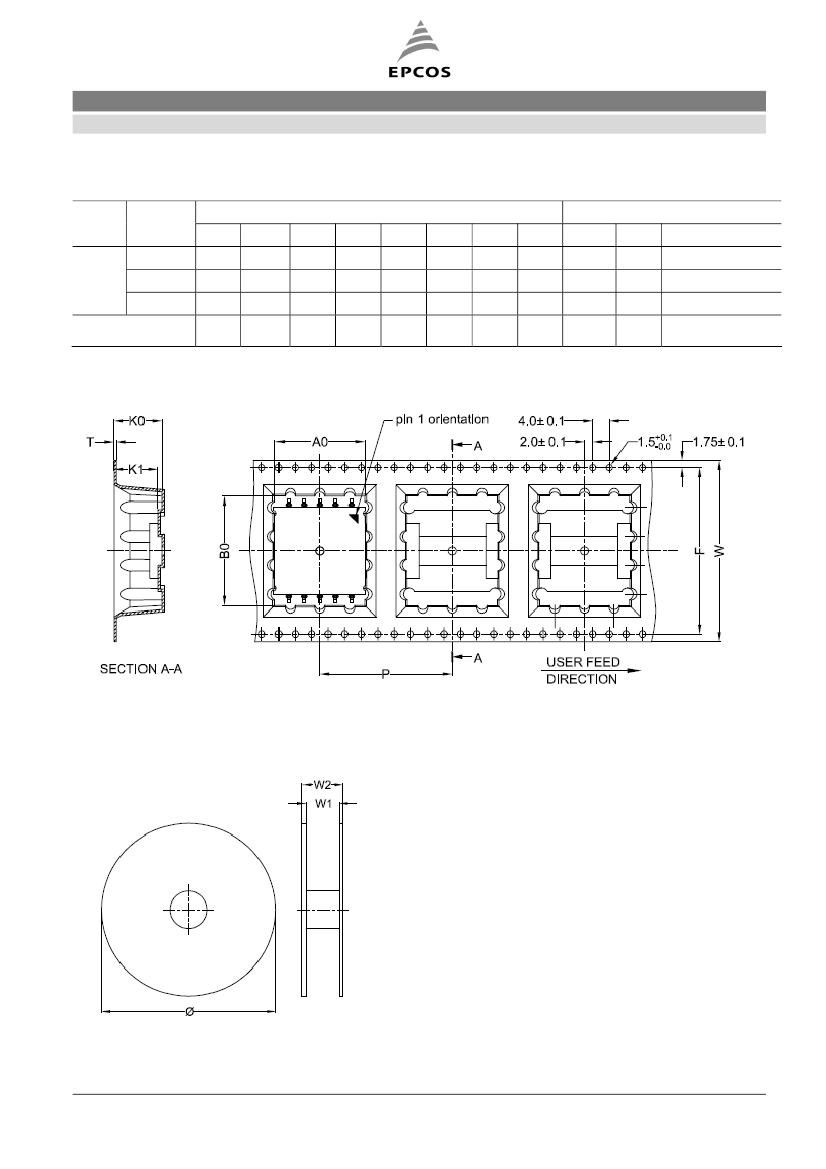

Taping and Packing
Item
DIM.
(mm)
Core
EFD15
EFD20
EFD25
Blister tape
W
T
44.0 0.5
44.0 0.6
56.0 0.6
±
0.3
±
0.05
A0
16.6
21.7
26.2
±0.1
B0
22.3
26.6
33.0
±0.1
P
24.0
32.0
44.0
±0.1
K0
8.6
11.6
14.6
±0.1
K1
8.1
10.6
13.8
±0.1
Reel
F
Φ
40.4 330.0
40.4 330.0
52.4 330.0
±0.1
±0.5
W1
44.0
44.0
56.0
±2.0
W2
48.0
48.0
60.0
±0.15
Tolerance
Blister tape
Reel
EPCOS Ho PD
Please read Cautions and warnings and
Important notes at the end of this document.
Page 5 of 7
October 2012
