PM5022-101M-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PM5022-101M-RC

PM5022-101M-RC: Descriptionfixed inductors 100uh 20%; CategoryPassive components; File Size326KB，2 Pages; ManufacturerJ.W. Miller ( Bourns ); Environmental Compliance

Download Datasheet Parametric Compare View All

PM5022-101M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5022-101M-RC	-	-	View	Buy Now

PM5022-101M-RC Overview

fixed inductors 100uh 20%

PM5022-101M-RC Parametric

Parameter Name	Attribute value
Manufacture	Bourns
Product Category	Fixed Inductors
RoHS	Yes
Inductance	100 uH
Tolerance	20 %
Maximum DC Curre	3 A
Maximum DC Resistance	190 mOhms
Operating Temperature Range	- 40 C to + 125 C
Self Resonant Frequency	7 MHz
Q Minimum	25
Shielding	Unshielded
Termination Style	SMD/SMT
Case Length	18.6 mm
Case Width	15.3 mm
Case Heigh	7.1 mm
Core Material	Ferrite
Packaging	Reel
Produc	Power Inductors
Factory Pack Quantity	250
Test Frequency	0.796 MHz
Type	SMD Power Induc

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E6 series

■

Low proﬁle of only 6.6 mm

■

Inductance as low as 1 µH

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

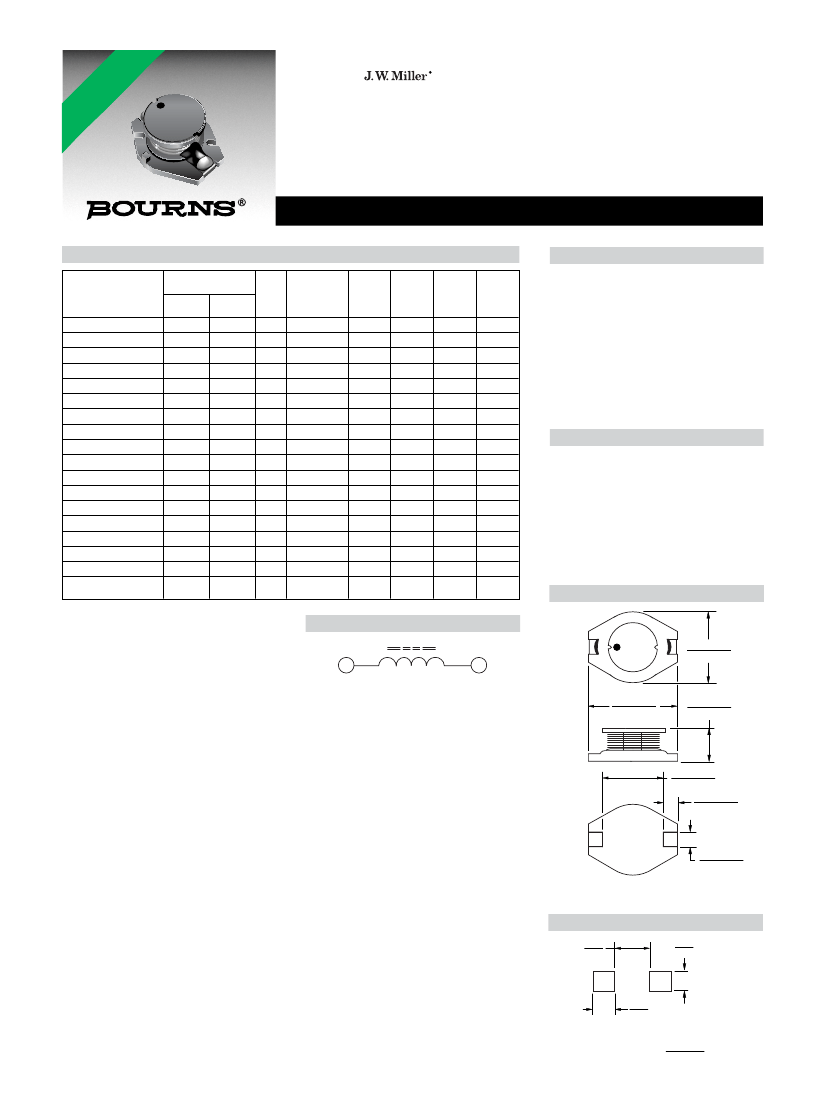

PM5022 Series - SMD Power Inductor

Electrical Speciﬁcations

Inductance 100 kHz

General Speciﬁcations

Test

Q Frequency

Ref.

(MHz)

7.96

2.52

0.796

0.252

SRF

Typ.

(MHz)

100.0

55.0

40.0

30.0

27.0

25.0

17.0

13.0

11.0

9.0

8.0

7.0

5.0

4.5

3.5

3.0

2.5

2.0

I rms

Max.

(A)

10.0

9.00

7.60

6.40

7.00

5.30

4.30

3.60

3.00

2.50

2.10

1.70

1.40

1.10

1.00

0.80

0.70

0.50

I sat

Typ.

(A)

30.00

22.00

17.00

12.80

9.40

10.00

8.00

6.70

5.40

4.60

3.80

3.20

2.60

2.20

1.80

1.50

1.20

1.00

Bourns Part No.

PM5022-1R0M-RC

PM5022-2R2M-RC

PM5022-3R3M-RC

PM5022-5R6M-RC

PM5022-8R2M-RC

PM5022-100M-RC

PM5022-150M-RC

PM5022-220M-RC

PM5022-330M-RC

PM5022-470M-RC

PM5022-680M-RC

PM5022-101K-RC

PM5022-151K-RC

PM5022-221K-RC

PM5022-331K-RC

PM5022-471K-RC

PM5022-681K-RC

PM5022-102K-RC

(µH)

1.0

2.2

3.3

5.6

8.2

100

150

220

330

470

680

1000

Tol. %

± 20

± 10

RDC

(mΩ)

4.0

6.8

9.8

15.0

20.0

25.0

35.0

45.0

68.0

95.0

130.0

190.0

270.0

420.0

580.0

820.0

1200.0

1800.0

Test Voltage ....................................0.1 V

Reﬂow soldering .... 250 °C; 10 sec max.

(In compliance with JEDEC,

J-STD-020C, Table 4-2)

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature

................................-40 °C to +125 °C

Resistance to Soldering Heat

.......................... 250 °C, 10 sec. max.

Materials

Core ....................................... Ferrite DR

Wire ............................Enameled copper

Base .....................................LCP E4008

Terminal ........................................Cu/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ................. 40 °C max.

at rated Irms

Packaging .................... 250 pcs. per reel

Product Dimensions

Electrical Schematic

101

14.0

0.3

(.551

.012)

18.3

0.3

(.720

.012)

6.6

0.3

(.260

.012)

13.0

0.3

(.512

.012)

2.5

0.2

(.098

.008)

2.6

0.2

(.102

.008)

• = START OF WINDING

Recommended Layout

REF.

12.7

(.500)

2.9

REF.

(.114)

3.0

REF.

(.118)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

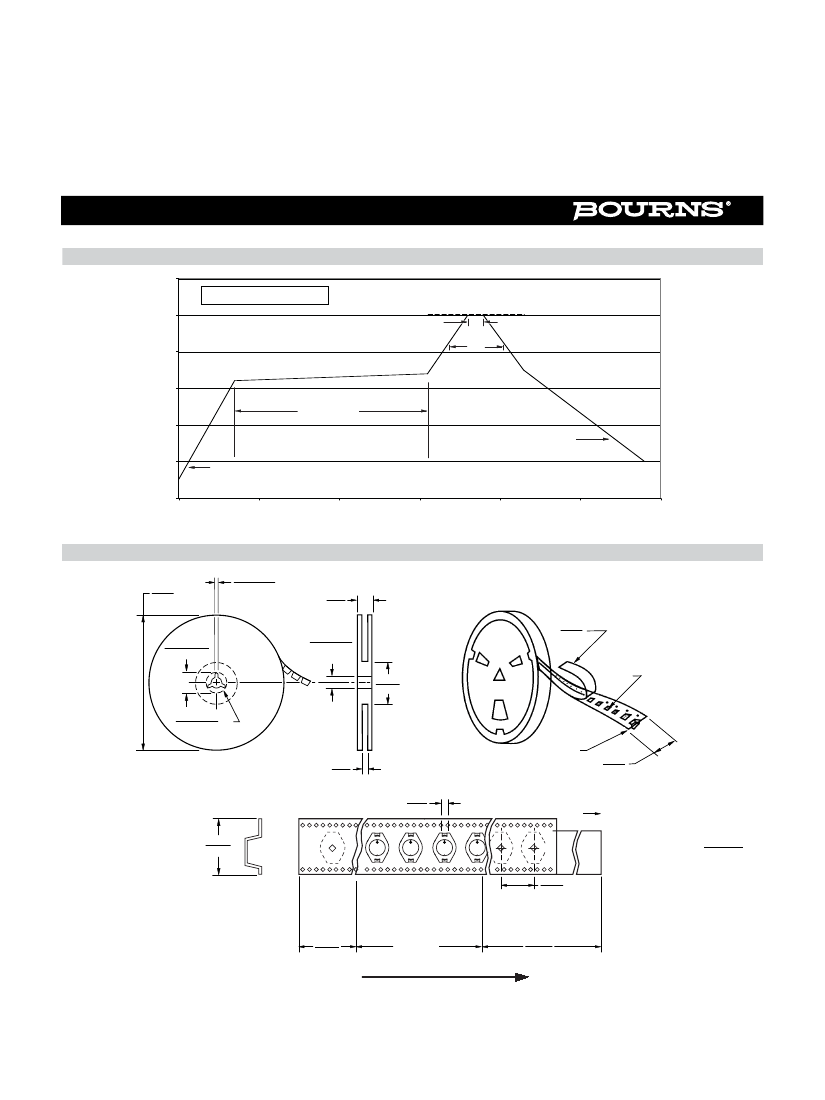

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

DIMENSIONS:

(INCHES)

PM5022-101M-RC Related Products

	PM5022-101M-RC	PM5022-330M-RC	PM5022-102M-RC	PM5022-470M-RC	PM5022-220M-RC	PM5022-331M-RC	PM5022-471M-RC	PM5022-100M-RC
Description	fixed inductors 100uh 20%	fixed inductors 33uh 20%	fixed inductors 1.0mh 20%	fixed inductors 47uh 20%	fixed inductors 22uh 20%	fixed inductors 330uh 20%	fixed inductors 470uh 20%	fixed inductors 10uh 20%
Manufacture	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
Product Category	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors	Fixed Inductors
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Inductance	100 uH	33 uH	1000 uH	47 uH	22 uH	330 uH	470 uH	10 uH
Tolerance	20 %	20 %	20 %	20 %	20 %	20 %	20 %	20 %
Maximum DC Curre	3 A	5.5 A	1 A	4.5 A	7 A	1.9 A	1.4 A	10 A
Maximum DC Resistance	190 mOhms	66 mOhms	1.8 Ohms	87 mOhms	47 mOhms	560 mOhms	850 mOhms	32 mOhms
Operating Temperature Range	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C	- 40 C to + 125 C
Self Resonant Frequency	7 MHz	11 MHz	2 MHz	9 MHz	13 MHz	3.5 MHz	3 MHz	25 MHz
Q Minimum	25	24	10	22	22	18	15	22
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Case Length	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm	18.6 mm
Case Width	15.3 mm	15.3 mm	15.3 mm	15.3 mm	15.3 mm	15.3 mm	15.3 mm	15.3 mm
Case Heigh	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm	7.1 mm
Core Material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Produc	Power Inductors	Power Inductors	Power Inductors	Power Inductors	Power Inductors	Power Inductors	Power Inductors	Power Inductors
Factory Pack Quantity	250	250	250	250	250	250	250	250
Test Frequency	0.796 MHz	2.52 MHz	0.252 MHz	2.52 MHz	2.52 MHz	0.796 MHz	0.796 MHz	2.52 MHz
Type	SMD Power Induc	SMD Power Induc	SMD Power Induc	SMD Power Induc	SMD Power Induc	SMD Power Induc	SMD Power Induc	SMD Power Induc
