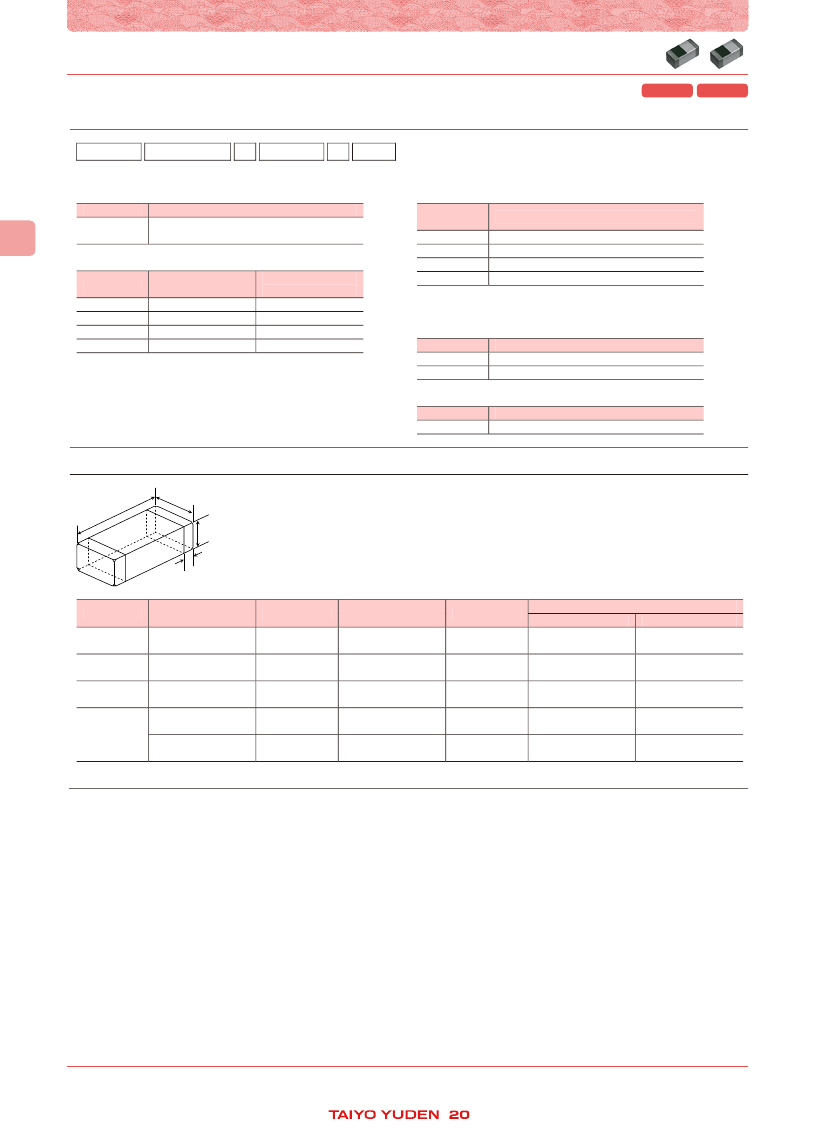

MULTILAYER CHIP INDUCTORS FOR HIGH FREQUENCY APPLICATIONS(HK SERIES)
■PARTS
NUMBER
MULTILAYER CHIP INDUCTORS FOR HIGH FREQUENCY APPLICATIONS（HK SERIES）
WAVE＊
WAVE*
REFLOW
REFLOW
*Except for HK0603, HK1005
* Operating Temp.：-55½+125℃（HK1608/2125：-40½+85℃）
＊Except for HK0603, HK1005
H
K △
①
0
6
②
0
3
△
1
0 N
③
J － T
④
⑤
△＝Blank space
①Series name
Code
HK△
Series name
Multilayer chip inductor for high frequency
applications
②Dimensions（L×W）
Code
0603
1005
1608
2125
Type（inch）
0603（0201）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
0.6×0.3
1.0×0.5
1.6×0.8
2.0×1.2
③Nominal inductance
Code
（example）
3N9
10N
R10
R12
※R＝Decimal point
※N＝0.0（nH type）
④Inductance tolerance
Code
J
S
⑤Packaging
Code
－T
Nominal inductance［nH½
3.9
10.0
100
120
INDUCTORS INDUCTORS FOR HIGH FREQUENCY APPLICATIONS
／
84
Inductance tolerance
±5％
±0.3nH
Packaging
Taping
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
W
L
T
e
Type
HK 0603
（0201）
HK 1005
（0402）
HK 1608
（0603）
HK 2125
（0805）
L
0.6±0.03
（0.024±0.001）
1.0±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
1.25±0.2
（0.049±0.008）
T
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
1.0＋0.2/－0.3
（0.039＋0.008/－0.012）
e
0.15±0.05
（0.006±0.002）
0.25±0.10
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
0.5±0.3
（0.020±0.012）
Standard quantity［pcs½
Paper tape
Embossed tape
15000
10000
4000
－
－
－
－
－
4000
3000
Unit：mm（inch）
i_mlci_HK_e-E05R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
7
■PARTS
NUMBER
●HK
0603
Self-resonant
DC Resistance
LQ Measuring Q（Typical）frequency［MH½½
frequency ［MH½½
［Ω½
frequency
［MHz½
（typ.） （max.） （typ.）
100 300 500 800 1000 （min.）
HK 0603 1N0[]-T
RoHS
1.0
±0.3nH
4
100
6
12 17 22
27
10000 > 13000 0.11 0.088
HK 0603 1N2[]-T
RoHS
1.2
±0.3nH
4
100
6
12 16 21
25
10000 > 13000 0.12 0.089
HK 0603 1N5[]-T
RoHS
1.5
±0.3nH
4
100
6
12 15 20
23
10000 > 13000 0.13
0.11
HK 0603 1N8[]-T
RoHS
1.8
±0.3nH
4
100
6
12 15 20
23
10000 > 13000 0.16
0.12
HK 0603 2N0[]-T
RoHS
2.0
±0.3nH
4
100
6
12 15 20
22
10000 > 13000 0.17
0.13
HK 0603 2N2[]-T
RoHS
2.2
±0.3nH
4
100
6
12 15 20
22
8800
12500 0.19
0.14
HK 0603 2N4[]-T
RoHS
2.4
±0.3nH
4
100
6
12 15 20
22
8300
11700 0.20
0.15
HK 0603 2N7[]-T
RoHS
2.7
±0.3nH
5
100
7
12 15 20
22
7700
11000 0.21
0.16
HK 0603 3N0[]-T
RoHS
3.0
±0.3nH
5
100
7
12 15 20
22
7200
11000 0.22
0.18
HK 0603 3N3[]-T
RoHS
3.3
±0.3nH
5
100
7
12 15 20
22
6700
9600
0.23
0.19
HK 0603 3N6[]-T
RoHS
3.6
±0.3nH
5
100
7
12 15 20
22
6400
9100
0.25
0.20
HK 0603 3N9[]-T
RoHS
3.9
±0.3nH
5
100
7
12 15 20
22
6000
8600
0.27
0.20
HK 0603 4N3[]-T
RoHS
4.3
±0.3nH
5
100
7
12 15 19
21
5700
8100
0.30
0.22
HK 0603 4N7[]-T
RoHS
4.7
±0.3nH
5
100
7
12 15 19
21
5300
7600
0.30
0.24
HK 0603 5N1[]-T
RoHS
5.1
±0.3nH
5
100
7
12 15 19
21
5000
7100
0.33
0.26
HK 0603 5N6[]-T
RoHS
5.6
±0.3nH
5
100
7
12 15 19
21
4600
6600
0.36
0.27
HK 0603 6N2[]-T
RoHS
6.2
±0.3nH
5
100
7
11 14 18
20
4200
6100
0.38
0.29
HK 0603 6N8[]-T
RoHS
6.8
±5％
5
100
7
11 14 18
20
3900
5600
0.39
0.30
HK 0603 7N5[]-T
RoHS
7.5
±5％
5
100
7
11 14 18
19
3600
5300
0.41
0.34
HK 0603 8N2[]-T
RoHS
8.2
±5％
5
100
7
11 14 18
19
3400
4900
0.45
0.34
HK 0603 9N1[]-T
RoHS
9.1
±5％
5
100
7
11 14 17
18
3200
4600
0.48
0.40
HK 0603 10N[]-T
RoHS
10
±5％
5
100
7
11 14 17
18
2900
4200
0.51
0.41
HK 0603 12N[]-T
RoHS
12
±5％
5
100
7
11 14 17
18
2700
3800
0.68
0.45
HK 0603 15N[]-T
RoHS
15
±5％
5
100
7
11 13 16
17
2300
3300
0.71
0.50
HK 0603 18N[]-T
RoHS
18
±5％
5
100
7
11 13 16
17
2100
3000
0.81
0.57
HK 0603 22N[]-T
RoHS
22
±5％
5
100
7
11 13 15
16
1800
2600
1.00
0.71
HK 0603 27N[]-T
RoHS
27
±5％
4
100
6
10 12 14
15
1800
2600
1.35
1.11
HK 0603 33N[]-T
RoHS
33
±5％
4
100
6
10 12 14
14
1700
2400
1.47
1.33
HK 0603 39N[]-T
RoHS
39
±5％
4
100
6
10 12 13
12
1500
2100
1.72
1.51
HK 0603 47N[]-T
RoHS
47
±5％
4
100
6
10 11 12
11
1300
1800
1.90
1.74
HK 0603 56N[]-T
RoHS
56
±5％
4
100
6
10 11 11
10
1100
1600
2.27
1.85
HK 0603 68N[]-T
RoHS
68
±5％
4
100
6
10 11 11
10
1100
1500
2.66
2.30
HK 0603 82N[]-T
RoHS
82
±5％
4
100
6
10 11 10
8
1000
1400
3.37
2.60
HK 0603 R10[]-T
RoHS
100
±5％
4
100
6
9
10
9
6
900
1200
3.74
3.00
※ [] mark indicates the Inductance tolerance code. Please refer for the inductance tolerance except the above.
Parts number
EHS
Nominal
inductance
［nH½
Inductance
tolerance ※）
Q
（min.）
●HK
1005
Self-resonant
DC Resistance Rated current
LQ Measuring Q（Typical）frequency［MH½½ frequency ［MH½½
［Ω½
［mA½（max.）
frequency
Parts number
EHS
-55½ -55½
［MHz½
（typ.） （max.） （typ.）
100 300 500 800 1000 （min.）
+125℃ +85℃
HK 1005 1N0[]-T
RoHS
1.0
±0.3nH
8
100
11 25 34 43
52
10000 > 13000 0.08
0.04
300
900
HK 1005 1N2[]-T
RoHS
1.2
±0.3nH
8
100
11 25 35 44
52
10000 > 13000 0.09
0.04
300
900
HK 1005 1N5[]-T
RoHS
1.5
±0.3nH
8
100
11 24 33 44
48
6000
> 13000 0.10
0.05
300
850
HK 1005 1N8[]-T
RoHS
1.8
±0.3nH
8
100
11 23 30 36
42
6000
11000 0.12
0.06
300
700
HK 1005 2N0[]-T
RoHS
2.0
±0.3nH
8
100
11 21 27 34
39
6000
10500 0.12
0.06
300
700
HK 1005 2N2[]-T
RoHS
2.2
±0.3nH
8
100
10 18 25 31
36
6000
10000 0.13
0.07
300
700
HK 1005 2N4[]-T
RoHS
2.4
±0.3nH
8
100
10 18 24 31
35
6000
9500
0.13
0.07
300
650
HK 1005 2N7[]-T
RoHS
2.7
±0.3nH
8
100
10 18 24 31
34
6000
9000
0.13
0.08
300
650
HK 1005 3N0[]-T
RoHS
3.0
±0.3nH
8
100
10 18 24 31
35
6000
8500
0.16
0.09
300
600
HK 1005 3N3[]-T
RoHS
3.3
±0.3nH
8
100
10 18 24 31
35
6000
8000
0.16
0.10
300
550
HK 1005 3N6[]-T
RoHS
3.6
±0.3nH
8
100
10 18 24 31
35
5000
7500
0.20
0.11
300
500
HK 1005 3N9[]-T
RoHS
3.9
±0.3nH
8
100
10 18 24 31
35
4000
7000
0.21
0.12
300
500
HK 1005 4N3[]-T
RoHS
4.3
±0.3nH
8
100
10 18 24 31
35
4000
6500
0.20
0.12
300
500
HK 1005 4N7[]-T
RoHS
4.7
±0.3nH
8
100
10 18 24 31
34
4000
6000
0.21
0.12
300
500
HK 1005 5N1[]-T
RoHS
5.1
±0.3nH
8
100
10 18 24 31
34
4000
5800
0.21
0.13
300
450
HK 1005 5N6[]-T
RoHS
5.6
±0.3nH
8
100
10 18 24 30
35
4000
5700
0.23
0.15
300
430
HK 1005 6N2[]-T
RoHS
6.2
±0.3nH
8
100
10 18 24 30
34
3900
5600
0.25
0.16
300
430
HK 1005 6N8[]-T
RoHS
6.8
±5％
8
100
10 18 23 29
32
3900
5500
0.25
0.17
300
430
HK 1005 7N5[]-T
RoHS
7.5
±5％
8
100
10 18 23 29
32
3700
5200
0.25
0.18
300
400
HK 1005 8N2[]-T
RoHS
8.2
±5％
8
100
10 18 23 29
31
3600
4900
0.28
0.21
300
380
HK 1005 9N1[]-T
RoHS
9.1
±5％
8
100
10 18 23 29
31
3400
4500
0.30
0.22
300
360
HK 1005 10N[]-T
RoHS
10
±5％
8
100
10 18 23 29
31
3200
4300
0.31
0.23
300
340
HK 1005 12N[]-T
RoHS
12
±5％
8
100
11 18 23 29
31
2700
3900
0.40
0.28
300
330
HK 1005 15N[]-T
RoHS
15
±5％
8
100
11 18 23 28
30
2300
3500
0.46
0.31
300
320
HK 1005 18N[]-T
RoHS
18
±5％
8
100
11 18 23 28
30
2100
3100
0.55
0.35
300
310
HK 1005 22N[]-T
RoHS
22
±5％
8
100
11 17 22 26
27
1900
2800
0.60
0.42
300
300
HK 1005 27N[]-T
RoHS
27
±5％
8
100
11 17 21 25
26
1600
2300
0.70
0.47
300
300
HK 1005 33N[]-T
RoHS
33
±5％
8
100
11 16 20 23
22
1300
1900
0.80
0.50
200
250
HK 1005 39N[]-T
RoHS
39
±5％
8
100
11 16 20 23
21
1200
1700
0.90
0.52
200
250
HK 1005 47N[]-T
RoHS
47
±5％
8
100
11 16 19 21
18
1000
1500
1.00
0.58
200
230
HK 1005 56N[]-T
RoHS
56
±5％
8
100
11 16 18 18
16
750
1300
1.00
0.61
200
220
HK 1005 68N[]-T
RoHS
68
±5％
8
100
11 15 17 18
11
750
1200
1.20
0.70
180
200
HK 1005 82N[]-T
RoHS
82
±5％
8
100
10 14 16 15
6
600
1100
1.30
0.81
150
200
HK 1005 R10[]-T
RoHS
100
±5％
8
100
10 14 14 12
－
600
1000
1.50
0.94
150
200
HK 1005 R12[]-T
RoHS
120
±5％
8
100
10 12 10 －
－
600
800
1.60
1.10
150
200
HK 1005 R15[]-T
RoHS
150
±5％
8
100
12 17 17 －
－
550
920
3.20
2.57
140
200
HK 1005 R18[]-T
RoHS
180
±5％
8
100
12 16 － －
－
500
810
3.70
2.97
130
200
HK 1005 R22[]-T
RoHS
220
±5％
8
100
12 16 － －
－
450
700
4.20
3.29
120
200
HK 1005 R27[]-T
RoHS
270
±5％
8
100
12 14 － －
－
400
600
4.80
3.92
110
200
※ [] mark indicates the Inductance tolerance code. Please refer for the inductance tolerance except the above.
Nominal
inductance
［nH½
Inductance
tolerance ※）
Q
（min.）
Thickness
［mm½
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
0.50
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Rated current
［mA½（max.）
470
450
430
390
380
360
350
340
330
320
310
300
280
280
270
260
250
250
240
230
220
220
190
180
170
150
120
110
100
100
80
80
70
60
Thickness
［mm½
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
±0.03
INDUCTORS INDUCTORS FOR HIGH FREQUENCY APPLICATIONS
／
i_mlci_HK_e-E05R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
7
85
■PARTS
NUMBER
●HK
1608
Self-resonant
DC Resistance
LQ Measuring Q（Typical）frequency［MH½½
frequency ［MH½½
［Ω½
frequency
［MHz½
（typ.） （max.） （typ.）
100 300 500 800 1000 （min.）
HK 1608 1N0[]-T
RoHS
1.0
±0.3nH
8
100
14 30 40 70
90
10000 > 13000 0.05 0.015
HK 1608 1N2[]-T
RoHS
1.2
±0.3nH
8
100
14 30 40 70
90
10000 > 13000 0.05 0.015
HK 1608 1N5[]-T
RoHS
1.5
±0.3nH
8
100
14 26 34 47
50
6000
> 13000 0.10
0.03
HK 1608 1N8[]-T
RoHS
1.8
±0.3nH
8
100
10 18 24 30
34
6000
> 13000 0.10
0.06
HK 1608 2N2[]-T
RoHS
2.2
±0.3nH
8
100
12 22 29 37
40
6000
12000 0.10
0.06
HK 1608 2N7[]-T
RoHS
2.7
±0.3nH
10
100
13 24 32 41
45
6000
11000 0.10
0.06
HK 1608 3N3[]-T
RoHS
3.3
±0.3nH
10
100
14 25 33 42
47
6000
9000
0.12
0.06
HK 1608 3N9[]-T
RoHS
3.9
±0.3nH
10
100
13 25 33 42
46
6000
8000
0.14
0.07
HK 1608 4N7[]-T
RoHS
4.7
±0.3nH
10
100
13 25 33 42
47
4000
6500
0.16
0.08
HK 1608 5N6[]-T
RoHS
5.6
±0.3nH
10
100
14 25 33 42
46
4000
5800
0.18
0.09
HK 1608 6N8[]-T
RoHS
6.8
±5％
10
100
14 25 33 43
47
4000
5600
0.22
0.11
HK 1608 8N2[]-T
RoHS
8.2
±5％
10
100
14 26 34 44
48
3500
5200
0.24
0.13
HK 1608 10N[]-T
RoHS
10
±5％
12
100
14 26 34 43
47
3400
4600
0.26
0.16
HK 1608 12N[]-T
RoHS
12
±5％
12
100
14 27 35 45
49
2600
4000
0.28
0.17
HK 1608 15N[]-T
RoHS
15
±5％
12
100
15 28 37 46
51
2300
3400
0.32
0.20
HK 1608 18N[]-T
RoHS
18
±5％
12
100
15 27 36 44
48
2000
3000
0.35
0.21
HK 1608 22N[]-T
RoHS
22
±5％
12
100
16 28 36 44
47
1600
2900
0.40
0.25
HK 1608 27N[]-T
RoHS
27
±5％
12
100
16 29 37 45
46
1400
2200
0.45
0.28
HK 1608 33N[]-T
RoHS
33
±5％
12
100
17 31 40 46
47
1200
1800
0.55
0.35
HK 1608 39N[]-T
RoHS
39
±5％
12
100
18 31 39 44
44
1100
1600
0.60
0.38
HK 1608 47N[]-T
RoHS
47
±5％
12
100
17 28 34 35
34
900
1600
0.70
0.45
HK 1608 56N[]-T
RoHS
56
±5％
12
100
17 28 34 34
31
900
1400
0.75
0.50
HK 1608 68N[]-T
RoHS
68
±5％
12
100
18 29 34 30
22
700
1200
0.85
0.55
HK 1608 82N[]-T
RoHS
82
±5％
12
100
18 28 33 27
－
600
1100
0.95
0.60
HK 1608 R10[]-T
RoHS
100
±5％
12
100
18 27 28 16
－
600
1000
1.00
0.65
HK 1608 R12[]-T
RoHS
120
±5％
8
50
16 24 23 －
－
500
800
1.20
0.68
HK 1608 R15[]-T
RoHS
150
±5％
8
50
13 19 16 －
－
500
800
1.20
0.73
HK 1608 R18[]-T
RoHS
180
±5％
8
50
13 18 12 －
－
400
700
1.30
0.85
HK 1608 R22[]-T
RoHS
220
±5％
8
50
12 16 － －
－
400
600
1.50
0.95
HK 1608 R27[]-T
RoHS
270
±5％
8
50
14 15 － －
－
400
550
1.90
1.34
HK 1608 R33[]-T
RoHS
330
±5％
8
50
14 － － －
－
350
480
2.10
1.53
HK 1608 R39[]-T
RoHS
390
±5％
8
50
13 － － －
－
350
410
2.30
1.72
HK 1608 R47[]-T
RoHS
470
±5％
8
50
13 － － －
－
300
360
2.60
2.04
※ [] mark indicates the Inductance tolerance code. Please refer for the inductance tolerance except the above.
Parts number
EHS
Nominal
inductance
［nH½
Inductance
tolerance ※）
Q
（min.）
●HK
2125
Self-resonant
DC Resistance
LQ Measuring Q（Typical）frequency［MH½½
frequency ［MH½½
［Ω½
frequency
［MHz½
（typ.） （max.） （typ.）
100 300 500 800 1000 （min.）
HK 2125 1N5S-T
RoHS
1.5
±0.3nH
10
100
21 39 57 61
68
4000
> 6000
0.10
0.02
HK 2125 1N8S-T
RoHS
1.8
±0.3nH
10
100
18 35 49 55
59
4000
> 6000
0.10
0.02
HK 2125 2N2S-T
RoHS
2.2
±0.3nH
10
100
18 33 46 53
58
4000
> 6000
0.10
0.03
HK 2125 2N7S-T
RoHS
2.7
±0.3nH
12
100
19 36 50 56
60
4000
> 6000
0.10
0.03
HK 2125 3N3S-T
RoHS
3.3
±0.3nH
12
100
16 29 40 47
51
4000
> 6000
0.13
0.04
HK 2125 3N9S-T
RoHS
3.9
±0.3nH
12
100
18 33 46 54
60
4000
> 6000
0.15
0.05
HK 2125 4N7S-T
RoHS
4.7
±0.3nH
12
100
18 34 46 55
60
3500
> 6000
0.20
0.05
HK 2125 5N6S-T
RoHS
5.6
±0.3nH
15
100
20 38 51 60
66
3200
5400
0.23
0.05
HK 2125 6N8J-T
RoHS
6.8
±5％
15
100
20 39 52 63
69
2800
4200
0.25
0.06
HK 2125 8N2J-T
RoHS
8.2
±5％
15
100
21 40 54 63
70
2400
3700
0.28
0.07
HK 2125 10NJ-T
RoHS
10
±5％
15
100
20 38 51 60
67
2100
3100
0.30
0.09
HK 2125 12NJ-T
RoHS
12
±5％
15
100
21 39 52 60
67
1900
3000
0.35
0.10
HK 2125 15NJ-T
RoHS
15
±5％
15
100
22 42 55 63
72
1600
2600
0.40
0.11
HK 2125 18NJ-T
RoHS
18
±5％
15
100
24 44 57 63
72
1500
2300
0.45
0.13
HK 2125 22NJ-T
RoHS
22
±5％
18
100
23 43 55 60
69
1400
2100
0.50
0.16
HK 2125 27NJ-T
RoHS
27
±5％
18
100
23 42 53 58
68
1300
1800
0.55
0.17
HK 2125 33NJ-T
RoHS
33
±5％
18
100
24 43 54 55
60
1200
1700
0.60
0.19
HK 2125 39NJ-T
RoHS
39
±5％
18
100
23 41 50 47
47
1000
1400
0.65
0.25
HK 2125 47NJ-T
RoHS
47
±5％
18
100
23 41 49 43
41
900
1200
0.70
0.26
HK 2125 56NJ-T
RoHS
56
±5％
18
100
23 42 48 39
38
800
1100
0.75
0.28
HK 2125 68NJ-T
RoHS
68
±5％
18
100
25 42 45 30
－
700
900
0.80
0.33
HK 2125 82NJ-T
RoHS
82
±5％
18
100
24 41 41 －
－
600
800
0.90
0.37
HK 2125 R10J-T
RoHS
100
±5％
18
100
23 37 37 －
－
600
800
0.90
0.40
HK 2125 R12J-T
RoHS
120
±5％
13
50
22 33 29 －
－
500
700
0.95
0.43
HK 2125 R15J-T
RoHS
150
±5％
13
50
22 34 26 －
－
500
700
1.00
0.46
HK 2125 R18J-T
RoHS
180
±5％
13
50
23 34 20 －
－
400
600
1.10
0.50
HK 2125 R22J-T
RoHS
220
±5％
12
50
20 23 － －
－
350
550
1.20
0.75
HK 2125 R27J-T
RoHS
270
±5％
12
50
20 29 － －
－
300
480
1.30
0.85
HK 2125 R33J-T
RoHS
330
±5％
12
50
22 15 － －
－
250
400
1.40
0.90
HK 2125 R39J-T
RoHS
390
±5％
10
50
17 12 － －
－
250
400
1.30
0.85
HK 2125 R47J-T
RoHS
470
±5％
10
50
17 － － －
－
200
350
1.50
0.95
※ [] mark indicates the Inductance tolerance code. Please refer for the inductance tolerance except the above.
Parts number
EHS
Nominal
inductance
［nH½
Inductance
tolerance
Q
（min.）
Rated current
［mA½（max.）
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Thickness
［mm½
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
0.85
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
±0.2
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
＋0.2/－0.3
Rated current
［mA½（max.）
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
150
150
150
150
Thickness
［mm½
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
±0.15
INDUCTORS INDUCTORS FOR HIGH FREQUENCY APPLICATIONS
／
86
i_mlci_HK_e-E05R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
7
Recruitment
京公网安备 11010802033920号
EEWORLD
