10125D datasheet, PDF - EEWORLD Datasheet

10125D: DescriptionECL to TTL Translator, 4 Func, True Output, ECL, PDSO16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size199KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

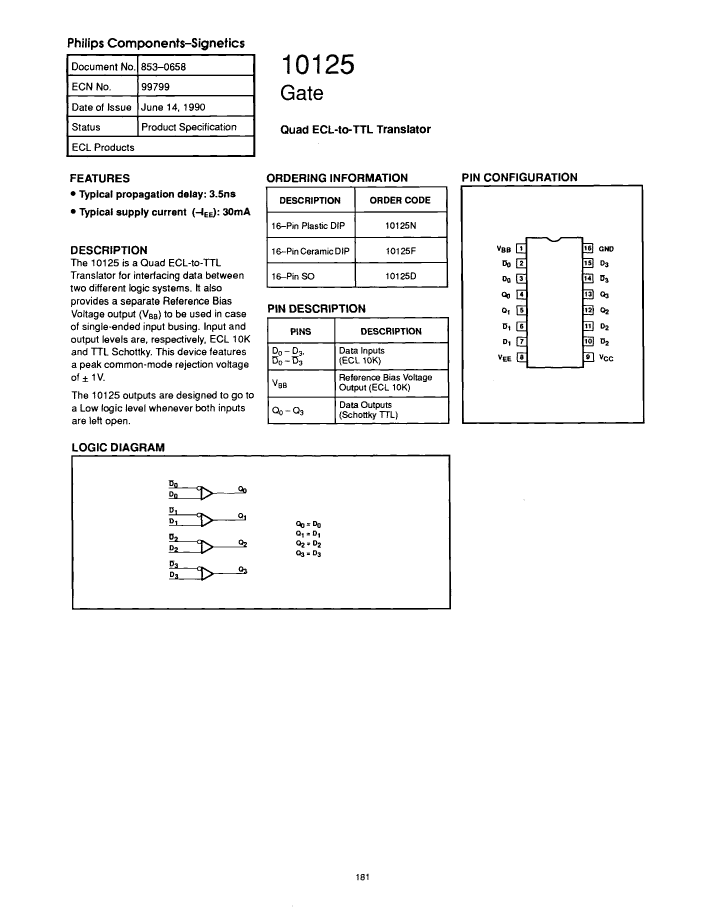

10125D Overview

ECL to TTL Translator, 4 Func, True Output, ECL, PDSO16

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99

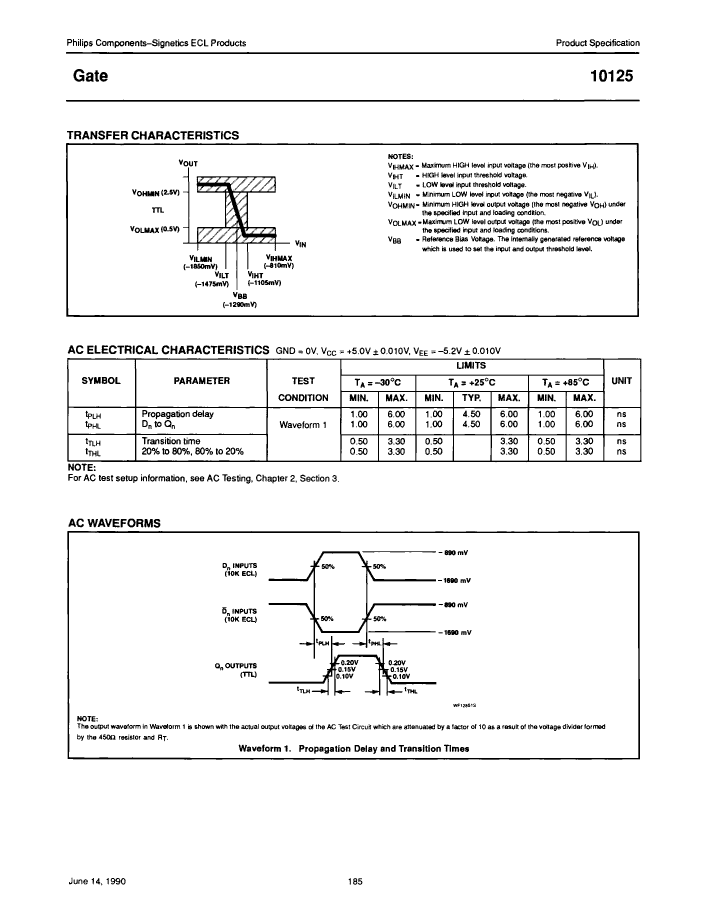

maximum delay	6 ns
Interface integrated circuit type	ECL TO TTL TRANSLATOR
JESD-30 code	R-PDSO-G16
Number of digits	1
Number of functions	4
Number of terminals	16

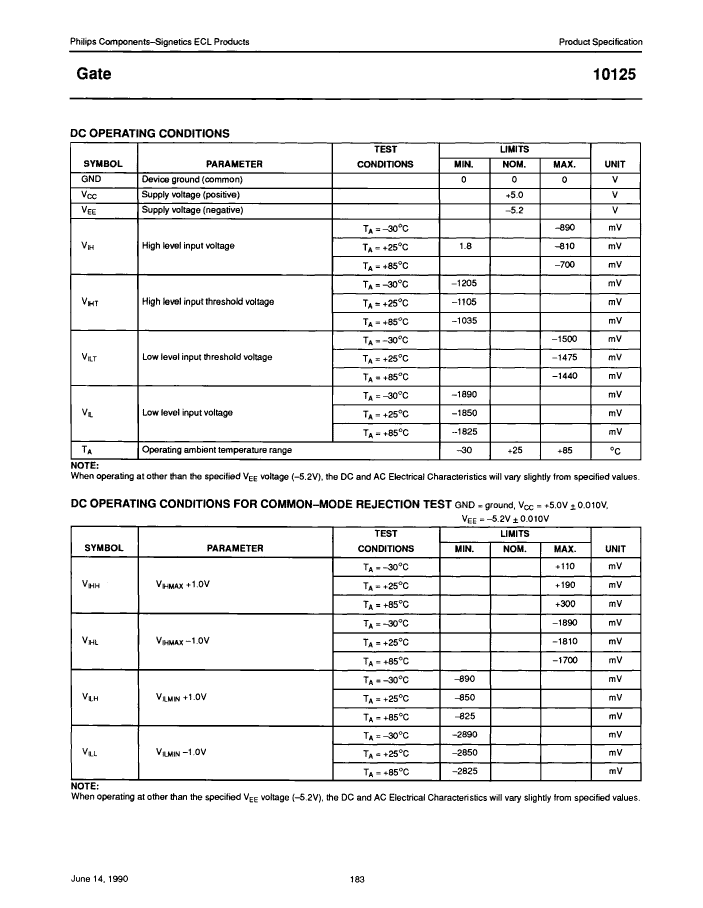

Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C

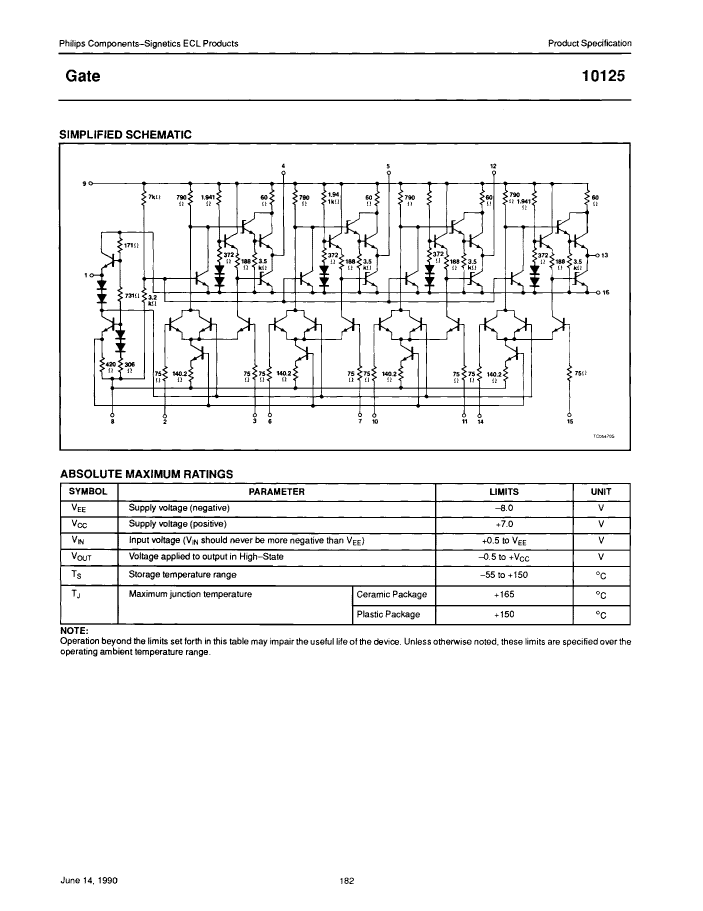

Output characteristics	TOTEM-POLE
Output latch or register	NONE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified

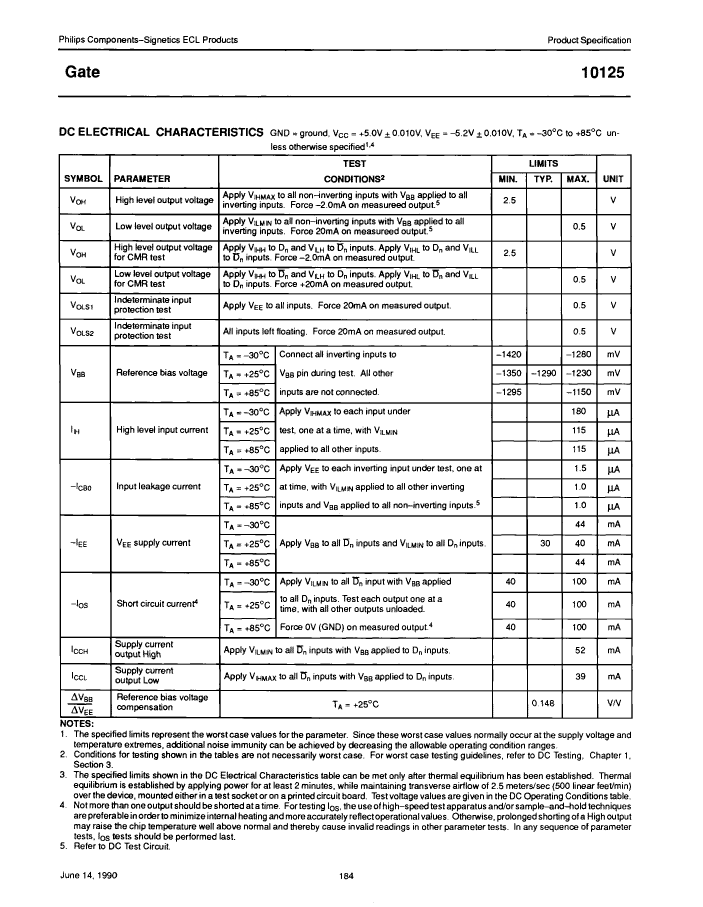

Maximum supply voltage	5.21 V
Minimum supply voltage	4.99 V
Nominal supply voltage	5 V
Supply voltage 1-max	-5.21 V
Mains voltage 1-minute	-5.19 V
Supply voltage1-Nom	-5.2 V
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	10125D	10125F	10125D-T
Description	ECL to TTL Translator, 4 Func, True Output, ECL, PDSO16	ECL to TTL Translator, 4 Func, True Output, ECL, CDIP16	ECL to TTL Translator, 4 Func, True Output, ECL, PDSO16
Reach Compliance Code	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99
maximum delay	6 ns	6 ns	6 ns
Interface integrated circuit type	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR	ECL TO TTL TRANSLATOR
JESD-30 code	R-PDSO-G16	R-CDIP-T16	R-PDSO-G16
Number of digits	1	1	1
Number of functions	4	4	4
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output latch or register	NONE	NONE	NONE
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.21 V	5.21 V	5.21 V
Minimum supply voltage	4.99 V	4.99 V	4.99 V
Nominal supply voltage	5 V	5 V	5 V
Supply voltage 1-max	-5.21 V	-5.21 V	-5.21 V
Mains voltage 1-minute	-5.19 V	-5.19 V	-5.19 V
Supply voltage1-Nom	-5.2 V	-5.2 V	-5.2 V
surface mount	YES	NO	YES
technology	ECL	ECL	ECL
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Maker	YAGEO	YAGEO	-
